The Testo 176 T1 single channel temperature recorder is suitable for high-precision temperature monitoring. The built-in temperature sensor can record the indoor air temperature stably for a long time (such as the refrigeration room). The built-in sensor is a Pt100 temperature sensor, which means that the accuracy of all measured and recorded temperature values is up to 0.2 ° C.

   The electronic data recorder is equipped with a large capacity memory, which can store up to 2 million sets of data. It is suitable for long-term temperature monitoring without frequent data reading. The battery life of up to 8 years also guarantees long-term continuous temperature monitoring and recording.

   Technical features and practical functions

   The testo 176 T1 electronic temperature recorder has a solid metal shell, which is ideal for temperature monitoring in industrial environments. It can effectively prevent damage to the instrument caused by mechanical impact, and even can be used in extremely harsh environments. The protection grade of the data recorder reaches IP 68, which is completely waterproof and dustproof.

   All measured data are safely and effectively stored in the memory of the testo 176 T1 temperature recorder, and will not be lost even when the battery is used up or replaced.

   The electronic temperature recorder is ideal for the food industry, and has been tested by the ATP detection station of T ｜ V S ü d to meet the HACCP and DIN EN 12830 standards.

   1.Professional software with Excel export function for recorder programming and data analysis

   2.Pt100 temperature sensor ensures high-precision temperature measurement

   3.Temperature measurement range: - 35 ° C to+70 ° C

   4.Comply with HACCP and EN 12830 standards, with IP 68

   5.Automatically backup measurement data when the battery is discharged or replaced

   6.Display when the limit is exceeded

   The testo 176 T1 temperature recorder, with built-in Pt100 high-precision temperature sensor, is suitable for long-term high-precision temperature monitoring and recording. Equipped with a solid metal shell, it is ideal for industrial links with harsh environments.

   Application field of temperature data recorder

   Monitor and record storage temperature

   Monitoring the temperature of food frozen storage

   Monitor and record the cold chain temperature

            Pt100

       measuring range

   -35 ~ +70 °C

       measurement accuracy

   ±0.2 °C (-35 ~ +70 °C) ±1 Digit

       resolving power

   0.01 °C

       Technical parameter

       weight

   390 g

       size

   103 x 63 x 33 mm

       Operating temperature

   -35 ~ +70 °C

       Housing

   High strength plastics

       Degree of protection

   IP68, 1 meter

       passageway

   1 Built in

       Product color

   silver

       standard

   EU Directive 2014/30/EU; 2011/65/EU; EN 12830

       Measuring frequency

   1s~24h; 2 s to 24 h (online measurement)

       Battery type

   TL-5903

       Battery life

   8 years (measurement period is 15 minutes,+25 ° C)

       data transmission

   mini usb, SD card slot

       Storage capacity

   2000000 measurements

       Storage temperature

   -40 ~ +85 °C

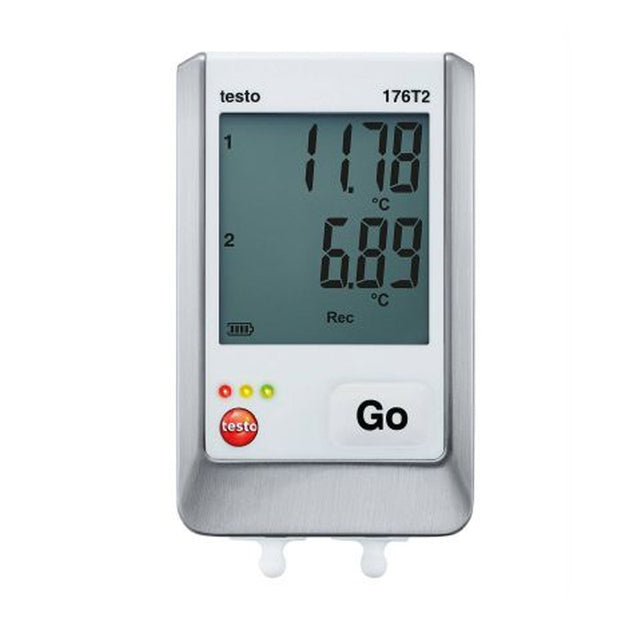

   Testo 176 T2-  Dual channel temperature monitoring temperature recorder

 Product Description:

The testo 176 T2 temperature recorder is especially suitable for dual channel temperature monitoring. Two Pt100 temperature probes can be connected at the same time. Please select the probe type from the optional list provided by us according to your needs. Therefore, the temperature values of two different measuring points can be monitored at the same time, and if necessary, the temperature difference of two measuring points can be viewed directly through the display screen of the recorder.

The temperature data recorder can conduct long-term temperature monitoring (no need to read data frequently). The testo 176 T2 is equipped with a large capacity memory, which can store up to 2 million groups of data, and its battery life can be up to 8 years.

Technical features and practical functions

The display screen of the data recorder can display a large amount of important data, including the current measured value, the set limit value, the point of exceeding the limit value, the maximum/minimum value and the remaining battery power. Therefore, it can be read directly without connecting to a computer.

Data security is the key: you don't have to worry about the loss of data stored in the electronic recorder. Data will not be lost even when the battery is used up or replaced.

The temperature data recorder is ideal for the food industry: it fully complies with HACCP and EN 12830 standards (tested by the ATP detection station of T ｜ V S ü d). At the same time, the protection grade reaches IP 65, which is waterproof and dust-proof, and it does not need to be removed or taken out even when cleaning in the measuring environment.

1. Professional software with Excel export function for recorder programming and data analysis

2. Pt100 temperature probe ensures high-precision temperature measurement: 2 external temperature probes can be connected

3. Temperature measurement range: - 100 ° C to+400 ° C

4. Comply with HACCP and EN 12,830 standards, with IP 65

5. Automatically backup measurement data when the battery is depleted or replaced

6. Corresponding display when the limit is exceeded

With its two external Pt100 probe inputs, the temperature recorder testo 176 T2 can simultaneously record the temperature of two measuring points. Therefore, parallel temperature monitoring can be carried out at different locations. The data recorder has a large display screen, which can display the measured value optimally.

Application field of temperature data recorder

Monitor and record the temperature of storage facilities

Monitor the temperature of the freezing area, such as the food freezer

Monitor and record the temperature of the cold storage area or cold storage, such as the drug refrigeration room

As a standard instrument for calibrating other temperature recorders

            Pt100

       measuring range

   -100 ~ +400 °C

       measurement accuracy

   ±0.2 °C (-100 ~ +200 °C) ±1 Digit±0.3 °C (+200.1 ~ +400 °C) ±1 Digit

       resolving power

   0.01 °C

       Technical parameter

       weight

   220 g

       size

   103 x 63 x 33 mm

       Operating temperature

   -35 ~ +70 °C

       Housing

   High strength plastics

       Degree of protection

   IP65

       passageway

   2 External

       Connectable probe

   2 x Pt100 temperature probe

       Product colour

   white

       standard

   EU Directive 2014/30/EU; 2011/65/EU; DIN EN 12830

       Measurement scale

   1s~24h; 2 s to 24 h (online measurement)

       Battery type

   TL-5903

       Battery life

   8 years (measurement period is 15 minutes,+25 ° C)

       data transmission

   mini usb, SD card slot

       Storage capacity

   2000000 measurements

       Storage temperature

   -40 ~ +85 °C

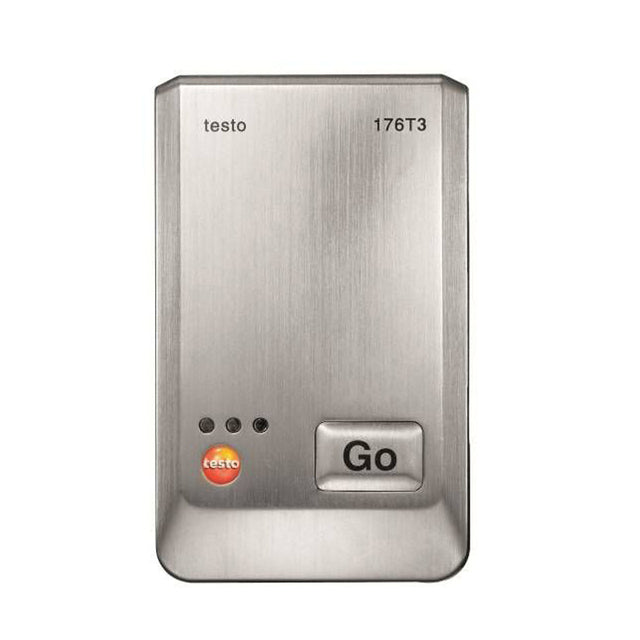

   Testo 176 T3-  Electronic temperature recorder for simultaneous measurement of up to four channels

   Product Description:

The testo 176 T3 electronic temperature recorder can realize simultaneous measurement of up to four channels, and can simultaneously connect four external thermocouple temperature probes (K, T or J type thermocouples). It is ideal for applications such as measuring the inlet/return water temperature of radiators. When you order the temperature recorder, you can also select the thermocouple suitable for your application from the large number of thermocouple probes we provide.

The advantages of thermocouple temperature probe are fast response and wide range. For example, when you need to record low ambient temperature (- 195 ° C minimum) or high ambient temperature (+1000 ° C maximum), you can choose K-type thermocouple. The specific technical parameters depend on the type of probe you choose. It is applicable to ultra-low temperature and ultra-high temperature monitoring in industrial processes.

The electronic data recorder is equipped with a large capacity memory, which can store up to 2 million sets of data. It is suitable for long-term continuous temperature measurement without frequent data reading. The battery life of up to 8 years also guarantees long-term continuous temperature monitoring and recording.

Technical features and practical functions

The testo 176 T3 temperature recorder is equipped with a solid metal housing, which is ideal for industrial environment applications. At the same time, its protection grade reaches IP 65 to achieve dust-proof and waterproof. Therefore, it is also applicable to the environment prone to pollution and high dust. It is not necessary to remove or take out the temperature recorder when cleaning the measured environment.

When you use our data recorder, you can fully trust our data security. All stored measurement data will not be lost, even when the battery is used up or replaced (the customer can replace the battery by himself).

1. Professional software with Excel export function for recorder programming and data analysis

2. Measure and record the temperature values of 4 different places at the same time

3. Temperature measurement range: - 200 ° C to+1000 ° C

4. Suitable for industrial environment, with solid metal shell, IP 65

5. Automatically backup measurement data when the battery is depleted or replaced

6. Corresponding display when the limit is exceeded

The testo 176 T3 temperature data recorder is equipped with a solid metal housing, which is very suitable for temperature monitoring in industrial production. It is connected with 4 external thermocouples to realize simultaneous measurement of up to 4 channels.

Application field of temperature data recorder

Monitor and record the temperature of the frozen or low-temperature environment

Monitor and record the inlet/return water temperature of the heating system

Monitor and record the process temperature

Monitor and record the inlet/return water temperature of the floor heating system to confirm whether it works normally

            Type K (NiCr-Ni)

       measuring range

   -200 ~ +1000 °C

       measurement accuracy

   ± 1% of measured value (- 200~- 100.1 ° C) ± 1 Digit ± 0.3 ° C (- 100~+70 ° C) ± 1 Digit ± 0.5% of measured value (+70.1~+1000 ° C) ± 1 Digit

       resolving power

   0.1 °C

       Type T (Cu-CuNi)

       measuring range

   -200 ~ +400 °C

       measurement accuracy

   ± 1% of measured value (- 200~- 100.1 ° C) ± 1 Digit ± 0.3 ° C (- 100~+70 ° C) ± 1 Digit ± 0.5% of measured value (+70.1~+400 ° C) ± 1 Digit

       resolving power

   0.1 °C

       Type J (Fe-CuNi)

       measuring range

   -100 ~ +750 °C

       measurement accuracy

   ± 0.3 ° C (- 100~+70 ° C) ± 1 Digit ± 0.5% of measured value (+70.1~+750 ° C) ± 1 Digit

       resolving power

   0.1 °C

       Technical parameter

       weight

   430 g

       size

   103 x 63 x 33 mm

       Operating temperature

   -20 ~ +70 °C

       Housing

   High strength plastics

       Degree of protection

   IP65

       passageway

   4 External

       Connectable probe

   4 x thermocouple (type T, K and J)

       Product colour

   silver

       standard

   EU Directive 2014/30/EU; 2011/65/EU

       Measurement scale

   1s~24h; 2 s to 24 h (online measurement)

       Battery type

   TL-5903

       Battery life

   8 years (measurement period is 15 minutes,+25 ° C)

       data transmission

   mini usb, SD card slot

       Storage capacity

   2000000 measurements

       Storage temperature

   -40 ~ +85 °C

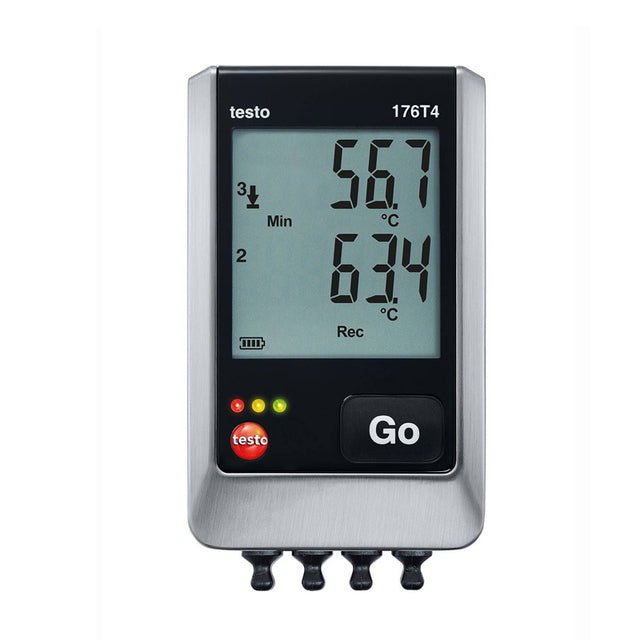

   Testo 176 T4-  The electronic temperature recorder with large capacity memory can measure the temperature of 4 different places at the same time

 Product Description:

The testo 176 T4 electronic temperature recorder can immediately tell you whether the current indoor temperature is within the expected limit. It can measure the temperature of 4 different places at the same time, with a large capacity memory, which can store up to 2,000,000 groups of data. These product features give you full freedom when to read the data in the recorder, without frequent reading.

To enable the temperature recorder, you need at least one temperature probe. We provide a variety of probe types for your choice, including K, T and J thermocouples, surface temperature probes, air temperature probes or penetration probes.

Relevant technical characteristics and advantages of on-site use

The data recorder can display a large number of important data, including the current reading, the set limit value, the point of exceeding the limit value, the maximum/minimum value and the remaining battery power. Because all these data are displayed on the screen, it can be read directly without starting the computer. In addition, it is equipped with large capacity memory and up to 8 years of battery life.

The testo 176 T4 electronic temperature recorder has a protection class of IP 65, so it is also suitable for dirty working environments. The standard lithium battery can be replaced by users.

Professional software with Excel export function for recorder programming and data analysis

1. Measure and record the temperature values of 4 different places at the same time

2. Temperature measurement range: - 200 ° C to+1000 ° C

3. Easily replace the battery

4. Automatically backup measurement data when the battery is depleted or replaced

5. Corresponding display when the limit is exceeded

The testo 176 T4 temperature recorder can simultaneously measure the temperature values of four different places. It is equipped with a large capacity memory, which can store up to 2000000 groups of data. It has an ultra wide range and can be connected to various types of thermocouples. It is suitable for many different applications.

Recommended application fields

Detect the ultra-low temperature and cold chain temperature of the freezer or other low-temperature environment

Measure and record the water supply/return temperature in the floor heating distributor to ensure its normal operation

Detection process temperature

            Type K (NiCr-Ni)

       measuring range

   -200 ~ +1000 °C

       measurement accuracy

   ± 1% of measured value (- 200~- 100.1 ° C) ± 1 Digit ± 0.3 ° C (- 100~+70 ° C) ± 1 Digit ± 0.5% of measured value (+70.1~+1000 ° C) ± 1 Digit

       resolving power

   0.1 °C

       Type T (Cu-CuNi)

       measuring range

   -200 ~ +400 °C

       measurement accuracy

   ± 1% of measured value (- 200~- 100.1 ° C) ± 1 Digit ± 0.3 ° C (- 100~+70 ° C) ± 1 Digit ± 0.5% of measured value (+70.1~+400 ° C) ± 1 Digit

       resolving power

   0.1 °C

       Type J (Fe-CuNi)

       measuring range

   -100 ~ +750 °C

       measurement accuracy

   ± 0.3 ° C (- 100~+70 ° C) ± 1 Digit ± 0.5% of measured value (+70.1~+750 ° C) ± 1 Digit

       resolving power

   0.1 °C

       Technical parameter

       weight

   230 g

       size

   103 x 63 x 33 mm

       Operating temperature

   -20 ~ +70 °C

       Housing

   High strength plastics

       Degree of protection

   IP65

       passageway

   4 External

       Connectable probe

   4 x thermocouple (type T, K and J)

       Product colour

   Black

       standard

   EU Directive 2014/30/EU; 2011/65/EU

       Measurement scale

   1s~24h; 2 s to 24 h (online measurement)

       Battery type

   TL-5903

       Battery life

   8 years (measurement period is 15 minutes,+25 ° C)

       data transmission

   mini usb, SD card slot

       Storage capacity

   2000000 measurements

       Storage temperature

   -40 ~ +85 °C
