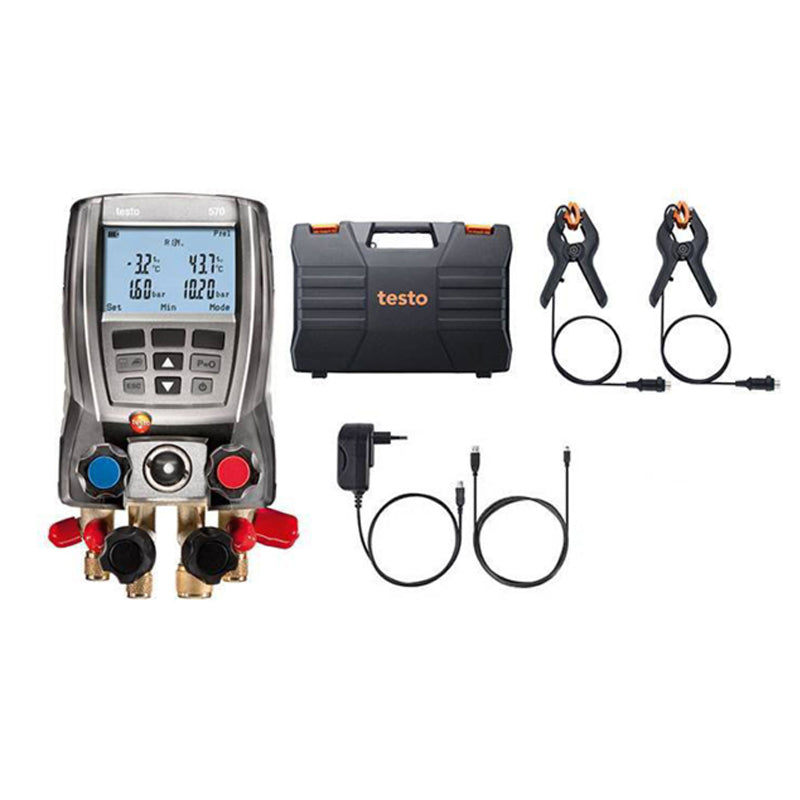

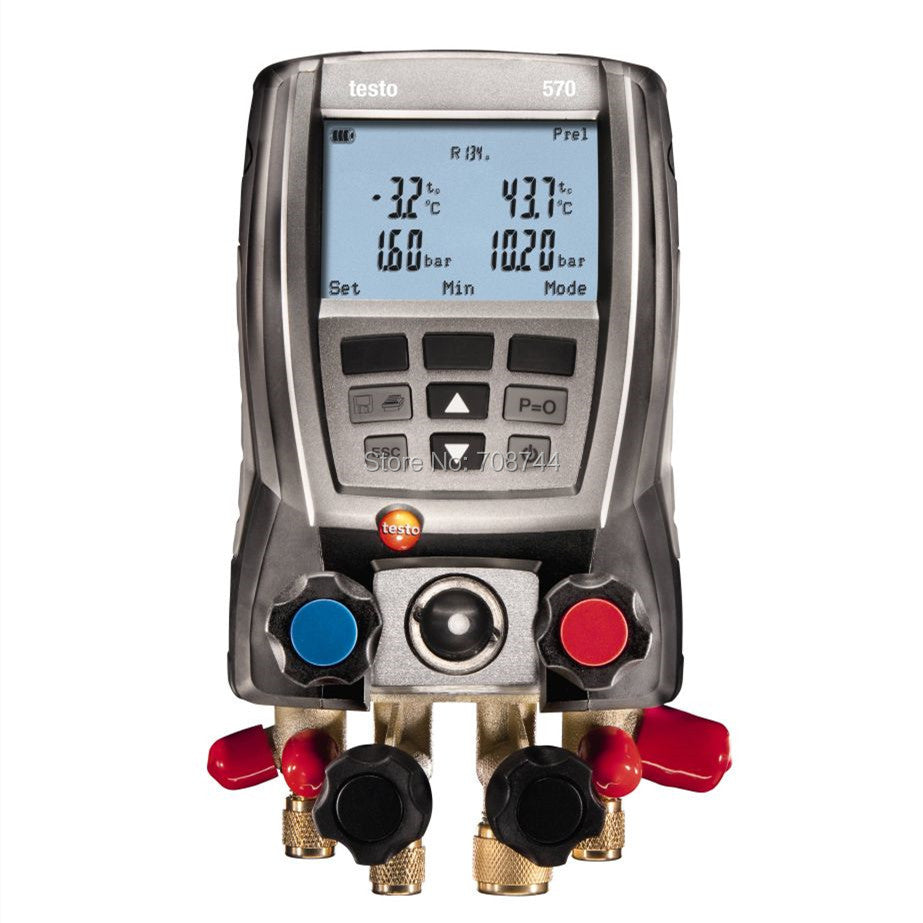

Testo 570-2 Digital Manifold Gauge Meter Kit 4 Valves with 2 Clamps Refrigeration

Pressure Gauge Data Storage Internal Vacuum Sesor Testo 0563 5702

Product Description

The testo 570-2 digital manifold gauge won’t just take the weight off your mind – it will also take the weight off your arms and shoulders.

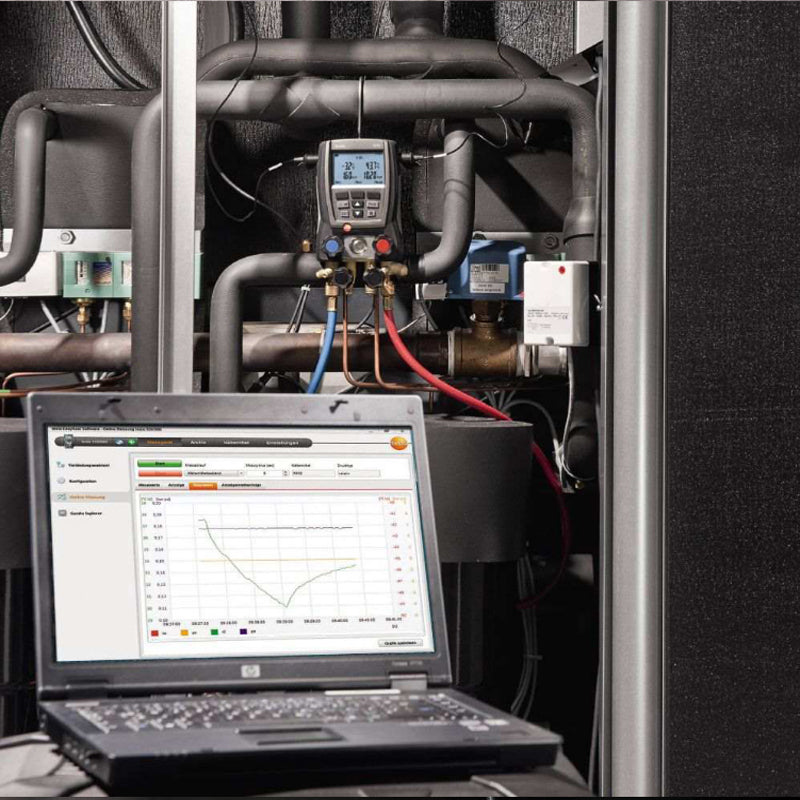

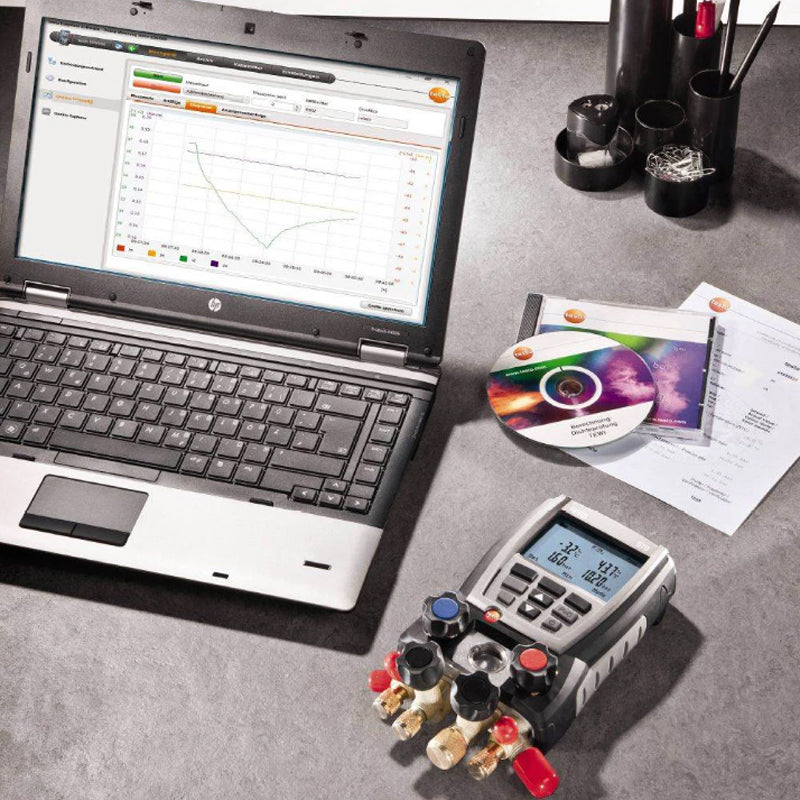

That’s because the testo 570-2 can replace a whole array of different tools and measuring instruments that you would otherwise need to carry around with when you work on refrigeration systems and heating pumps. The manifold gauge can measure, analyze and log pressure, temperature, electricity and vacuum measurements and save all measuring data. From the moment the unit was first used to servicing and maintenance to the fault analysis of a system.

      Temperature

         Measuring range

   -50 to +150 °C

       Accuracy

   ±0.5 °C (±1 Digit)

       Resolution

   0.1 °C

       Probe connection

   3 x Plug-in (NTC)

            Pressure measurement

         Measuring range

   50 bar

       Accuracy

   ±0.5 % fs (±1 Digit)

       Resolution

   0.01 bar / 0.1 psi

       Probe connection

   3 x 7/16" – UNF + 1 x 5/8'' – UNF

       Overload rel. (low pressure)

   52 bar

       Overload rel. (high pressure)

   52 bar

       Low pressure rel.

   50 bar

       High pressure rel.

   50 bar

            Vacuum measurement

         Measuring range

   -1 to 0 bar

       Accuracy

   1 % fs

       Resolution

   1 hPa / 1 mbar / 500 micron

            General technical data

         Weight

   1200 g

       Dimensions

   288 x 135 x 75 mm

       Operating temperature

   -20 to +50 °C

       Protection class

   IP42

       Product colour

   grey

       Battery life

   approx. 40 h (w/o illumination)

       Display type

   LCD (Liquid Crystal Display)

       Pressure media

   CFC; HFC; N; H₂O; CO₂

       Refrigerants in instrument

   R12; R123; R1233zd; R1234yf; R134a; R22; R290; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422D; R424A; R427A; R434A; R437A; R438A; R448A; R449A; R450A; R452A; R455A; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)

       Refrigerants update via software

   EasyKool; R11; FX80; I12A; R114; R1150; R1234ze; R124; R125; R1270; R13; R13B1; R14; R142B; R152A; R161; R170; R227; R23; R236fa; R245fa; R32; R401C; R406A; R407B; R407D; R407F; R407H; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R422C; R426A; R442A; R444B; R452B; R453a; R454A; R454B; R454C; R458A; R500; R508A; R508B; R600; RIS89; SP22

       Storage temperature

   -20 to +60 °C
