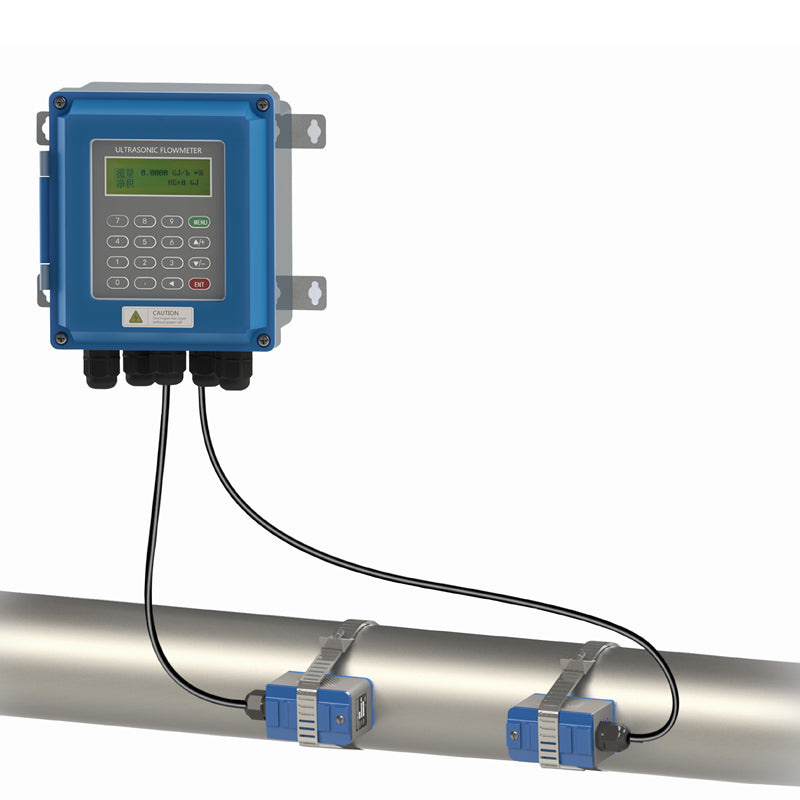

TUF-2000B Ultrasonic Liquid Flowmeters TS-2 TM-1 TL-1 (DN15-6000mm) Wall-Mounted Type RS485 Communication and ModBus Protocol

NOTE: Usually we do not ship the liquid ultrasonic Transducer Coupling Agent because of air traffic control, if you have special requirements on gel, please tell us.

Introduction of Ultrasonic flow meter:

TUF-2000B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids ,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc

Performance and Parameter:

      Items

   Performance &Parameter

Convertor

   Principle

   Transit-time ultrasonic flowmeter

       Accuracy

   ±1%

       Display

   2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish

       Signal output

   1way 4-20mA output, electric resistance 0-1K, accuracy0.1%

       1 way OCT pulse output(Pulse width-1000ms, default is 200ms))

       1 way Relay output

       Signal input

   3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level

       Connect the temperature transducer P100, can finish the heat/energy measurement.

       Data Interface

   Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.

       Special Cable

   Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m

Pipe Installation Condition

   Pipe material

   Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed

       Pipe diameter

   25-6000mm

       Straight pipe

   Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump.

Measuring Medium

   Type of liquid

   Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc

       Temperature

   -30-160℃

       Turbidity

   No more than 10000ppm and less bubble

       Flow rate

   0-±7m/s

       Temperature

   Convertor; -20-60℃; Flow Transducer: -30-160℃

       Humidity

   Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m

       Working Environment

   Temperature

   Convertor; -20-60℃; Flow Transducer: -30-160℃

       Humidity

   Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m

       Power Supply

   DC8-36V or AC85-264V(Optional)

       Power Consumption

   1.5W

       Dimension

   132*150*85mm(convertor)

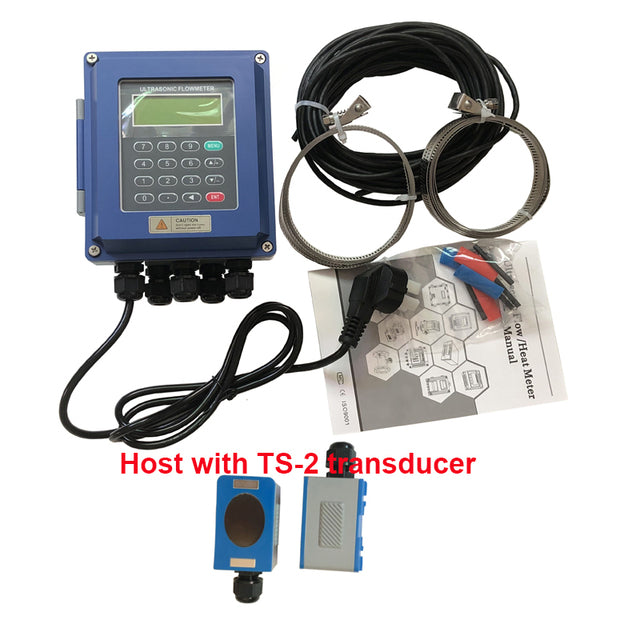

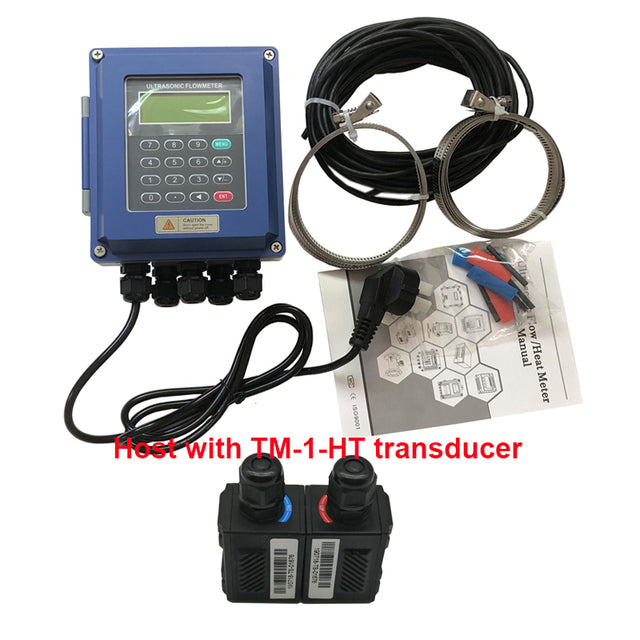

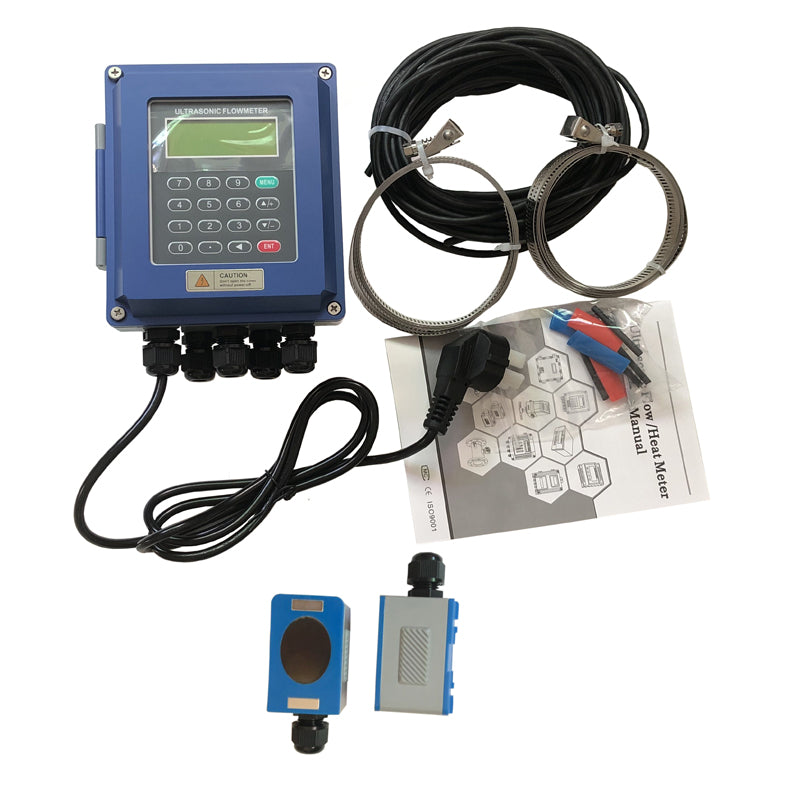

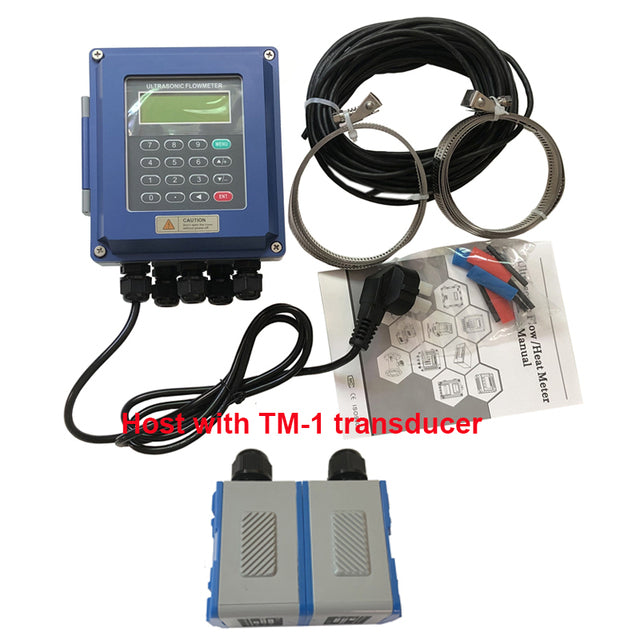

 Standard Packing:

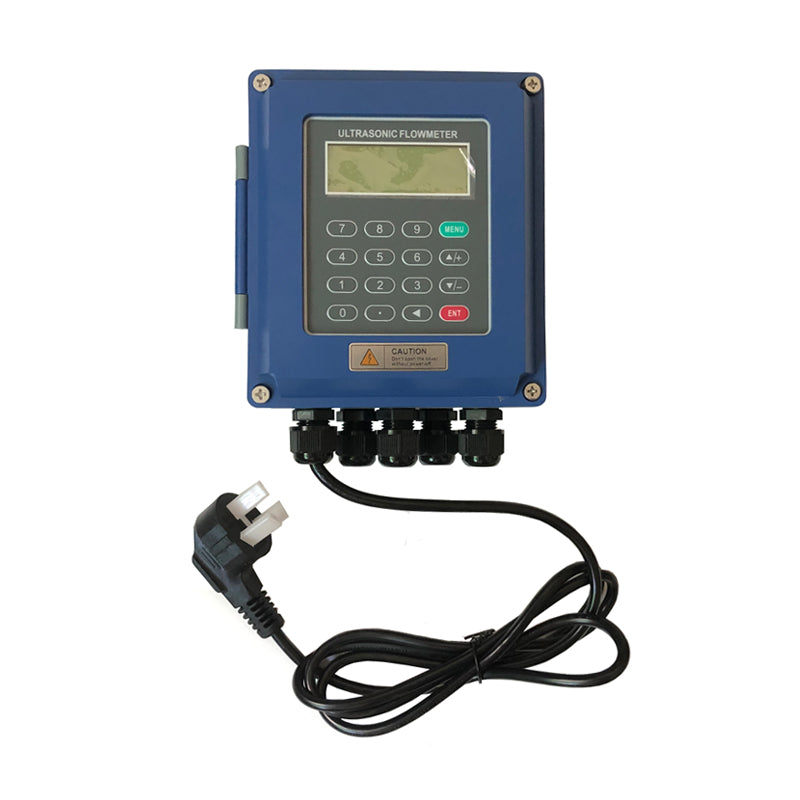

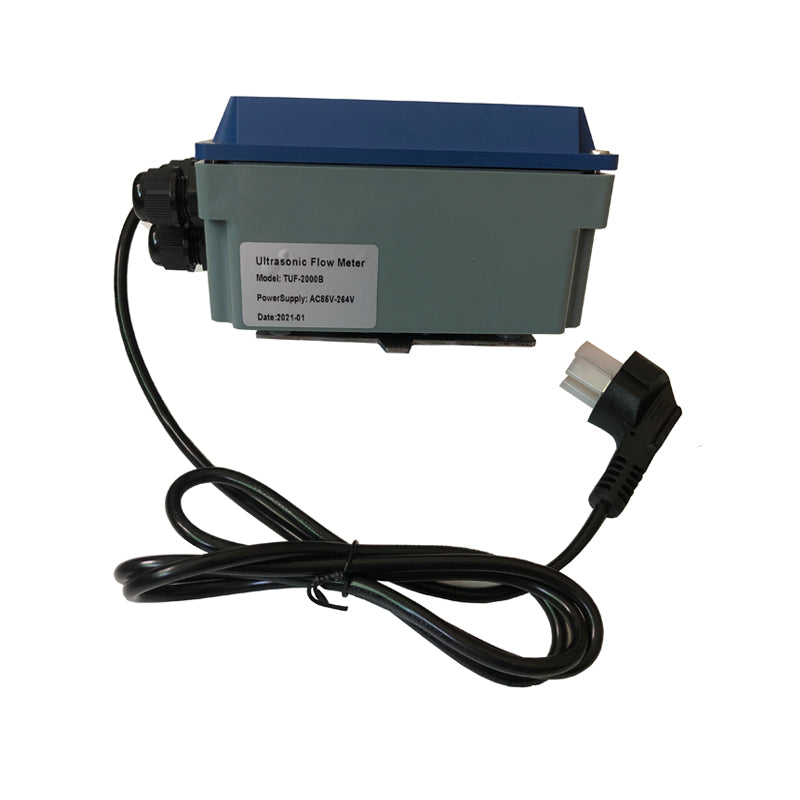

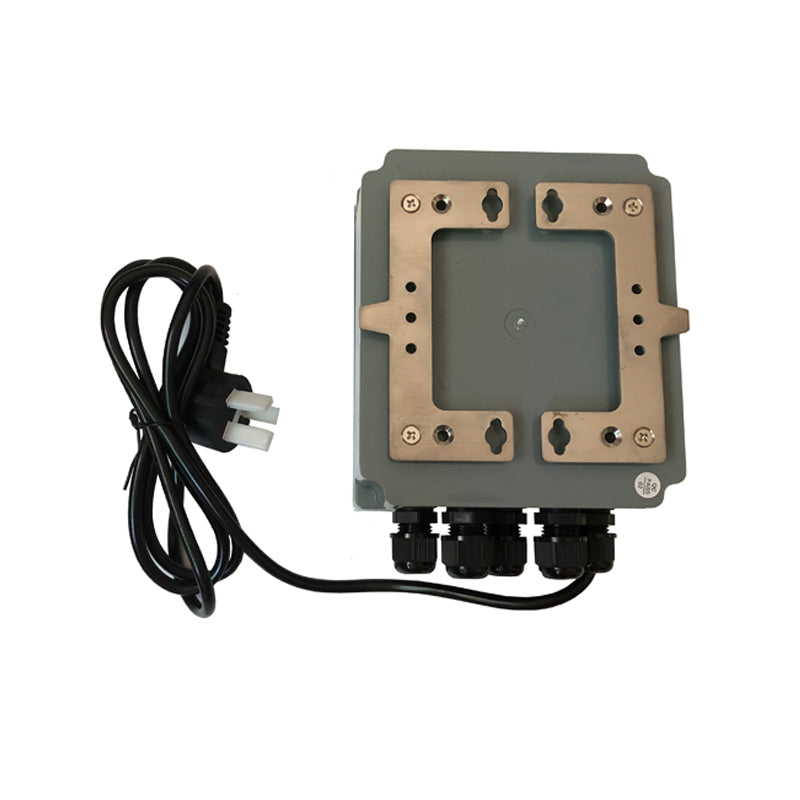

 TUF-2000B Host

 Steel Belt

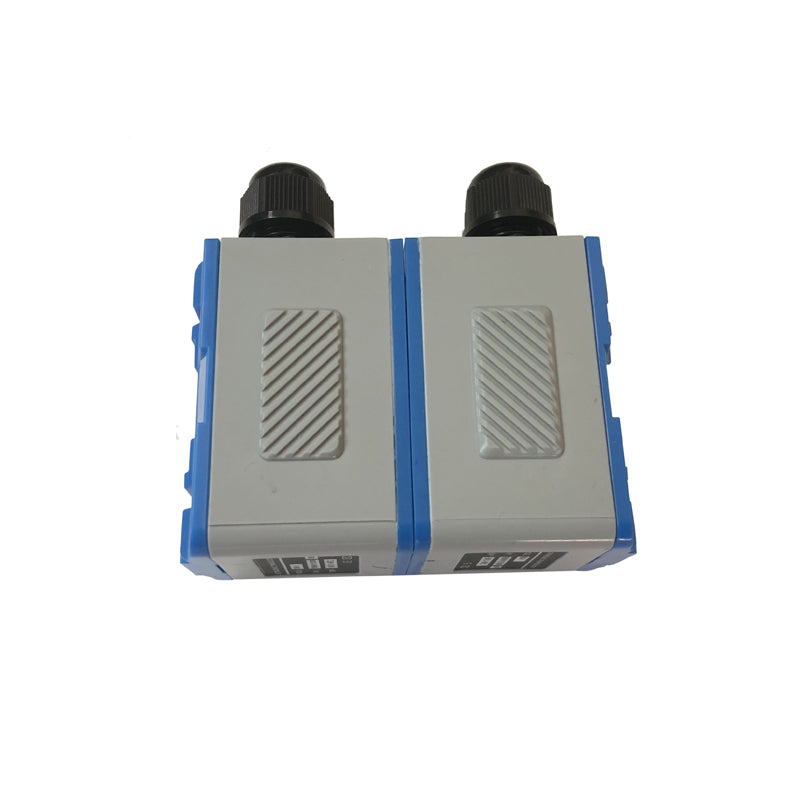

 TM-1 Ultrasonic Transducer

2 x 5m Flow Signal CableOptional Transducers
