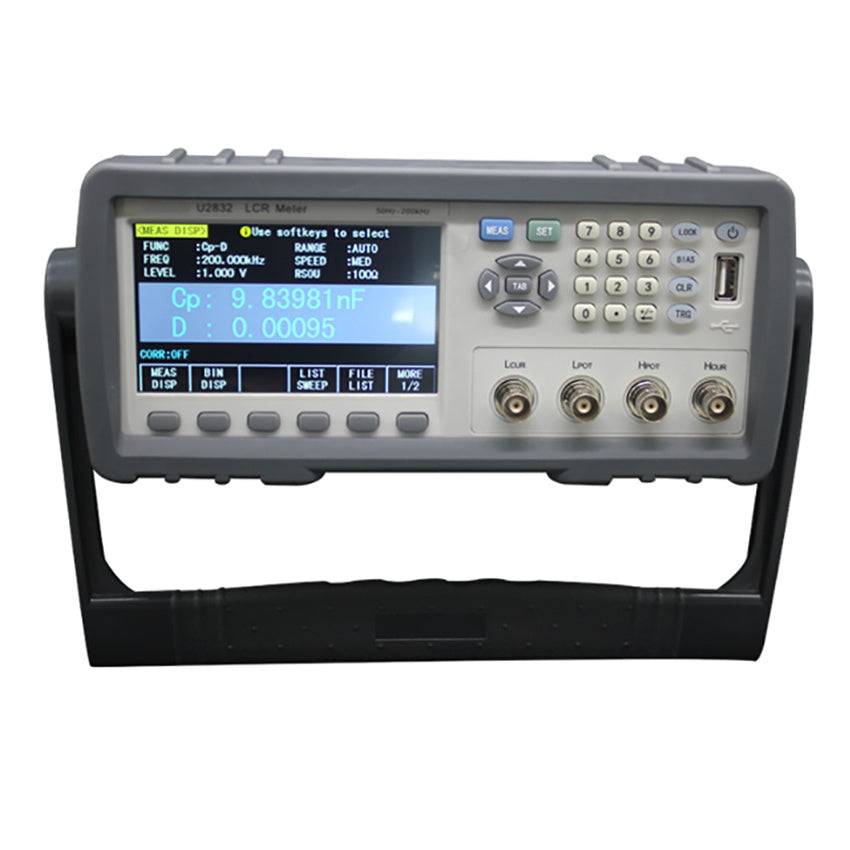

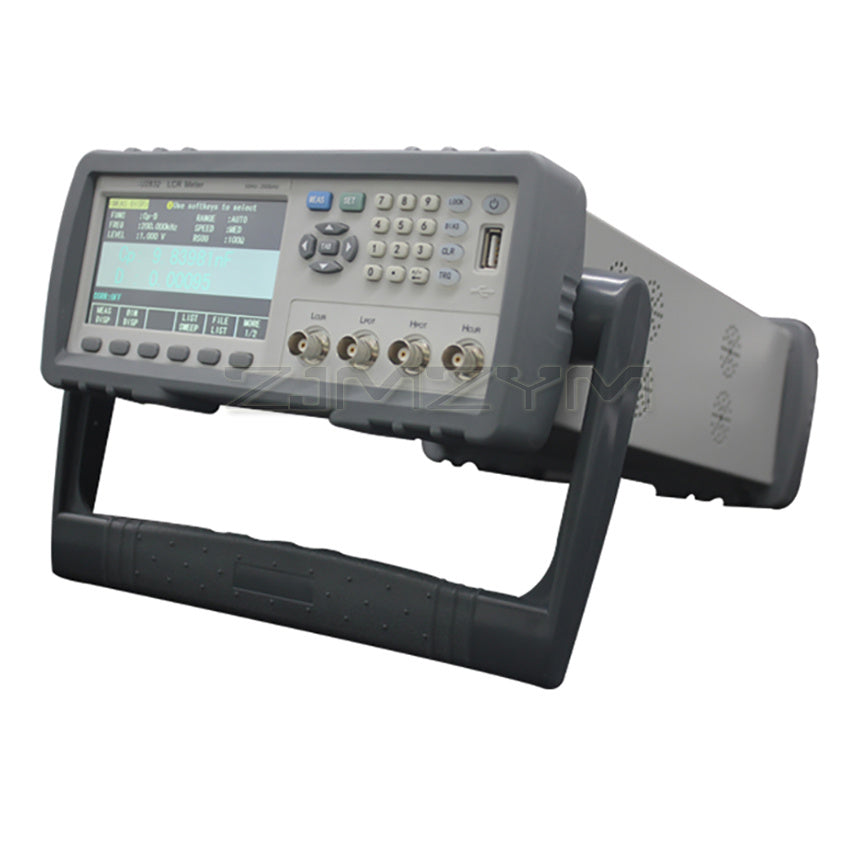

Name: LCR Digital Bridge Tester
Model: U2832
Supply voltage: 99V-242V (47.5Hz- 63Hz)
Test frequency: 50Hz -200kHz (10mHz step)
Accuracy: 0.05%
Test Resolution: 6 bits
Test Voltage: 10mV-2.0V
Output Impedance: 30Ω, 50Ω, 100Ω
Test Level:
10mV-2.0V (resolution 10mV)
100uA-20mA
DC bias: 0V-± 5V / 0mA -± 20mA
Measurement parameters: |Z|,C,L,R, X, |Y|,B,G,ESR,D,Q,θDCR
Test speed: 12.5 times/second at the fastest
Display: 4.3-inch TFT color screen
Storage capacity: internal 100 groups
List scanning: 100 points, scanning parameters: test frequency, AC voltage, AC current

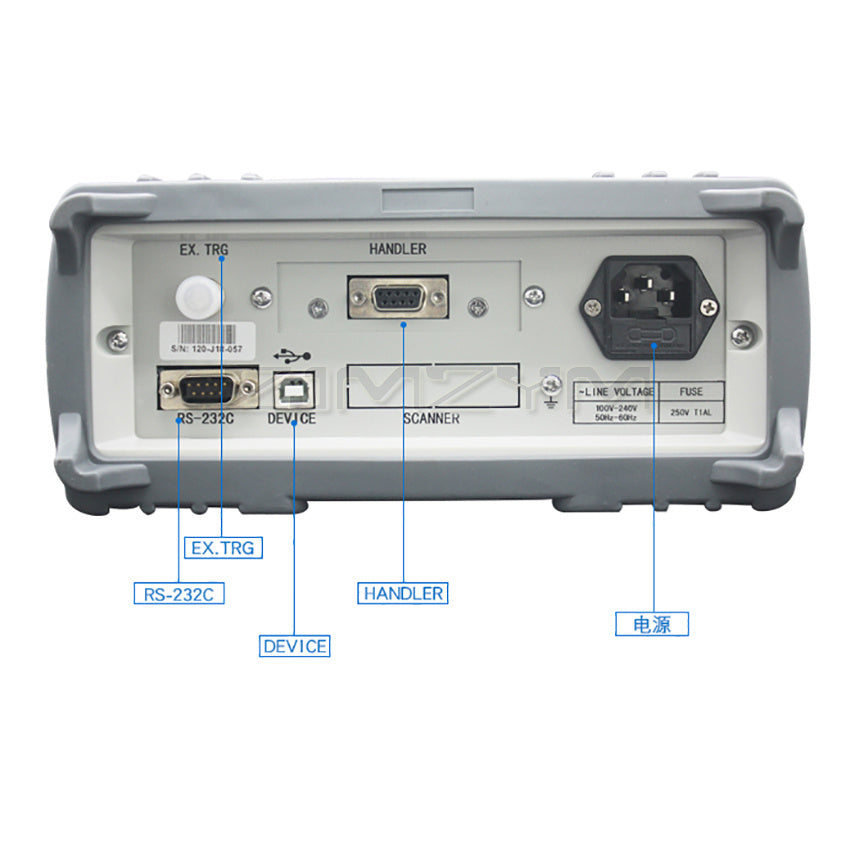

RS232: With
HANDLER: With
Temperature Humidity: 0- 40℃, ≤90%RH
Weight: about 2.5kg
Machine size: 235*105*345mm
