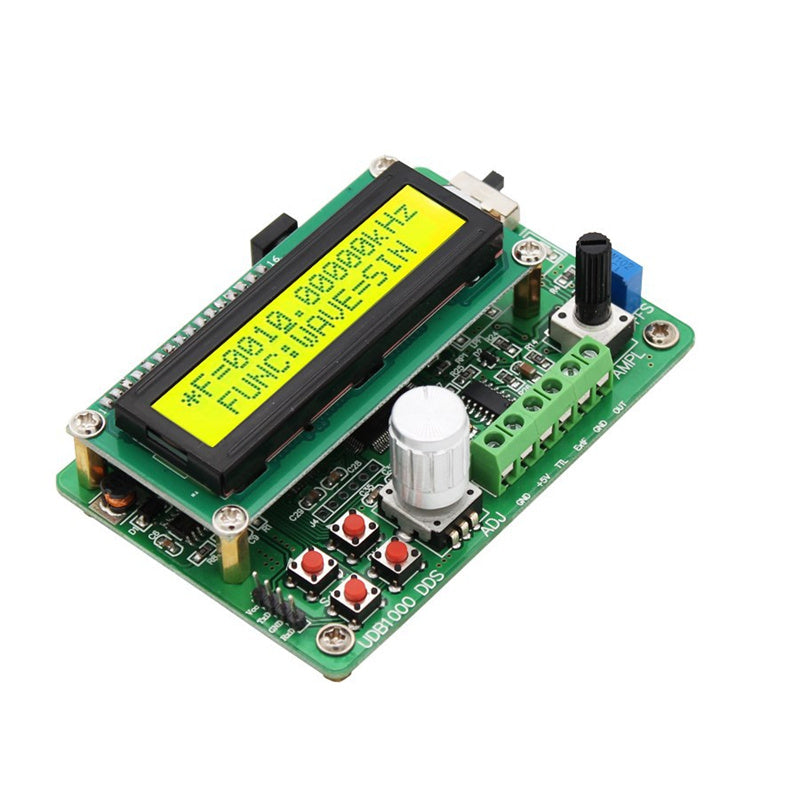

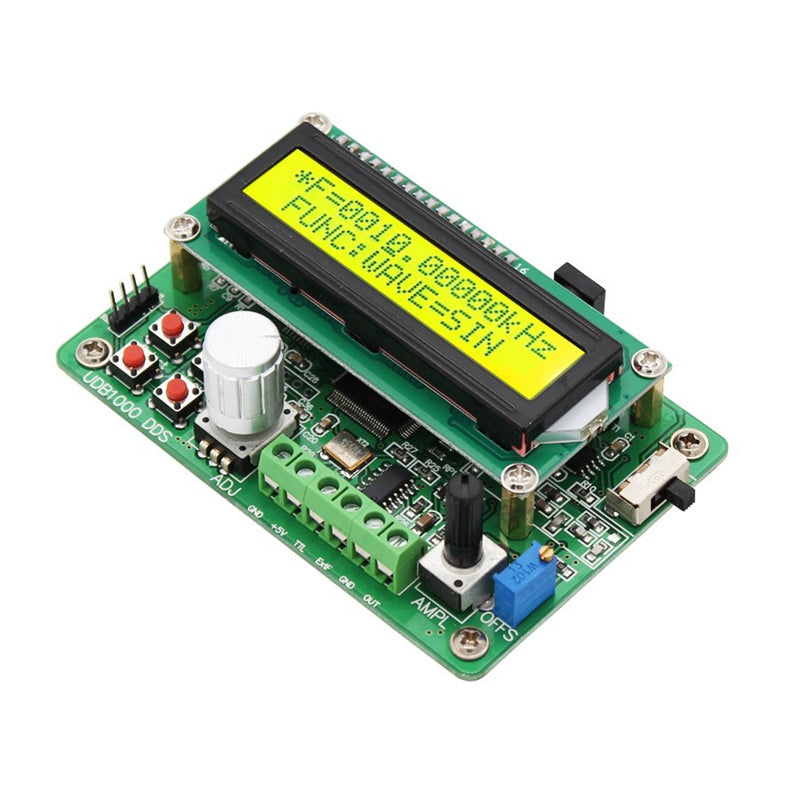

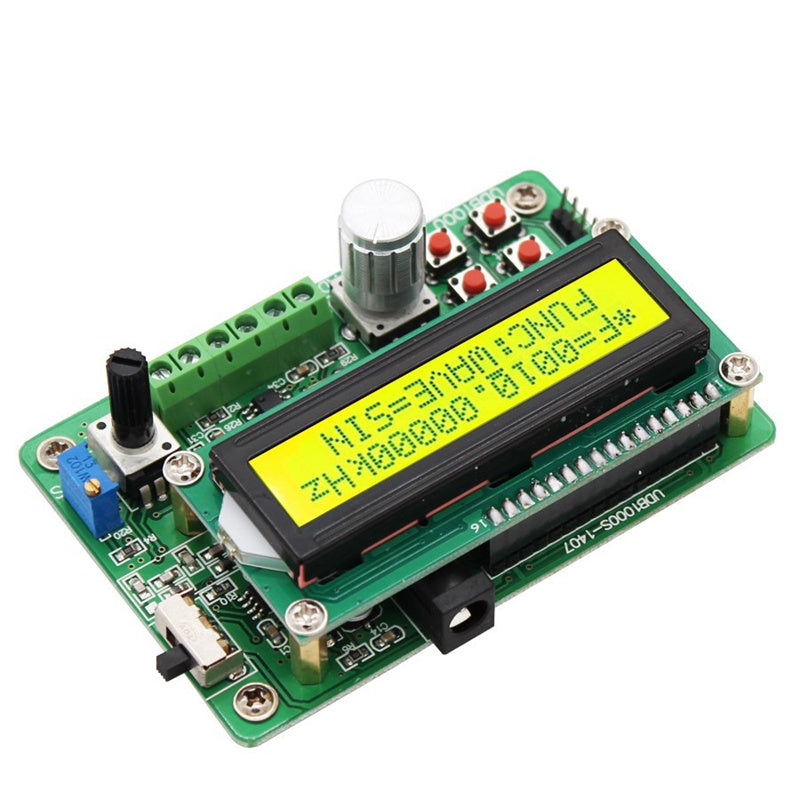

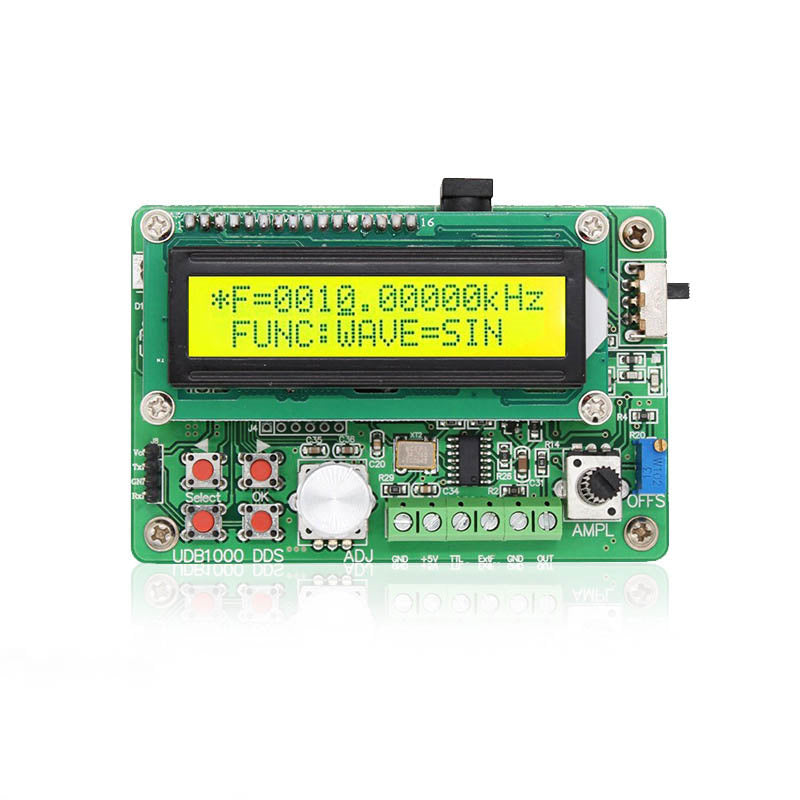

UDB1000 Series DDS Signal Source Signal Generator with 60MHz Frequency Counter and Frequency Sweep Module 1002S 1005S 1008S

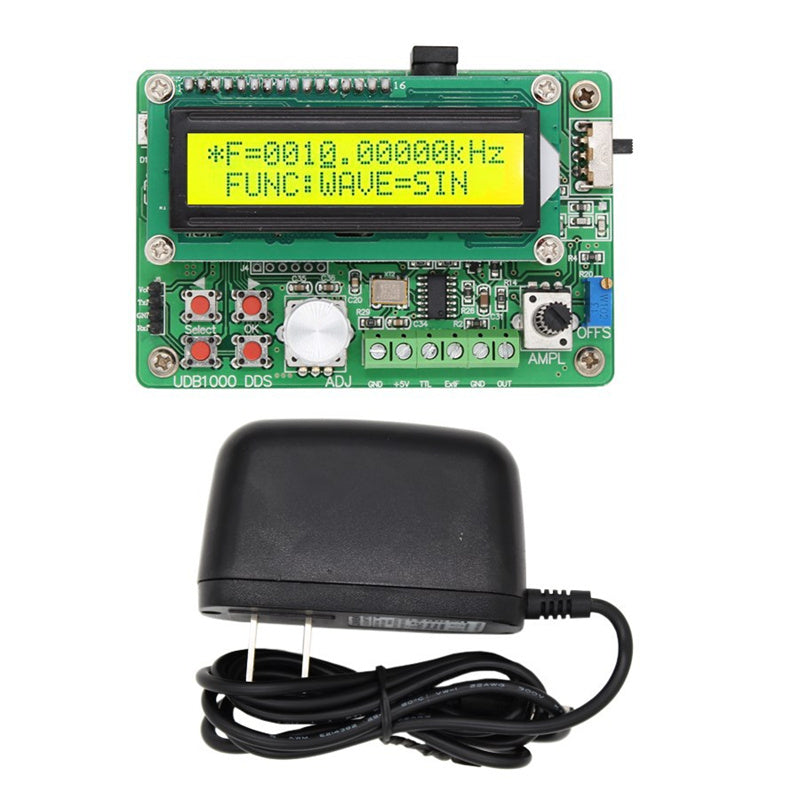

Package included:
1 x Signal Generator Module
1 x Power Adapter
Function:
1.Signal aspect: can output sine wave, square wave 1 (adjustable duty cycle), triangle wave, rise and fall sawtooth wave, pulse wave, TTL digital signal
2.Measurement: the instrument has the function of frequency measurement and counting
3.Square wave duty cycle is continuously adjustable from 1% to 99%
4.Scanning: SWEEP scanning function, which can realize frequency scanning
5.Storage and recall function: It has 10 groups of parameter storage functions, M0~M9, and the MO position parameters are automatically recalled when the machine is turned on.
Sine wave frequency range:
1002S (with frequency sweep and communication) :0~ 2MHz
1005S (with frequency sweep and communication) :0~ 5MHz
1008S (with frequency sweep and communication):0~ 8MHz
Square wave frequency range：0~1MHz
Triangle wave frequency range:0~1MHz
Frequency minimum resolution:0.01Hz
Frequency error:士5X10
Frequency Stability:士1X 10 /5hours
Output impedance:500士10%
Output waveform types: sine wave, square wave, triangle wave, sawtooth wave
Sine wave:
Harmonic rejection:40dBc (<1MHz)，35dBc (1MHz~8MHz)
Distortion:≤0.8 (reference frequency 1kHz)
Square wave:
Rise and fall time:≤100ns
Overshoot:≤5%
Duty cycle adjustment range:1%~ 99%
TTL signal:
Output level:>3Vpp
Fan-out coefficient:>20TTL negative number
Rise and fall time:≤100ns
Frequency measurement range:1Hz ~60MHz
Minimum input voltage:0.5Vp-p
Maximum allowable input voltage:20Vp-p
Count range:0~4294967295
Counting method:manual
Interface:USB to Serial Interface
Communication rate:19200bps and 57600bps
Protocol:command line, protocol exposed
Power supply:DC5V士0.5V
Working environment:temperature: -10°C~50°C, humidity <80%
