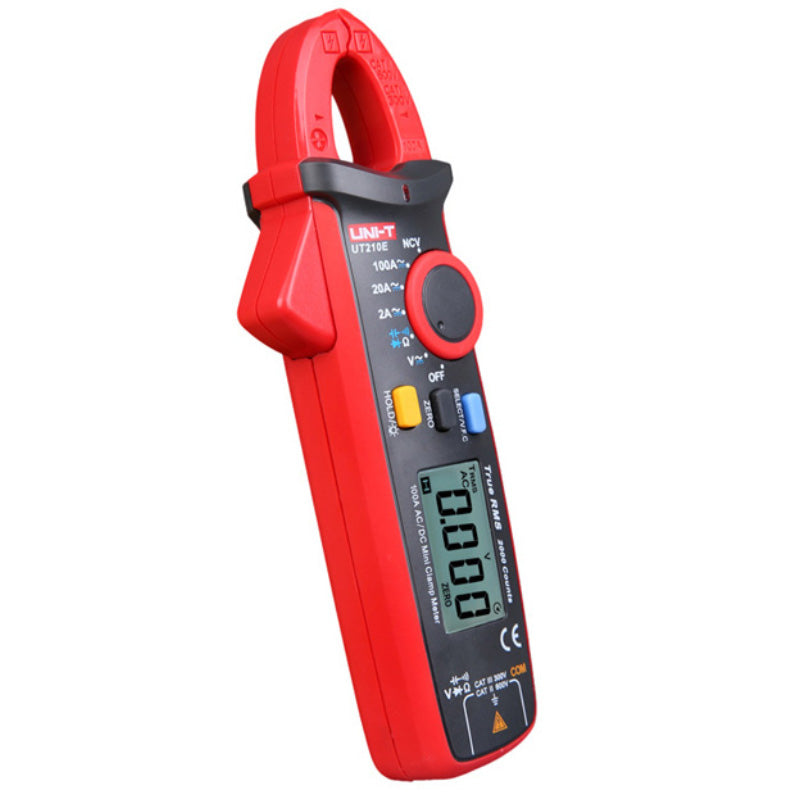

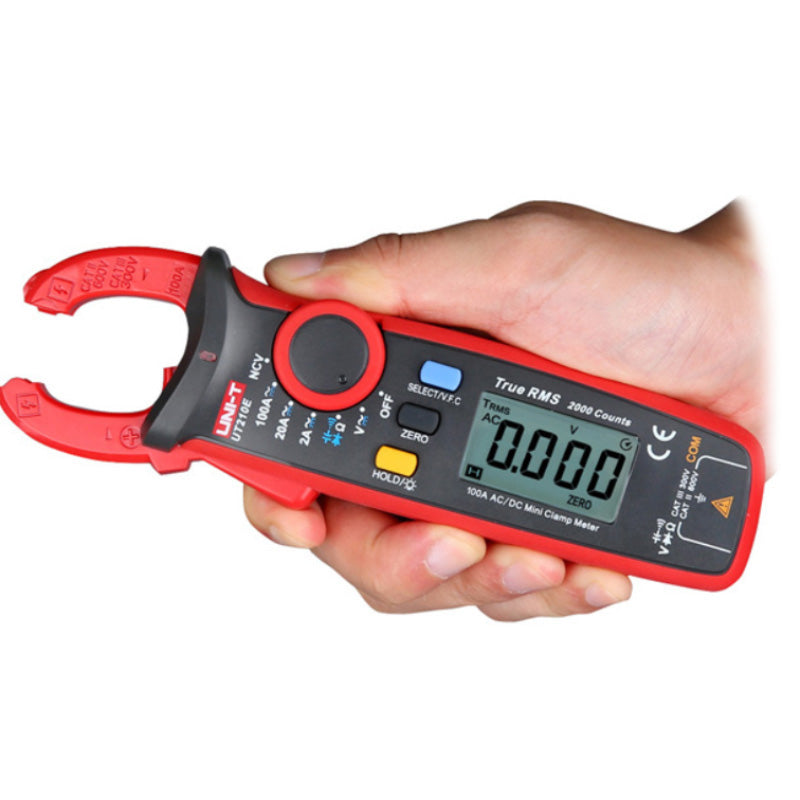

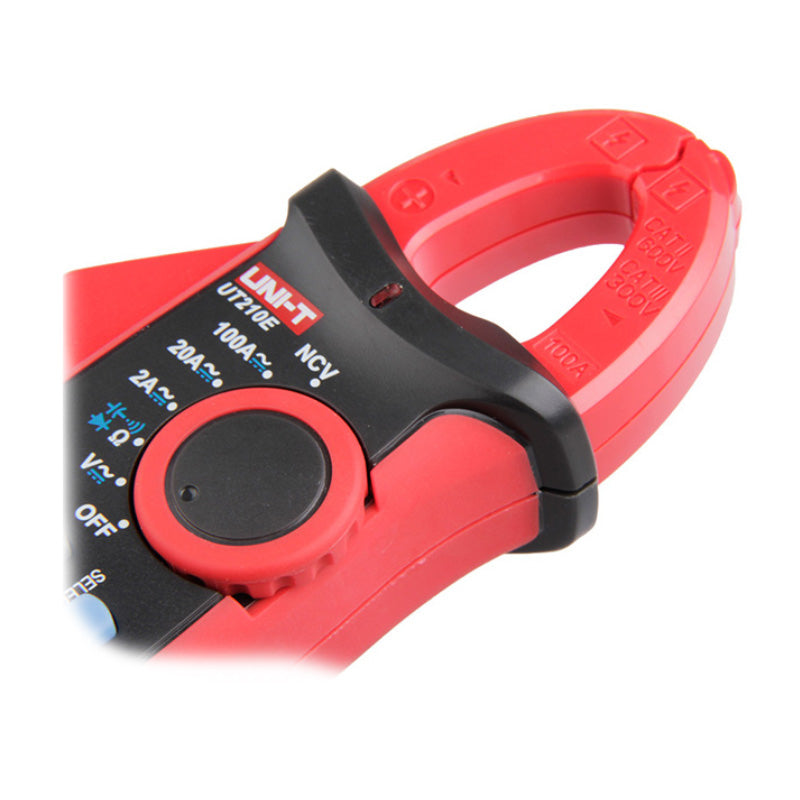

UNI-T UT210E Mini a Multimeter Digital Multimeter DC Voltimetro Amperimertro UNI
T UT 210E DC Clamp Multimeter
UT210 Series Mini Clamp Meters：
UT210 series mini digital clamp meter is with high reliability, high security, automatic range, miniaturization. Can accurately measure small current signals; product chip set up VFC start mode, the internal will go through a specific filter circuit, the high-frequency interference signal filtered out to ensure the accuracy of the measurement data! Can be applied to the occasion with VFC frequency conversion voltage, current, full-range overload protection and unique appearance design, making it a new generation of practical electrical measuring instruments with more excellent performance.
Features：
1.AC DC Current Measurement
2.Resistance Measurement
3.LCD Backlight
4.Continuity Buzzer
5.VFC Measurement
6.NCV ,Non Contact Detection
7.Auto Range
8.True RMS Measurement
9.Data Hold
10.Zero Measurement
11.Diode/Capacitance Measurement
Specifications：
Specifications
Range
UT210A
UT210B
UT210C
UT210D
UT210E
AC current (A)
200A
±(2.5%+20)
±(2.5%+20)
±(2%+10)
±(2.5%+8)
100A
±(2.5%+5)
DC current (A)
200A
±(2%+3)
100A
±(2%+3)
AC voltage (V)
600V
±(1%+3)
±(1%+3)
±(1%+3)
DC voltage (V)
600V
±(0.7%+3)
±(0.7%+3)
±(0.7%+3)
Resistance (Ω)
20MΩ
±(1%+2)
±(1%+2)
±(1%+2)
Frequency (Hz)
60kHz
±(0.1%+4)
Capacitance (F)
20mF
±(4%+5)
±(4%+5)
±(4%+5)
Temperature
-40~1000℃
±(1%+3)
±(1%+3)
-40~1832℉
±(1.5%+5)
±(1.5%+5)
General Characteristics
Power
1.5V battery (R03) x 2
Display
39.3mm x 26.5mm
Product color
Red and grey
