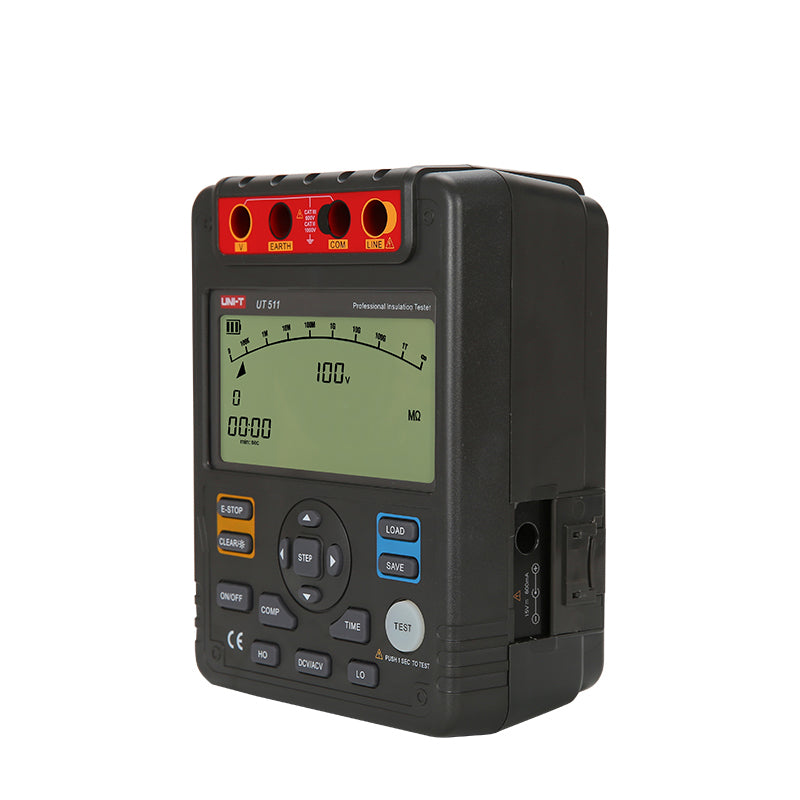

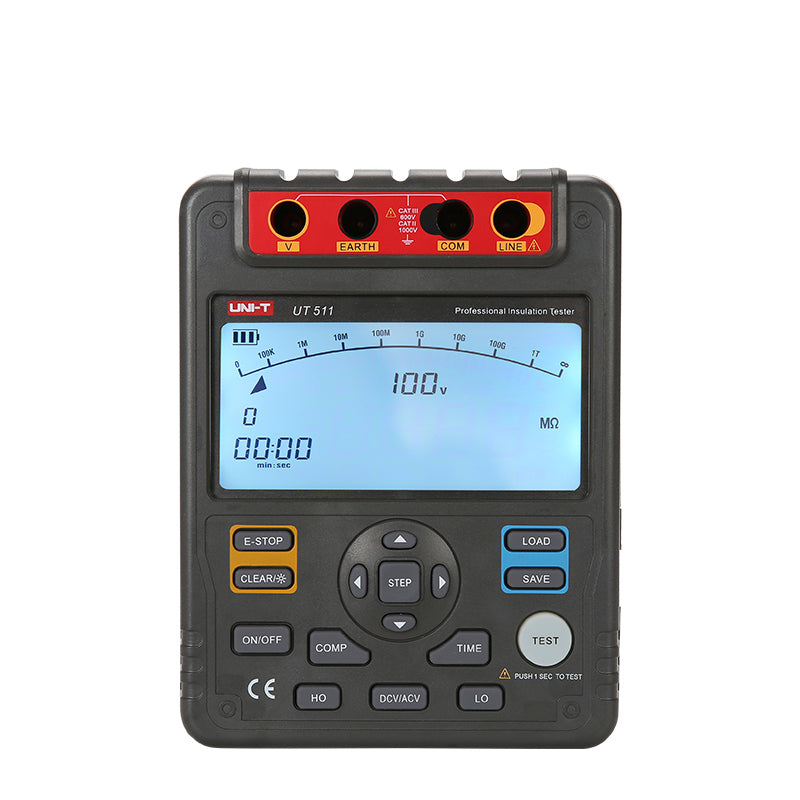

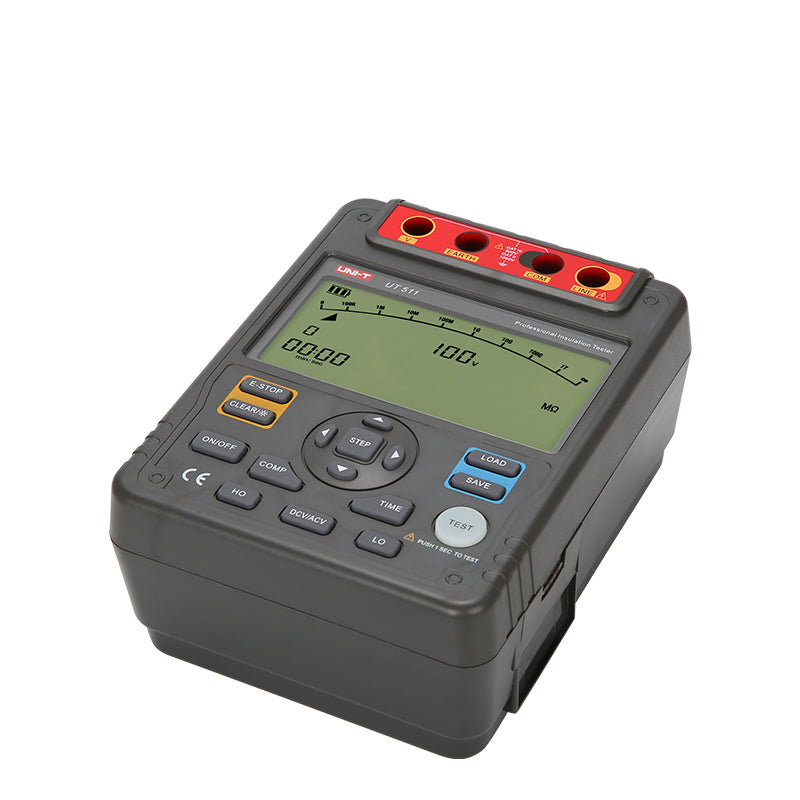

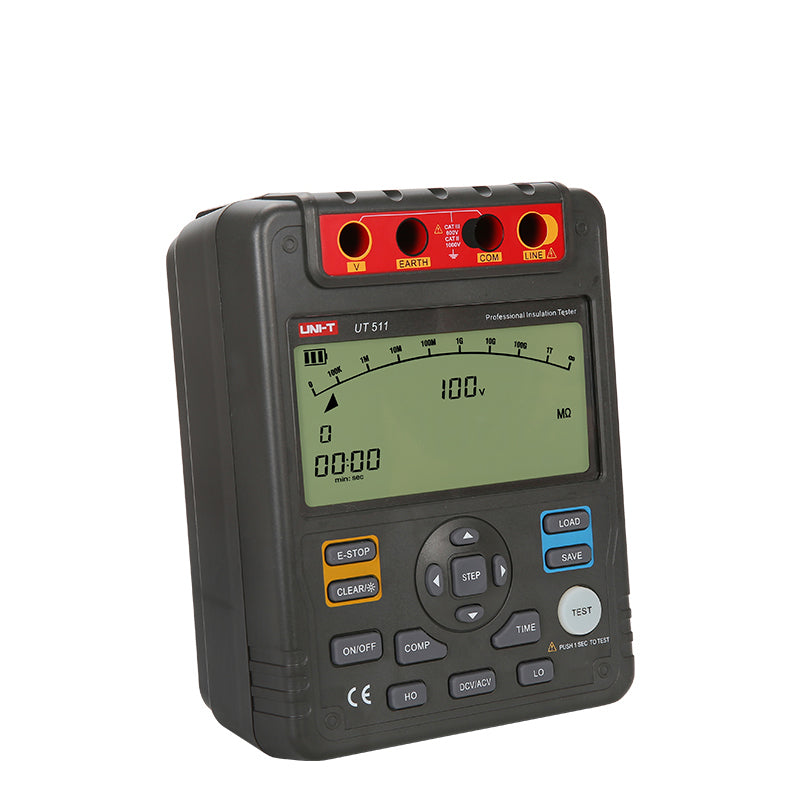

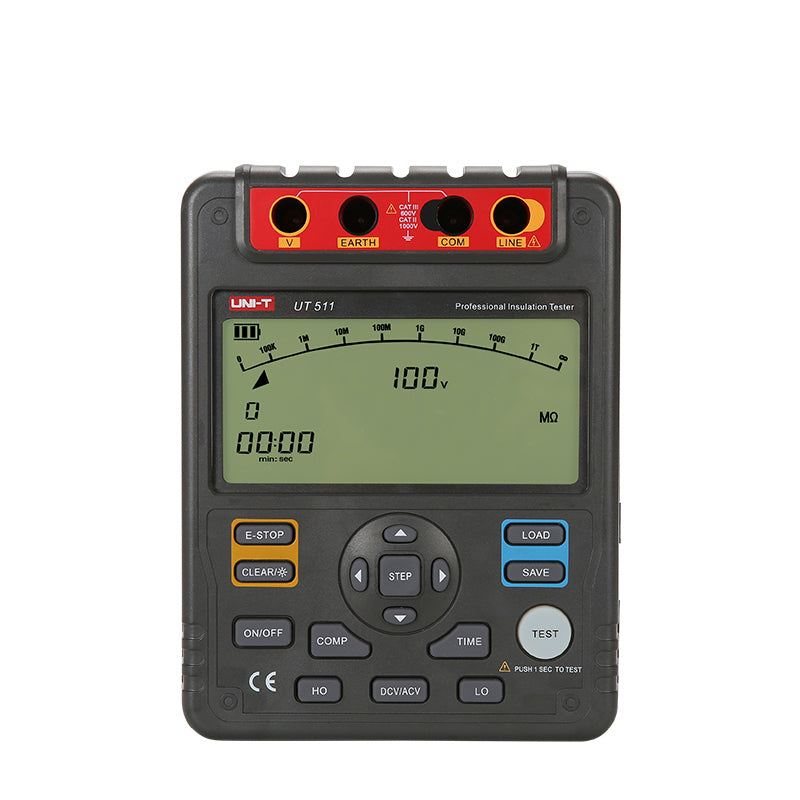

UNI-T UT511 Digital Insulation Resistance Testers Meter Megohmmeter Low Ohm
Ohmmeter VoltmeterAuto Range Megger 1000V 10Gohm
Features：
1. Large 9999 display with 30-segment analog bar graph
2. PI/DAR measurements
3. Comparison, upper and lower limit functions
4. Continuous measurement mode
5. Auto power off
6. 18-group data storage
7. Backlight
8. Auto current discharge and high-voltage output alarm
9. Time measurement mode, auto measure within 15 minutes
10. Low battery and over range indications
11.The batteries not included package
Specifications：
Range
Accuracy
Model
UT511
Insulation Resistance (Ω)
Test Voltage
100V/250V/500V/1000V
0%-ž20%
100V
0.1MΩ~500MΩ
±(3%+5)
250V
0.5MΩ~2GΩ
±(3%+5)
500V
1MΩ~4GΩ
±(3%+5)
1000V
2MΩ~10GΩ
±(3%+5)
Short Circuit Current
<2mA
DC Voltage (V)
1000V
±(2%+3)
AC Voltage (V)
750V
±(2%+3)
Low Resistance(Ω)
0.1Ω-ž999.9Ω
±(1%+3)
Features
Auto Range
√
Auto Power Off
√
Low Battery Indication
√
Data Storage
18
Comparison
√
DAR
√
PI
√
LCD Backlight
√
Analogue Bar Graph
30
Overload Indication
√š
High Voltage
Indication
√š
Timer
Around 30 Minutes
√š
General Characteristics
Power
1.5V Batteries (LR14) x 8
LCD Size
123mm x 58mm
Product Color
Red and Grey
Product Weight
1.2Kg
Product Size
202mm×155mm×94mm
Standard Accessories
2PCS of one plug test lead to one alligator clip (Black and Green), 1 piece of two-plug test lead to one alligator clip (Red),
