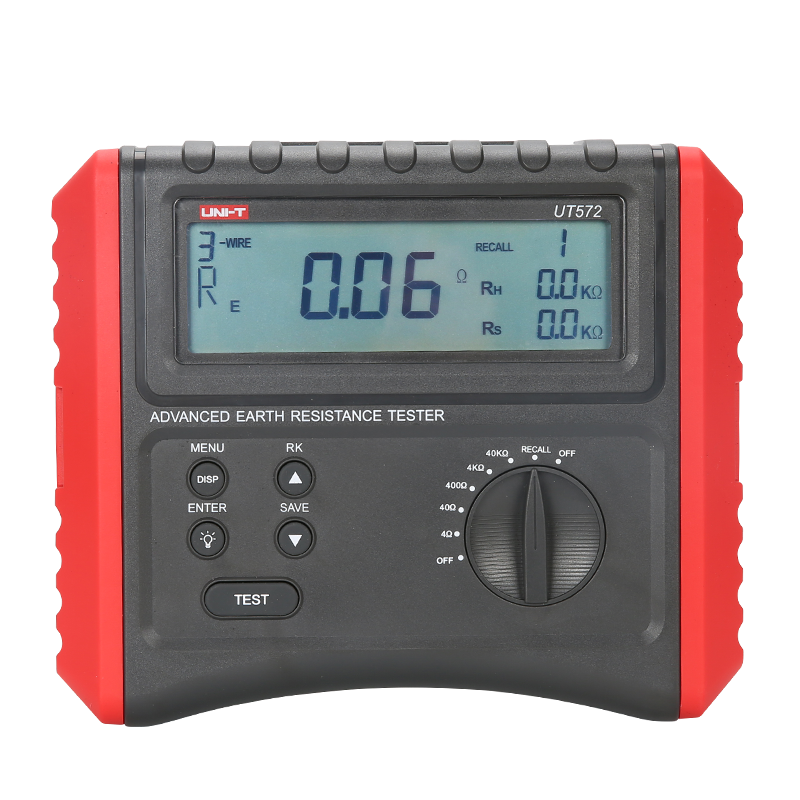

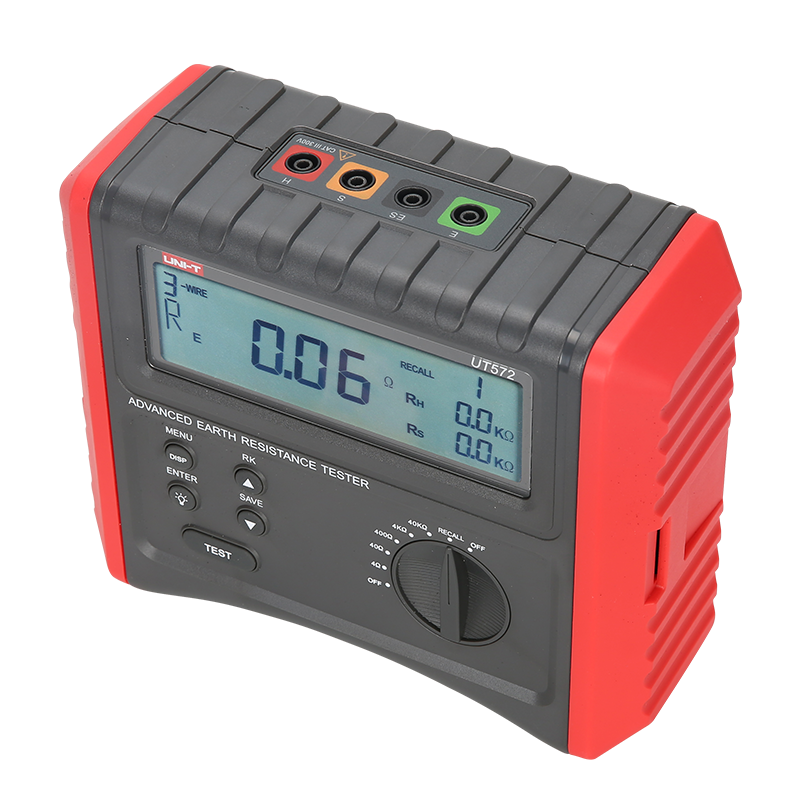

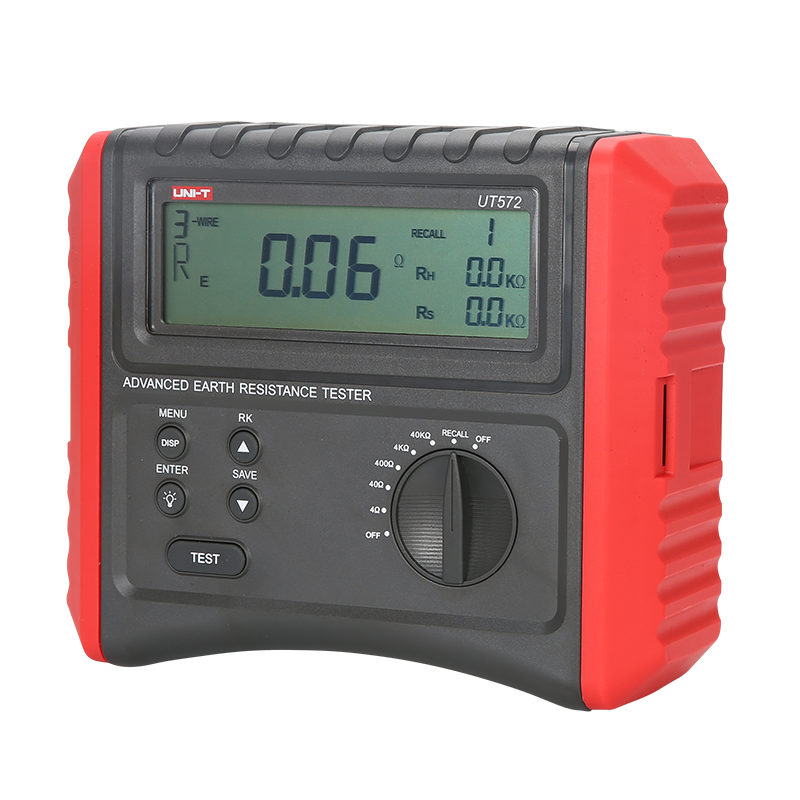

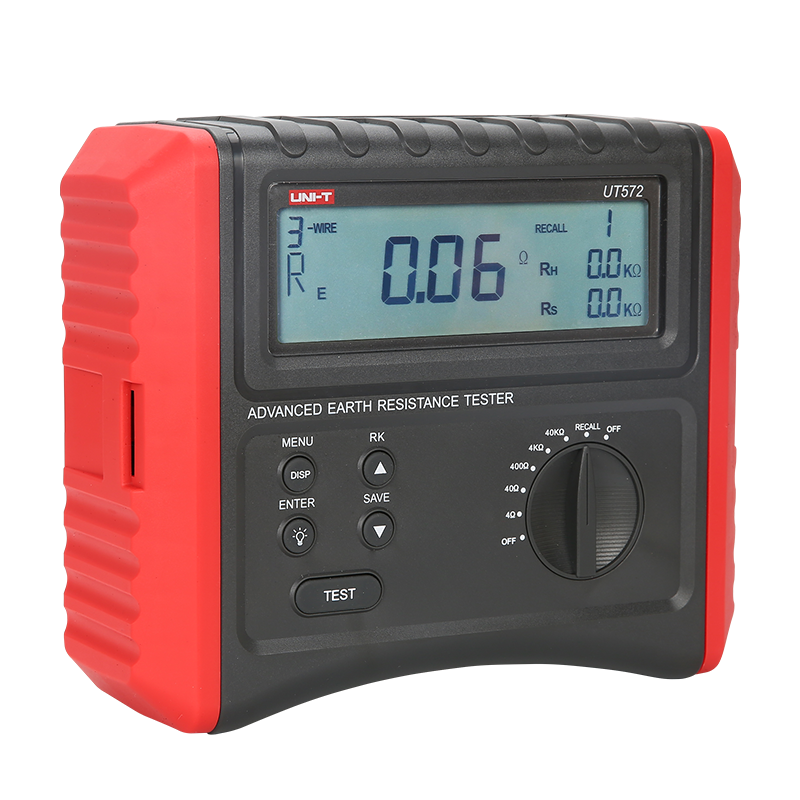

UNI-T UT572 Smart Ground Resistance Testers Intelligent Digital Resistance Tester with
Low Battery Data Hold
Specifications
Range
Best Accuracy
Model
UT572
Grounding Resistance(Re)
4Ω
±(3%+15)
40Ω
±(3%+5)
400Ω
4KΩ
40KΩ
Soil Resistivity(ρ)
4Ω
ρ=2×π×L×Re
(Depending on the test result of Re)
40Ω
400Ω
4KΩ
40KΩ
Disturbance Voltage (Ust)
50V (DC test or AC test at 40Hz ~500Hz)
±(3%+3)
Disturbance Frequency (Fst)
40Hz ~ 500Hz
±(1%+2)
Features
2/3/4 Wire Test
√
Earth Resistance Test Frequency
94/128Hz
√
Siol Resistivity Test Distances
1~40m
√
Earth Resistance RH and RS Test
√
Compensating Resistance Rk Test
√
Data Hold
√
Data Storages
20
√
LCD Backlight
√
Auto Power Off
Around 5 Minutes
√
Low Battery Indication
≤9.5V
√
General Characteristic
Power
1.5V Batteries(LR6)x 8
LCD Size
125mm x 37mm
Product Color
Red and Grey
Product Net Weight
1100g
Product Size
210mm x 175mm x 90 mm

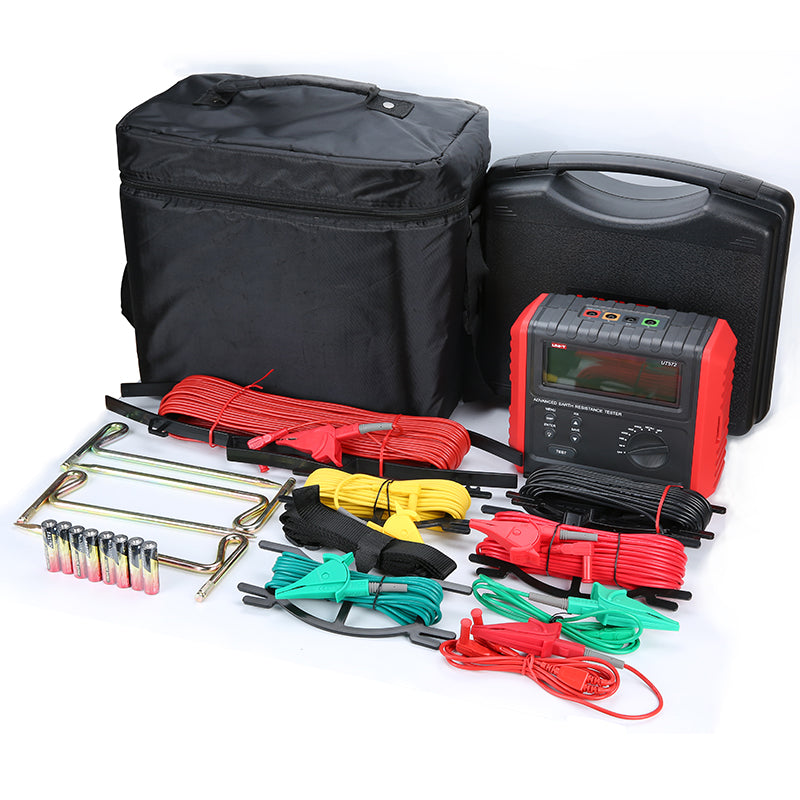

Standard Accessories
Batteries, Simple Test Lead with Alligator Clips(double plugs x 1, single plug x 1), Standard Test Lead with Alligator Clips(40m red x 1, 20m red x 1, 20m black x 1, 10m yellow x 1, 5m green x 1), Earth Spike x 2, not included the batteries in package
Standard Individual Packing
Gift Box, Carrying Bag, Tool Box, English Manual
Standard Quantity Per Carton
2 PCs
Standard Carton Measurement
455mm x 378mm x 355mm (0.061 CBM Per Standard Carton)
Standard Carton Gross Weight
15 Kg
