UNI-T UT582 Digital Multimeter RCD ELCB Tester AUTO RAMP Leakage Circuit

Breaker Meter

Detailed:

 UT580 series Digital RCD (ELCB) Testers

1. AUTO RAMP function to test trip time and trip current;

2. 3 LED lamp for connectivity check;

3. Auto Data Hold function to display trip time for several seconds after each test;

4. Phase Switch Selection (0and 180) to test shortest triggering time;

5. Overload indication OL;

6. Environmental: no battery is required. Powered directly from testing subject (A/C 220V/50Hz);

7. Fused protection and double insulation structure for extra safety;

8. Intelligent micro-processing controller to provide high-accuracy and reliability;

9. Ergonomic design;

10. Comply with IEC 61010-1 CAT III 300V; IEC 61557-1,5; IEC 61010-2-31.

 Parameter:

          Specifications

    Range

    Best Accuracy

          Model

    UT582

          RCD Measurement

    Range Select

    Rated Operating Current

    Trip Time

          X 1/2

    10mA/20mA/30mA/100mA/300mA/500mA

    1000mS

          X 1

    10mA/20mA/30mA/100mA/300mA

    1000mS

          500mA

    300mS

          X 5

    10mA/20mA/30mA

    300mS

          AUTO RAMP

    10mA/20mA/30mA/100mA/300mA/500mA

    300mS

          Trip Current Accuracy

    (2%+8)

          Trip Time Accuracy

    (0.6%+4)

          Trip Time Resolution

    1mS

          Operational Voltage(Freq.)

    195V-253V(50Hz)

          Features

          Display Count

    1000

          Data Hold

          Phase Switch

    0and 180

          Connections Check Function

    Lamps Indication

          AUTO RAMP Function

    Test the trip time and trip current

          Disconnect Buzzer

          Over-Range Display

    OL

          Fused

          Mis-Operation Buzzer

          Power off Buzzer

          Full Icon Display

          General Characteristic

          Power

    No Battery is required

          LCD Size

    71mm X 34mm

          Product Color

    Red and Grey

          Product Net Weight

    400g

          Product Size

    160mm X 100mm X 71mm

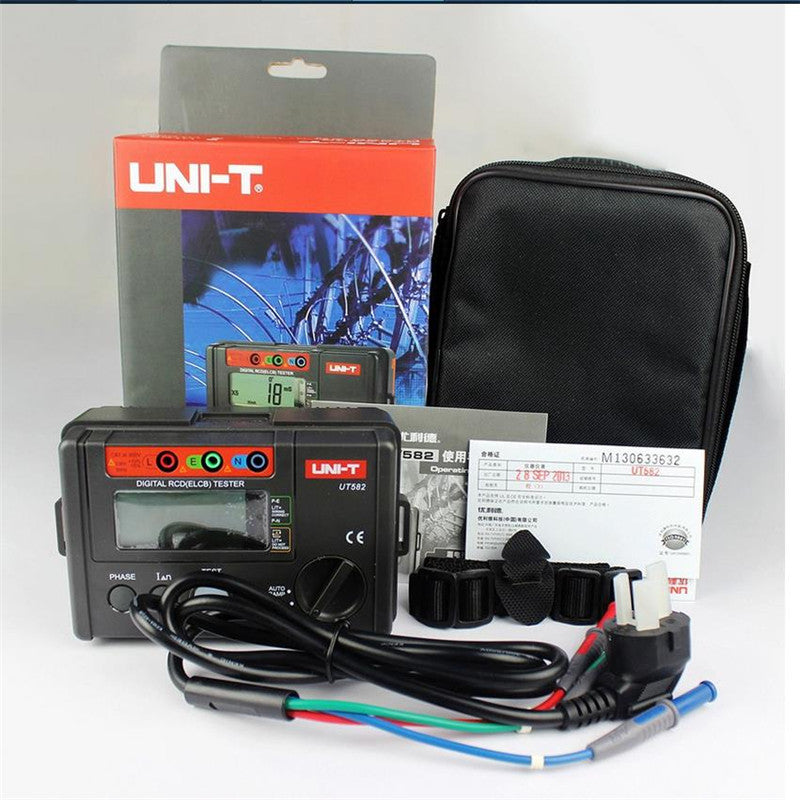

          Standard Accessories

    Test Lead,Carrying Bag

          Standard Individual Packing

    Gift Box,English Manual

          Standard Quantity Per Carton

    20 PCs

          Standard Carton Measurement

    440mm X 430mm X 335mm (0.063CBM Per Export Carton)

          Standard Carton Gross Weight

    14Kg
