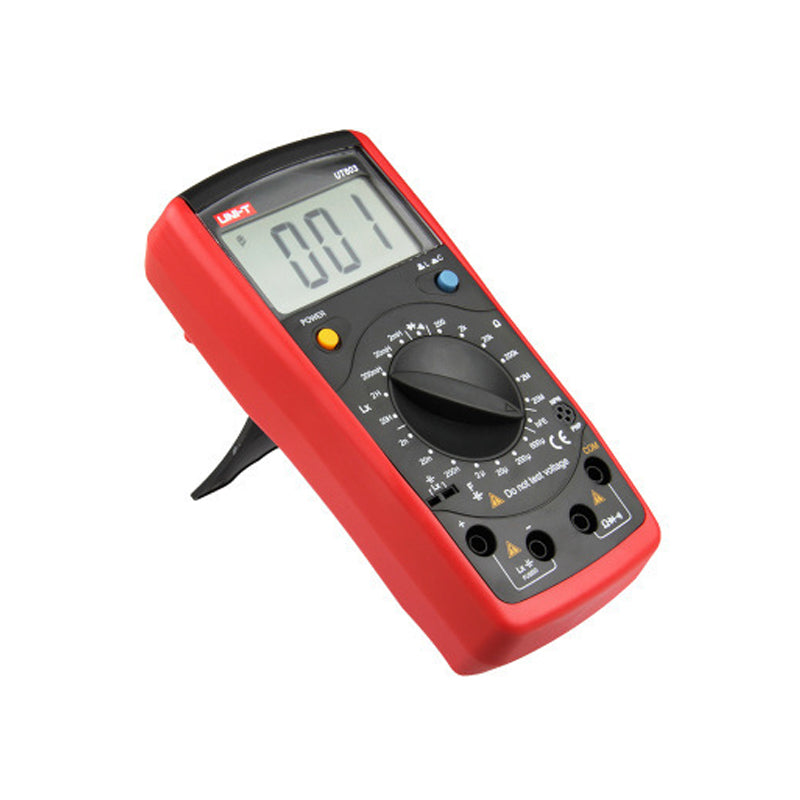

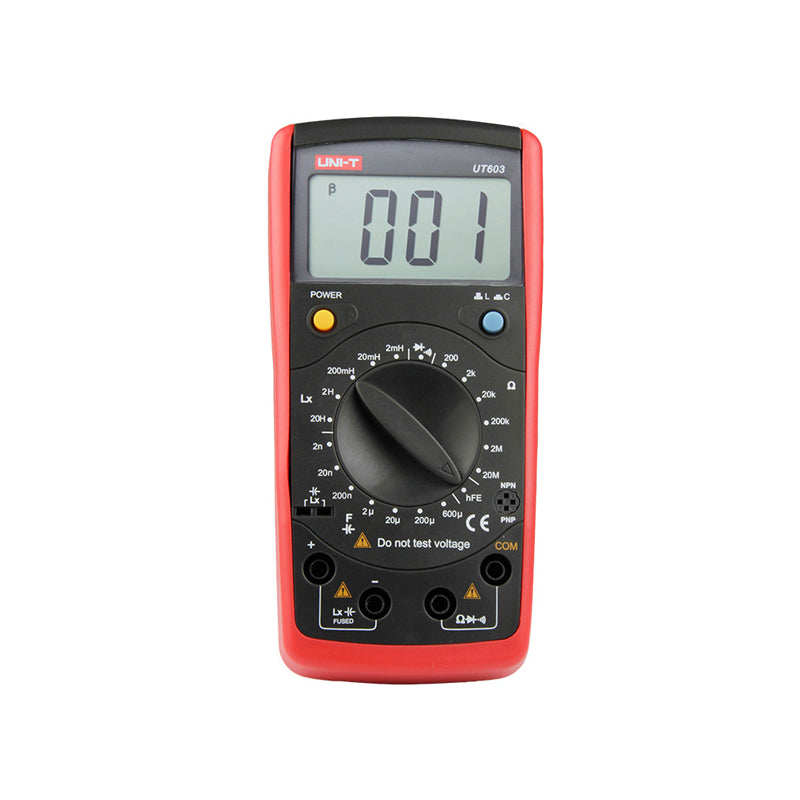

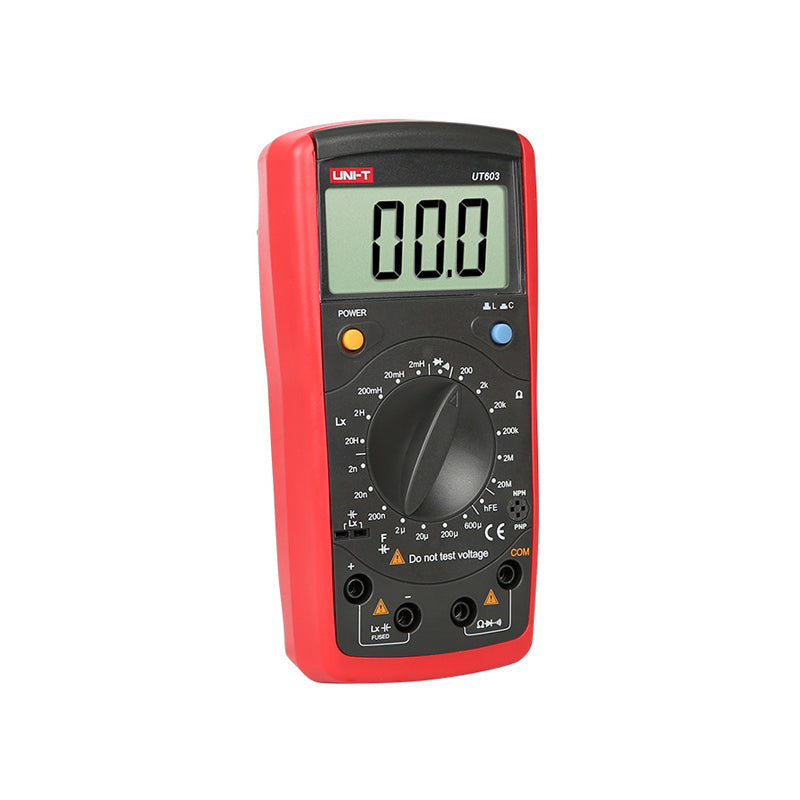

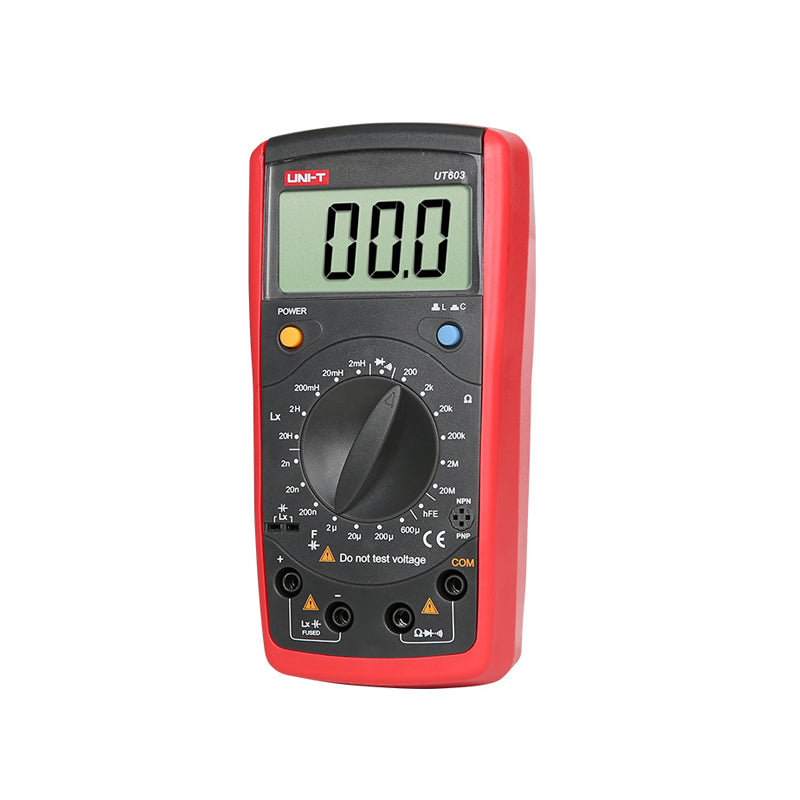

UNI-T UT603 Digital Modern Inductance Capacitance Meters Testers LCR Meter LCD
Capacitors Ohmmeter w/hFE Test
Product Introduce:
UT603 digit LCR meter is used to test resistors, capacitors and inductors.It can measure transistor parameters.
The LCR meter can check electronic components in electronic labs, production lines, maintenance points and schools.
Features:
1. Diode and buzzer continuity measurements
2. Inductance measurement
3. Low battery indication
4. 2~3 times per second refresh rate
5. Transistor testing adapter
Specifications：
Specifications
Range
BestAccuracy
Model
UT603
Resistance(Ω)
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
±(0.8%+1)
Capacitance(C)
2nF/20nF/200nF/2uF/20uF/200uF/600uF
±(1%+5)
Inductance(H)
2mH/20mH/200mH/2H/20H
±(2%+8)
Features
MaxDisplay
1999
ManualRange
√
Diode
√
Transistor
√
ContinuityBuzzer
√
LowBatteryIndication
√
General Characteristics
Power
9VBattery(6F22)
LCDSize
61mmX32mm
ProductColor
RedandGrey
ProductNetWeight
312g
ProductSize
172mmX83mmX38mm
StandardAccessories
Battery,TestClip,Holster
StandardIndividualPacking
GiftBox,EnglishManual
StandardCartonMeasurement
598mmX418mmX340mm(0.085CBMPerStandardCarton)

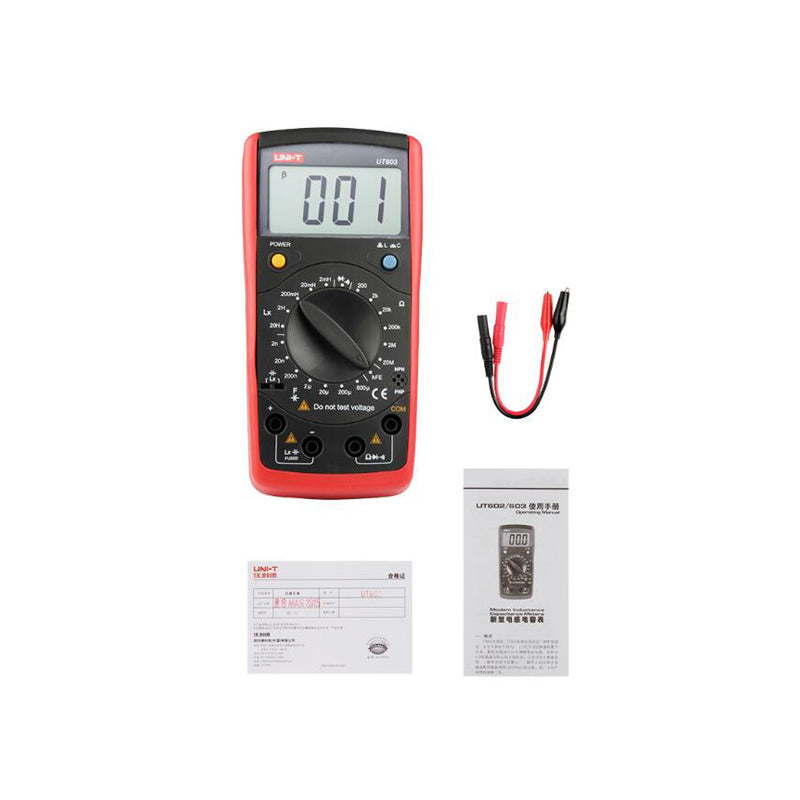

Packing List:
1*Cpacitance meter UT603
1*Test Clip
1*English manual
1*Color box
