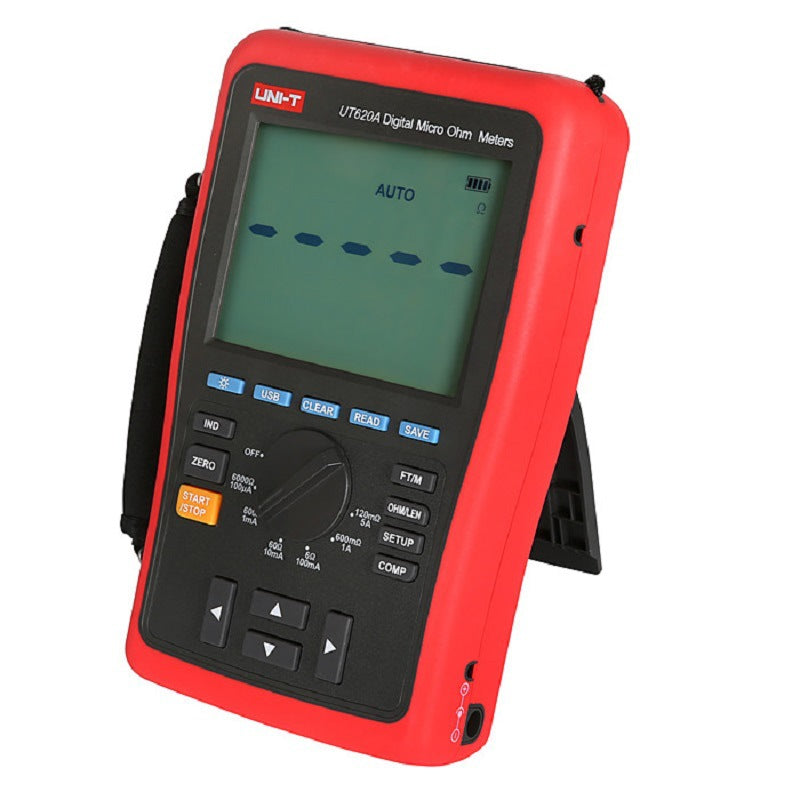

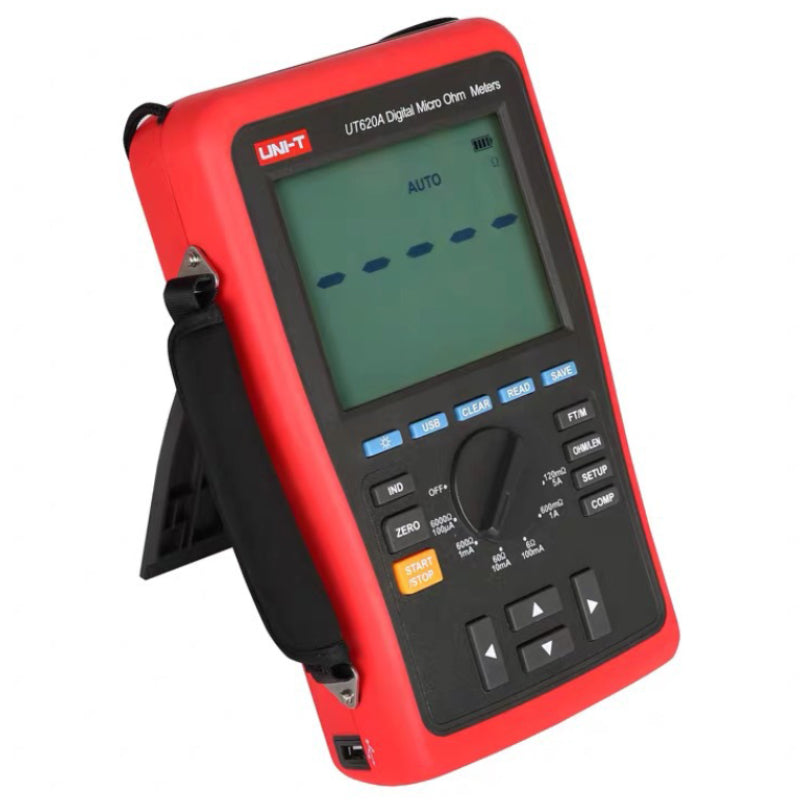

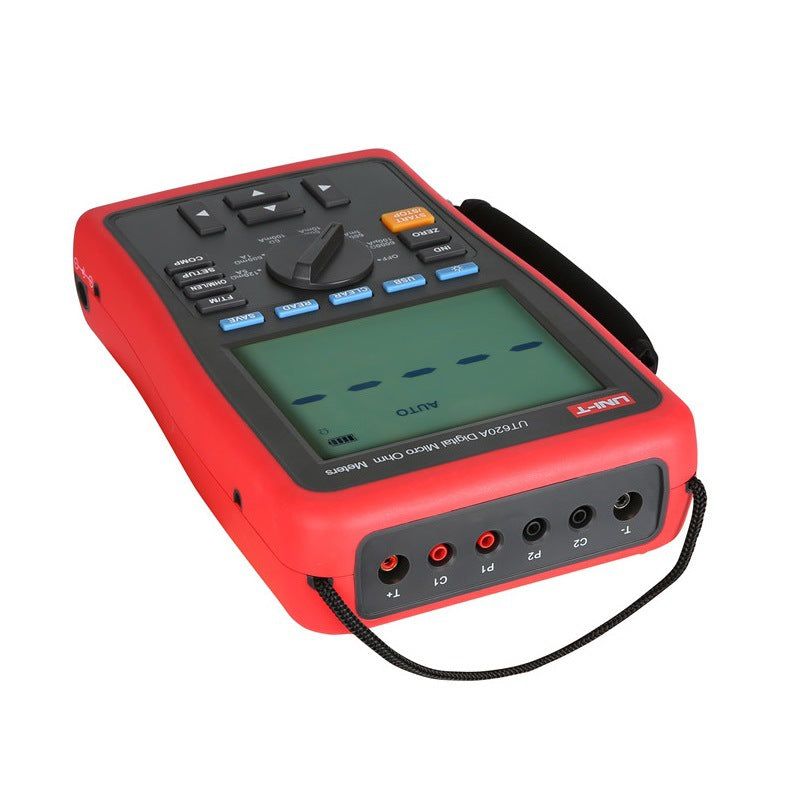

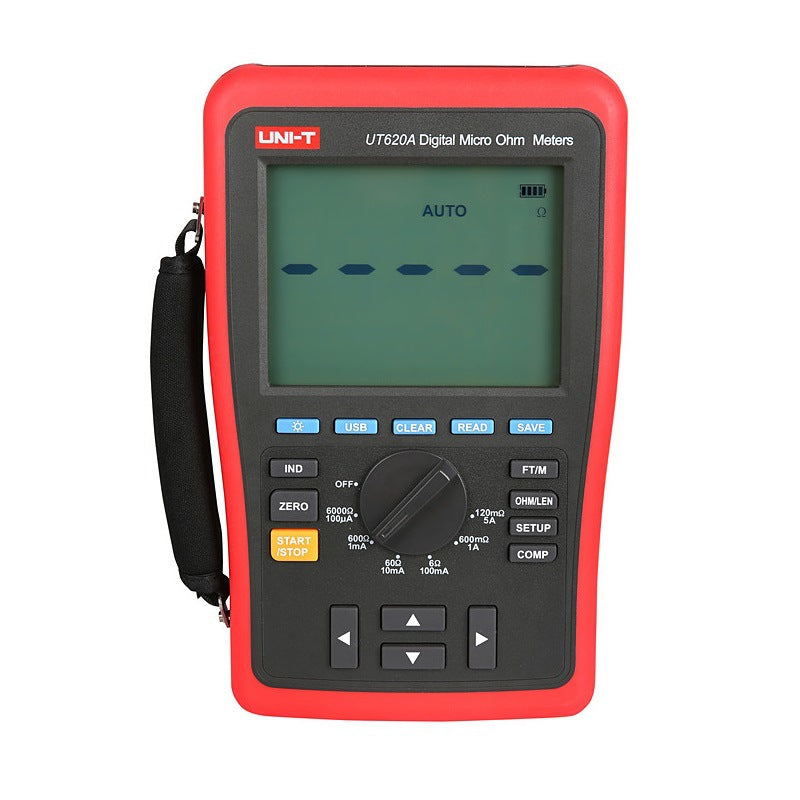

UNI-T UT620A Digital Micro Ohm Meters 120.0m - 6000k Ohms-
Multimeter,Factory Direct Sales
Features：
Selectable ranges of 120mΩ, 600mΩ, 6Ω, 60Ω, 600Ω and 6kΩ
Minimum resolution of 10μΩ
60000 count backlit oversize LCD display

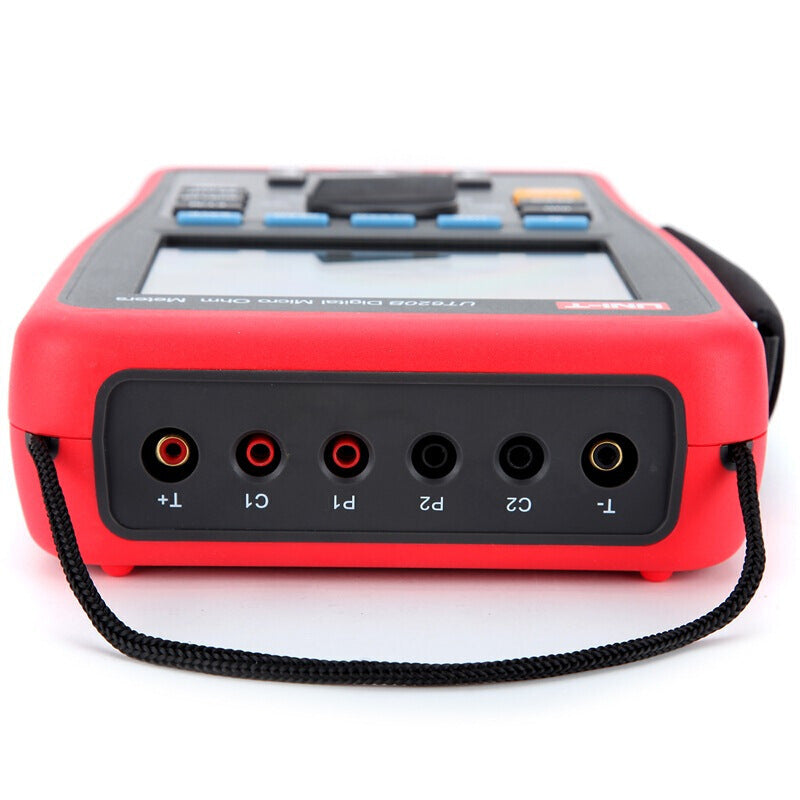

Four-wire measurements
Wire length measurement
High/low limit alarm
1000 record memory with USB download to PC
Manual ranging option
Data hold function
Relative value
Low battery indicator
Specifications
Range
Best Accuracy
Minimum Resolution
10μΩ
Resistance
120mΩ/ 5A
±(0.25% + 25 digits)
600mΩ / 1A
±(0.25% + 25 digits)
6Ω / 100mA
±(0.25% + 25 digits)
60Ω / 10mA
±(0.25% + 25 digits)
600Ω / 1mA
±(0.25% + 25 digits)
6kΩ / 100μA
±(0.75% + 25 digits)
Features
LCD Count
60000
Data Storage
1000
Power
Lithium battery, 7.4V4000mAh, rechargeable
LCD Size
116mm x 87.5mm

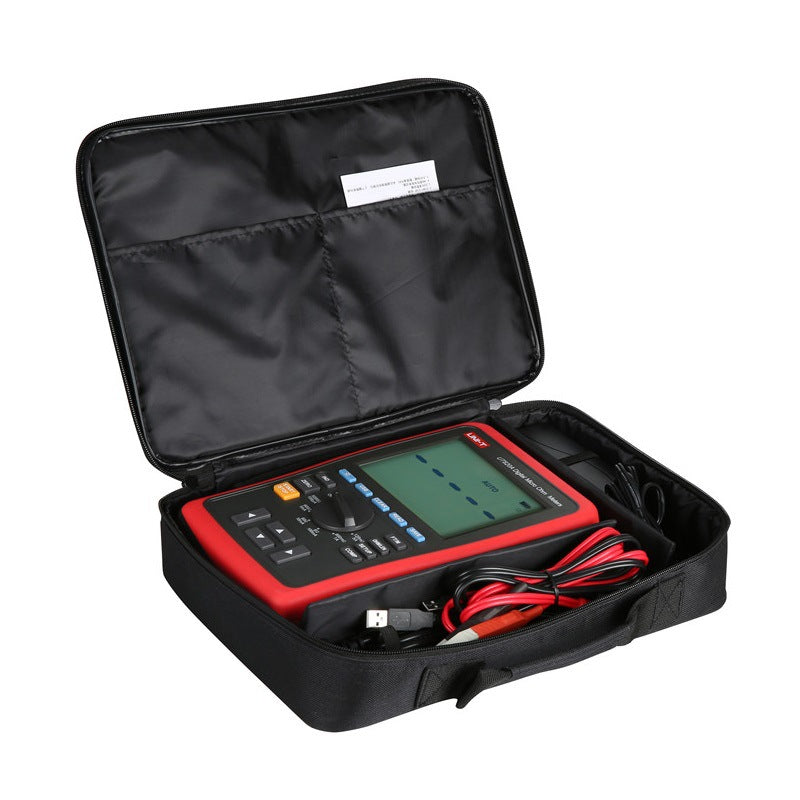

Packing list:
UNI-T UT620A Digital Micro-Ohm Mete
Kelvin Clips (Red and Black)
Power Adaptor
USB Cable
Software CD
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
