Features
Display Count: 200000
Auto Range: √
True RMS: √
Bandwidth (Hz): 100kHz
Diode: √
Continuity Buzzer: √
Data Hold: √
Relative Mode: √
MAX/MIN: √
Data Logging: 100
Data Recall: √

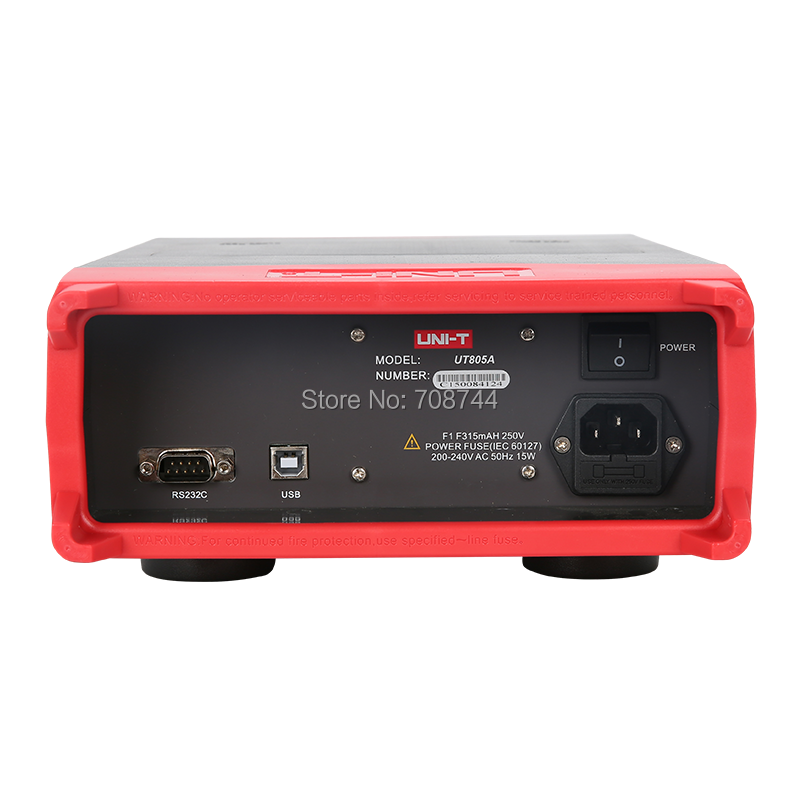

RS-232: √
USB Interface: √
LCD Backlight: √
Dot-matrix Liqid Crystal Display: 256×64 Pixels
Setup: √
Input Protection: √
Input Impedance for DCV: 2V Range: Around 10G?, All Other Ranges: Around 10M?
Voltage &Current: AC+DC Measurement
Specifications
Model: UT805A
DC Voltage (V): 200mV/2V/20V/200V/1000V ±(0.015%+3)
AC Voltage (V): 200mV/2V/20V/200V/750V ±(0.2%+100)
DC Current (A): 2mA/200mA/10A ±(0.03%+10)
AC Current (A): 2mA/200mA/10A ±(0.3%+100)
Resistance (?): 200?/2k?/20k?/200k?/2M?/20M? ±(0.02%+6)
Capacitance (F): 6nF/60nF/600nF/6?F/60?F/600?F/6mF ±(2%+5)
Frequency (Hz): 10Hz~60MHz ±(0.1%+3)
There are EU, AU, UK , three kinds of plug, Please leave a message for which plug you need.
General Characteristic
Power: AC 220V/50Hz
LCD Size: 128mm * 28mm
Product Color: Red and Grey
Product Net Weight: 1.5 Kg
Product Size: 300mm * 245mm * 105mm
Package Size: 35 * 30 * 17cm / 13.9 * 11.8 * 6.4in
Package Weight: 4087g / 9lb

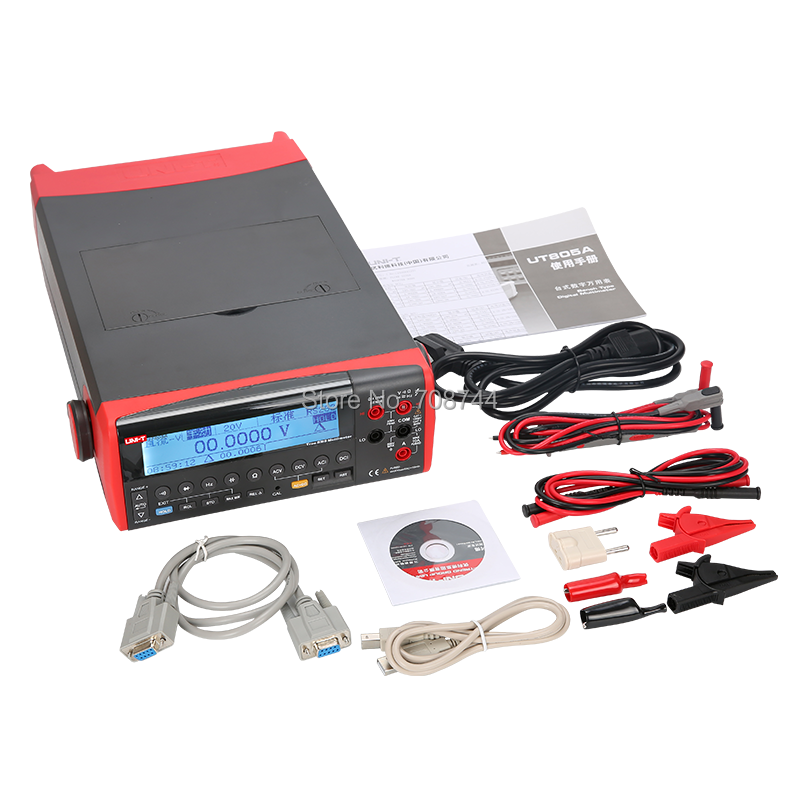

Package List

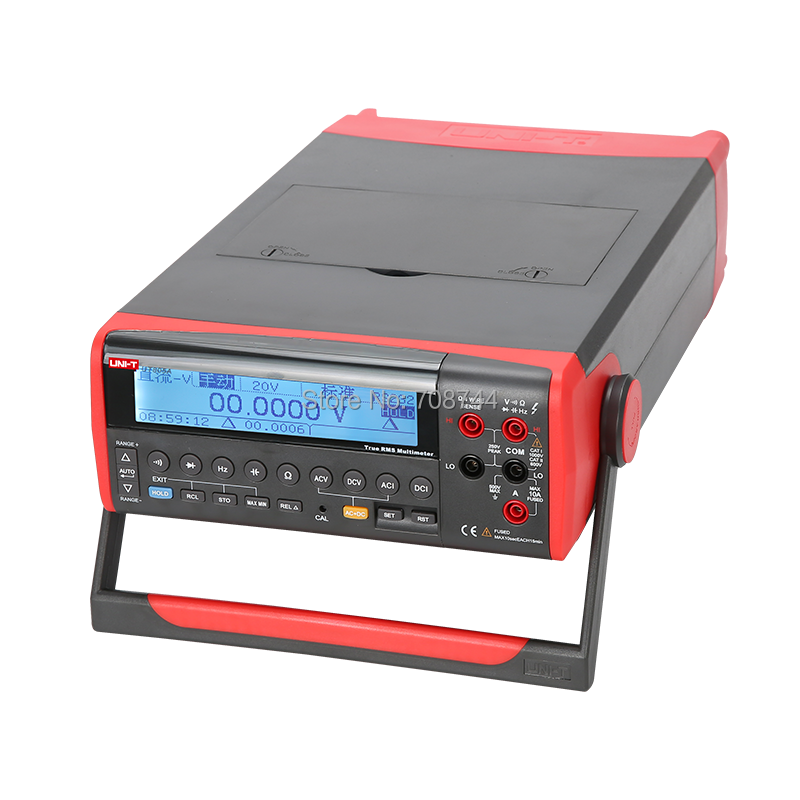

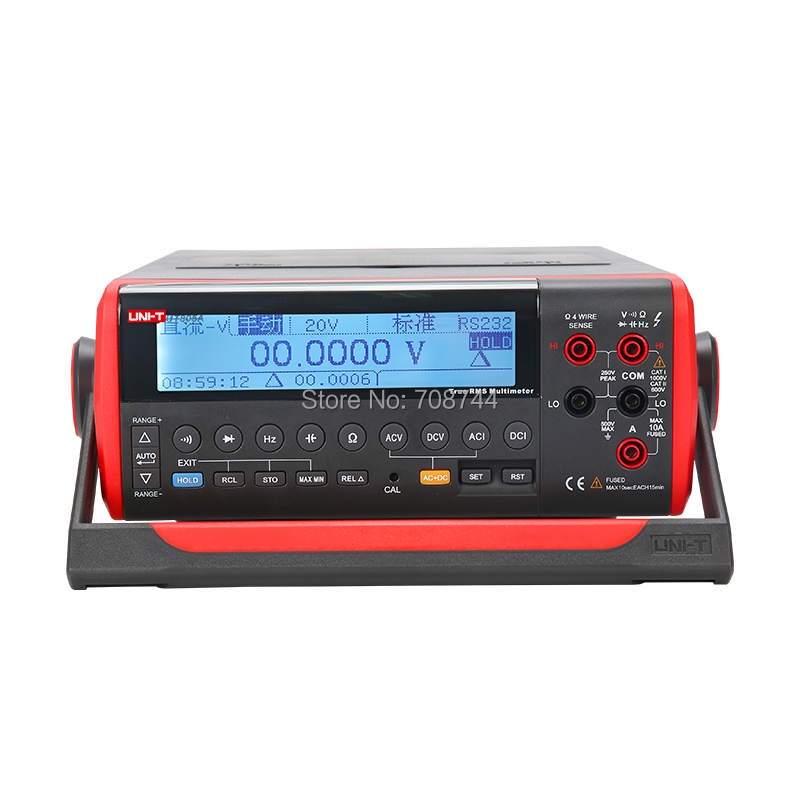

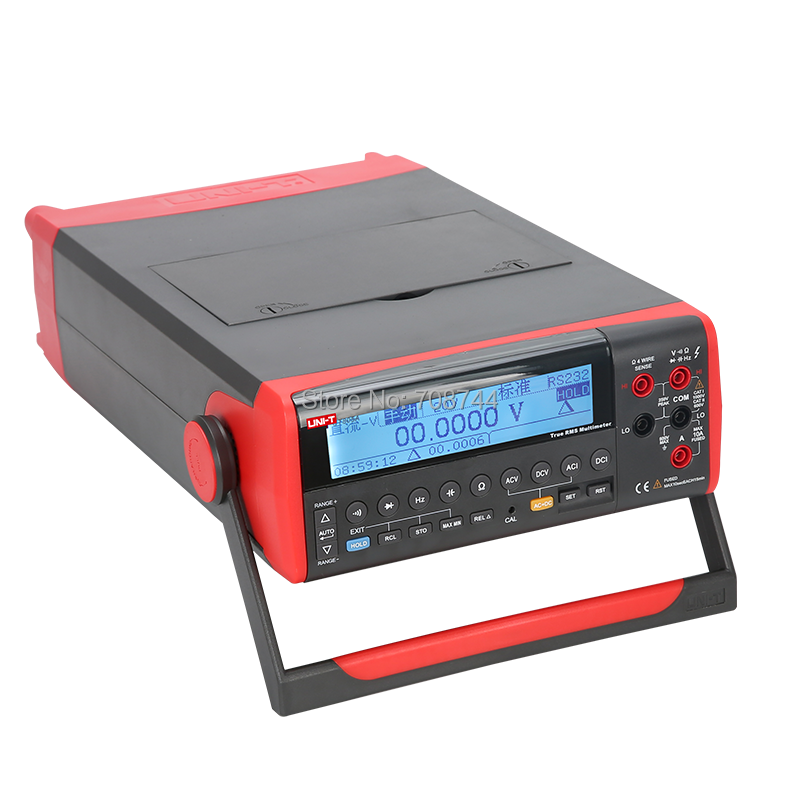

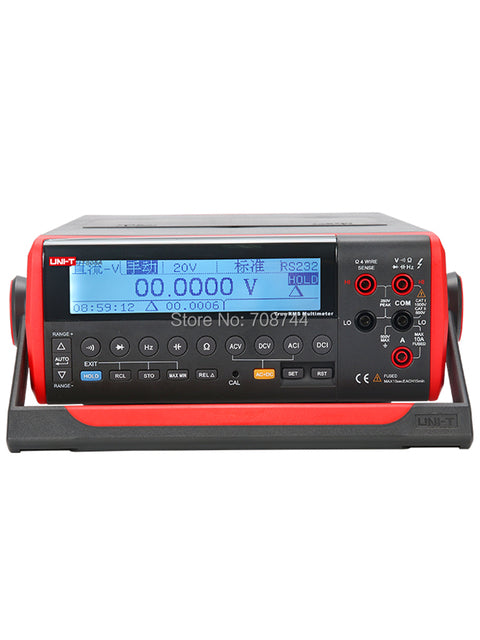

1 * UNI-T UT805A Bench Type Digital Multimeter
1 * Plug
1 * Pair Test Lead
1 * Pair Test Probe
1 * RS232 Cable
1 * USB Cable
1 * Multi-function Socket
4 * Alligator Clip(2 * red & 2 * black)
1 * CD Software
1 * English Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
