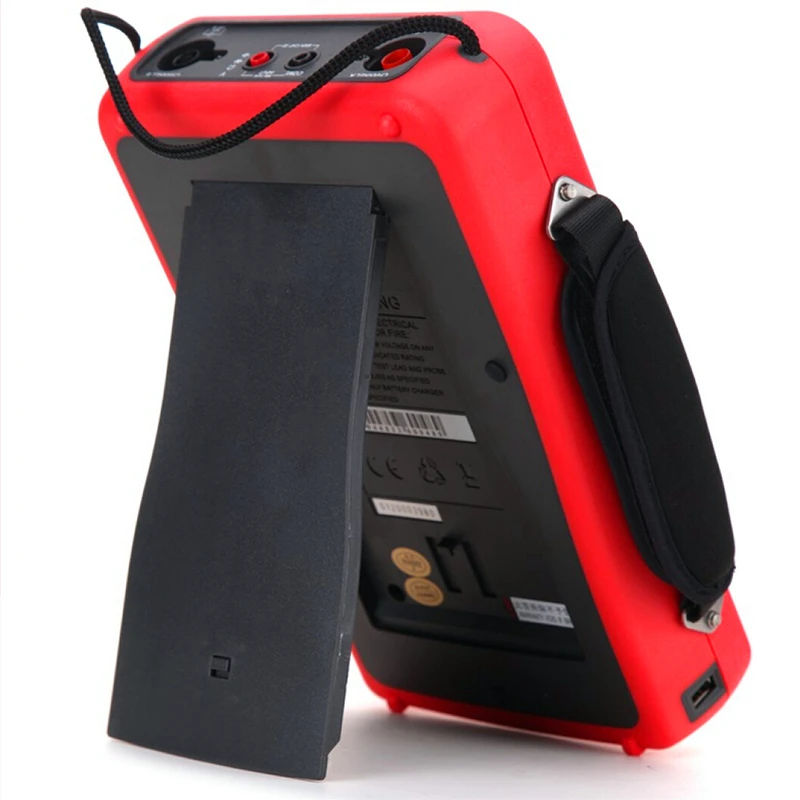

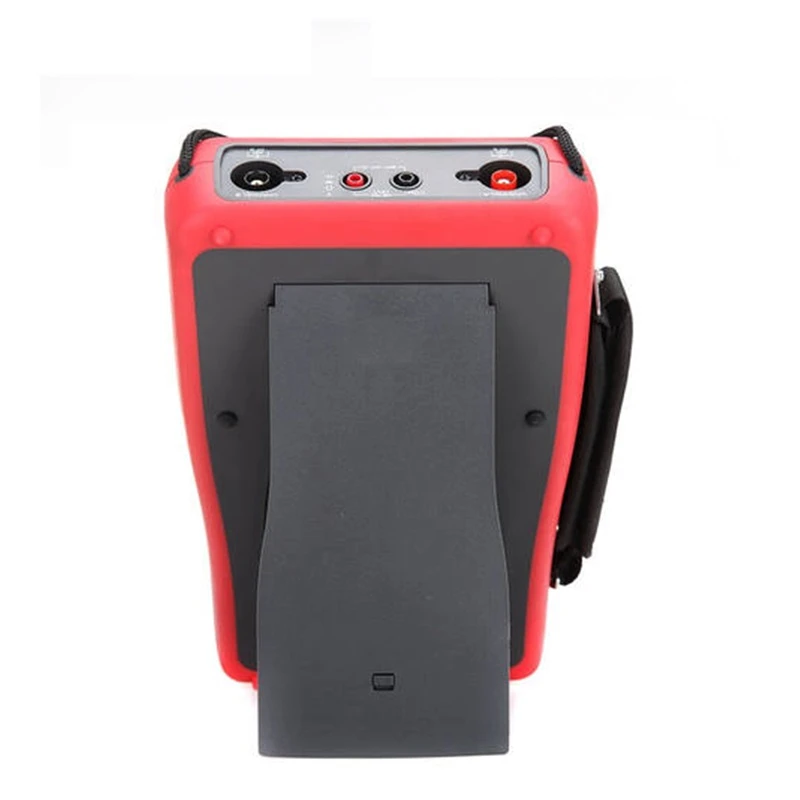

UNI-T UTD1062C 2 Channels 60MHz 250MS/s Handheld Portable Digital Multimeter Oscilloscope Oscillograph Oscillometer UTD-1062C
SPECIFICATIONS
Feature
UTD-1062C
Bandwidth
60 MHz
Rise Time
≤5.8 ns
Real-time Sampling Rate
250MS/s
Equivalent Sampling Range
25GS/s
Vertical Sensitivity
5mV ~ 50V/div
Record Length (Max)
2 x 512k
Scan Time Base
5ns ~ 50s/div
Trigger Type
Edge, Pulse, Video and Alternate
Automatic Waveform Measurements
27
Frequency Counter
6 digits frequency counter
Ports
USB Host
Mathematics
Add, Subtract, Multiply, Divide, FFT
Interface
Colour and Mono display selectable
Power
The provided battery or out-sourced adaptor
Life of Battery
3 hours
Other Features
Multimeter,special LCD copy feature
Multimeter
Resistance
600Ω / 6MΩ / 60MΩ : ± (1.5% + 5 digits)
6kΩ / 60kΩ / 600kΩ : ± (1.2% + 5 digits)
DC Voltage
600mV, 6V, 60V, 600V, 1000V: ± (1% + 5 digits)
AC Voltage
(45Hz ~ 400Hz)
600mV, 6V, 60V, 600V, 700V:
± (1.2% + 5 digits), Frequency: <200Hz
± (1.5% + 5 digits), Frequency: ≥200Hz
DC Current
6mA, 60mA, 600mA: ± (1.2% + 5 digits)
6A: ± (1.5% + 5 digits)
AC Current
(45Hz ~ 400Hz)
6mA, 60mA, 600mA: ± (2% + 5 digits)
6A: ± (2.5% + 5 digits)
Capacitance
6nF, 6mF: ± (5% + 10 digits)
60nF, 600nF, 6μF, 60μF, 600μF: ± (1.5% + 5 digits)
Continuity Buzzer
Yes
Diode
Yes
Trend Diagram
Yes
Testing Mode
Manual / Auto ranging
Max.Display
5999
GENERAL CHARACTERISTICS
Power
100 - 240V 50/60Hz 1.5A
LCD Size
Diagonal 145mm (5.7 inches)
Product Color
Red and Grey
Product Net Weight
1.8kg
Product Size
268mm x 168mm x 60mm
Accessories
Probe x 2 (1x, 10x switchable),
Current Voltage Convertor x 2(UT-M03, UT-M04)
Power Cord, DC Adaptor and English Manual, Test Lead
Standard Individual Packing
Tool Box and Gift Box
Standard Quantity Per Carton
4 pcs
Standard Carton Measurement
475 x 460 x 380mm (0.10 CBM Per Export Carton)
Standard Carton Gross Weight
Around 23.2kg
