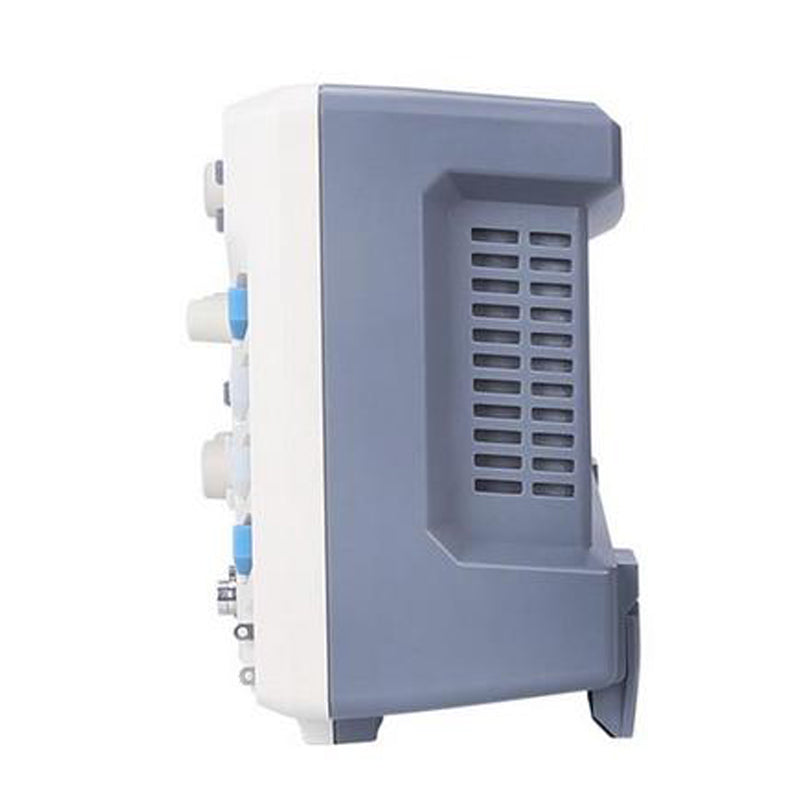

Features & Benefits

 1. 70MHz bandwidth, 1GSa/s real-time sampling rate

 2. 2 channels

 3. 25kpts memory depth

 4. 20,000wfms/s waveform acquisition rate

 5. 2ns/div~50s/div time-base

 6. Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video

 7. Calibration Signal Output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz

 8. Input calibration signal only by pressing a button

 9. 10Mpts waveform recording

 10. 8-inch TFT LCD, WVGA (800×480)

 11. USB OTG and Pass/Fail interfaces

 Technical Parameters

          Specification

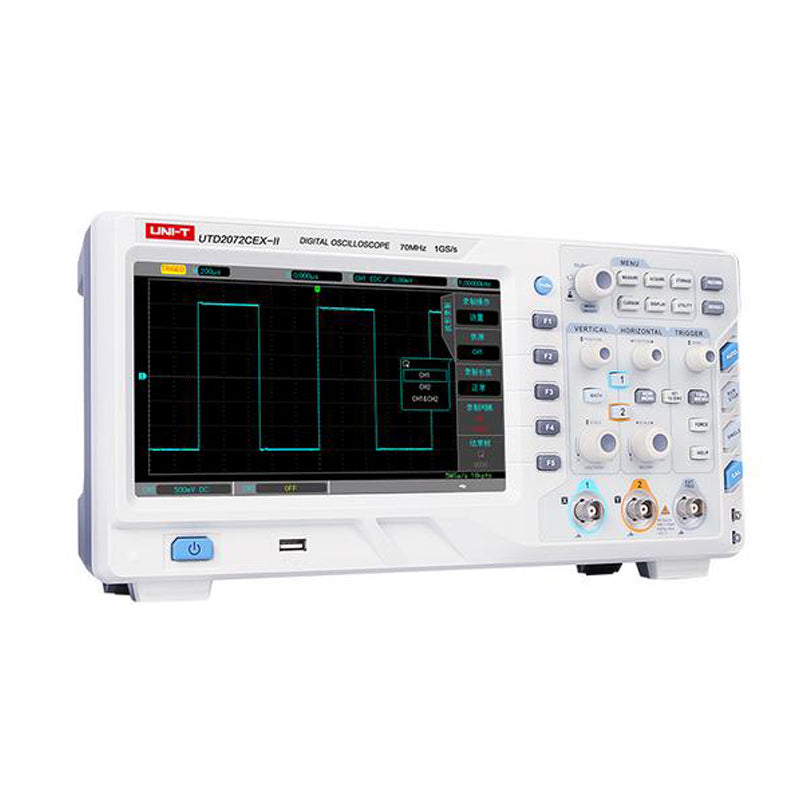

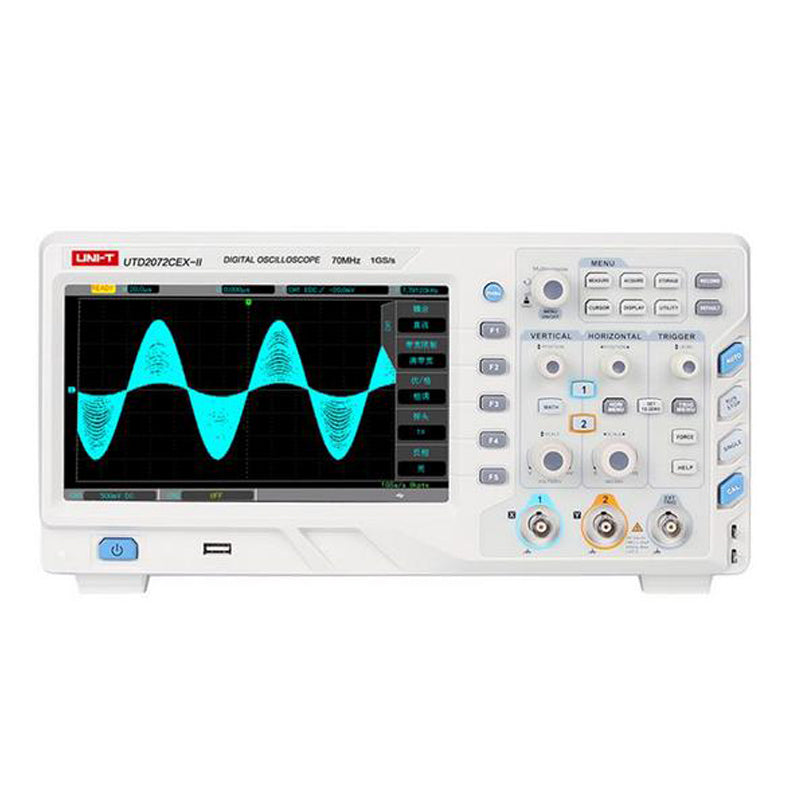

    UTD2072CEX-II

          Channel

    2

          Bandwidth

    70MHz

          Sample rate

    1GS/s (single channel), 500MS/s (dual channel)

          Rise time

    ≤5ns

          Memory depth

    25kpts

          Waveform acquisition rate

    ≥20,000wfms/s

          Vertical sensitivity (V/div)

    1mV/div~20V/div (1MΩ)

          Time-base range (s/div)

    2ns/div~50s/div

          Storage

    Setup, Waveform, Bitmap

          Trigger mode

    Edge, Pulse Width, Runt, Over amplitude, Video,    Slope

          Trigger frequency

    6 bits

          Trigger type

    Auto, normal, single

          Pluse Width range

    100ns~10s

          Signal mode and Line/Field

    Supports standard NTSC and PAL signal mode, line range is 1~525 (NTSC) and 1~625 (PAL)

          Auto measurement

    Max, Min, Peak-Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total

          Storage waveform

    20 internal settings/waveform, 200 settings/waveform in U disc, deep storage CSV in U disc

          Interface

    USB OTG, Pass/Fail

          General Characteristics

          Power

    100~240VACrms, 50/60Hz

          Display

    8-inch TFT LCD, 800×RGB×480

          Product color

    White and gray

          Product net weight

    3.35kg

          Product size (W×H×D)

    336mm×164mm×108mm

          Standard accessory

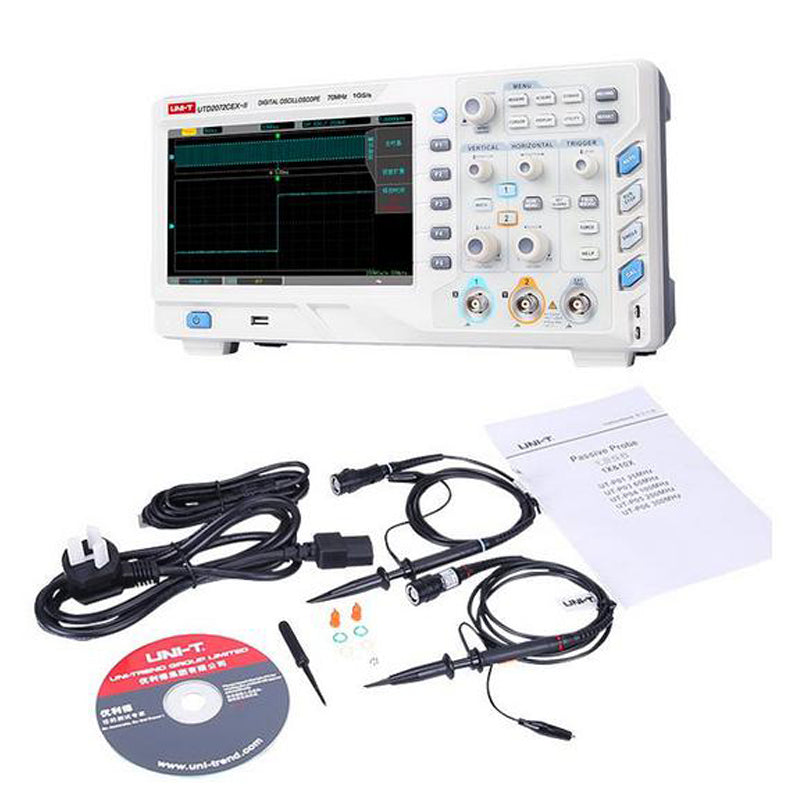

    Power cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (with manual and application software inside)

   Packaging Details

      Unit Type: Set

   Package Weight: 4.5kg (9.92lb.)

   Package Size: 40cm x 30cm x 20cm (15.75in x 11.81in x 7.87in)
