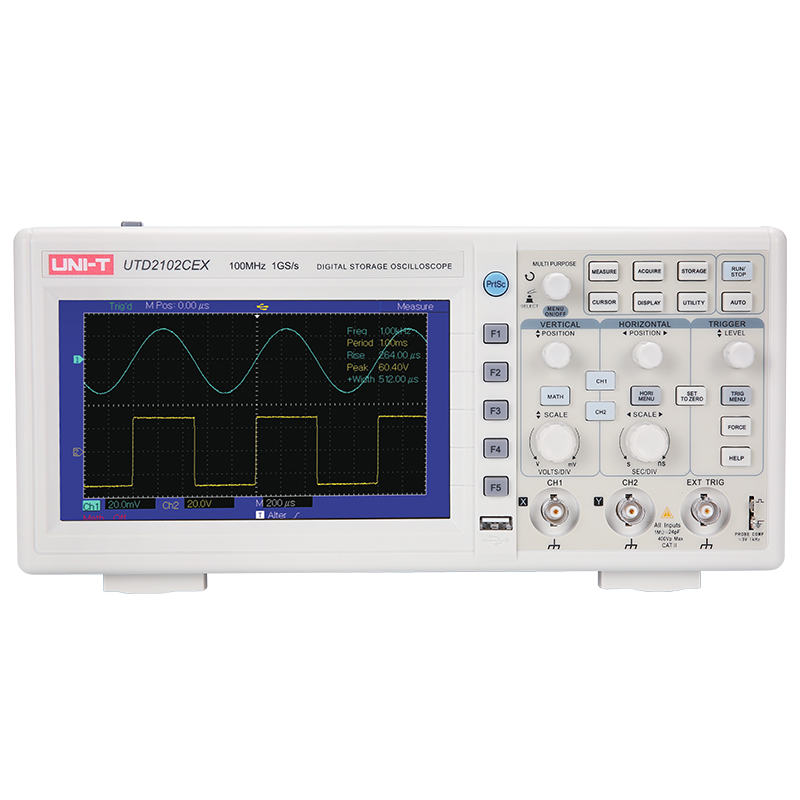

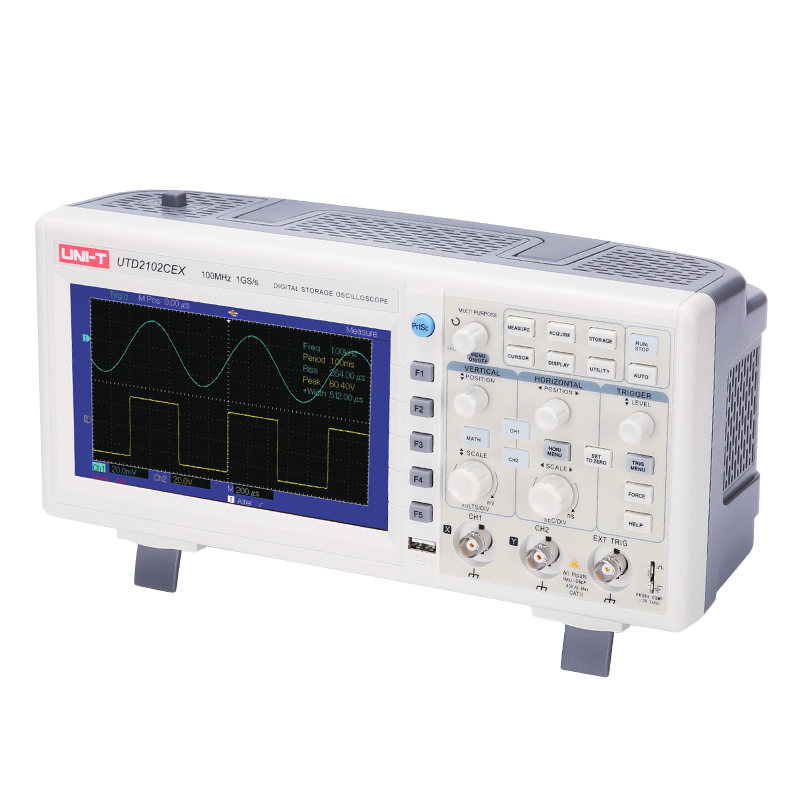

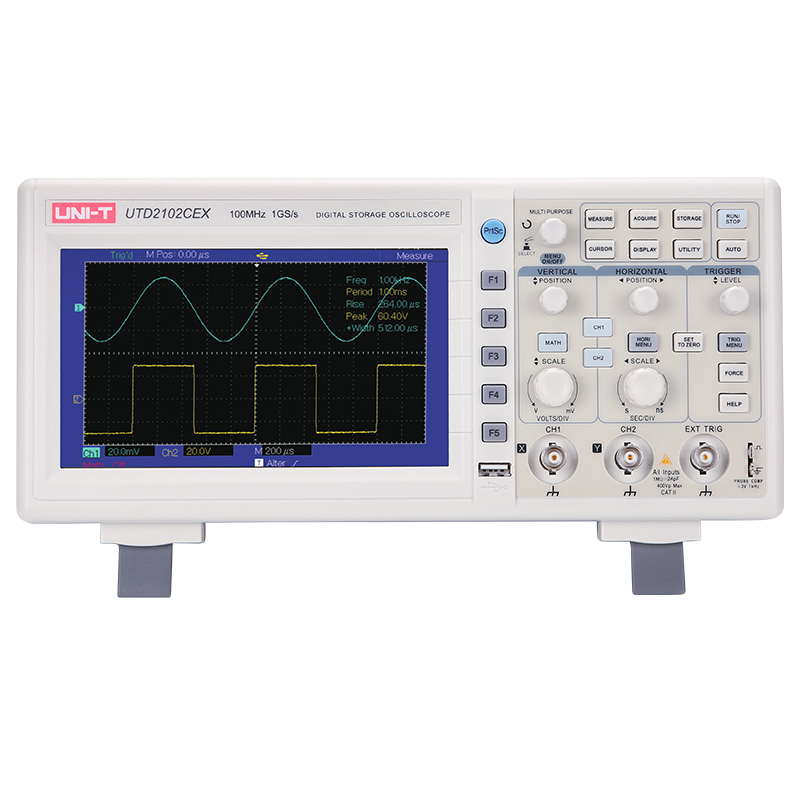

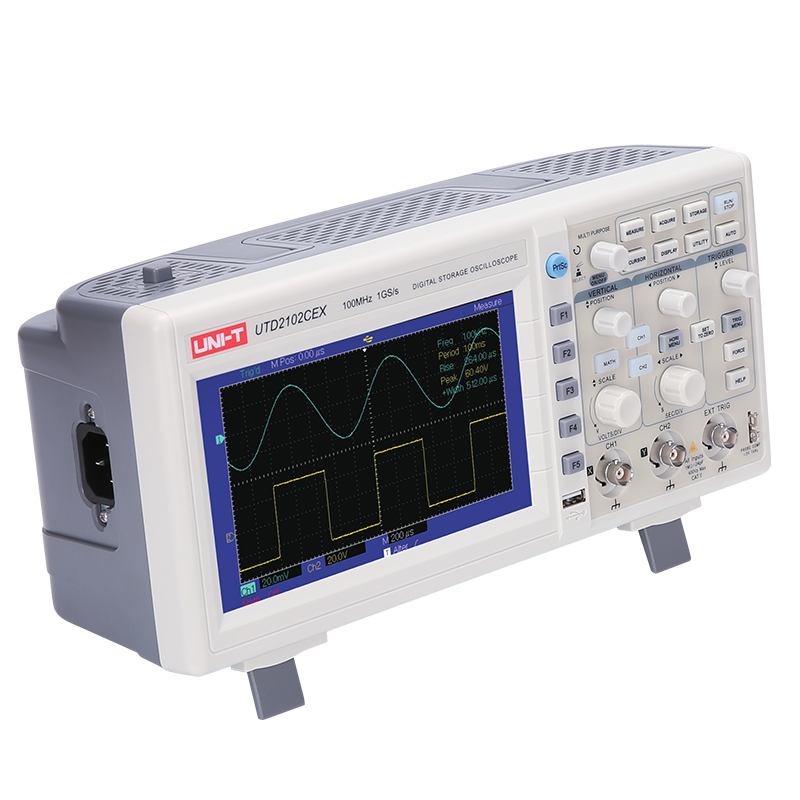

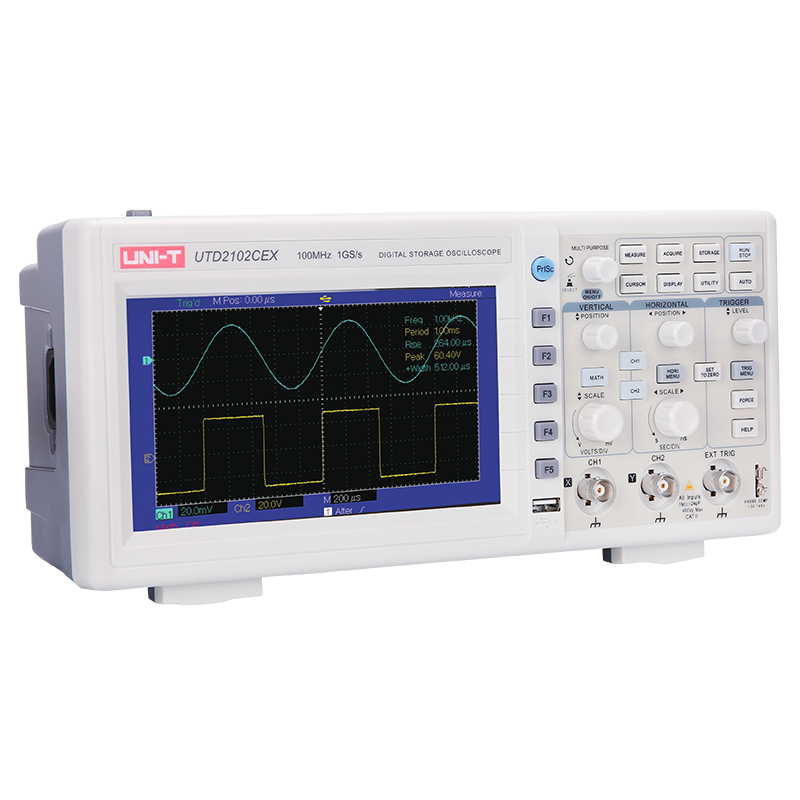

UNI-T UTD2102CEX-II 8 Inch TFT LCD Digital Storage Oscilloscope 100MHz Bandwidth 2 Channels 800X480 WVGA Phosphor Oscilloscope
Features & Benefits
1. 100MHz bandwidth, 1GSa/s real-time sampling rate
2. 2 channels
3. 25kpts memory depth
4. 20,000wfms/s waveform acquisition rate
5. 2ns/div~50s/div time-base
6. Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video
7. Calibration Signal Output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz
8. Input calibration signal only by pressing a button
9. 10Mpts waveform recording
10. 8-inch TFT LCD, WVGA (800×480)
11. USB OTG and Pass/Fail interfaces
Technical Parameters
Specification
UTD2072CEX-II
UTD2102CEX-II
Channel
2
2
Bandwidth
70MHz
100MHz
Sample rate
1GS/s (single channel), 500MS/s (dual channel)
Rise time
≤5ns
≤3.5ns
Memory depth
25kpts
Waveform acquisition rate
≥20,000wfms/s
Vertical sensitivity (V/div)
1mV/div~20V/div (1MΩ)
Time-base range (s/div)
2ns/div~50s/div
Storage
Setup, Waveform, Bitmap
Trigger mode
Edge, Pulse Width, Runt, Over amplitude, Video, Slope
Trigger frequency
6 bits
Trigger type
Auto, normal, single
Pluse Width range
100ns~10s
Signal mode and Line/Field
Supports standard NTSC and PAL signal mode, line range is 1~525 (NTSC) and 1~625 (PAL)
Auto measurement
Max, Min, Peak-Peak, Amplitude, Top, Bottom, Cycle Average, Average, Crms, RMS, Area, Cycle area, Overshoot, Preshoot, RPRE, FPRE, Rise Time, Fall Time, Frequency, Period, Pulse Width, +Width, -Width, Burst Width, +Duty, -Duty, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, 34 measuring parameters in total
Storage waveform
20 internal settings/waveform, 200 settings/waveform in U disc, deep storage CSV in U disc
Interface
USB OTG, Pass/Fail
General Characteristics
Power
100~240VACrms, 50/60Hz
Display
8-inch TFT LCD, 800×RGB×480
Product color
White and gray
Product net weight
3.35kg
Product size (W×H×D)
336mm×164mm×108mm
Standard accessory
Power cord, USB cable, 2 sets of passive probes (100MHz), PC software CD (with manual and application software inside)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
