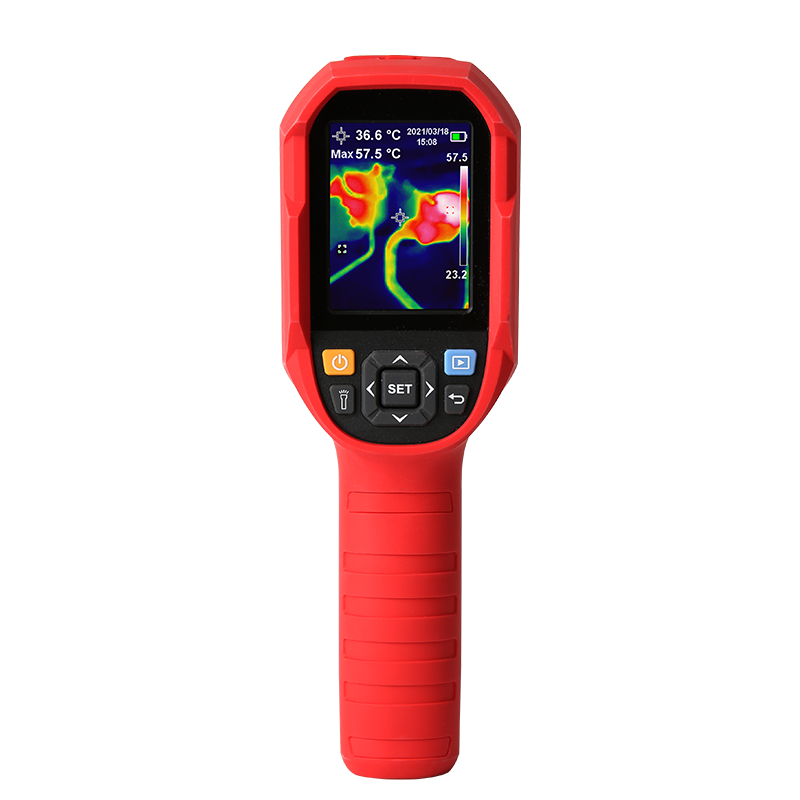

UTI120 series products are rugged, and ergonomically designed thermal imager with great performance. It adopts a UFPA detector to ensure excellent infrared resolution and a rich variety of palette modes. Some models have the functions of visual light, buzzer alarm, and real-time image transmission, which is convenient for various applications.
Features:
● 2.8'' TFT screen
● Infrared resolution: 120 x 90
● Temperature measurement range: -10℃~400℃
● Photograph function with SD card storage
● PC analysis software
● Buzzer/flashlight alarm
● Real-time image transmission
● Auto capture of Hi/Low temperature
● Flashlight

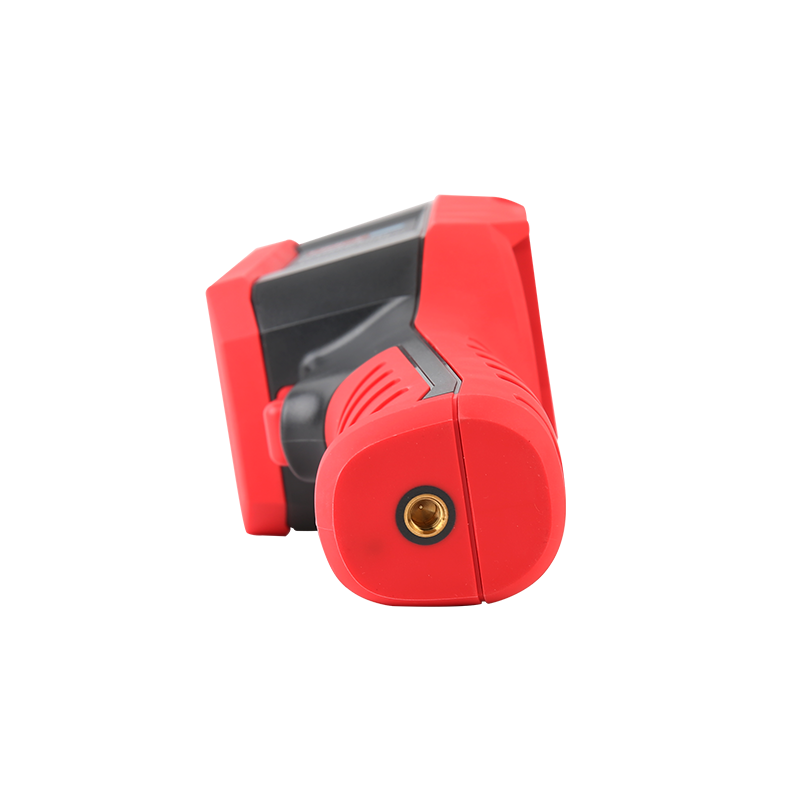

● 1/4'' tripod mounting hole
● IP65/2m drop proof
Parameter:
Specifications
Model
UTi120B
Certifications
CE/RoHS
Temperature range
-10~400˚C
IR Resolution
120x90 pixels
Field of view (FOV)
51°x38°
Thermal sensitivity (NETD)
60mk
Spatial resolution (IFOV)
7.3mrad
Frame rate
25Hz
Measurement accuracy
±2˚C or ±2% whichever is greater
Palettes
7
Emissivity
Adjustable (0.01-1)
Focus
Focus free
Display modes
Thermal, blending, visible
Display
2.8"LCD
ROI (eliminates interference)
√
General Characteristics
Power
Li-ion battery (3.6V 5000mAh)
Product net weight
Around 910g
Product net size
236mm x 75.5 mm x 86mm

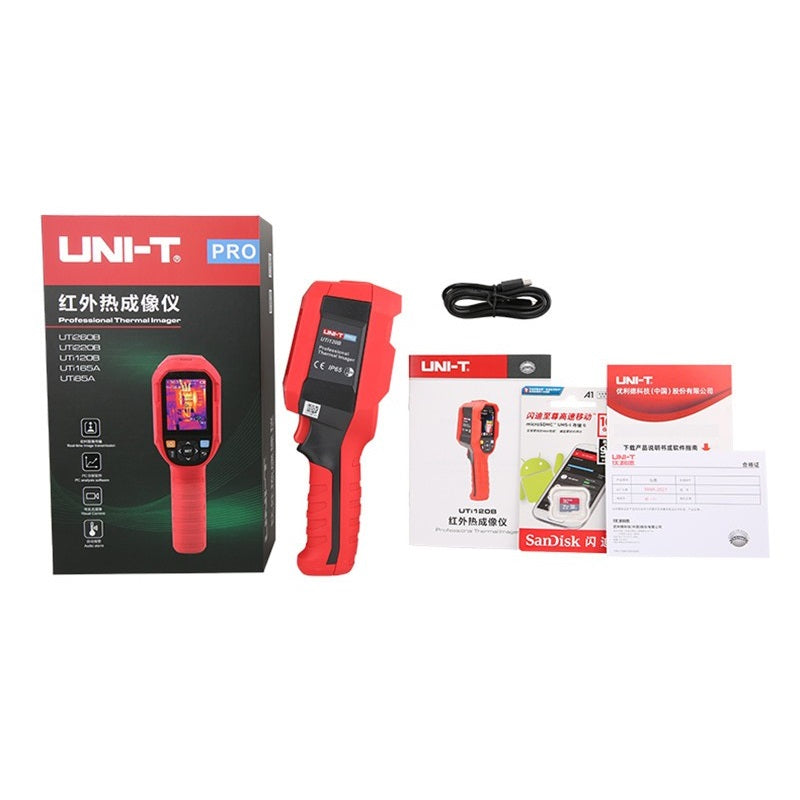

Standard accessories
Micro SD card, Type-C USB cable, English manual
Standard individual packing
Gift box
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
