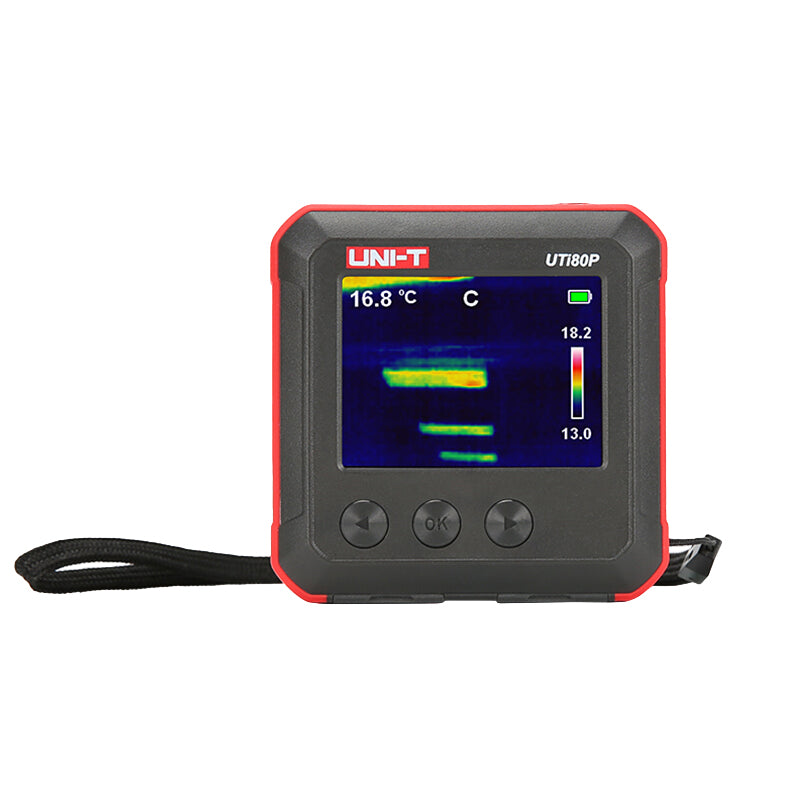

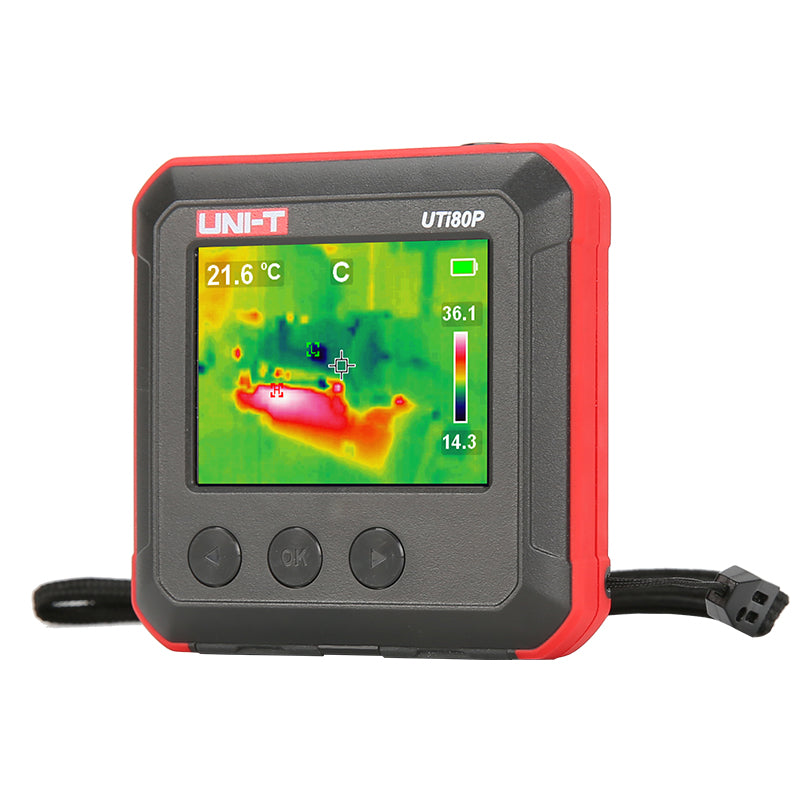

UNI-T UTi80P Portable Thermal ImagersThermal Imaging Camera Industrial

   Temperature Thermometer Floor Heating Test Meter

    Features:

    1. Pocket size thermal imager (76mm x 76mm x 22mm)

2. 80 x 60 pixels

3. Temperature range: -10 ~ 400℃

4. Stores photos in SD card

5. High/low temperature tracking

6. Rechargeable lithium battery (through micro USB)

7. PC software for temperature analysis and reporting

       UTi80P is Uni-Trend's latest portable infrared thermal imager with high-resolution (80×60). Users can observe the target object clearly at night and measure the temperature. UTi80P Cube has mulitiple palettes for different scenes. It is equipped with upper computer software and can transmit data through the USB interface, display and analyze all pixel temperatures, and perform high temperature capture which can quickly identify the hot spot location. Designed with high and low temperature alarm/dynamic tracking, adjustable emissivity, UTi80 Cube can meet various user requirements, and its palm-sized volume and complete functions makes it a best choice for DIY hobbyist. It is an ideal tool for on-site temperature detection.

Applications:

UTi80P Cube is widely used in power/HVAC equipment maintenance, electronic power/automotive manufacturing, construction, energy, chemical and smelting industries.

                  Specifications

                Model

      UTi80P

                Temperature Range

       -10~400℃

                Basic Accuracy

      ±2℃ or ±2% (-10~140℃);

                ±3℃ or ±3% (140~450℃)

                Resolution

      0.1℃

                Emissivity

      0.95 (0.1~0.99 adjustable)

                NETD

      ≤150mK (0.15℃)

                IR Resolution

      80*60

                Pixel Size

      17μm

                Palettes

      Iron, rainbow, grey

                FOV

      51º (H) * 38º (V)

                Image Frequency

       ≤9Hz

                Features

                High and Low Temperature Alarm

      √

                High and Low Temperature Tracking

      √

                Backlight

      High, medium, low

                Display

      2.4-inch TFT LCD

                Display Resolution

      320 x 240 pixels

                General Characteristics

                Power

      Li-ion battery: 3.7V/1300mAh(included)

                Display Size

      48mm x 36m

                Product Color

      Red and grey

                Product Net Weight

      125g

                Standard accessories

      16GMicro SD card, micro USB cable, carrying bag
