Specifications:

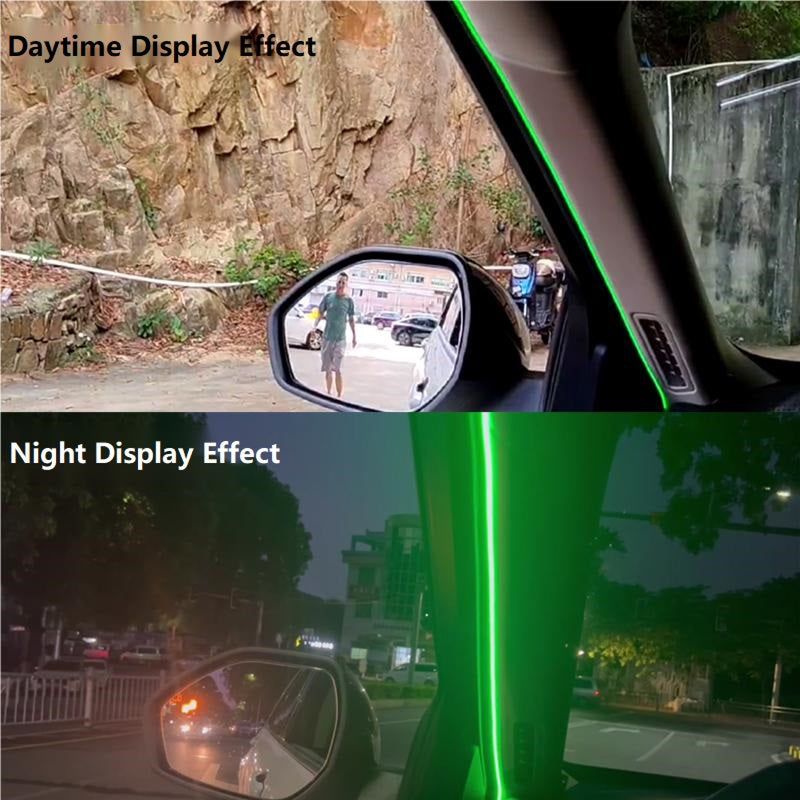

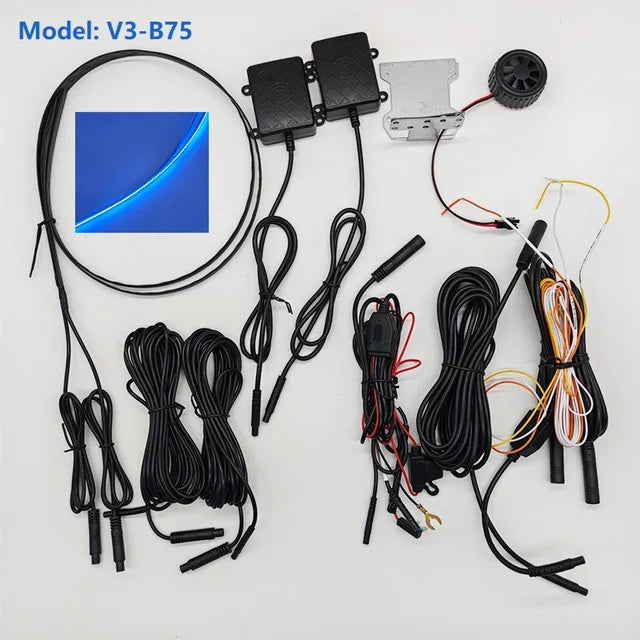

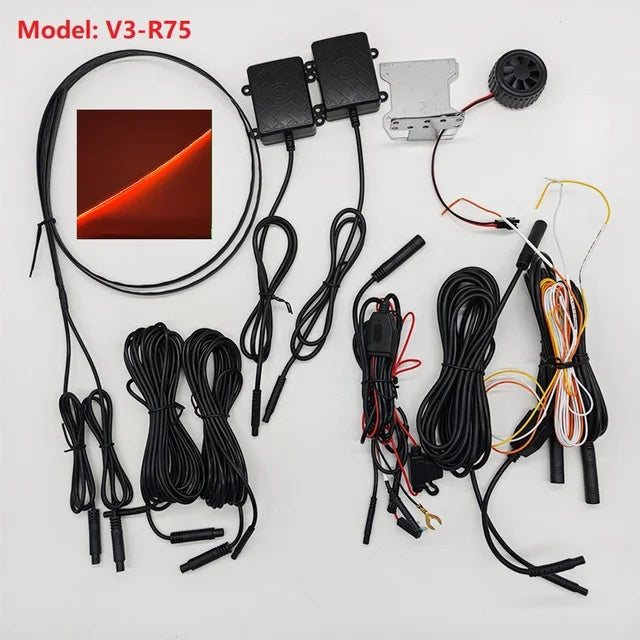

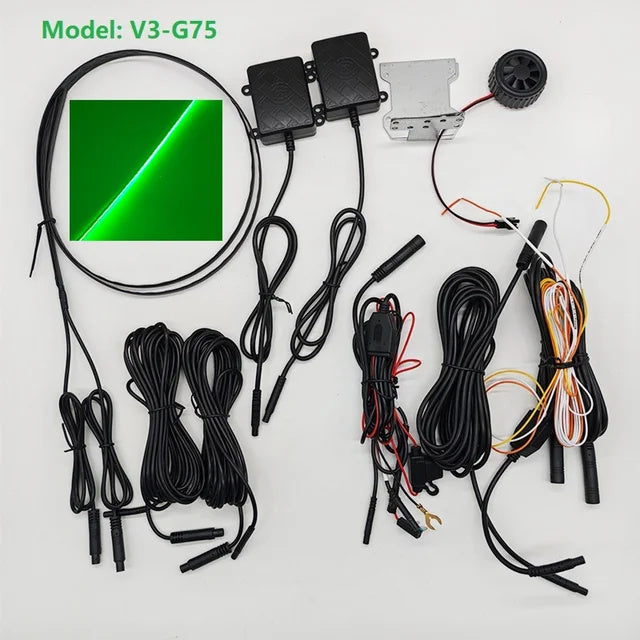

Light strip color: Green (V3-G75), Red (V3-R75), Blue (V3-B75), optional. Warning light strips can be cut as short as you need.
Applicable conditions: Universal (Special Note: There must not be any metal objects or irregular objects in front of the 2 radar signals to block the radar signals, otherwise the test will not work).
Operating frequency band: 24Ghz
Working voltage: 9-16V
Power consumption: 2W
Waterproof level: IP67
Working temperature: -40℃to +85℃/-40℉to 185℉
Distance resolution: 0.5m
Ranging accuracy: better than 0.2m
Velocity measurement accuracy: better than 0.18 m/s

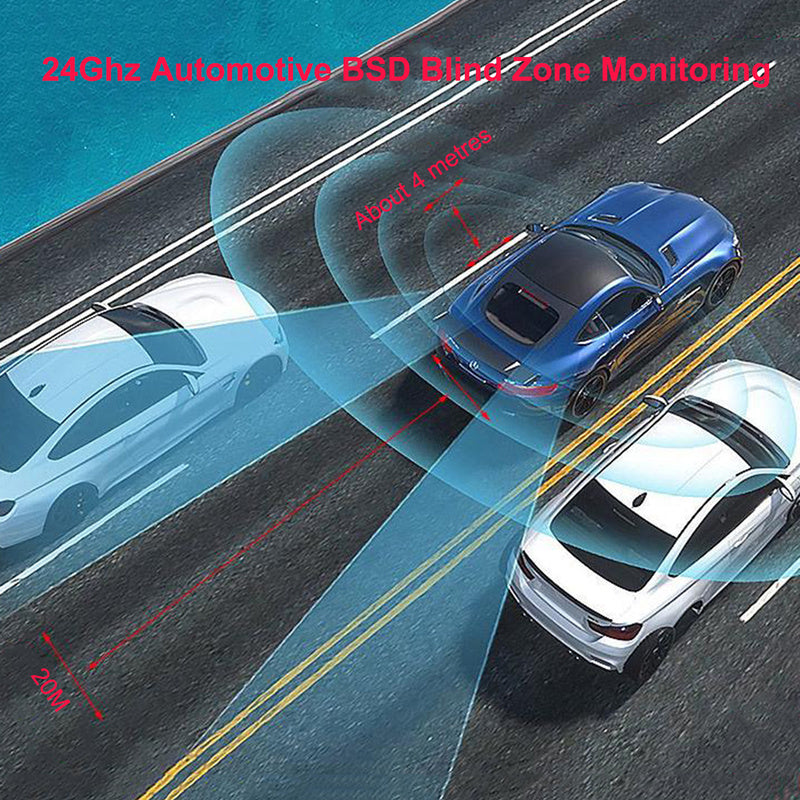

Detection range: Lateral distance : 0.3m-4.4m
Rear side distance: 20m
Detection range accuracy: ≥96%
System alarm accuracy: ≥96%

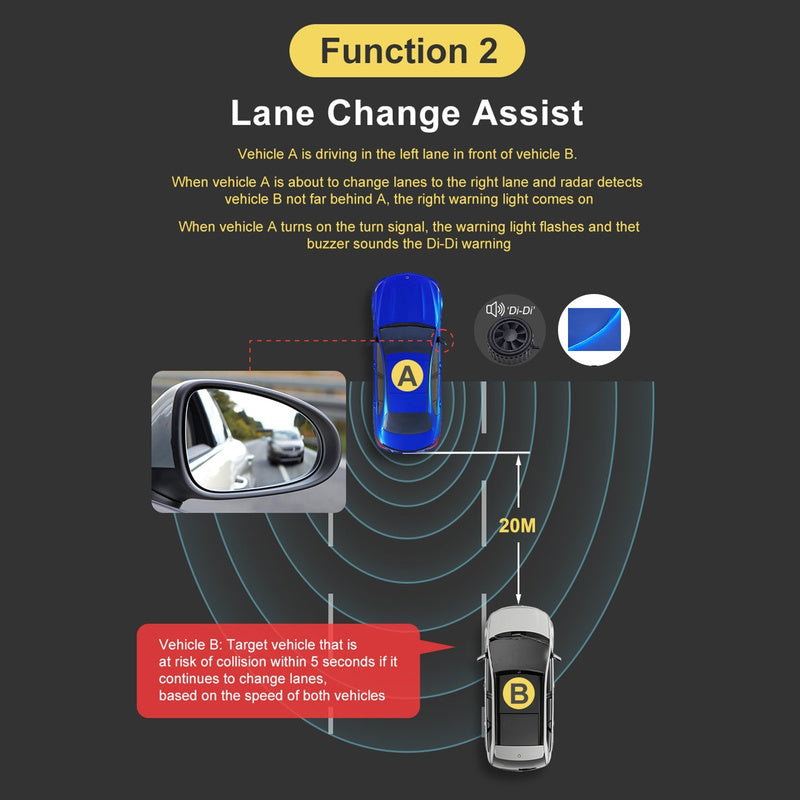

Alarm method: method 1 = LED light turn on.
Method 2 = LED flash and buzzer sound.
Radar size: 61*46*23mm.

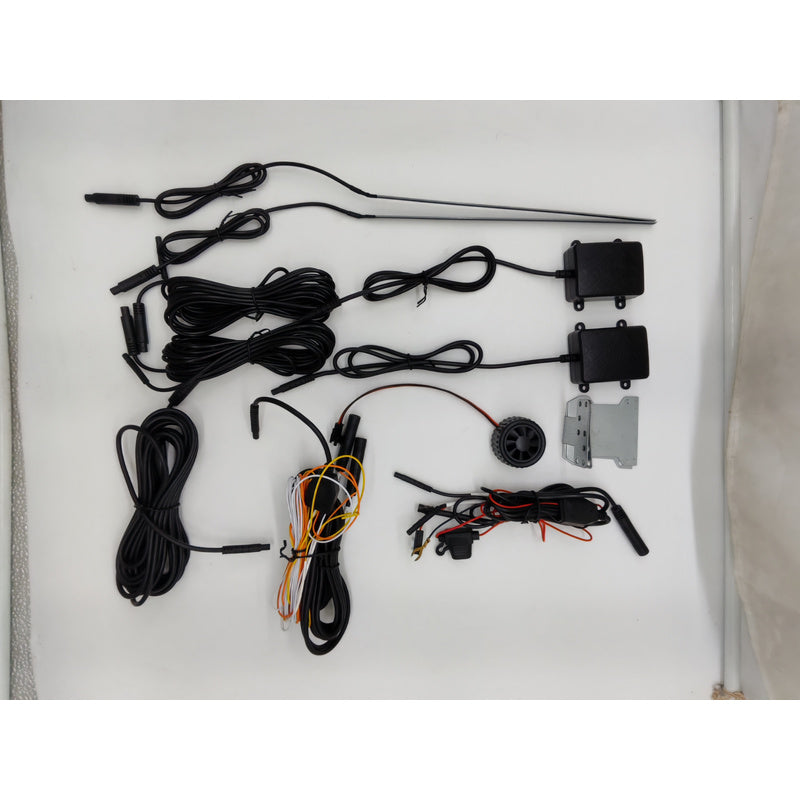

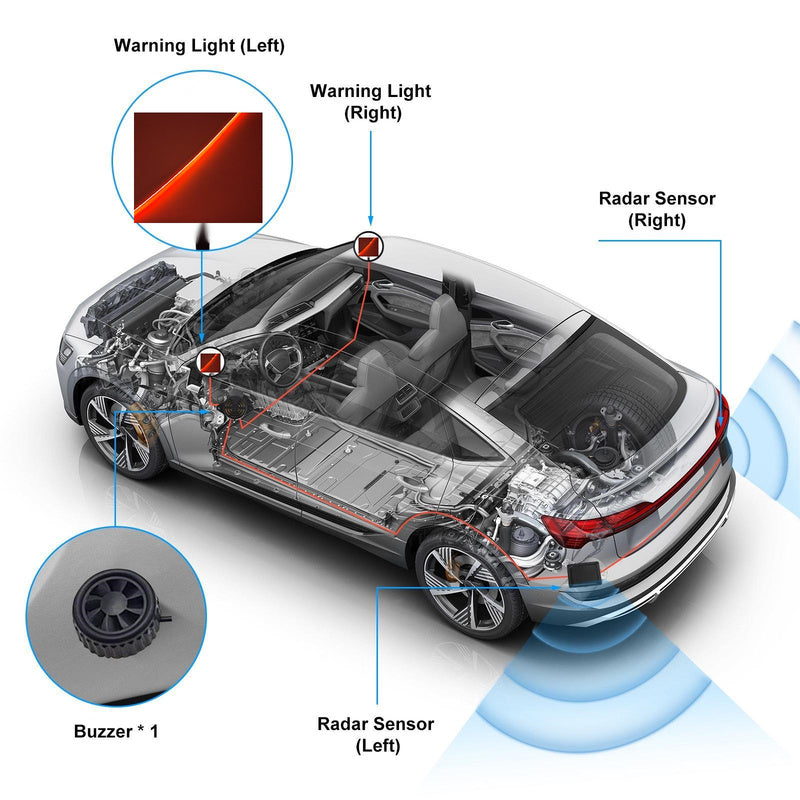

Packaging List:
2*Radar(Cable length approx. 0.8m).
1* Radar adapter cable 1.5m+ 2.5m.
2*Warning light strip(approx. 0.75m), (Green/Red/Blue) available.
2*Warning light strip extension cable(approx. 4m).
1*Buzzer(approx. 0.17m),
please unplug it if it's annoying to hear, it doesn't affect function.
2*Radar mounting bracket.
1*Power cable (approx. 2m).
1* Power extension cable (approx. 4.5m).
Several* Mounting accessories.
1 * User Manual
