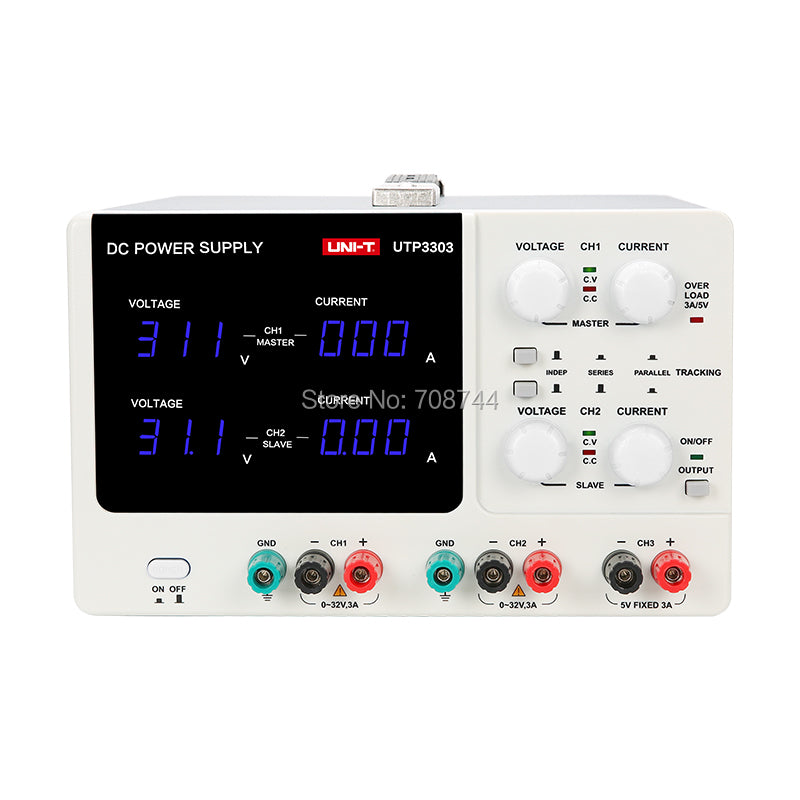

Features:
1. Dual channel, two circuits of adjustableoutput voltage 0~32V and one circuit of fixed voltage 5V.
2. Master-slave tracking, constant voltageand current, Ⅰ, Ⅱ circuit can be used for master-slave tracking and used in parallelor in series.
3. Forced ventilation, temperature controlcooling system. When the temperature reaches 65℃, the device dissipatesheat automatically.
4. Display mode: LED digital tube display,can show voltage and current simultaneously.
5. Low ripple, low noise
6. High regulation: 0.01%
7. Output ON/OFF control
8. Constant voltage and constant currentoperation
9. Optional European standard outputterminal
10. Overload protection, reverse polarityprotection
General Functions
Type
UTP3303
Channels
CH1
CH2
CH3
Output Voltage
0~32V
5V Fixed
Output Current
0~3A
3A Max
Series Tracking
0~64V
-
Parallel Tracking
0~6A
-
Load Regulation
Voltage
≤0.01%+3mV
≤3%+5mV
Current
≤0.2%+3mA
-
Power Regulation
Voltage
≤0.01%+3mV
5mV
Current
≤0.1%+3mA
-
Noise
Voltage
≤1mVrms
≤2mVrms
Current
≤3mArms
-
Tracking Operation（CH1, CH2)
Tracking Bias
Power Regulation
Load Regulation
Noise
≤0.5%+10mV(CH1)
≤0.01%+5mV
≤300mV
≤2mVrms,5Hz~1MHz
Display Accuracy
≤±1%rdg+2digits
Working Temperature
0℃~ 40℃
Constancy (MTBF)
≥2000h
General Characteristics
Power Supply
Input voltage：220VAC/110VA；Frequency：50Hz/60Hz
Product Color
White+Grey
Product Weight
About 9 kg
Product Size (W×H×D)
260mm × 176mm × 317mm
Standard Accessories
National standard power cord, output cable
Standard Package
Gift box, user manual
Standard Package Quantity
1pcs
Standard Package Size (W×H×D)
430mm × 400mm × 255mm
Standard Package Gross Weight
10kg
