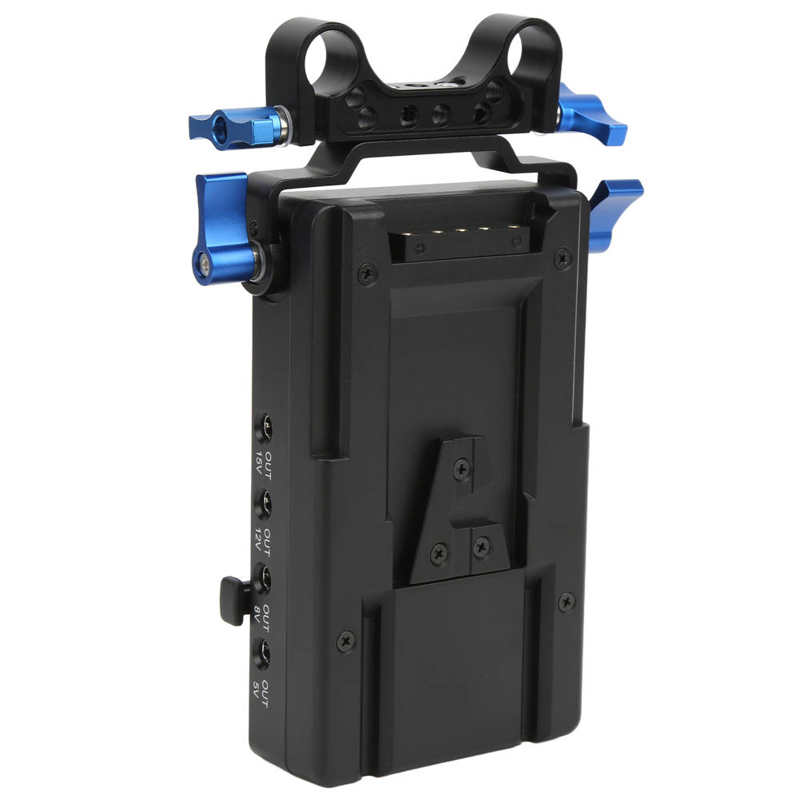

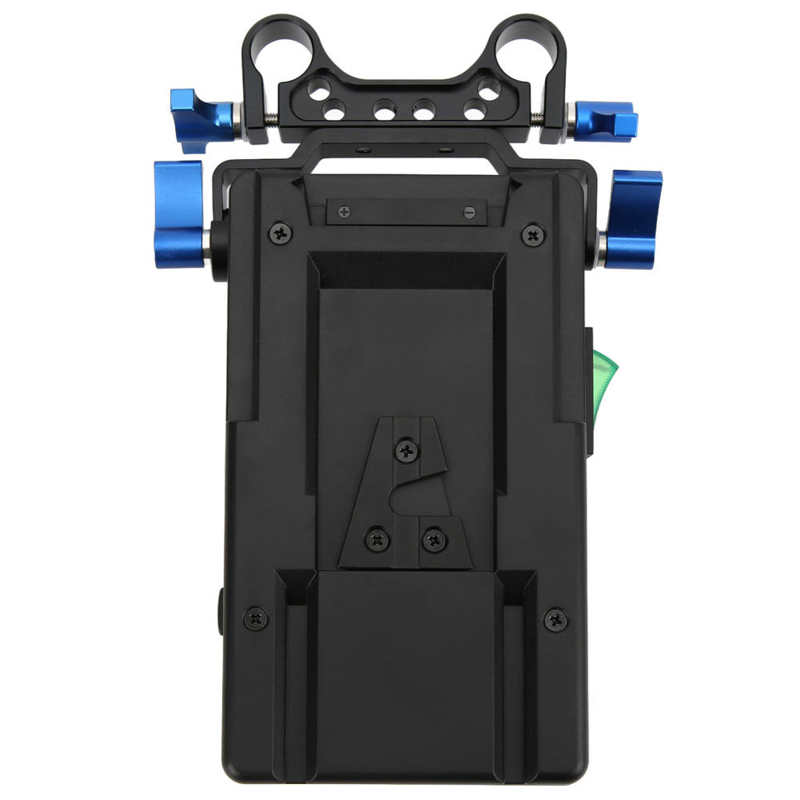

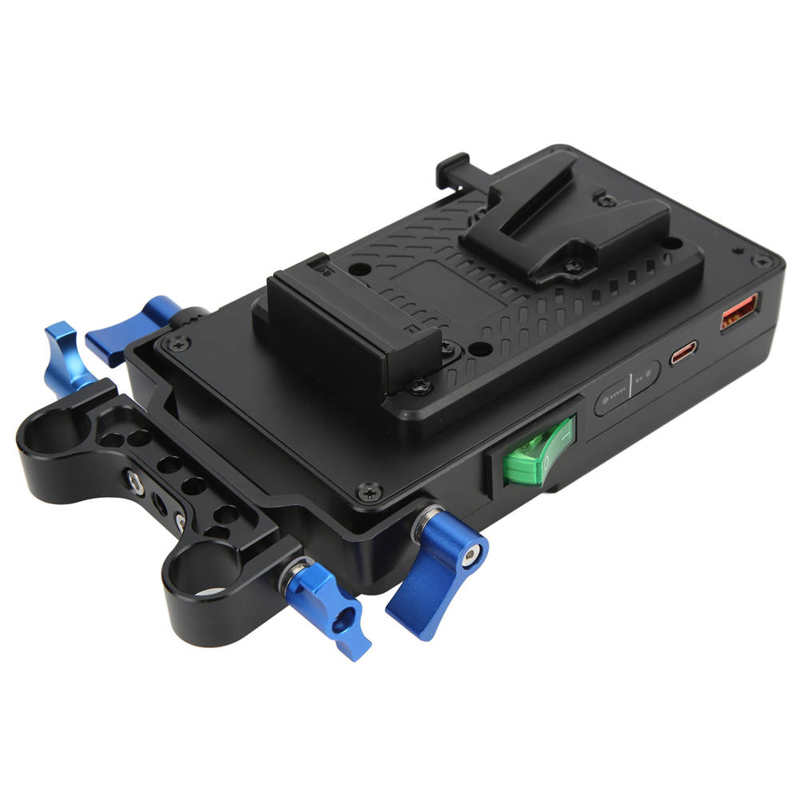

V Mount Lock Battery Plate Low Standby Power Consumption V Mount Battery Plate with 15mm Rod Clamp for Mobile Phone

     Feature:

1. Easy Installation: A V mount battery is installed on the front and a V mount is designed on the back. The V mount battery is transferred to the V Lock camera. Press and hold the black button on the battery gusset plate to quickly disassemble the battery, and convert the battery into different output voltages through the gusset plate to supply power to a variety of external devices. It is a practical and efficient multi functional V mount battery power supply system.

2. High Quality: It has the functions of overvoltage and overcurrent protection, low standby power consumption and high efficiency conversion rate. It adopts high quality materials and high durability.

3. Charging Mode: The Type C interface is both an output interface and an input interface. It has rich QC and PD fast charging protocols, which can charge the V mount battery. The side is equipped with an independent power switch and power indicator, which can turn on or off all equipment.

4. 15mm Rod Clamp Design: A 15mm rod clamp is designed. Through the blue knob, the gusset plate can be quickly installed and the angle of the gusset plate can be adjusted.

5. Wide Application: It has multiple output interfaces, DC15V, DC12V, dc8v, DC5V, USB and Type C. among them, DC15V can supply power to camera and bmpcc 4K/6K, DC12V can supply power to monitor, DC8V can supply power to SLR/micro single camera, DC5V can supply power to radio equipment, microphone and other equipment, USB and Type C can charge mobile phone and tablet.

   Specification:

   Item Type: V Mount Battery Plate Power Supply Adapter

Material: ABS, Aluminium Alloy

Product Size: Approx. 120 x 185mm / 4.7 x 7.3in

Weight: Approx. 692g / 24.4oz

Input:

Battery Input: 12.8-16.8V (Follow The Battery Voltage)

Type C Input: PD3.0 5V/9V/12V/15V/20V(Max.60W), FC 5-12V/24W

Support Smart Charger, Detects The Adapter Protocol BC1.2/Divider/Type C/FC etc.

Output:

USB 5-12V/24W (Compatible with BC1.2/for Galaxy/FC)

Type C Output: PD3.0 5V/9V/12V/15V/20V(Max.60W)&FC 5-12V/24W

Support Smart Charger, Detects The Adapter Protocol BC1.2/Divider/Type C/FC etc.

5V Output: DC 5V/3A (DC5.5x2.1mm/ positive and negative inside and outside)

8V Output: DC 8V/3A (DC5.5x2.1mm/ positive and negative inside and outside)

12V Output: DC 12V/2A (DC5.5x2.5mm/ positive and negative inside and outside)

15V Output: DC 15V/3A (DC5.5x2.5mm/ positive and negative inside and outside)

Rod Clamp Diameter: 15mm / 0.6in

Total Power: 180W

Applicable Battery: V Mount Battery

   Package List:

1 x V Mount Battery Plate Power Supply Adapter   1 x DC5.5x2.1mm Elbow Head To DC5.5x2.1mm Elbow Line

   1 x DC5.5x2.1mm Elbow Head To DC4.0x1.7mm Elbow Line

   1 x DC5.5x2.5mm Elbow Head To DC5.5x2.5mm Elbow Line

   1 x DC5.5x2.5mm To DC5.5x2.5mm Spring Line

   1 x Type C Male To Male Line

   1 x Manual

  How to use:Hold down the black button and install the battery on the gusset.
