VA9810 DC8-100V Battery Capacity Tester Capacity Indicator Power Meter for LiFePO Coulomb Counter Car Tool Accessories 100A-500A
Features:
1. Using high-quality materials, durable
2. Can real-time display voltage, real-time current, real-time power, remaining capacity, use time of a variety of physical parameters
3. The instrument uses 2.4-inch color LCD as the display, displaying comprehensive data, clear, easy to observe
4. Detection of charging and discharging users can easily detect bidirectional current, without changing the wiring direction
5. Using pure copper shunt to collect current, safe, convenient and accurate

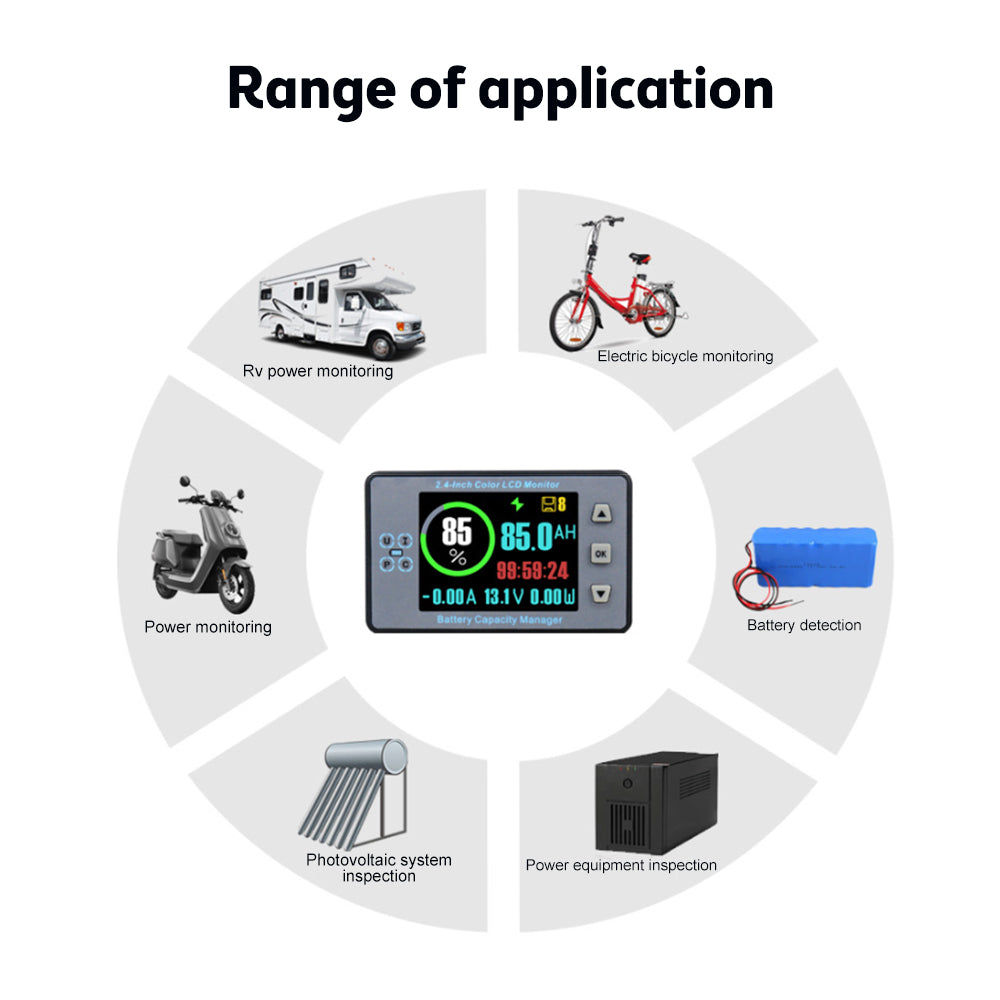

6. This instrument is very suitable for applications that require monitoring of output voltage and current, as well as battery charging and discharging
Specifications:
Voltage: DC8-100V
Current: 0.05~100A 0.1A~200A 0.15A~300A 0.2A~500A (self selection)
Capacity: 0.1AH~99999AH
Power value: 50KW
Voltage accuracy: ±1% + 2 words
Current accuracy: ±0.5% +2 words
Display mode: 2.4 inch color LCD display
Power consumption: bright screen state: 0.3W off screen state: 0.2W
Communication baud rate: 9600bps
Measurement rate: 20 times / second
Display board size: (L*W*H) 86*53*17 (mm)
Measurement board size: (L*W*H) 56*36*34 (mm)
Wiring Instructions:
1, the positive terminal of the battery is connected to the BAT+ of the shunt board, and the negative terminal of the power supply is connected to the "-" position of the shunt board mark.
2, the shunt must be connected in series between the battery and the load.
3,Connect the instrument display and the acquisition module with shielded wires.
4,The sampling module should be placed in a ventilated place and fixed.

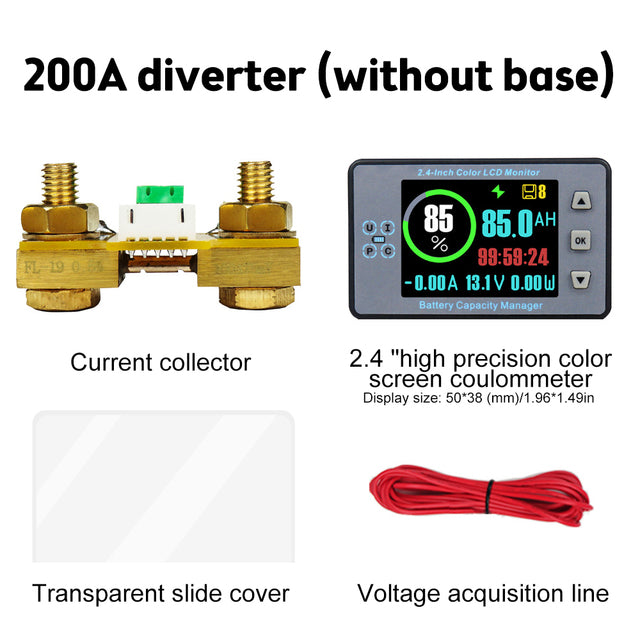

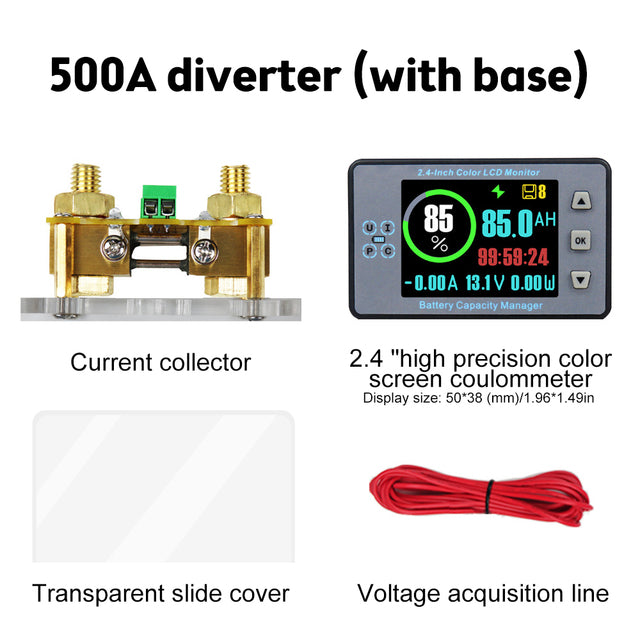

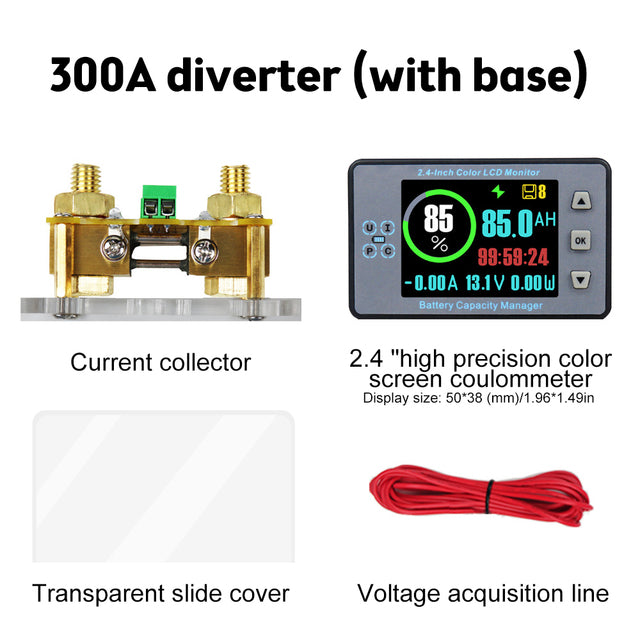

Package Included:
Coulometer *1
Positive red wire 1 meter *1
Shunt *1
Waterproof slide cover *1
5p drain wire 50 cm *1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
