Applications：

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

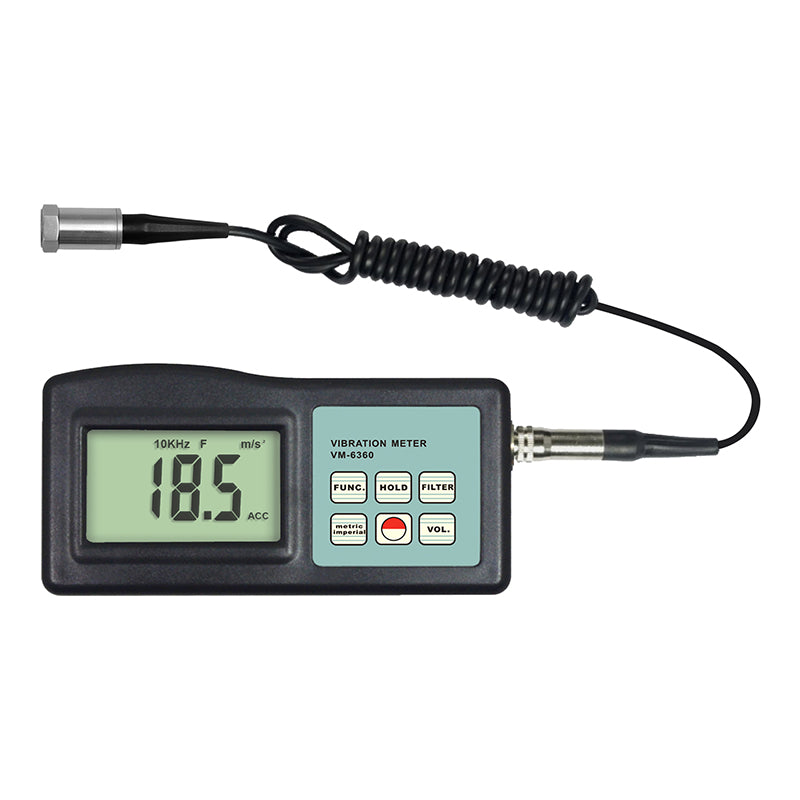

* VM-6360 has wide frequency range (10Hz~10kHz) in acceleration mode

* VM-6320 / VM-6310 are simple and easy to use.

Features:

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

* Individual high quality ccelerometer for accurate and repeatable measurements.

* Wide frequency range (10Hz~10kHz) in acceleration mode.

* Optional headphones for use as electronic stethoscope.

* Bearing condition monitoring function.

* Use USB/RS-232 data output to connect with PC.

* Provide Bluetooth data output choice.

Specifications:

               Sensor

            Piezoelectric Transducer

                Measuring Range

            Acceleration

            0.1m/s²~400m/s²Equivalent Park

                Velocity

            0.01mm~400mm/s True RMS

                Displacement

            0.001mm~4.0mm Equivalent Peak-peak

                Frequency Range

            Acceleration

            10Hz~10kHz

                Velocity

            10Hz~1kHz

                Displacement

            10Hz~1kHz

                Accuracy

            5% of Reading+2 digits

                Operating Conditions

            Temperature

            0ºC~50ºC

                Humidity

            <90%RH

                Power Supply

            4x1.5V AAA(UM-4)Battery

                Dimensions

            124mmx62mmx30mm

                Weight

            120g(Not Including Batteries)

                Standard Accessories

            Main Unit

                Piezoelectric Transducer

                Powerful Rare Earth Magnet

                Probe(Cone)&Probe(Spherical)

                Carrying Case(B04)

                Manual Book

                Optional Accessories

            Headset

                RS-232C Data Cable with Software

                Bluetooth Data Adapter with Software
