Feature:

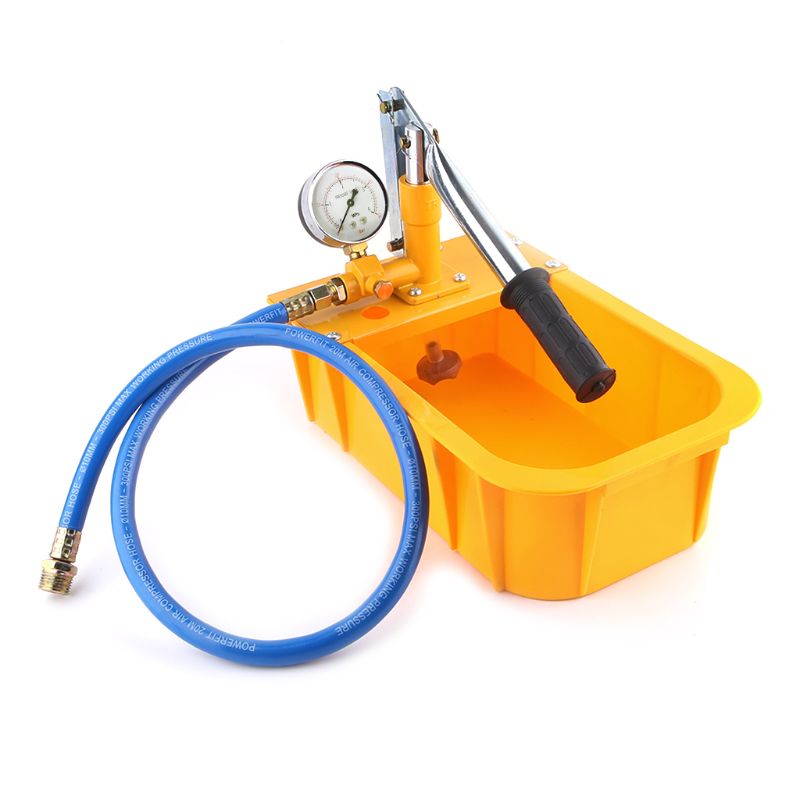

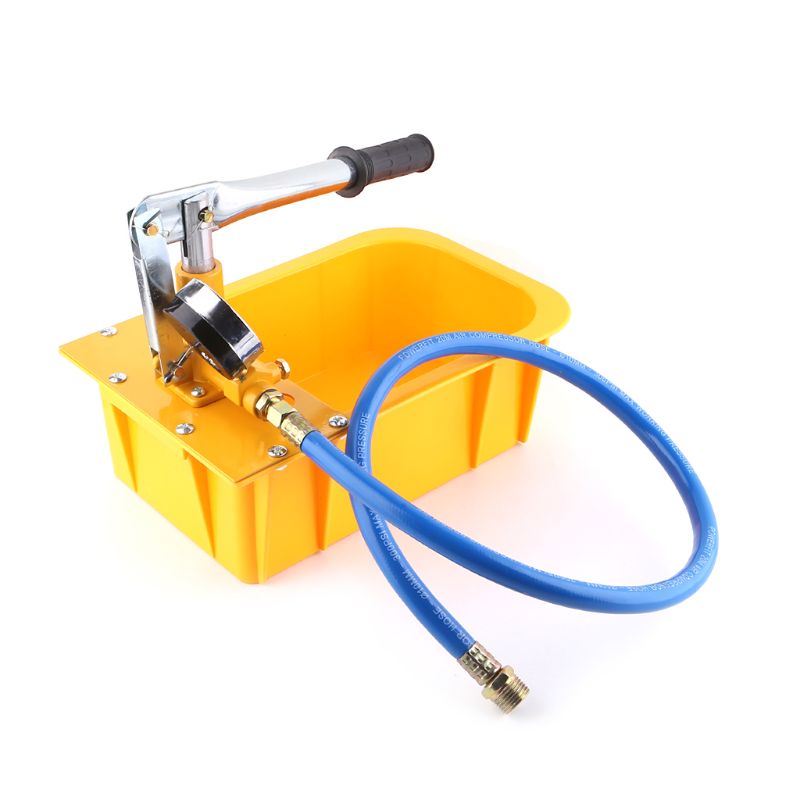

-Manual hydraulic water pressure test pipeline tester.
-Suitable for water, or hydraulic oil as a medium, for a variety of pressure vessels, pipes, valves and other pressure test, but also for hydraulic energy, to provide the required pressure; for chemical, construction, plumbing, oil, coal, Shipbuilding and other industries.
-Normal tap water pressure of 0.3MPa, high-rise residential 0.4MPa, water pipe pressure pressure generally pressurized to 0.8MPa-1.0MPa. (Tap water 0.1MPa 1KG pressure)
-Fine workmanship and good performance.
-Easy to use,Durable in use.
Specification:
Brand new
Material: Plastic+metal
Pipe Color: Random delivery
Size: approx. 290x180x100mm
Pressure: 2.5MPa
Flow: 13ml / time
Pressure Testing Steps:
1. The hot and cold water pipes connected together with the hot and cold water to form a circle, into a tube, and test the pump connected to any one outlet can be the pressure pointer is 0 pressure. When all the water pipes are fully welded before they can test pressure, in the pressure before the closure of all the plug, close the water inlet valve.
2. When measuring pressure, shake the jack until the pressure gauge pointer to 0.9-1.0 or so, that is the current pressure is 3 times the normal water pressure
3. Keep this pressure for a certain amount of time. Different water pressure measurement time is not the same, PPR, aluminum plastic PPR, steel PPR and other welded pipe is 30 minutes.
4. Water pipe compression test results to determine:
In the test pressure to check the joints one by one, the inner wire joints, plugs can not have water seepage, and some people say that plug water seepa nothing, it is a lie, plug the water directly affect the test pressure pump needle.
The test pump in the specified time within the needle did not drop the slightest or drop less than 0.1 on the water pipe that is good, but also shows that the test pump is also a normal working condition. In addition, remember: each plug and faucet and other interfaces can not have water leakage phenomenon.
Package included:
1 set Test Pump
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
