WIFI Digital Microscope 1000X USB 1080P Video Microscopes Magnifier With 8 LED Endoscope Zoom Camera Magnifier For Cell Phone PC

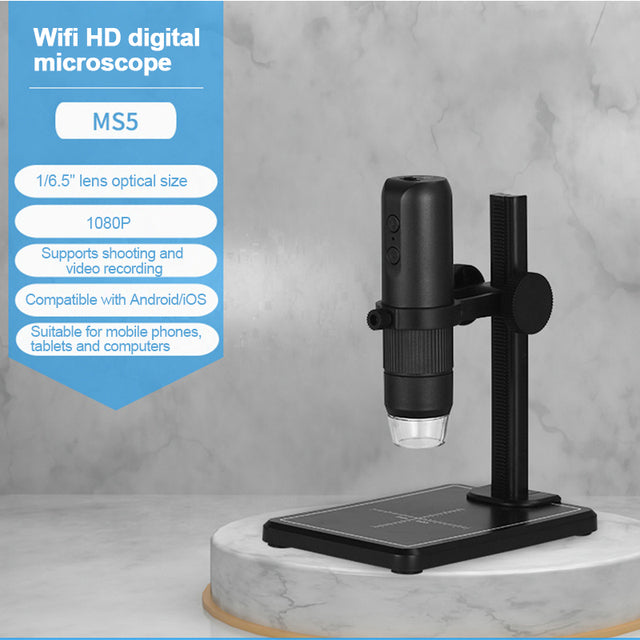

MS5 Parameter Specification
Product name: MS5
Lens optical size: 1/6.5”
SNR(Signal Noise Ratio): 42db
Sensitivity: 2.5V/lux.s
Picture resolution: 640*480,1280*720,1920*1080
Video resolution: 640*480,1280*720,1920*1080
Video format: mov
Focus mode: manual
Picture format: JPG
Magnification times: 50X~1000X
Illuminant: 8 LED lights (brightness adjustable)
Focusing range: 10~40mm（can watch distant view）
WIFI distance: within 3m
White balance: automatic
Exposure: automatic
PC operating system: Windows Xp,win7,win8.1,win10,Mac OS x 10.5 or higher
Lens construction: 2G+IR
Aperture: F4.5
Lens angle: 16°
Interface and Signal Transmission Mode: Micro/usb2.0
Storage Temp/Humi: -20℃ ~ +60℃, 10%~80%RH
Operating Temp/Humi: 0℃ ~ +50℃, 30%~85%RH
Working current: ~250mA
Power dissipation: 1.25W
APP work environment: Android 5.0 and above,ios 8.0 and above
WIFI execution standards: 2.4Ghz（IEEE 802.11b/g/n)

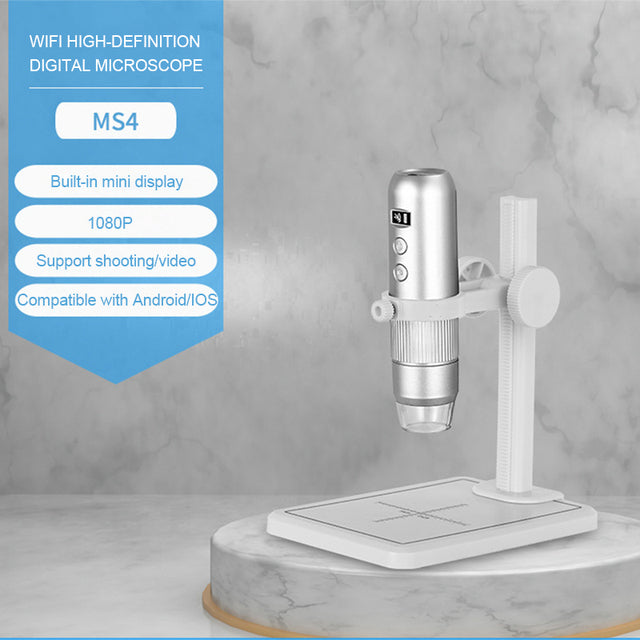

MS4-B Parameter Specification:
Product name: MS4
Lens optical size: 1/4''
Signal to noise ratio: 37db
Sensitivity: 4300mV/lux-sec
Camera resolution: 640x480, 1280*720, 1920*1080 Video resolution: 640x480, 1280*720, 1920*1080
Video format: Mp4
Focus mode: manual
Picture format: JPG
Magnification: 50X-1000X
Light source: 8 LED lights (adjustable brightness)
Focusing range: 10~40mm (you can watch the distant view)
WIFI distance: within 3 meters
White balance: automatic
Exposure: Automatic
PC operating system: Windows xp, win7, win8, win10, Mac OS x 10.5 or higher.
Lens structure: 2G+IR
Aperture: F4.5
Lens angle of view: 16°
Interface and signal transmission method: Micro/usb2.0
Storage temperature/humidity: -20℃- +60℃ 10-80%RH
Working temperature/humidity: 0℃-+50℃ 30%~85%Rh
Working current: ~270 mA
Power consumption: 1.35W
APP working environment: Android5.0 and above systems, ios8.0 and above systems
WIFI implementation standard: 2.4Ghz (8201.11b/g /n)
Packing include
1 x Digital Microscope
1 x Bracket
1 x Scale Bottom Plate
1 x Calibration Ruler
1 x CD
1 x Data Cable
1 x User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
