AGO-80 transmitter is using 1pc 3.6V battery; battery not included in the package;
|
Product Name
|

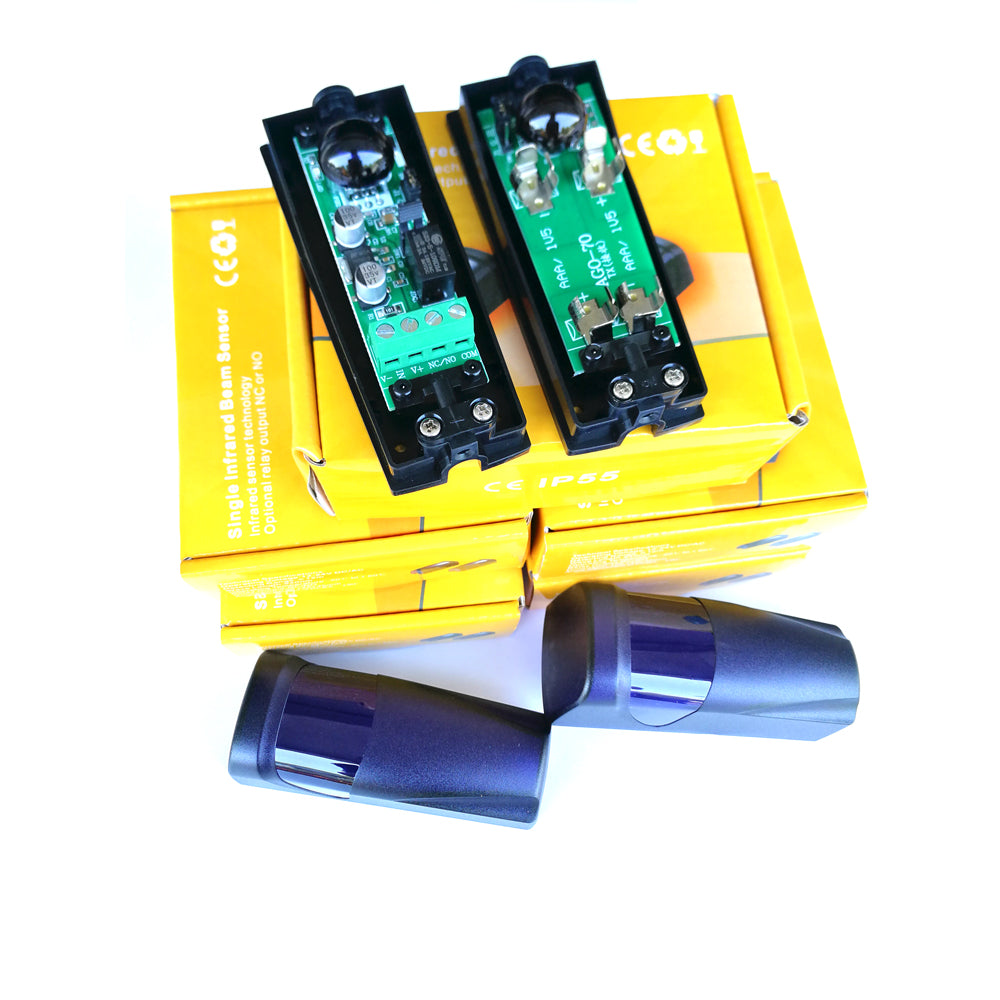

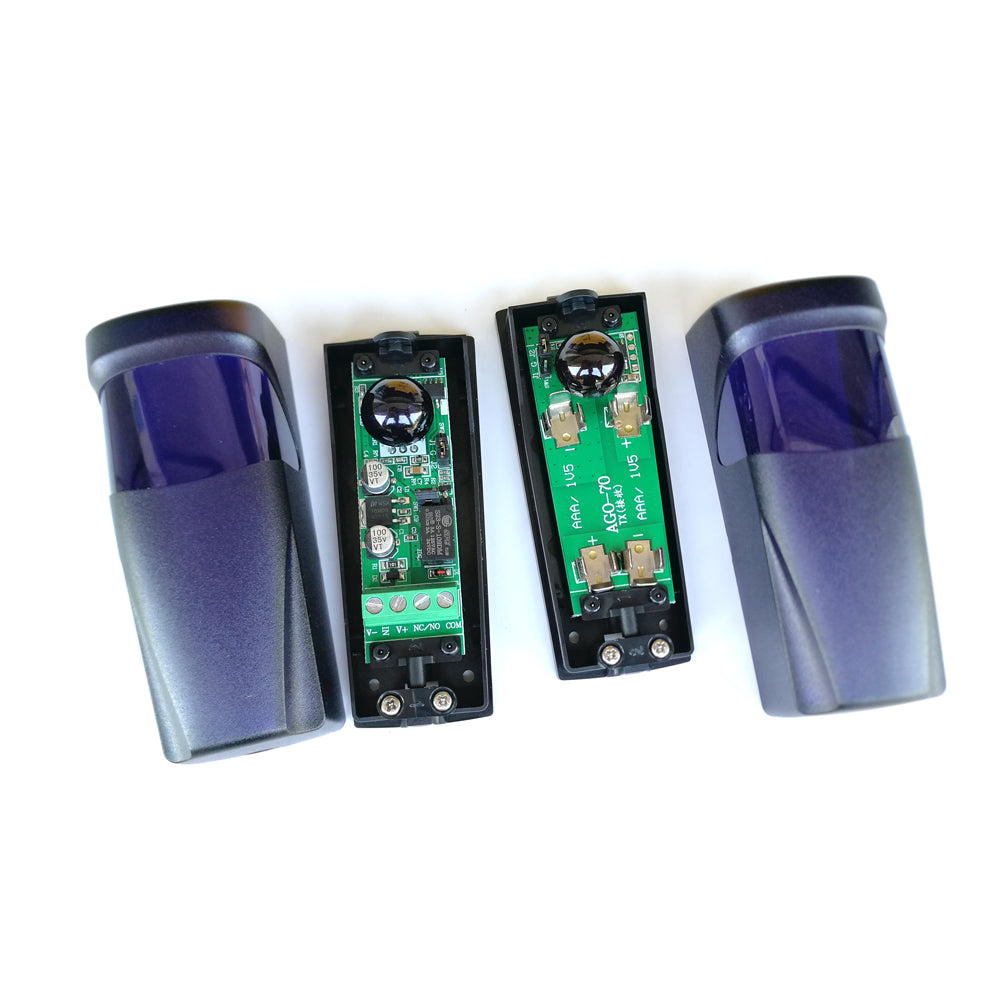

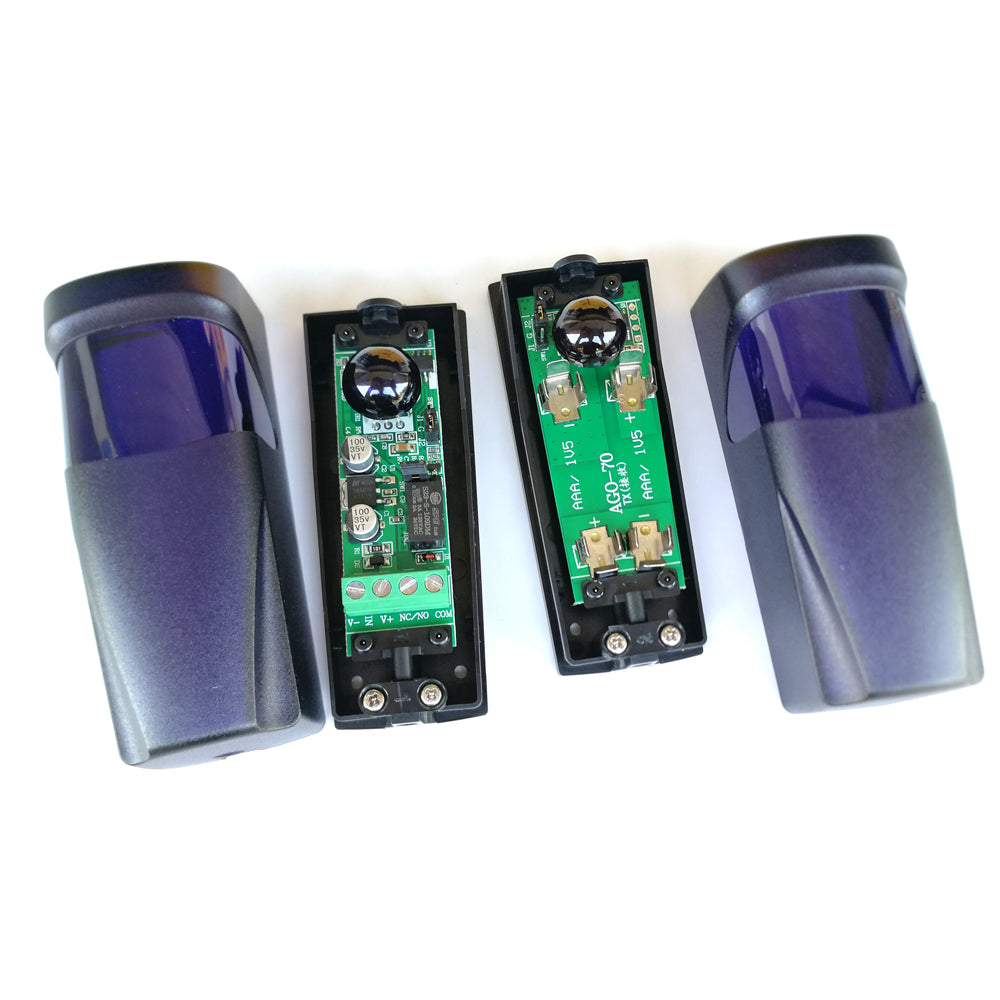

Battery Infrared Sensor AGO-70
|
|
Function
|
Widely used for automatic garage door opener gates windows for safety
|
|
Package
|
White box, yellow box, color box optional
|
|
Working voltage
|

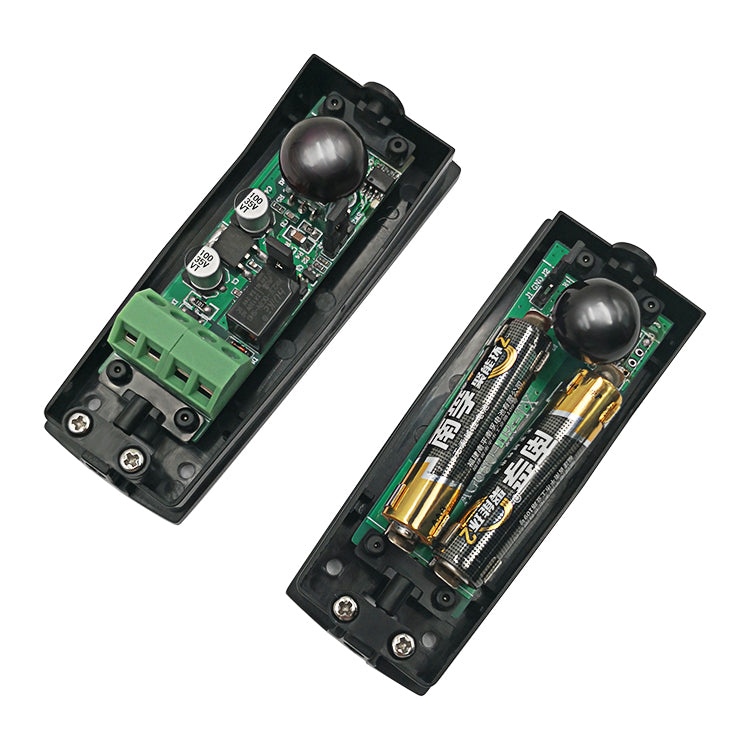

Transmitter : 3V (2PCS AAA battery 1.5V LR03), Receiver : 12-24V DC
|
|
Working current
|
Transmitter < 85µA, Receiver < 30mA (24V DC)
|
|
Photocell wavelength
|
940nm
|
|
Angle of emission
|
≤±5°
|
|
Receiving range
|
> 12m (range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc)
|
|
Relay contact loading capacity
|
1A/30VDC
|
|
Size
|
100*40*35mm
|
|
Operating temperature
|
-10℃ to +70℃
|
|
Product Name
|
Battery Infrared Sensor
|
|
Model name
|

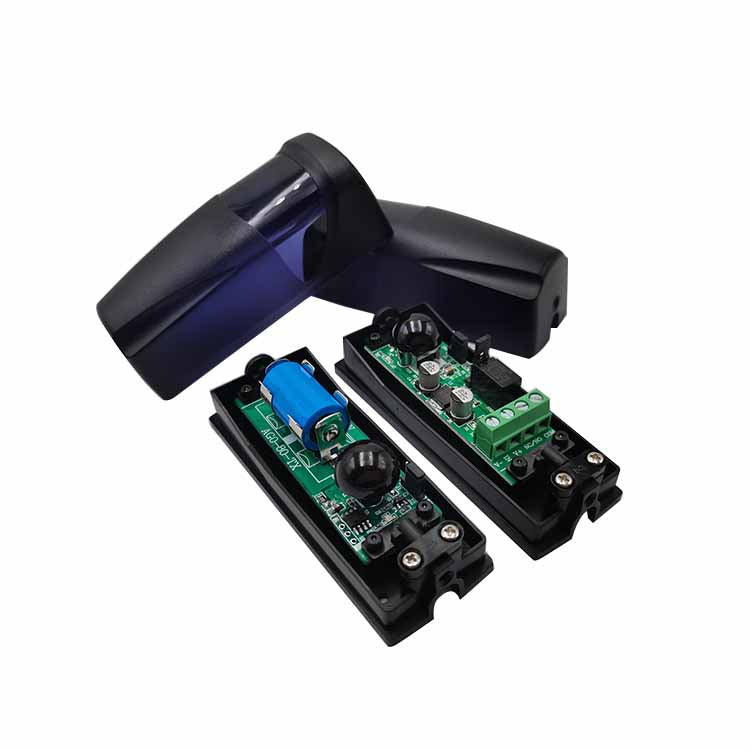

AGO-80
|
|
Function
|
Widely used for automatic garage door opener gates windows for safety
|
|
Package
|
White box, yellow box, color box optional
|
|
Working voltage
|

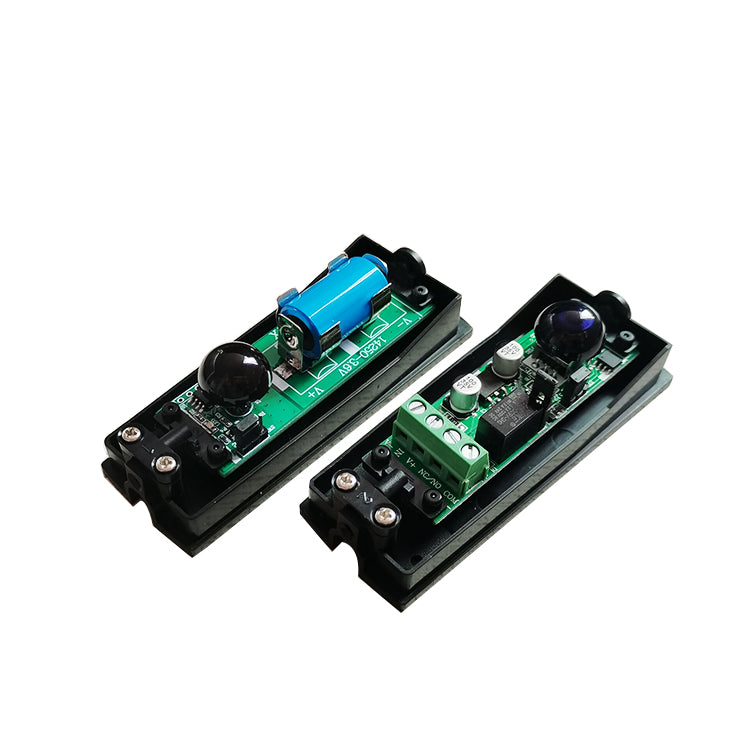

Transmitter : 3.6V battery, Receiver : 12-24V DC
|
|
Working current
|
Transmitter < 100µA, Receiver < 30mA (24V DC)
|
|
Photocell wavelength
|
940nm
|
|
Angle of emission
|
≤±5°
|
|
Receiving range
|
20m
|
|
Relay contact loading capacity
|
1A/30VDC
|
|
Size
|
100*40*35mm
|
|
Operating temperature
|
-10℃ to +70℃
|
1.Install each pair at the opposite positions.Then there is a infrared area between these two detector parts. When someone passes the infrared region, the detector will send alarm signal to the security alarm host (which not included here).
2. Install Distance(Max.)in the above chart means the maximum install distance between the two detector parts.
3. Great to be installed for security system in school, office building, hosipital, home yard, etc.
4. Detecting range can be reduced to 30% in bad weather conditions, like rain, dust, etc.
5. English Usage Manual included in the pack. It will give you detailed instructions.
