Feature:

    1. Micro inverter, supports 120/230V automatic recognition of AC voltage, adaptive voltage/frequency.

 2. Maximum power point tracking, reverse power transmission, stable performance.

 3. Internal high‑accuracy instrument, with App monitoring system, easy to install and use.

 4. Solar inverter, with good water resistance and is an excellent photovoltaic power generation system.

 5. Using high‑quality aluminum alloy + electronic components materials, no installation, no maintenance.

  Specification:

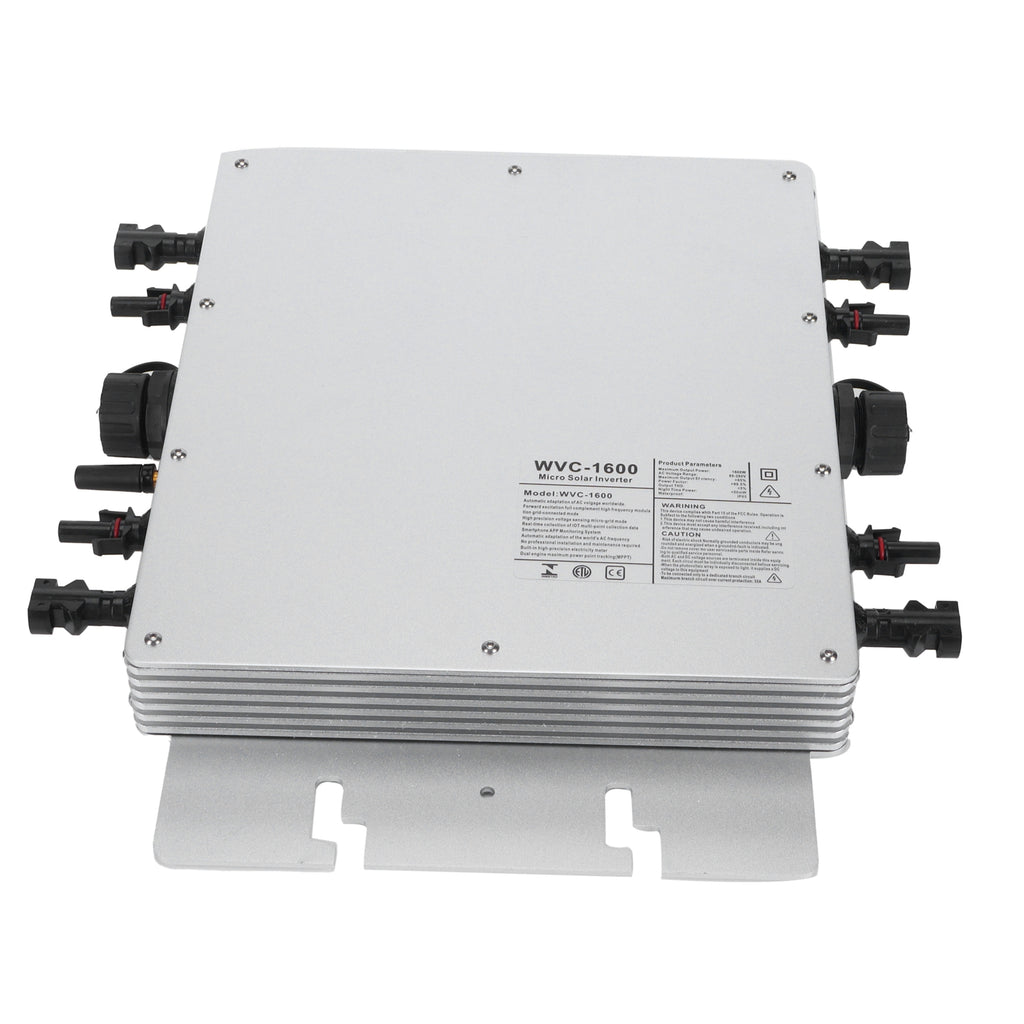

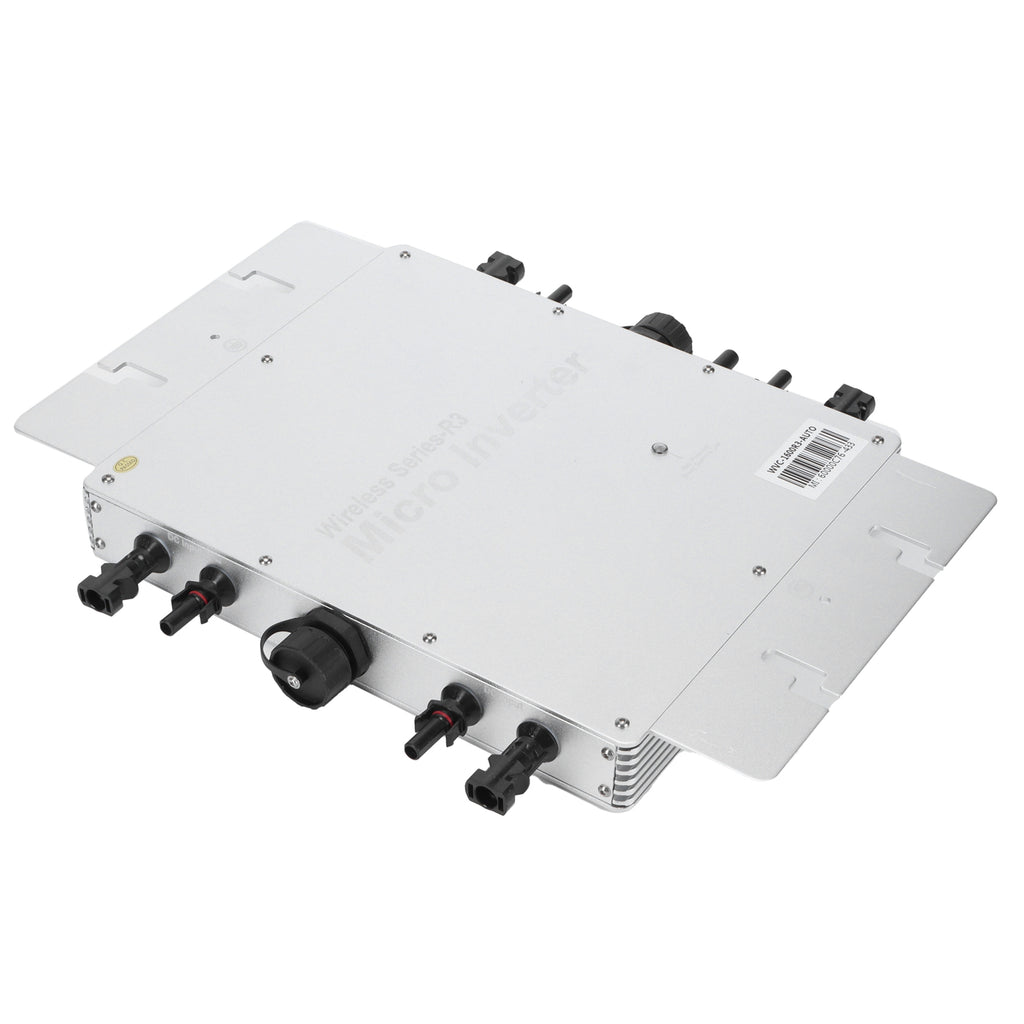

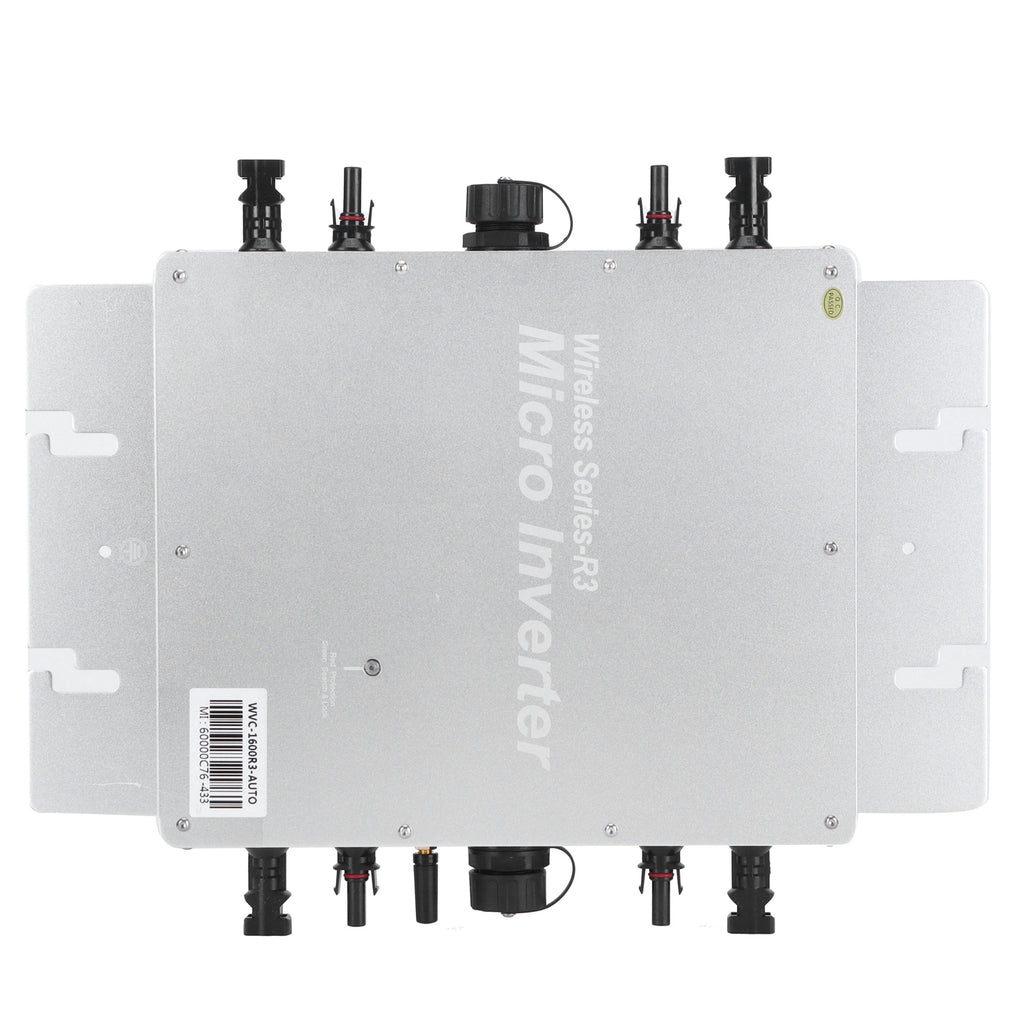

              Item Type: Micro Inverter

 Material: Aluminum Alloy + Electronic Components

 Model: WVC-1600

 Maximum Input Power: 1600W

 Product Use: Solar Power Generation Equipment

 Applicable Scenarios: Solar Power Generation System (Roof, Outdoor)

 Weight: Approx. 3770g / 133oz

 Product Size: Approx. 370x300x41.6mm / 14.6x11.8x1.6in

                                   Parameter                              Output Voltage Mode            120/230V automatic recognition of AC voltage                              Solar Panel Open Circuit Voltage Range            30-54VOC                              Power Tracking Voltage            22-60V                              Minimum/Maximum Starting Voltage            22-60V                              Maximum DC Short Circuit Current            72.7A                              Maximum Input Working Current            61.5A                              Output Parameters            At 120V            At 230V                              Output Power            1600Watt            1600Watt                              Rated Output Power            1550Watt            1550Watt                              Rated Output Current            13.3A            6.95A                              Rated Voltage Range            80-160VAC            180-280VAC                              Rated Frequency Range            48-51Hz/58-61Hz            48-51Hz/58-61Hz                              Power Factor            >95%            >95%                              Number of Connected Units Per String            3 sets (single phase)            6 sets (single phase)                              Output Efficiency            At 120V            At 230V                              Static MPPT Efficiency            99.50%            99.50%                              Maximum Output Efficiency            95%            95%                              Power Loss at Night            <0.5W            <0.5W                              Total Harmonic Distortion            <5%            <5%                              Appearance and Technical Characteristics                              Range of Working Temperature            -40℃ - +65℃                              Waterproof Level            IP65 NEMA3R                              Cooling Method            Self-cooling                              Communication Mode            433MHz/WiFi                              Power Transmission Mode            Reverse transmission, load priority use                              Surveillance System            Mobile APP, browser                              Electromagnetic Compatibility            EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012                              Grid Disturbance            EN50549-1, EN 50549-2, NBR 16149:2013, UL1741                              Grid Detection            IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEEE 1547

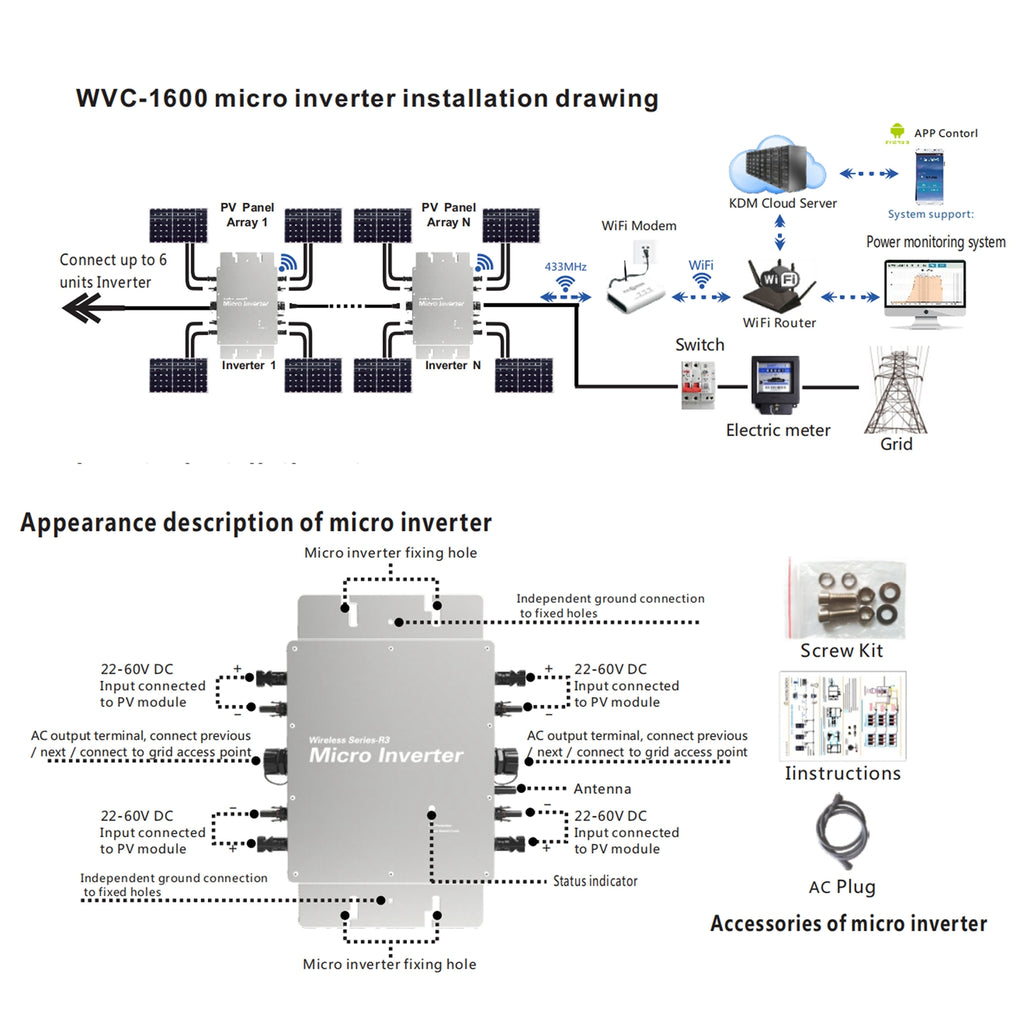

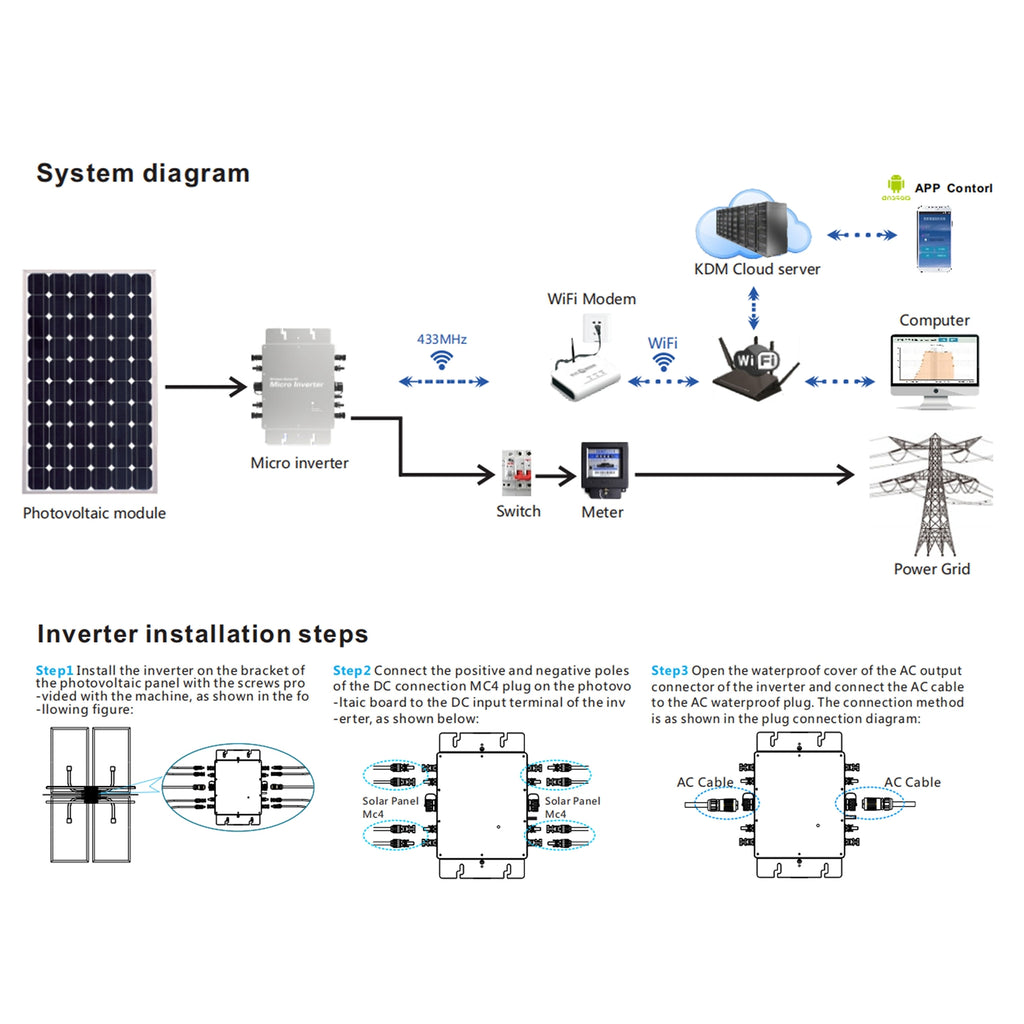

        Inverter Installation Steps:

 Step 1: Fix the inverter on the bracket of the photovoltaic panel with the screws attached to the machine.

 Step 2: Connect the positive and negative poles of the DC connection plugs on the photovoltaic panel to the DC input terminals of the inverter.

 Step 3: Open the waterproof cover of the AC output connector of the inverter and connect the AC cable to the AC waterproof plug.

 Step 4: Connect the AC output line to the AC main cable;

 Step 5: Repeat steps 1 to 3 to install and connect all inverters;

 Step 6: Connect the AC main cable to the mains grid to start your green energy journey.

 Note: Before installing WVC series micro-inverter products, please read this manual first and pay attention to the installation details.

 This manual contains important instructions that should be followed when installing and maintaining Kadant Micro-inverters. In order to reduce

 When reducing the risks of electric shock and ensuring safe installation and operation, always follow the following safety symbols present in this document to indicate dangerous situations and important safety instructions.

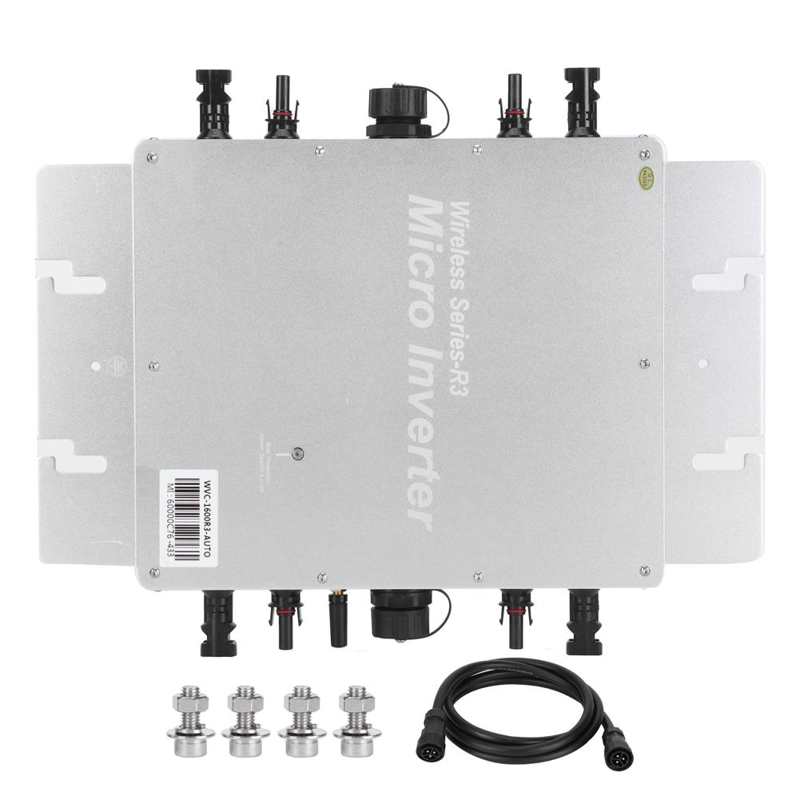

  Package List:

  1 x Micro Inverter

  1 x Cable

  1 x English Manual

  2 x Accessory Kit (4 x Screw, 4 x Nut, 8 x Accessory)
