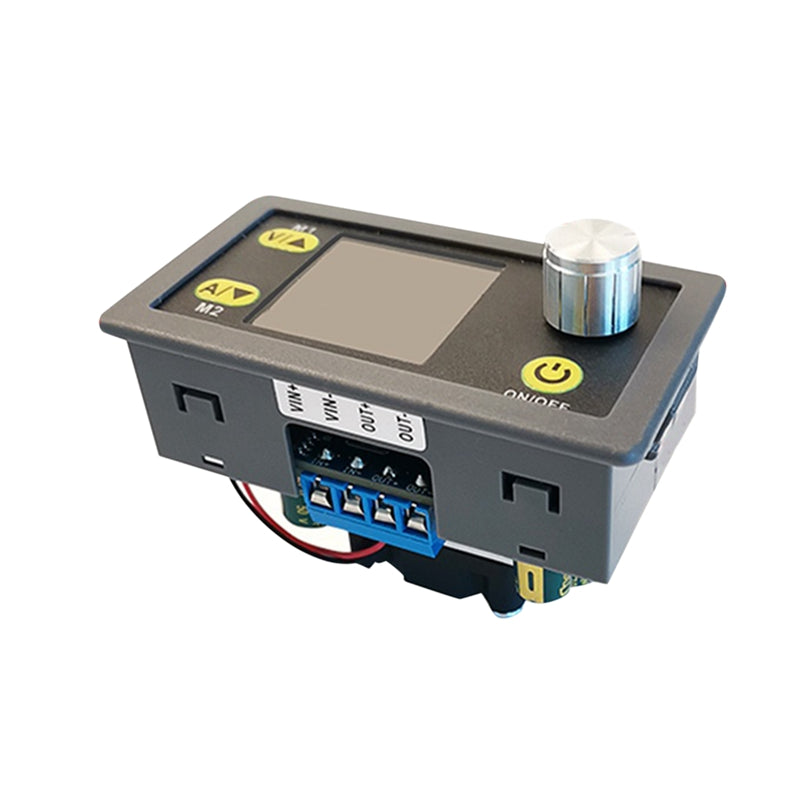

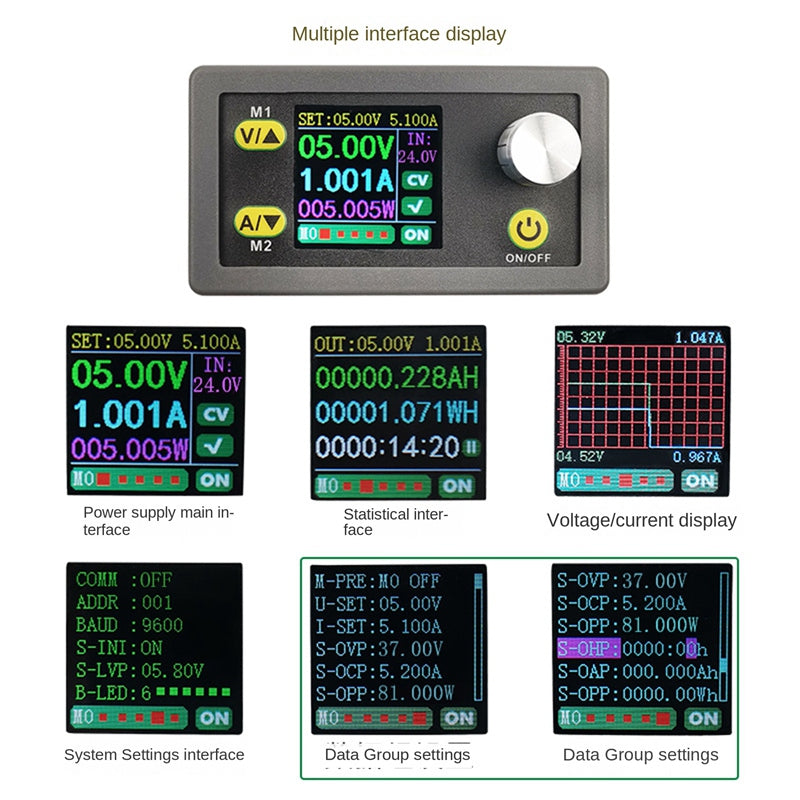

It adopts 1.44-inch high-definition color LCD display, and the content is displayed on multiple screens. The output voltage
0.6-36.00V adjustable, output current 0-5.000A adjustable. Small size, high precision,
Widely used.

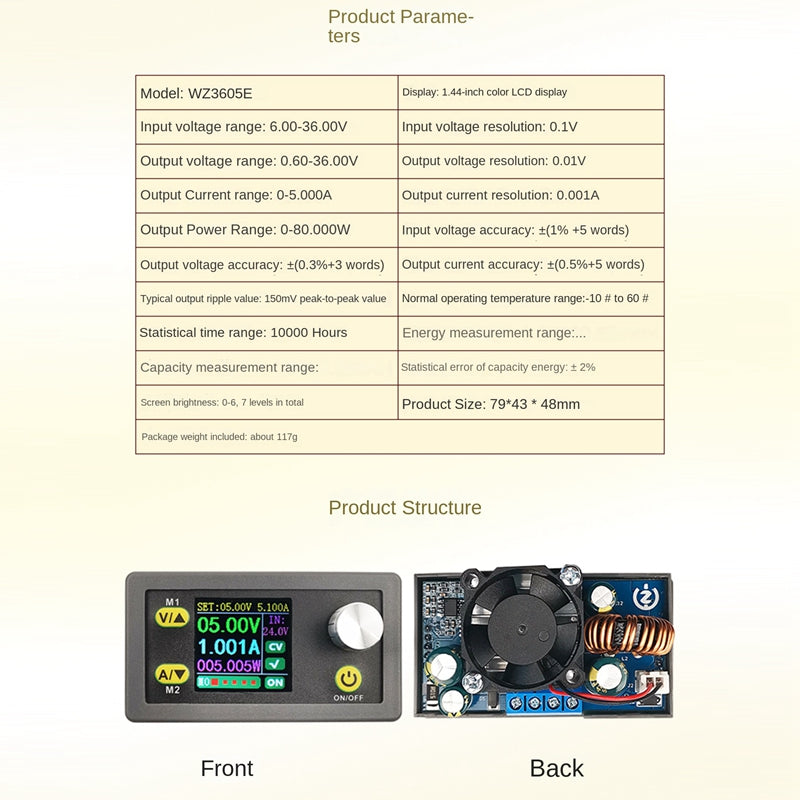

Crystal production parameters:
Model: WZ3605E
Display: 1.44 inch color LCD
Input voltage range: 6.00-36.00V
Input voltage resolution: 0.1V
Output voltage range: 0.60-36.00V
Output voltage resolution: 0.01V
Output current range: 0-5.000A
Output current resolution: 0.001A
Output power range: 0-80.000W
Input voltage accuracy: +(1%+5 words)
Output voltage accuracy: +(0.3%+3 words)
Output current accuracy: +(0.5%+5 words)
Typical output ripple: 150mV peak-to-peak Normal operating temperature range: -10°C~60°C
Statistics time range: 10000 hours
Energy measurement range: 0-99999.999WH
Capacity measurement range: 0-99999.999AH
Statistical error of capacity energy: ±2%
Screen brightness: 0-6 in a total of 7 levels
size: 79 x 43mm
Material: PCB, plastic
colour: grey
Package Contents:
1 x Buck Boost Converter
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
