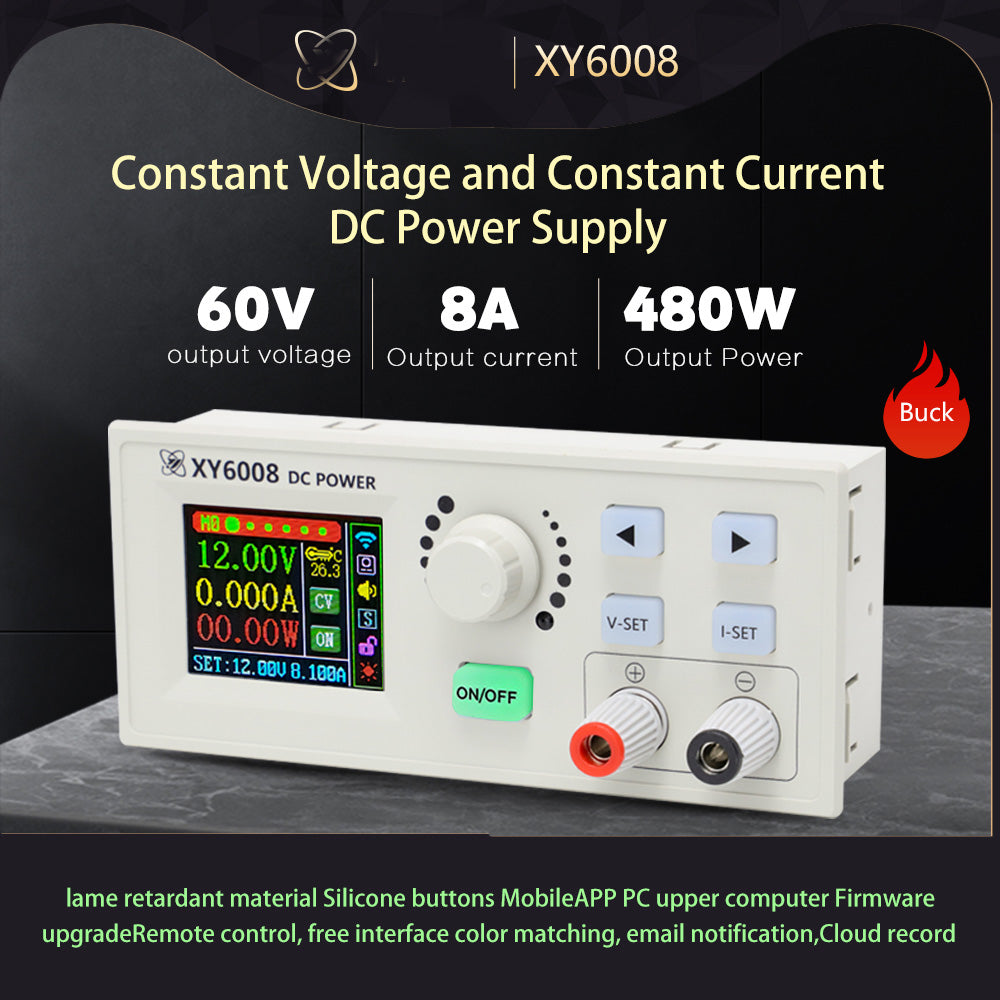

XY6008-W 1.8 inch Digital 480W DC Buck Power Supply Module Adjustable DC Regulated Constant Voltage Constant Current 60V 8A
Features:
1: It can be used horizontally or vertically, and can be controlled by a remote control. The screen supports four-way rotation
2: Display color·match as you want, support 8 colors to be freely matched
3: Full numeric keyboard · Convenient operation
4: Flame retardant material
5: Firmware upgrade, experience upgrade brings more possibilities
Product parameters:
Input voltage range: 6-70.00V
Output voltage range: 0-60.00V
Output current range: 0-8.000A
Output power range: 0-480.0w
Input voltage measurement resolution: 0.01V
Output voltage setting measurement resolution: 0.01V
Current setting measurement resolution: 0.001A
Input voltage measurement accuracy: ±(1%+5 words)
Output voltage setting and measurement accuracy: (0.4%+1 word)
Output current setting and measurement accuracy: ±(0.5%+3 words)
Typical output ripple: 100mv VPP
Product working temperature range: -10℃--40℃
Capacity measurement range: 0-99999Ah
Energy measurement range: 0-99999Wh
Statistical error of capacity and energy: ±2%
Running time measurement range: 0-1000h
Maximum output voltage: (input voltage ÷ 1.1) -2
The cooling fan is turned on: current>2A power>50W temperature>50℃
The cooling fan is turned on and turned off: current <1.5A power <45W temperature <45℃
Over temperature protection: 110℃ by default
Screen brightness setting: 0-5 total 6 levels
Display screen: 1.8-inch color LCD display
Weight with packaging: 258 grams
Product size: 125MM*55MM*35MM

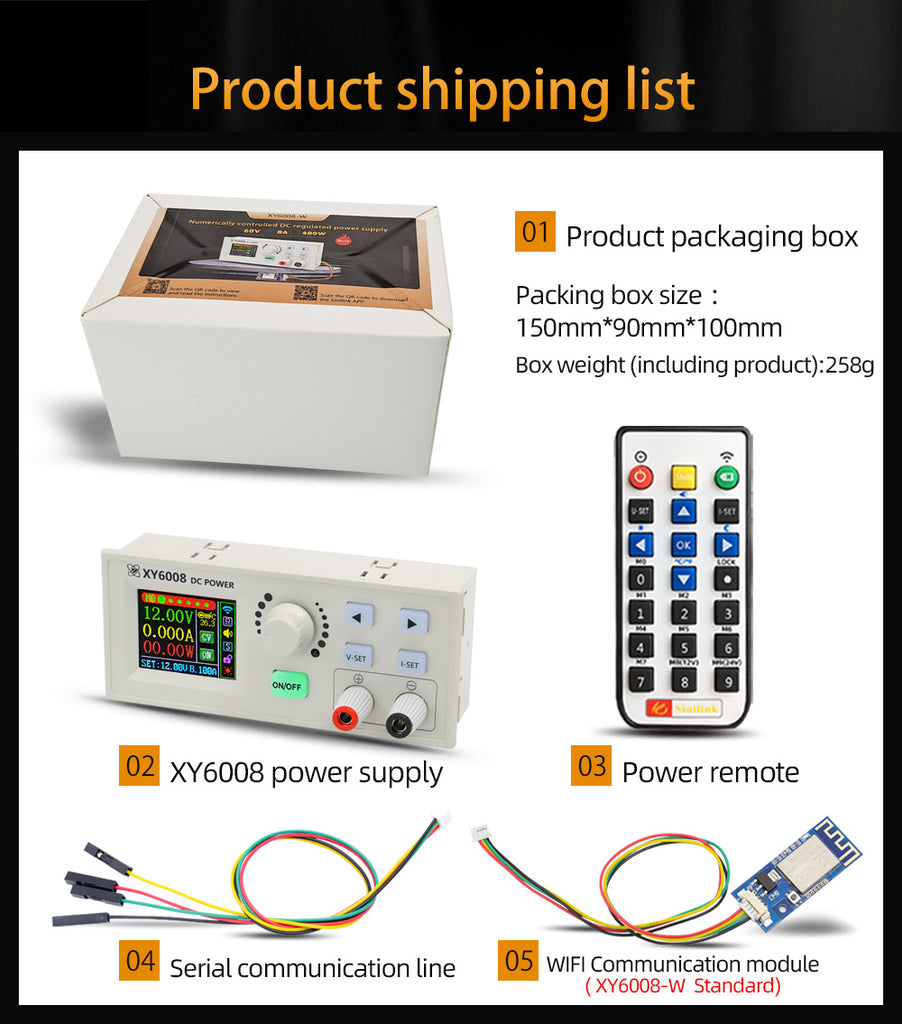

Packing list: (optional)
XY6008:
1*CNC power supply+1*remote control+1*serial communication line
XY6008-W:
1*CNC power supply+1*remote control+1*serial communication line+1*communication module
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
