1. Excellent quality: high quality material, safe and durable.
2. Independent adjustment of high and low frequencies, Bluetooth + AUX audio input, two-channel stereo output
3. Stable performance: with better noise performance, excellent output drive capability and high small signal bandwidth, and a large power supply voltage range.
4. input method: AUX+Bluetooth
5. Protection mechanism: overvoltage, undervoltage, overheating, DC detection, short circuit protection

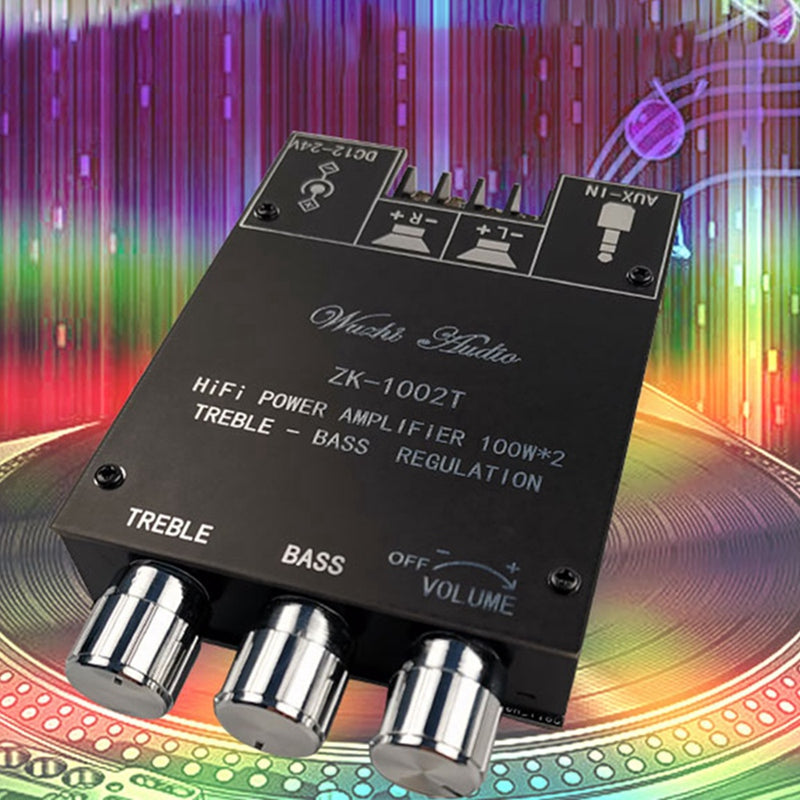

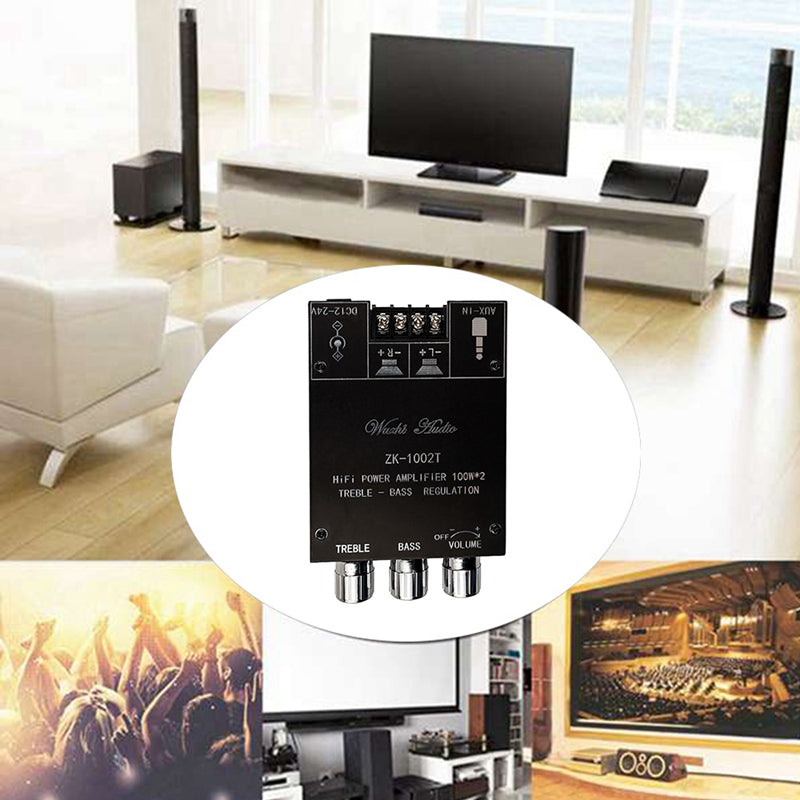

Product name: 100W x 2 bluetooth audio amplifier module with tone
Product Model: ZK-1002T
Bluetooth version: 5.0 (unblocked, 10 meters)
Signal-to-noise ratio: more than 90dB
Number of channels: left and right dual channel (stereo)
Power amplifier chip: TPA3116D2 (with AM interference suppression function)
Adapter power supply: DC12~24V/5A or above (the higher the voltage, the greater the output power)
Adapter speaker: 20~200W, 4~8 ohm
Output Power:
20W x 2@12V,8 ohm
35W x 2@12V,4 ohm
35W x 2@19V,8 ohm
60W x 2@19V,4 ohm
50W x 2@24V,8 ohm
100W 2@24V,4 ohm
Protection mechanism: overvoltage, undervoltage, overheating, DC detection, short circuit protection
Tip: Only when the audio signal input is large enough and the power supply voltage/current is large enough, will there be enough output power!
The higher the power supply voltage, the greater the output power, the smaller the speaker impedance, the greater the output power! Please make sure that the power of the adapted power supply is greater than the actual working power of the power amplifier!
colour: black
Material: ABS
Size: 110mm x 70mm x 21mm

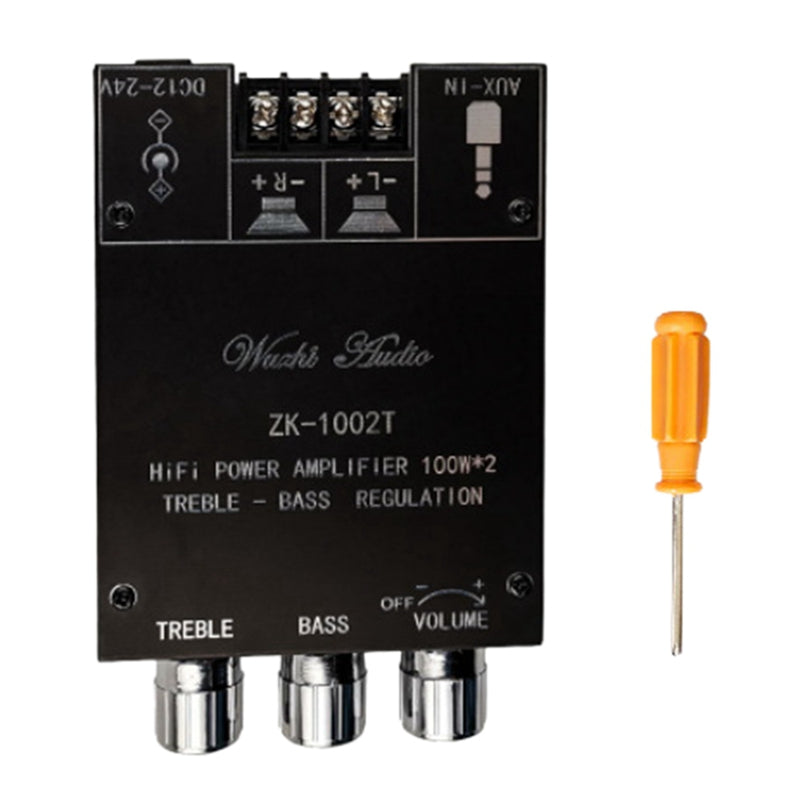

Package Contents:
1 x Amplifier Board Module
1 x Screwdriver
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
