Features:
Adopts quality electronic components, with accuracy process, which ensures fine durability and long service time.
Fine contact performance, that ensure stable working.
AUX+BT audio input, subwoofer+left and right channels output.
Adopts quality chip, unfiltered output, with standard sound quality.

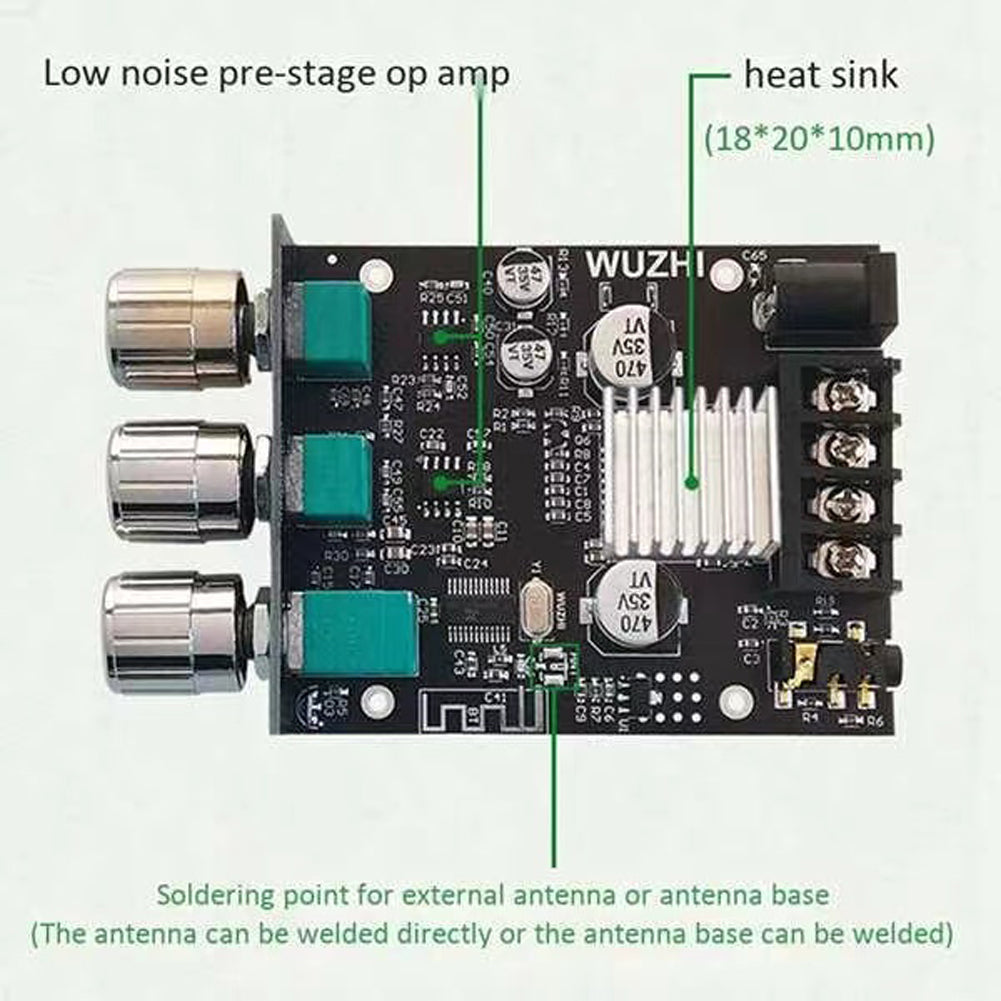

Built-in 18*20*10mm cooling fin, with fine heat dissipation effect.
Classic two-tone tuning, low distortion, with wide adjustment ranges.
Three rotation buttons design, you can adjust the treble, bass and volumes freely according to your demands.
Multiple protections design, overtemperature, overcurrent and short circuit are protected.
Specifications:

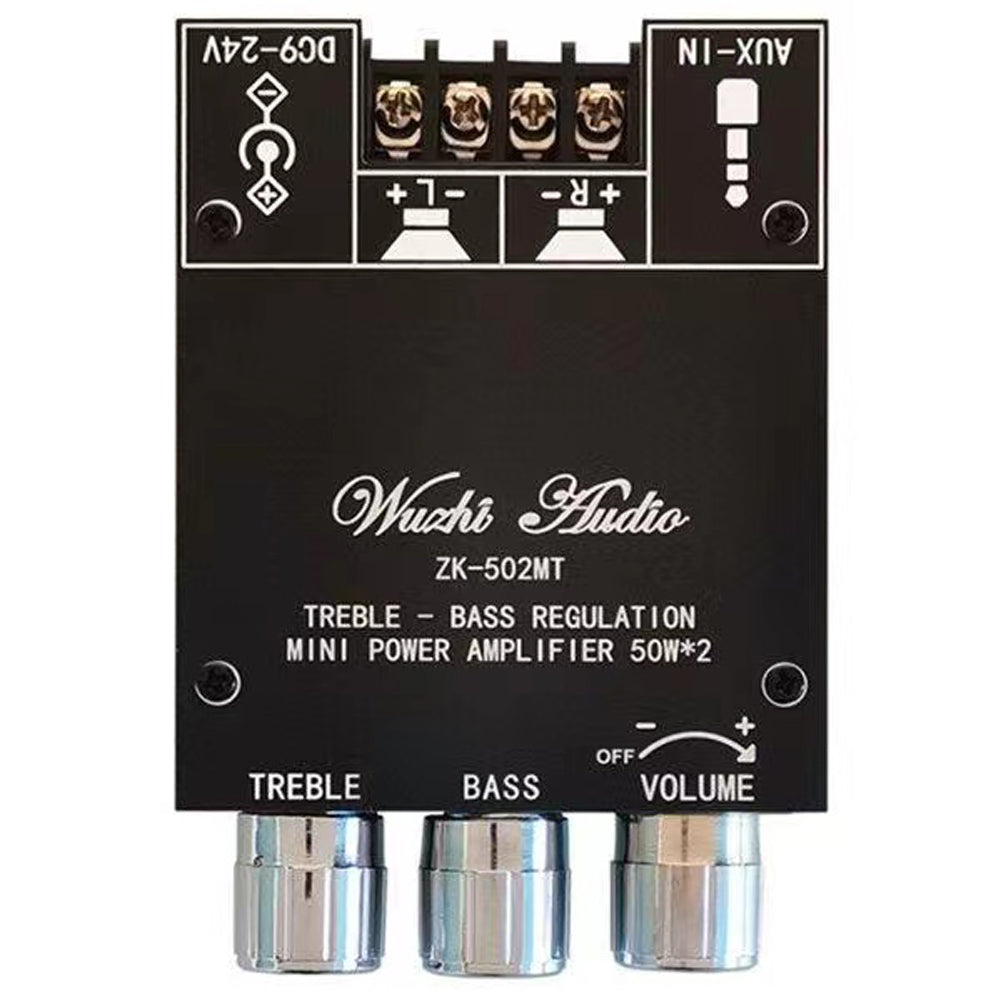

Name: Power Amplifier Module
Material: printed circuit board
Model: ZK-502MT
BT: 5.0
Signal noise ratio: ＞90dB
Audio input: AUX+BT
Channel: left+right channel (stereo)
Power: DC9-24V, above 3A
R&L speaker: 4-8Ω; 15-100W
Power voltage:
12 V: 8Ω/12W+12W; 4Ω/20W+20W
15V: 8Ω/18W+18W; 4Ω/30W+30W
19V: 8Ω/30W+30W; 4Ω/40W+40W
24V: 8Ω/40W+40W; 4Ω/50W+50W

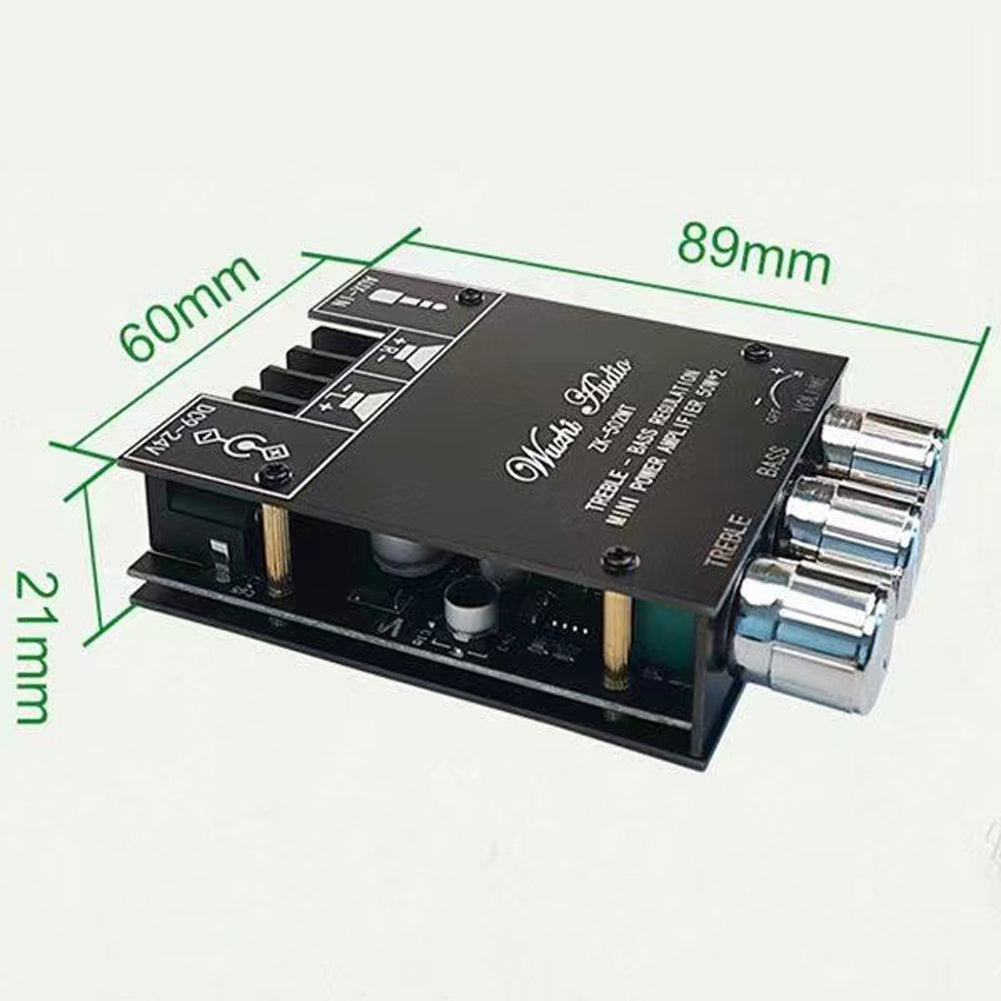

Item size: 89 * 60 * 21mm / 3.50 * 2.36 * 0.83in
Package size: 95 * 65 * 30mm / 3.74 * 2.56* 1.18in
Package weight: 111g / 3.92ounce
Packing List:
1 * Power Amplifier Module
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
