1.8M-54MHz 30-50W Short Wave Linear Power Amplifier Kit for FT817 DIY
Note : it is diy kit
Small Power Amplifier Kit with FT817 QRP equipment, etc.

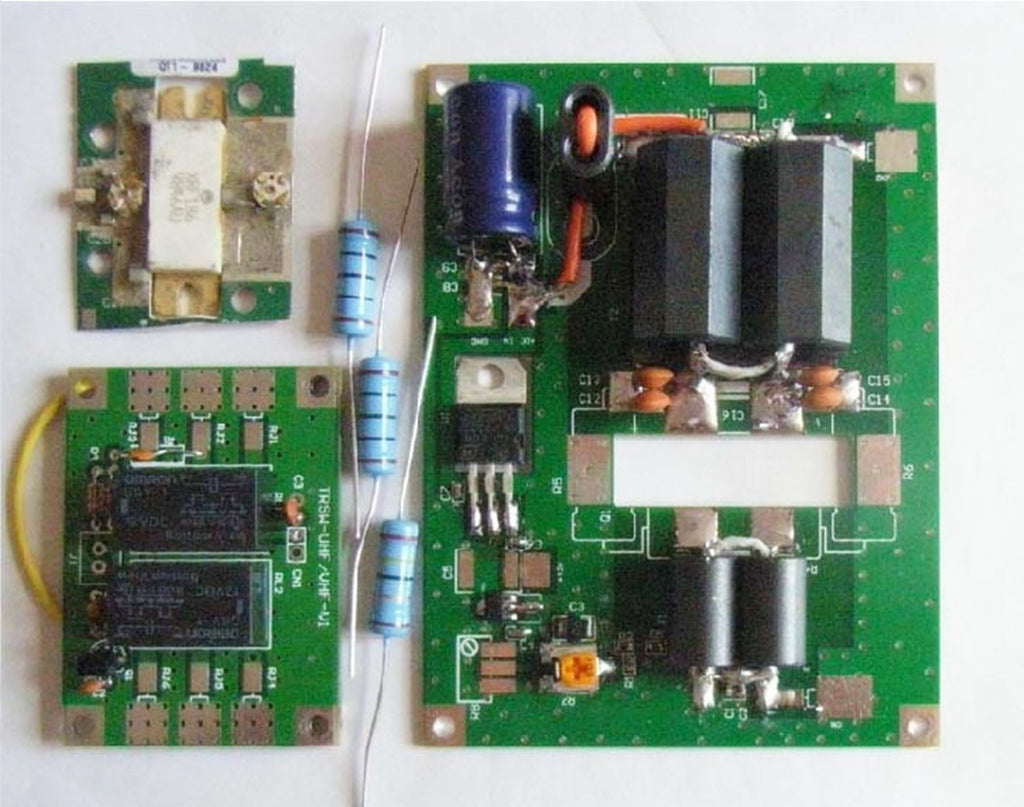

The kit includes transceiver conversion board and the amplifier board , all the parts have been welded well, quiescent current has been adjusted ! No need to adjust ! Only need to send and receive amplifier board and converter board fixed, and the connection between them and the power cord connected. Will be able to work properly.
Operating voltage : 12-15V
Frequency range : 1.5-55MHz
Current : 7A around
Output power : 40W / 13.8V.
Suite uses MRF186 do amplifier tube at 12V output 30W;. Power 40W at 13.8V; 15V output 50W.
If carefully adjusted , in the case confirmed that no self-excited , when can a 20V 100W; 24V output when 120-130W!
Please note the time of purchase , you need to prepare a piece of about 10 centimeters by 15 centimeters wide radiator requires drilling (2.5mm), then tapping ! Therefore need to have some drilling tapping device !
Packing include:
1 x New 1.8M-54MHz 30-50W Short Wave Linear Power Amplifier Kit for FT817 DIY
