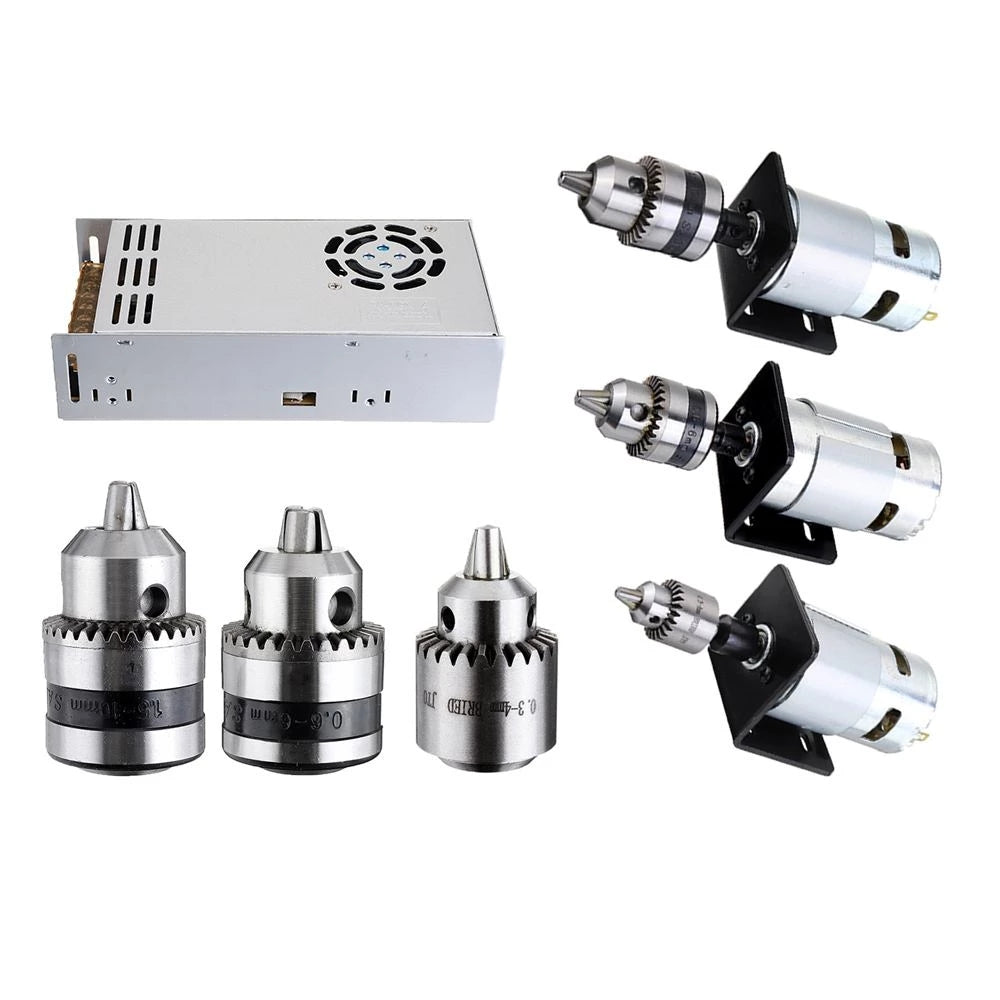

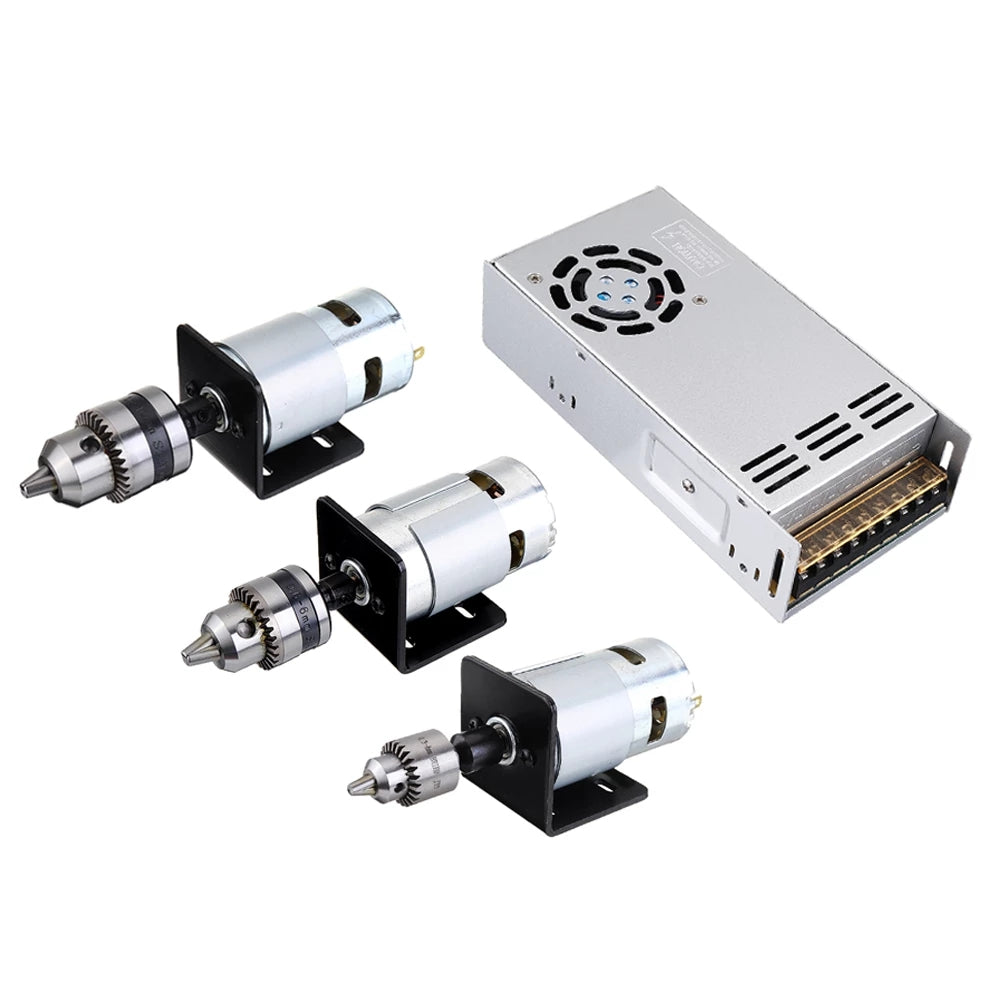

1 Set DC 12V Lathe Press 795 Motor With Drill Chuck and Mounting Bracket or 24V 15A 360W Power Convertor
Description:
DC 12V Lathe Press 795 Motor With Miniature Hand Drill Chuck 0.3-4mm/0.6-6mm/1.5-10mm and Mounting Bracket
Specification:
Type: 795 Motor
Material: Aluminum Alloy + Stainless Steel
Rated Voltage: DC 12 V
No-load Speed: 10000(rpm)
Drill Chuck: (optional)

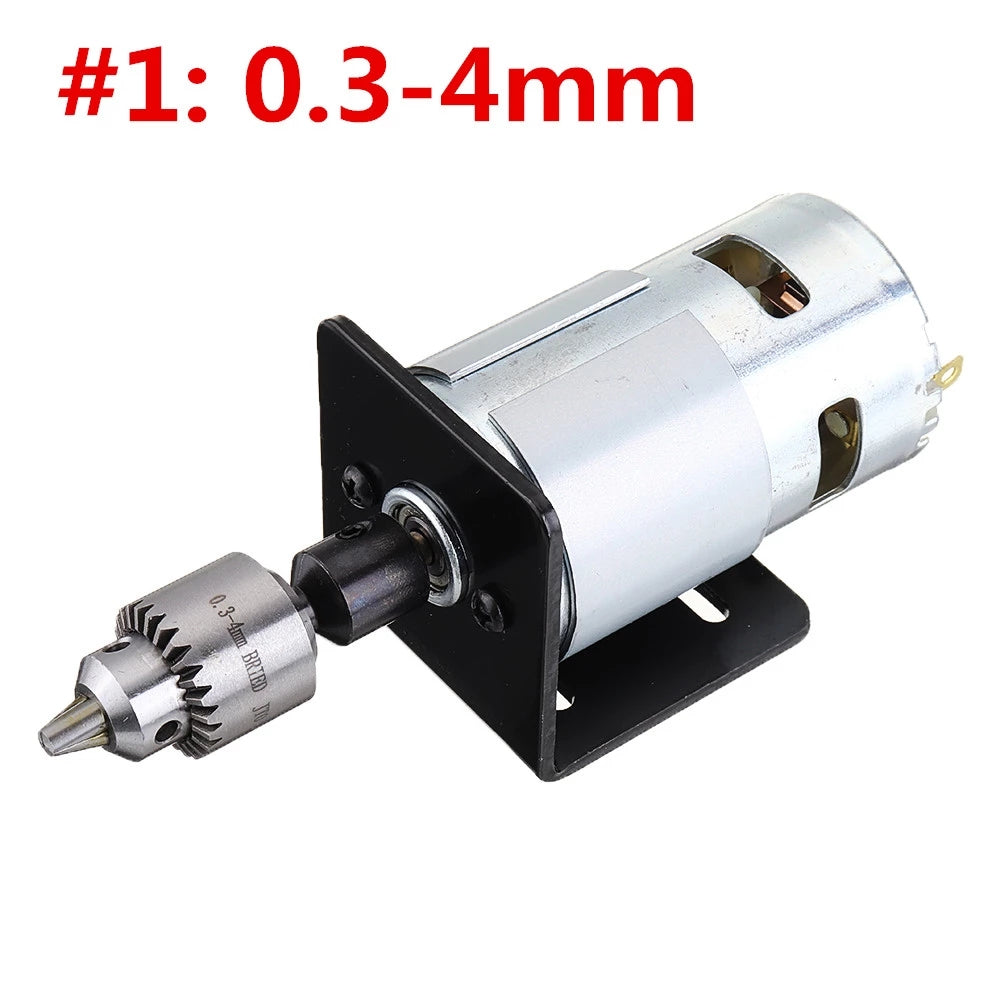

#1: 0.3-4mm

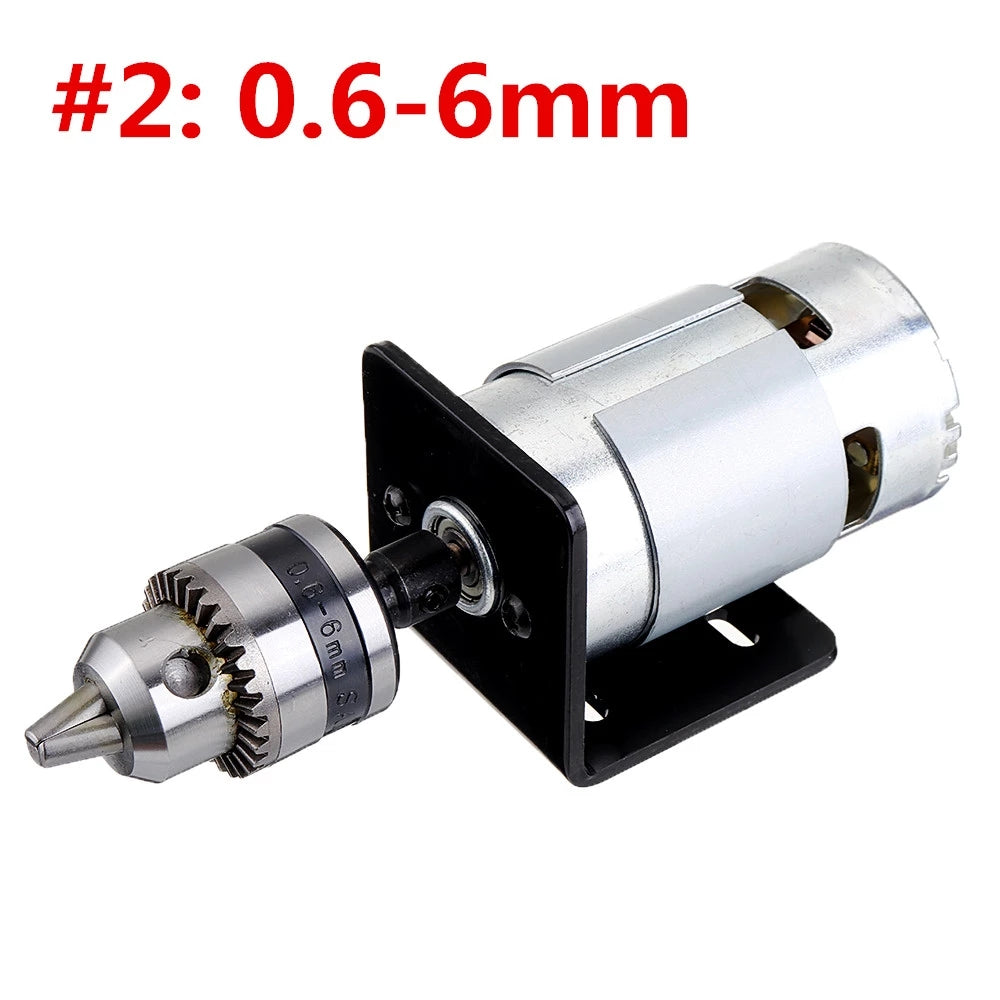

#2: 0.6-6mm

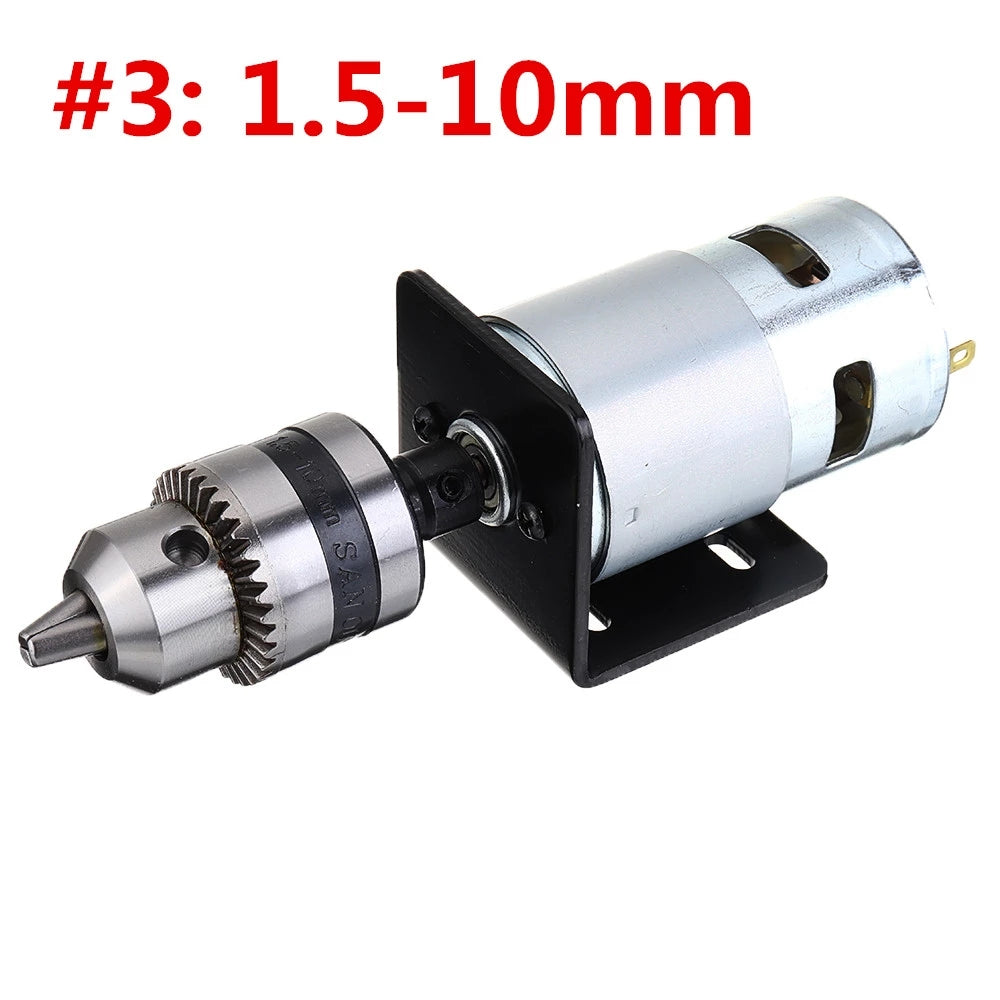

#3: 1.5-10mm
#4: 24V 15A 360W Power Convertor
Model 795
Rated voltage 12V
Speed 12V 11000rpm
Torque 4kg.cm
Former high level 4.5mm
Front steps diameter 17.5mm
Body diameter 42mm
Shaft diameter 5mm
Body length 70.5mm
Length of output shaft at tail 3mm
Diagonal installation pitch 29mm
Mounting hole size M4
Power 180W
Features:
* Tools are complete and convenient
* DIY, play your hands ability
* Application: Micro Hand Drill
* For milling machine, lathe, drilling machine, wood working machine.
* The shank with screw can be tight and flex for you.
Package Included:
1 x 795 Motor
1 x Bracket
1 x Drill Chuck (0.3-4mm /0.6-6mm /1.5-10mm) (optional)
1 x Chuck Key
1 x Connecting Link
2 x M3 screws
or
#4: Power convertor
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
