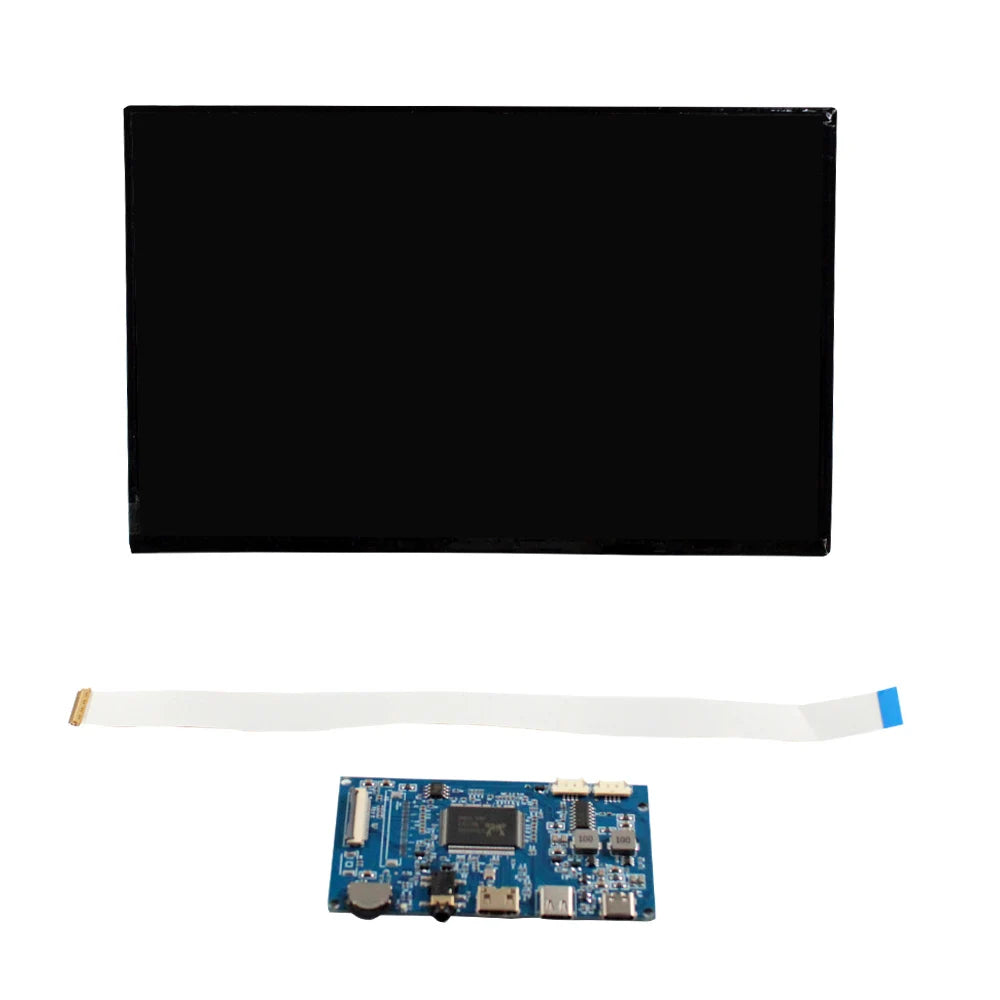

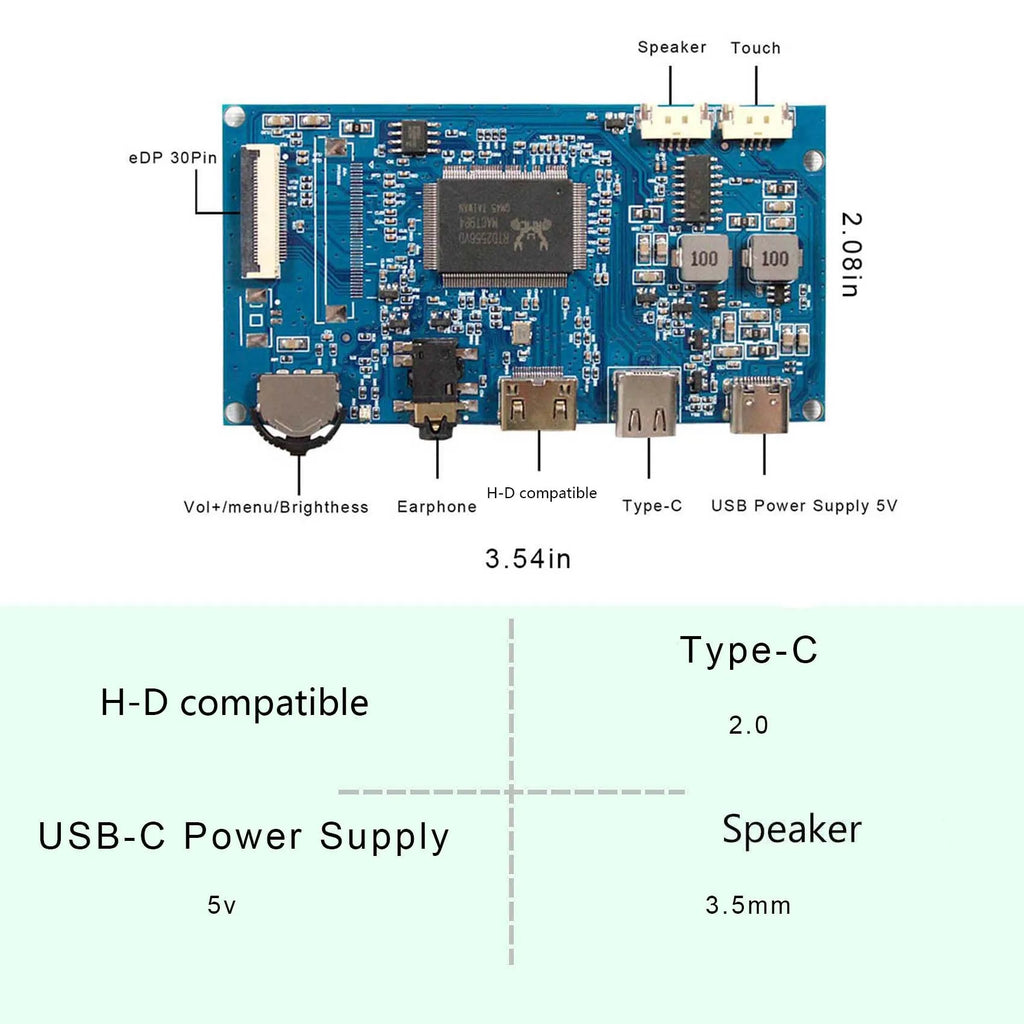

LCD Controller Board:
H-D Type C Control Board Work for 30Pin EDP LCD Screen
Input Power Adapter: Type-C 5V 1.5A
HDR: Support
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Input: Type-C Mini H-D
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English Chinese French Deutsch Italian Espanol Portugues Turkce Polski
Nederlands Korean Japanese
Board Size: 90mm x 53mm x 5mm
10.1 "B101EAN01 1280X800 LCD Screen:
Display Mode AHVA, Normally Black, Transmissive
Resolution 1280(RGB)×800
Outline Size 227.72×147.8×4.4mm(H×V×D)
Display Area 216.96×135.6(H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (1 Lane) , eDP1.2 , 30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
