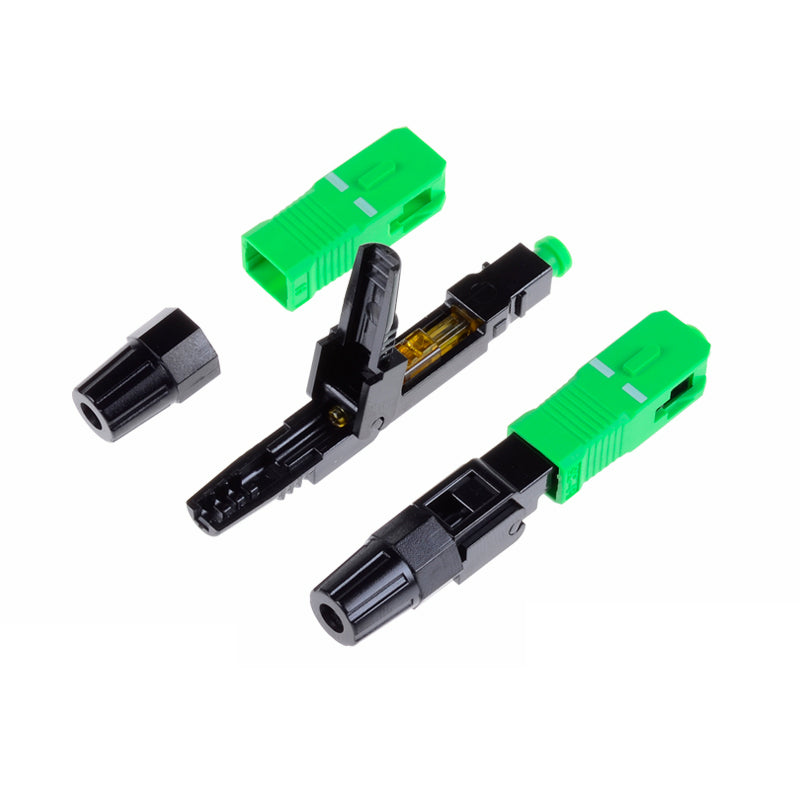

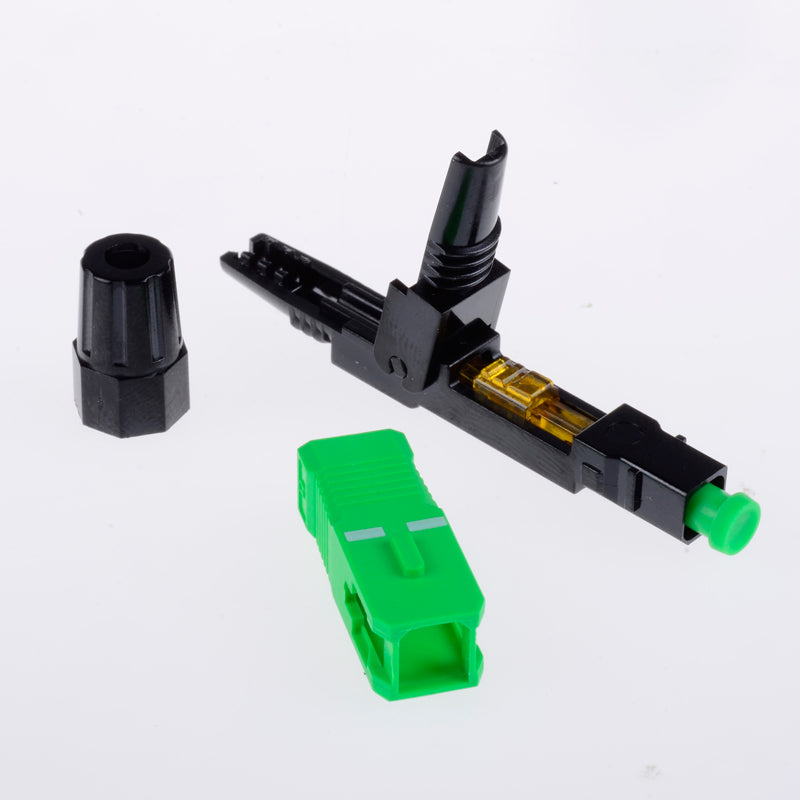

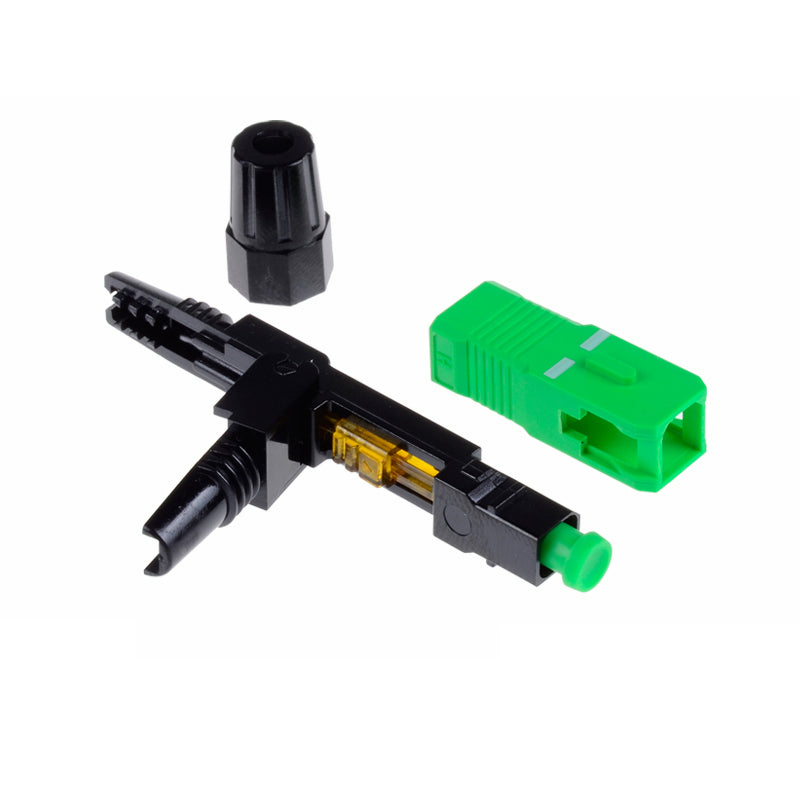

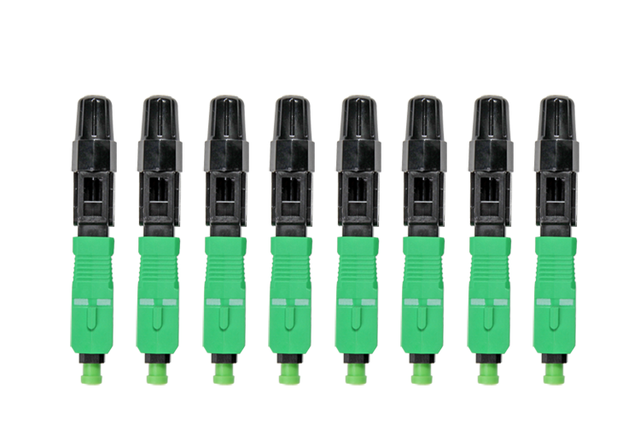

100PCS/box SC APC fiber optic SC APC Single-mode Fast connector SC APC FTTH Fiber Optic quick Connector Free shipping
| ITEM |
Technical Parameters |
| Applicable for |
Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
| Optical fiber diameter |
SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B ) |
| Tight buffer diameter |
250μm |
| Fiber mode |
Single mode |
| Operation time |
About 100s(no fiber cut) |
| Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
| Return loss |
> 50db(PC), > 55db(UPC), > 65db(APC) |
| Fastening strength of naked fiber |
>5 N |
| Fastening strength of naked fiber holder |
>10 N |
| Tensile strength |
>50 N |
| Using temperature |
-40~+75°C |
| On-line tensile strength (20 N) |
IL ≤ 0.5dB RL ≤ 5dB |
| Mechanical durability (500 times) |
IL ≤ 0.5dB RL ≤ 5dB |
| Drop-off test (drop-off height 4m,once per direction, totally 3 times) |
IL ≤ 0. |
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
