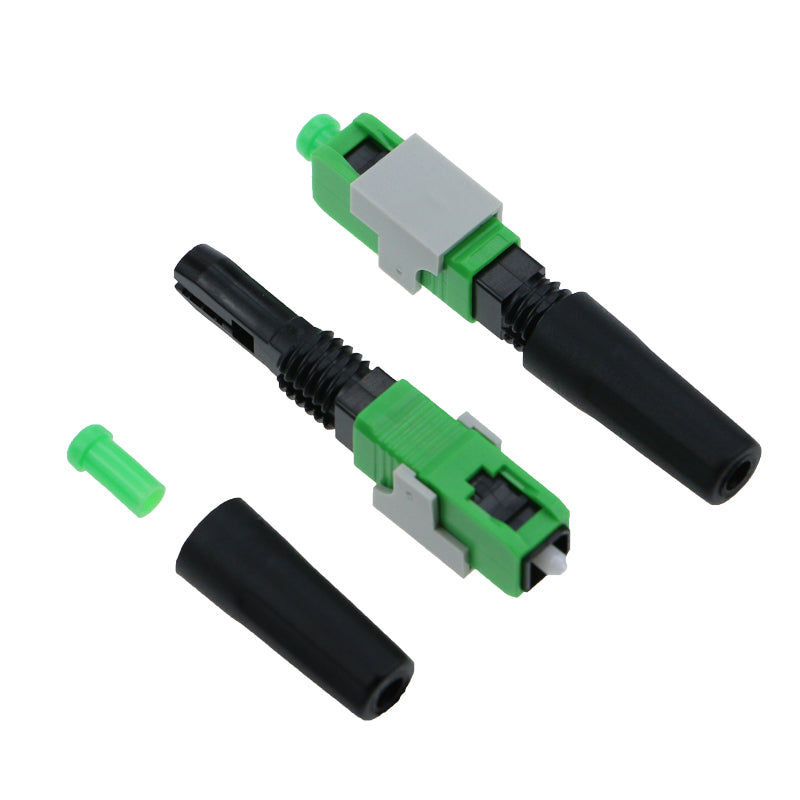

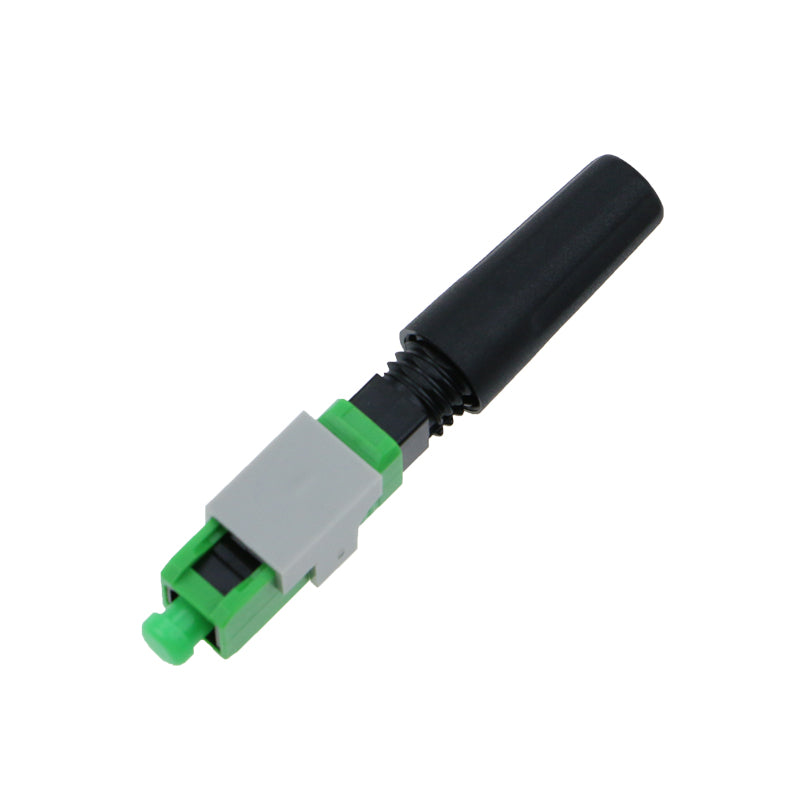

100PCS FTTH SC APC FTTH pre-bur fiber optic quick connector SC APC FTTH Fiber Optic Fast Connector SC Connector Free shipping

  I assure you that the quality of our products to ensure that we give you the best service to ensure the fastest shipping,  most secure way to deliver the goods to your hands!  If you have any questions after receiving the product,  or have quality problems,  please do not panic,  do feel free to submit disputes, please contact our customer service,  we will give you the most satisfactory answer!  Happy shopping, thank you very much

  Product Attributes

                Supply pre-embedded FTTH SC/APC fiber optic quick connector

      Features:

      1. FTTH project usable

      2. Field installable

      3. Insert loss less than 0.15dB

      4. Metal V-shape cavity work well in high and low temperature

      5. Installation less than 1 minutes

      6. Reliable and superior optical performance

      7. Cable Tensile test complies with Telcordia GR-326-COR

      Application:

      1. Distribution frames

      2. Maintenance or emergency restoration of fiber networks

      3. Patch panels

       4. FTTH Outlets

      5. Field word

                                     ITEM

            Technical Parameters

                            Applicable for

            Drop cable / Indoor cable

  0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable

                            Optical fiber diameter

            SM(9/125), MM(50/125, 62.5/125)

  125μm ( 657A & 657B )

                            Tight buffer diameter

            250μm

                            Fiber mode

            Single mode

                            Operation time

            About 100s(no fiber cut)

                            Insert loss

            ≤ 0.3dB(1310nm & 1550nm)

                            Return loss

            > 50db(PC), > 55db(UPC), > 65db(APC)

                            Fastening strength of naked fiber

            >5 N

                            Fastening strength of naked fiber holder

            >10 N

                            Tensile strength

            >50 N

                            Using temperature

            -40~+75°C

                            On-line tensile strength (20 N)

             IL ≤ 0.5dB  RL ≤ 5dB

                            Mechanical durability (500 times)

             IL ≤ 0.5dB  RL ≤ 5dB

                            Drop-off test (drop-off height 4m,once per direction, totally 3 times)

             IL ≤ 0.
