* Portable integrated design, metal body, high strength, light weight;

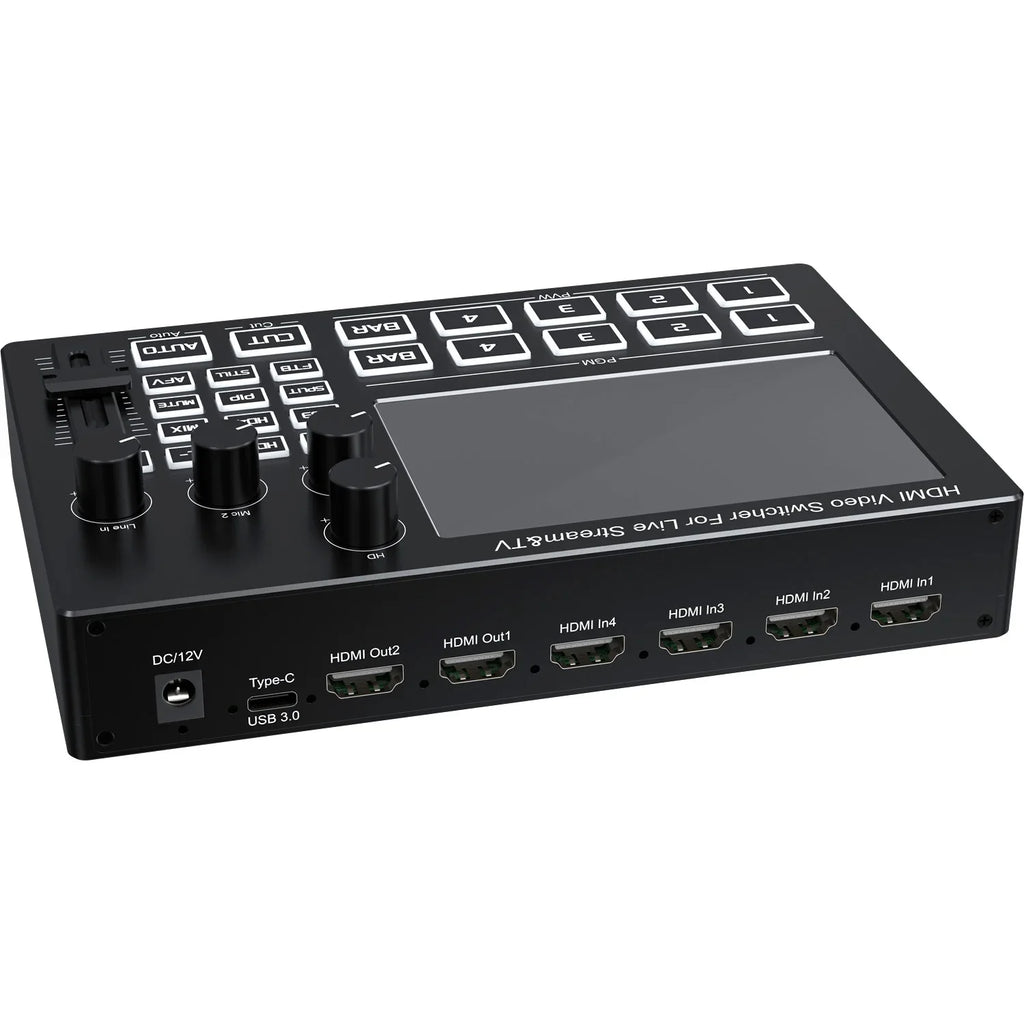

* 4 HDMI input, 2 HDMI output;

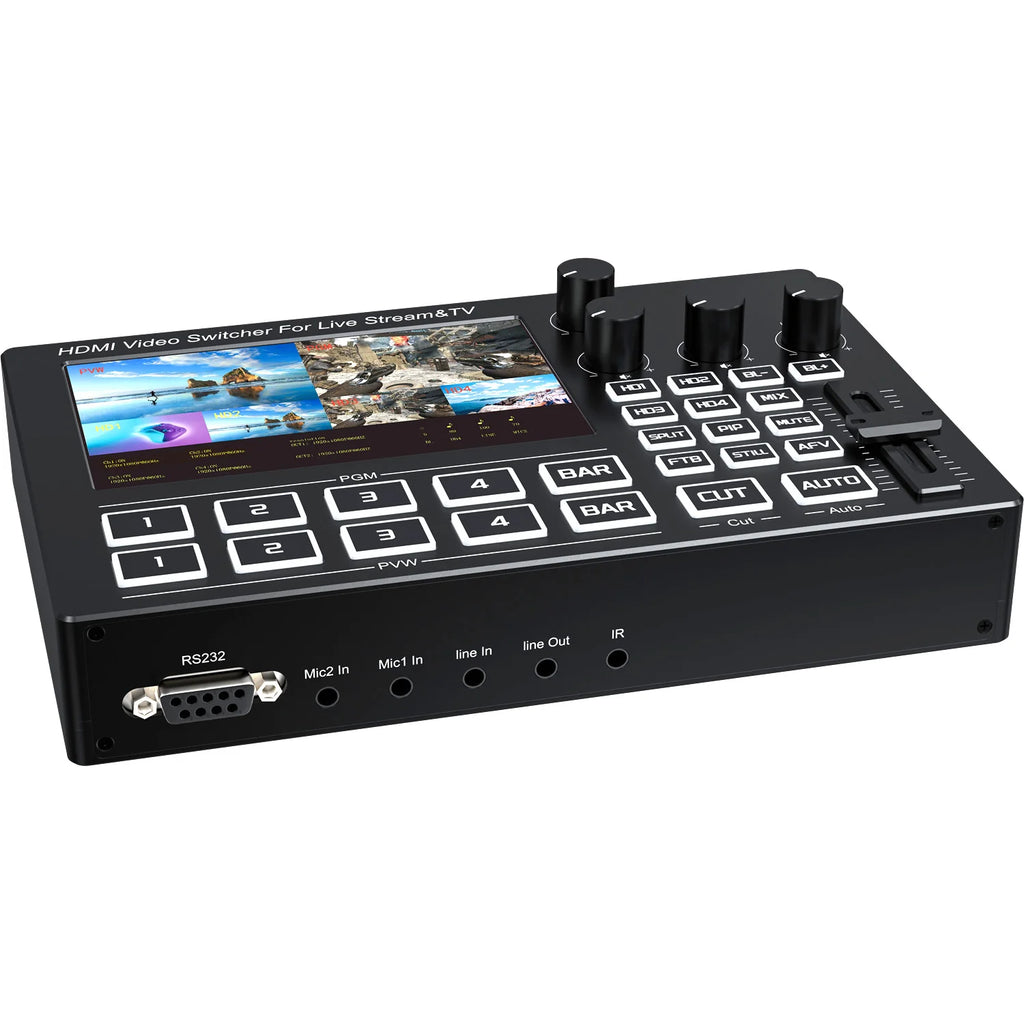

* Built-in 5-inch IPS HD screen, real-time monitoring of the input signal and the output screen;
* Support through the panel BL+, BL- button to adjust the screen backlight brightness;
* Support HD embedded audio or External analog audio(MIC,LINE IN), after mixed processing,
can be embedded in the output HD signal or output from the analog port;
* In the mix mode, support HDMI embedded audio selection fixed HDMI channel or turn off the
HDMI embedded audio;
* Support HD audio following (fixed following PGM);
* The Type-C 3.0 capture and streaming interface supports YUY2 video format and support UVC 1.0；
* Support OSD display input channel signal, resolution information, volume information,
HD channel audio, backlight brightness;
* Support left and right two segmentation (PGM on the left, PVW on the right);
* Support picture in picture mode(PIP);
* Support power-off save Settings;

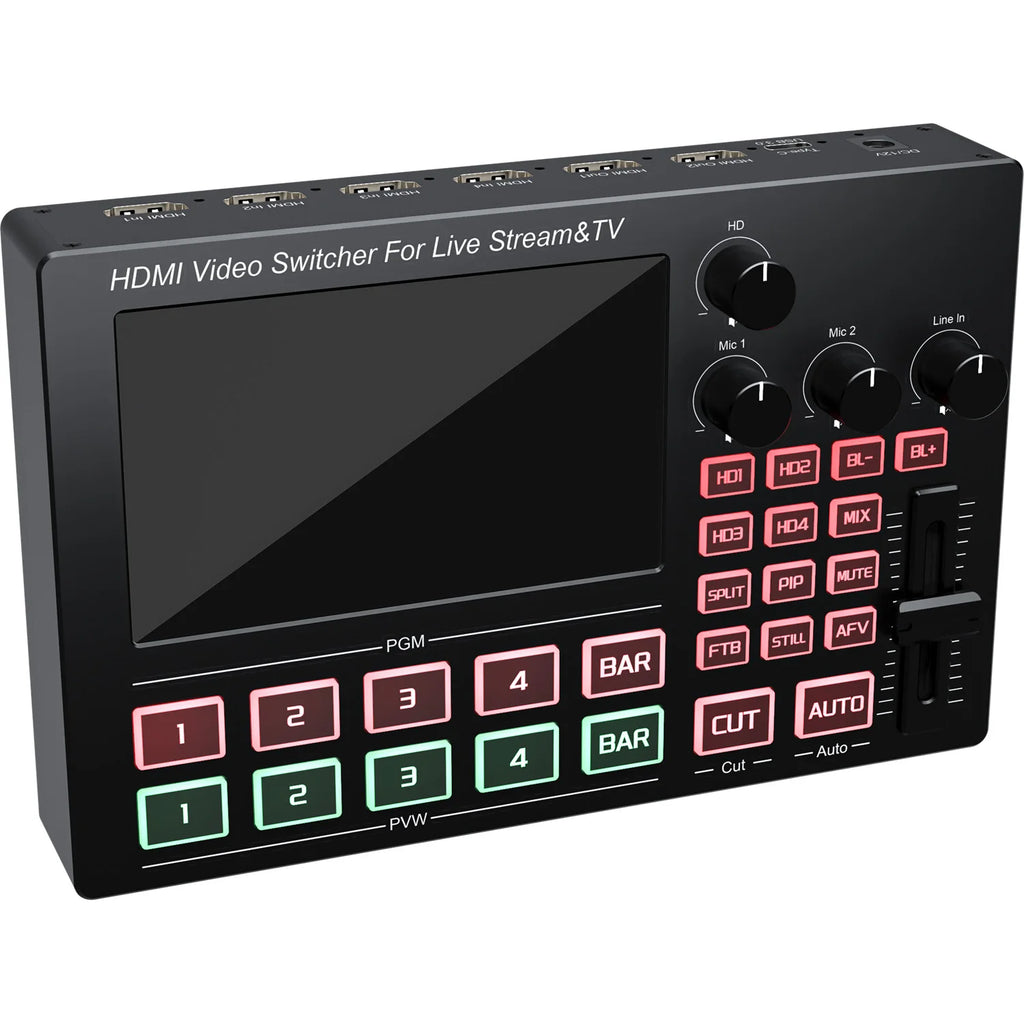

* High quality keys, color backlight design.
Specifications:
HDMI input resolution ................................................................................... 1080P@60Hz
HDMI output resolution ................................................................................. 1080P@60Hz
Type-C 3.0 capture and streaming video format ........................................ YUY2、MJPEG
Supports audio format ................................................................................................. PCM
Built-in 5-inch scree resolution................................................................................ 800*480
The maximum bandwidth transmission ............................................................... 148.5MHz
Maximum transmission rate ............................................................................. 1.65 x3Gbps
The input cable length ........................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
The output cable length ......................... 1080P/60Hz≤15 m AWG26 HDMI standard cable
Maximum working current ........................................................................................... 0.9 A
Power adapter specifications .......... Input AC(50Hz,60Hz)100V-240V; Output: DC/12V 2A
Working temperature range ........................................................................... (0℃ to +45℃)
Size ...............................................................................................Approx.200x130x52(mm)
Note : All devices need to be connected and finally connected to the power supply.

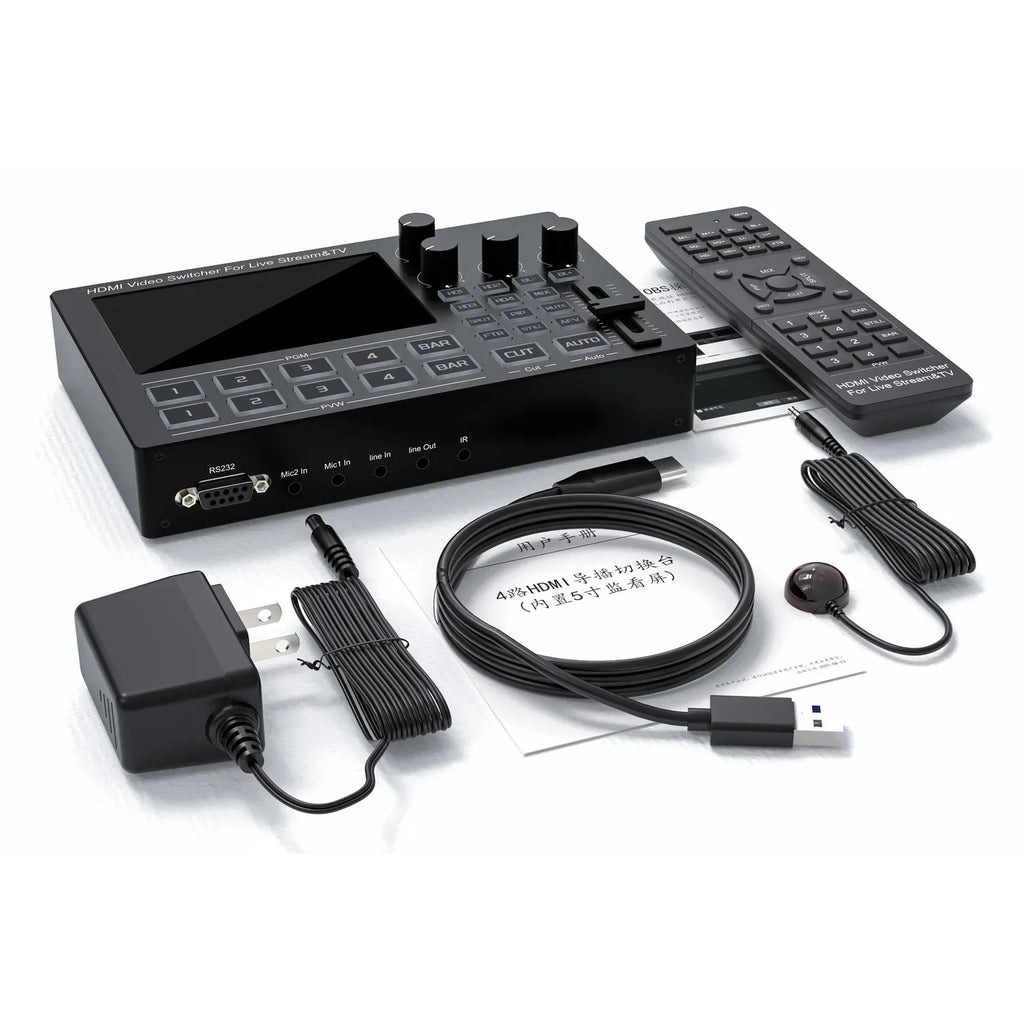

Package include:
1.4 way video switcher x1
2.1M Type-c USB3.0 to USB-A 3.0 cable 10Gpbs) x1
3.DC/12V 2A power adapter x1
4.lR receiver x1
5.Remote control without battery x1
6.User manual x1
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
