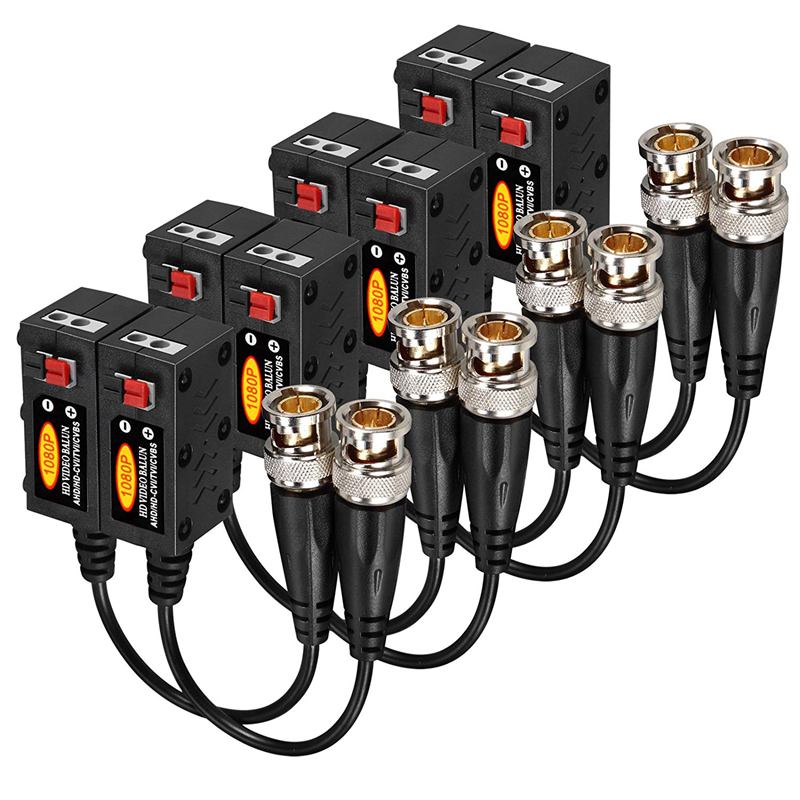

1080P HD Video Balun: Full-motion CCTV video at distance up to 350m-600m when used with any passive transceiver. Up to 300m for 960H/1080P AHD Cameras, for HDTVI Cameras in DVR support.
lasts for over 10000 hours/417 days.
There are 6 small holes and bulgy points set on opposite sides of video balun enable you to combine them together and made a neat line so they are more manageable if more than one video balun is used.
Compatible with HD-CVI, HD-TVI, HD-AHD, CVBS, NTSC, PAL, and SECAM video formats. 60 Db cross talk and noise immunity. Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera system,gold plated BNC better transmission quality long distance HD transmitter. No power required
Support HD-CVI, HD-TVI, HD-AHD ,CVBS
Up to 600m for 720P HDCVI Cameras
Up to 600m for 720P CVBS Cameras
Up to 300m for 960H/1080P AHD Cameras
Up to 300m for 720P/1080p HDTVI Cameras
NTSC, PAL, and SECAM video formats
60dB cross talk and noise immunity.
Compact size and easy installation
Built-in transient suppression protection
Innovative combinable design
Frequency response: DC to 80Mhz
Attenuation: 0.5dB type
Surge protection: 1000V Max
Connectors: Male BNC and " Press-Fit" terminal blocks
Impedance: BNC: 75 ohms
Terminal: 100ohms
Working Temperature: -10 Celsius to +70 Celsius
Storage Temperature: -30 Celsius to + 70 Celsius
Humidity: 0 to 95%
Category Type: Cat5e/6 suggested
Transient Immunity: per AN SI/IEE E 587 C62.41
Colour: Black
Material: metal + ABS
Size: about 18cm long
Package Contents:
4 x1 Pair HD Video Balun Transmitter
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
