1080P SONY IMX307 HDMI VGA Industrial Digital Video Microscope Camera + 100X C Mount Lens +Microscope Stand For PCB Soldering

1080P SONY IMX307 HDMI VGA Industrial Digital Video Microscope Camera + 100X C Mount Lens +Microscope Stand For PCB Soldering

Name: 1080P SONY IMX307 HDMI VGA Industrial Digital Video Microscope Camera + 100X C Mount Lens +Microscope Stand For PCB Soldering
Brand: mickcara
SKU: 03179-1
Price: 169.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 03179-1

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$169.00

Quantity:

Subtotal: $169.00

283 customers are viewing this product

Tags:

Description

New upgrade to HDMI VGA video microscope camera

The color of the camera is black

The product uses the SONY iMX307 CMOS sensor, which solves the problem of the dim display of the old camera due to insufficient light.

Improve image quality and digital noise reduction, increase color reproduction and 1080P output, support more languages, English, Chinese, Japanese, Spain, Russian, very suitable for phone PCB SMD soldering.

1080P Feature:

High Quality, High Resolution, Clear Images

1/2.8" SONY IMX307 CMOS

1080P 1920*1080 1024*768 @60F/S Video Camera

HDMI VGA Video Model

Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.

Specification:

Model: Camera with HDMI VGA two output

Color: black

Sensor: 1/2.8 inch SONY IMX307

Image Resolution: 1920*1080 1024*768 (for HDMI), 1920*1080 1024*768 (for VGA)

Video Resolution: 1920*1080 1024*768 @ 60F/S

Basic Function:Brightness(0-100%,Adjustable), Contrast(0-100%,Adjustable), Saturation(0-100%,Adjustable), White balance(One key white balance，Manual balance)

Image quality adjustment:Exposure(Automatic Exposure, Manual Exposure), Color temperature(Red, Blue, Green, Adjustable)

Freeze: Support

Mirroring: Support

Language: English/Chinese/Japanese/Spain/Russian

Power supply:12V 1A

Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size

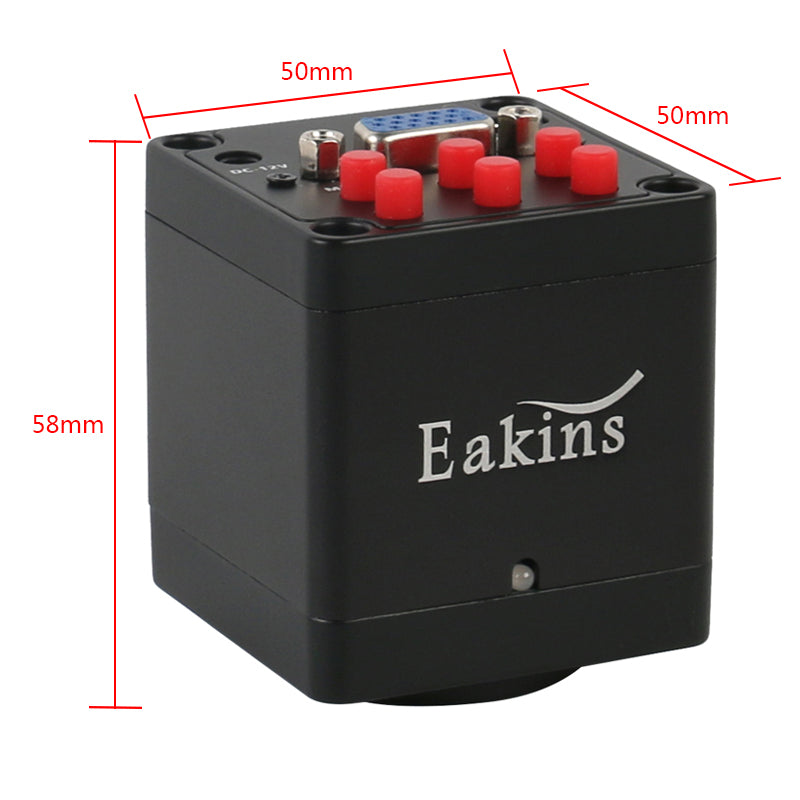

Appearance size:50*50*58mm

Working distance: 4.5cm-30cm

This is a new upgrade lens that replaces the old 100X lens. At the same time, we have a good price. We have increased the resolution, magnification and working distance. It can work with 40mm and 50mm Focusing stand, 15cm-22cm working distance. Can meet PCB soldering, better clarity can be more convenient to observe the PCB

Working distance: 70mm-220mm

Field of view: 7mm-43mm

Focal length: 50

Interface: C CS mount

zoom c-mount Lens

zoom ratios: 15:1

Magnification Power by 0.12 - 1.3X (about 12 - 130X on the display)

Size: 30mm(L) * 84.38mm(DIA)

56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-45mm

Package incluede:
1 x Camera
1 x Stand
1 x 100X C-MOUNT Lens
1 x 56 LED Ring Light
1 x 100V-240V power supply (EU/US)

100x Package incluede:

1 x Camera

1 x Stand

1 x 100X C-MOUNT Lens

1 x 56 LED Ring Light

1 x 100V-240V power supply (EU/US)

130x Package incluede:

1 x Camera

1 x Stand

1 x 130X C-MOUNT Lens

1 x 144 LED Ring Light

1 x 100V-240V power supply (EU/US)

120x Package incluede:

1 x Camera

1 x Stand

1 x 120X C-MOUNT Lens

1 x 144 LED Ring Light

1 x 100V-240V power supply (EU/US)
