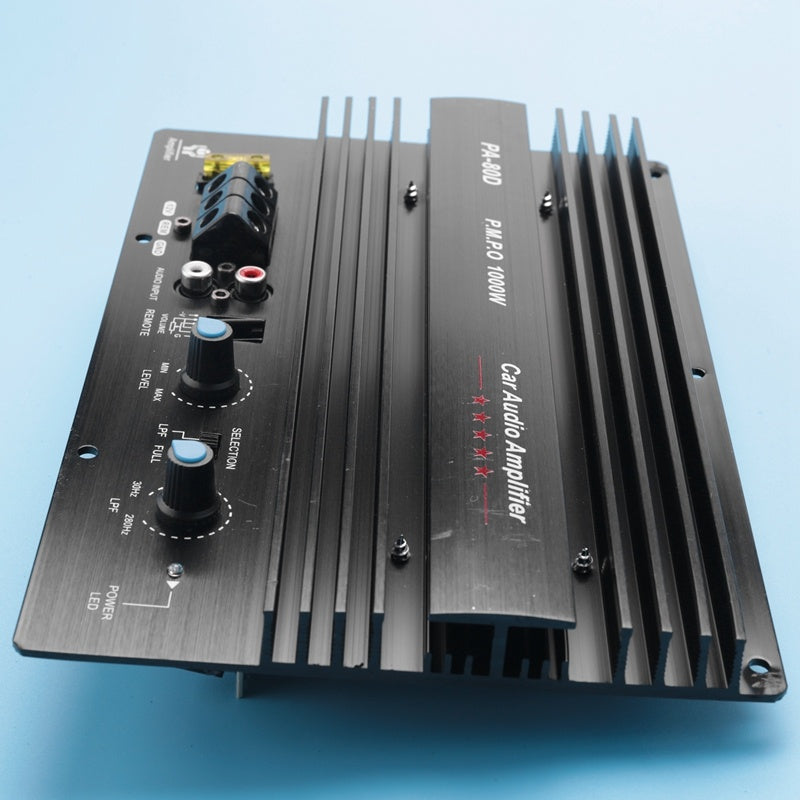

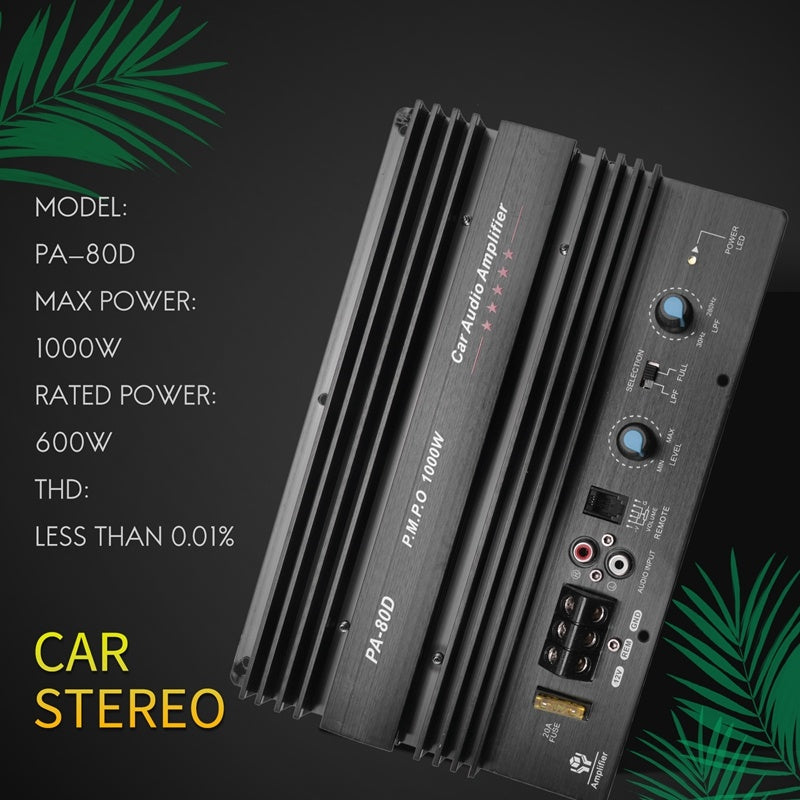

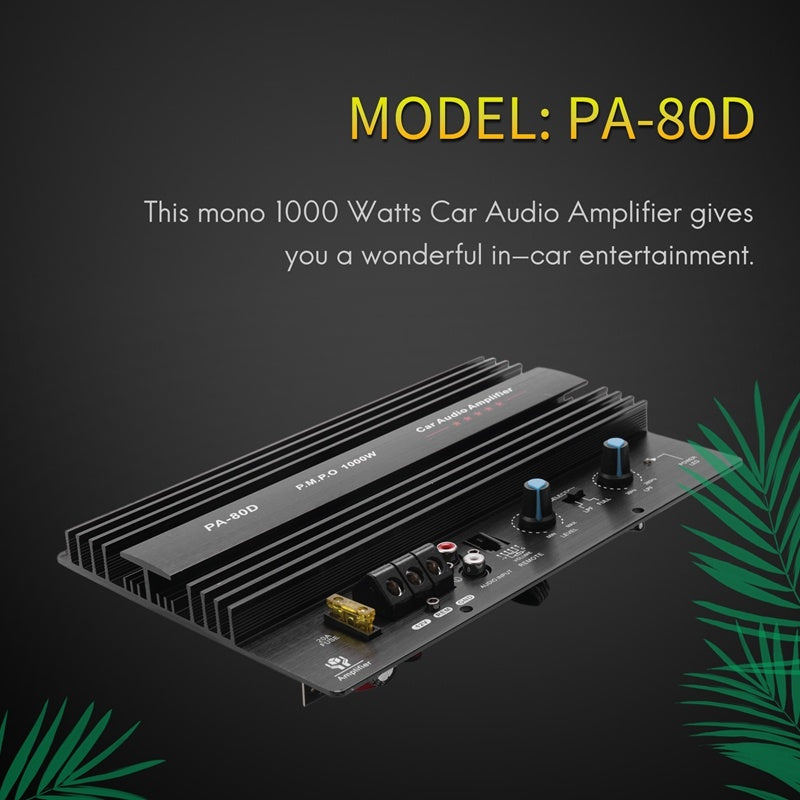

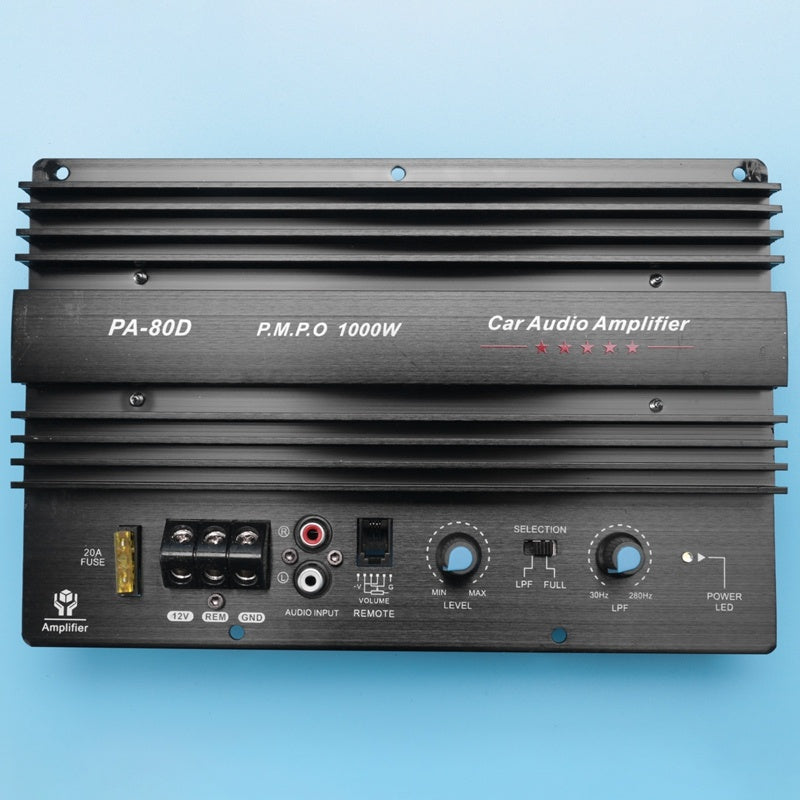

Model: PA-80D
Max Power: 1000W
Rated Power: 600W
THD: Less than 0.01%
Frequency Response: 30Hz~280KHz
Operating Voltage: 12V
Impedance: 4ohm
SNR: 105dBA
Wiring:
1, Speaker connection: amplifier board has a good piece of red and black wire welding can be accessed by a 4-8 Euro 100-150W bass or full-range speaker or speakers (red pick horn + , black pick speaker - is recommended to use 4 ohm 8-12 inch 45 core 100-170 magnetic bass ) ;
2, Power connection
B. car no CD player: GND connected to the negative power of the car , + 12V and REM connected together in positive 12V car power ( + 12V can also be an indirect one with REM switch control amplifier switching function ) ;
C. directly with the battery (battery) connection: GND connect the battery negative , + 12V and 12V REM then the positive battery simultaneously .
colour: black

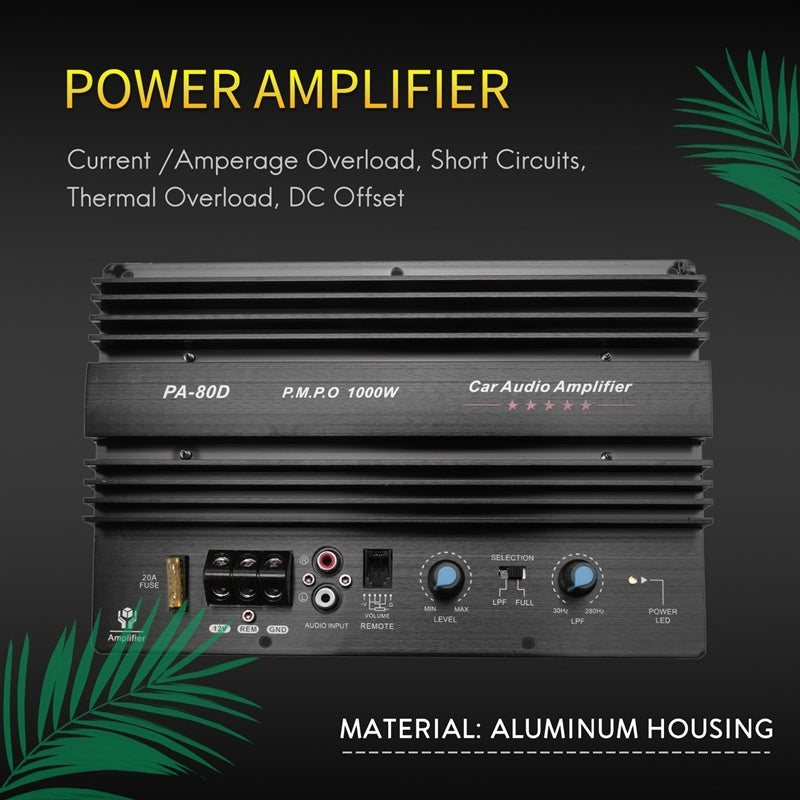

Material: Aluminum housing
size: 23.5*15.5cm
Package Contents:
1* Car Audio Amplifier
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
