Feature:
1. Using post‑programming technology, the driver can be modified as needed to match a variety of analog input signals.

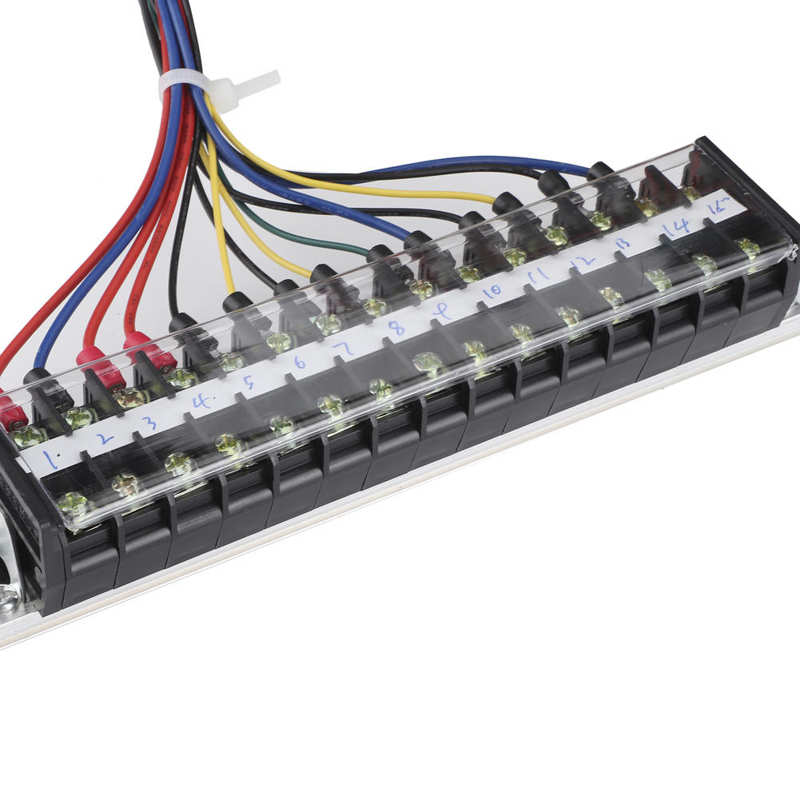

2. The wire harness connector has a buckle, which can ensure a firm connection between the instrument and the wire harness, even if it is used in strong vibration occasion, it can still work reliably.
3. Using industrial‑grade electronic components and structural parts, the working temperature can reached ‑30‑+75℃.
4. IP67 waterproof and dustproof, 316 stainless steel front cover, can be used for a long time even in acid, alkali and humid environment.
5. Adopt ultra‑wide working voltage design, 9‑32V long‑term working voltage, up to 36V (≤1 minute).
6. Ultra‑low power consumption design, the working current of the 2in gauge ≤60mm, and 3.2in gauge ≤100mA.
7. It can be used in engines, generator sets, RVs, yachts, fishing boats, ships, construction machinery, agricultural machinery, modified vehicles and other fields.
Specification:
Condition: 100% Brand New

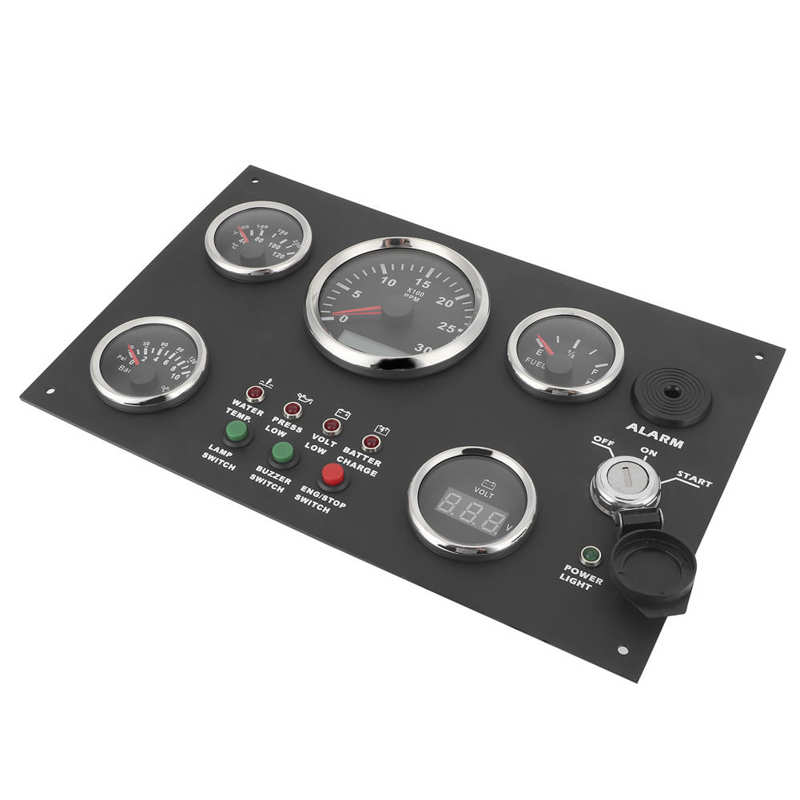

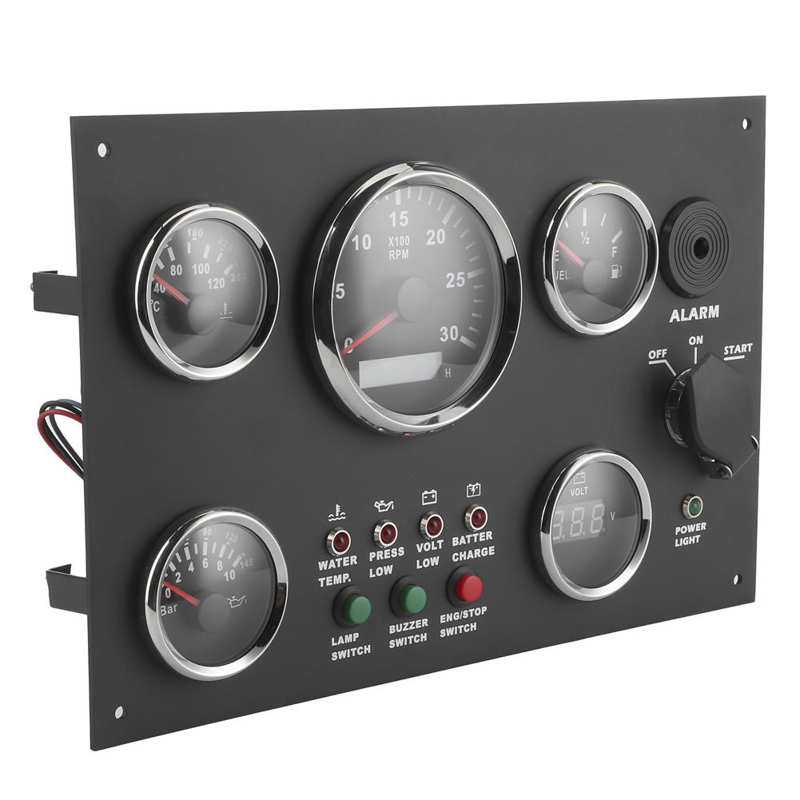

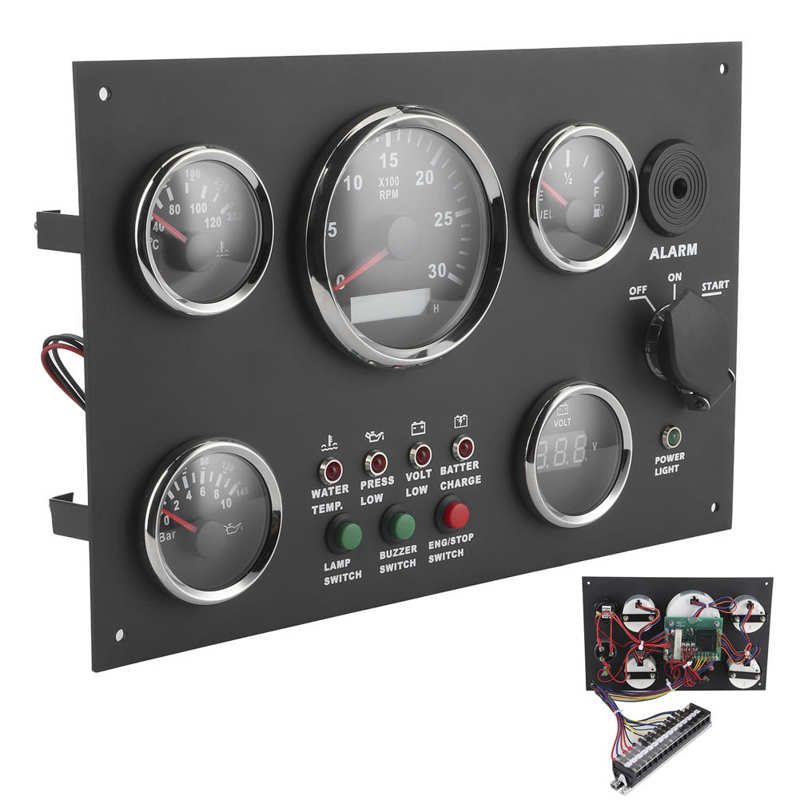

Item Type: Gauge Cluster
Material: Stainless Steel + Nickel-plated Plastic
52mm/2in, Red Backlight
82mm/3.2in, 8 color Backlight
Operating Voltage: 9-32VDC
Operating Current: ≤100mA
Operation Mode: LCD display, stepper motor
Input Signal: Pluse Signal from tacho sensor, engine, ignition coil, crankshaft sensor, etc.
Protection Class: IP67,can work underwater 1m position
Functions:
Water Temperature Meter Range: 40-120 degrees Celsius
Oil Pressure: 0-140psi

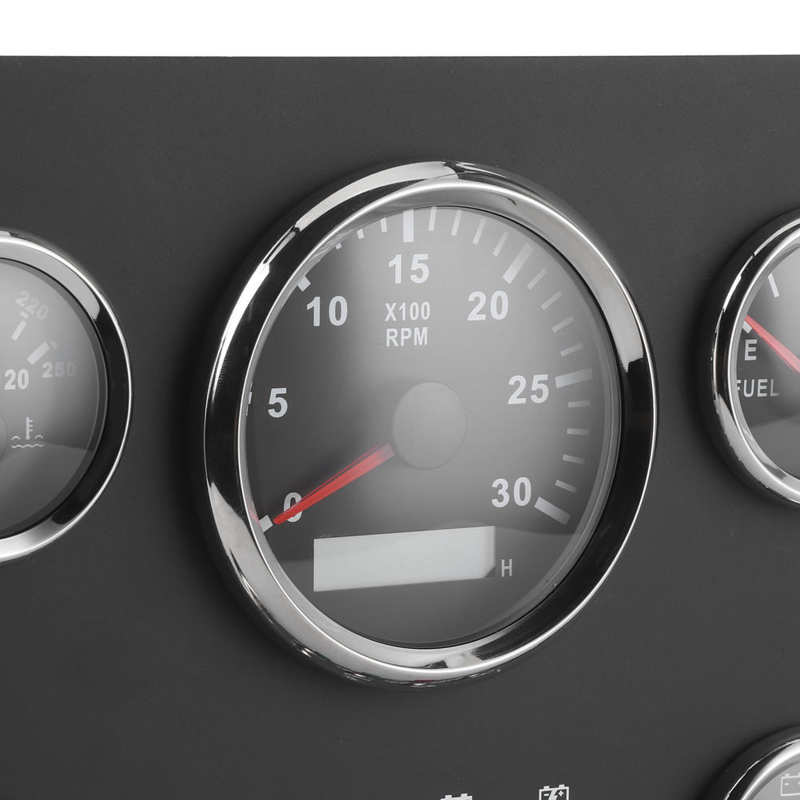

Engine Speed: 0-3000RPM, Hourly Timing
Oil Level Gauge: E-1/2-F
Voltage: 0-38V
Package List:
1 x Gauge Cluster
2 x Ignition Keys
1 x Manual
