Features:
Simple structure & light weight & convenient installation & reliable performance & wide adaptability & high cost performance.
Made of premium metal material, impact resistance & rust protection & stable performance & long service life.
Wide voltage range & low power consumption & long continuous service life, suitable for continuous and long-term power supply of automatic generator set and general battery.

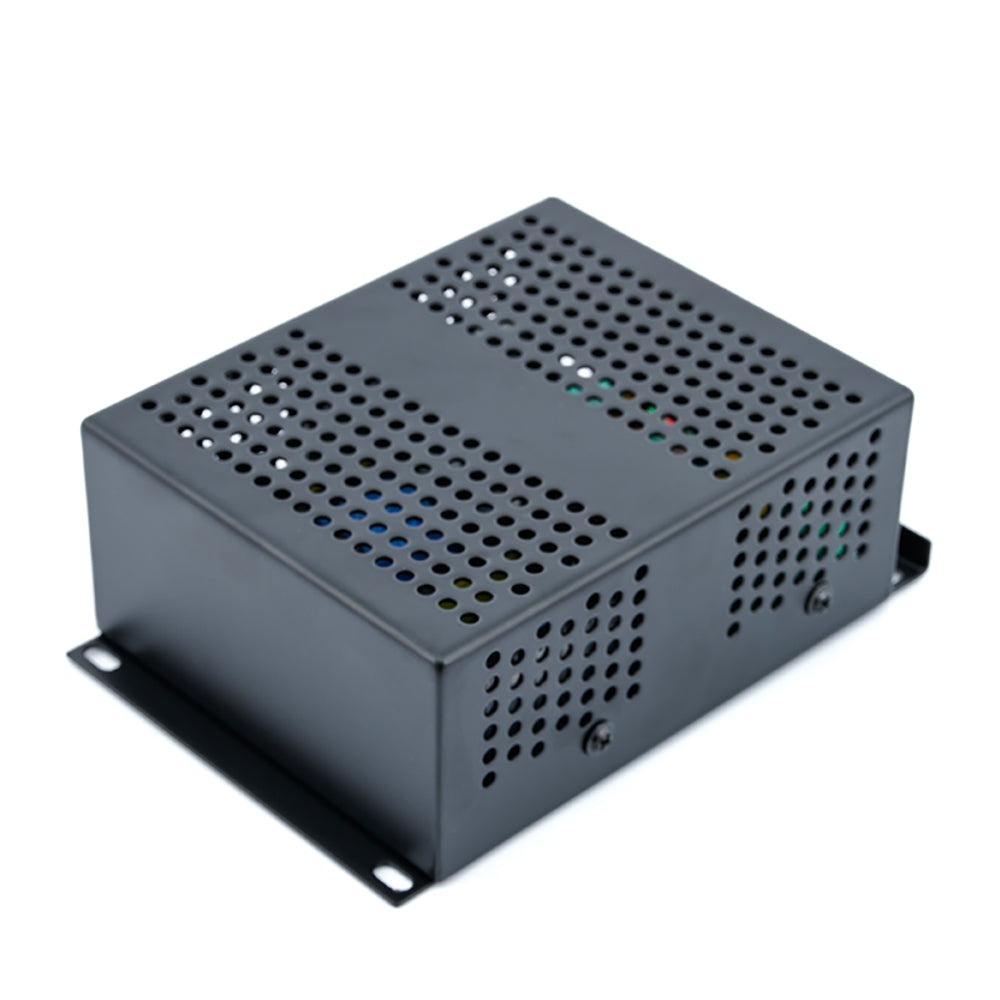

Multiple vents ensure efficient heat dissipation, energy saving & operation protection.
Features overload memory protection, short circuit memory protection and reverse protection.
Widely used in automatic power distribution industry and applicable to 12V/24V (optional) lea-d acid batteries, including car battery, motorcycle battery, dry battery, wet battery, maintenance-free battery, etc.
Specifications:
Material: Metal
Color: Black

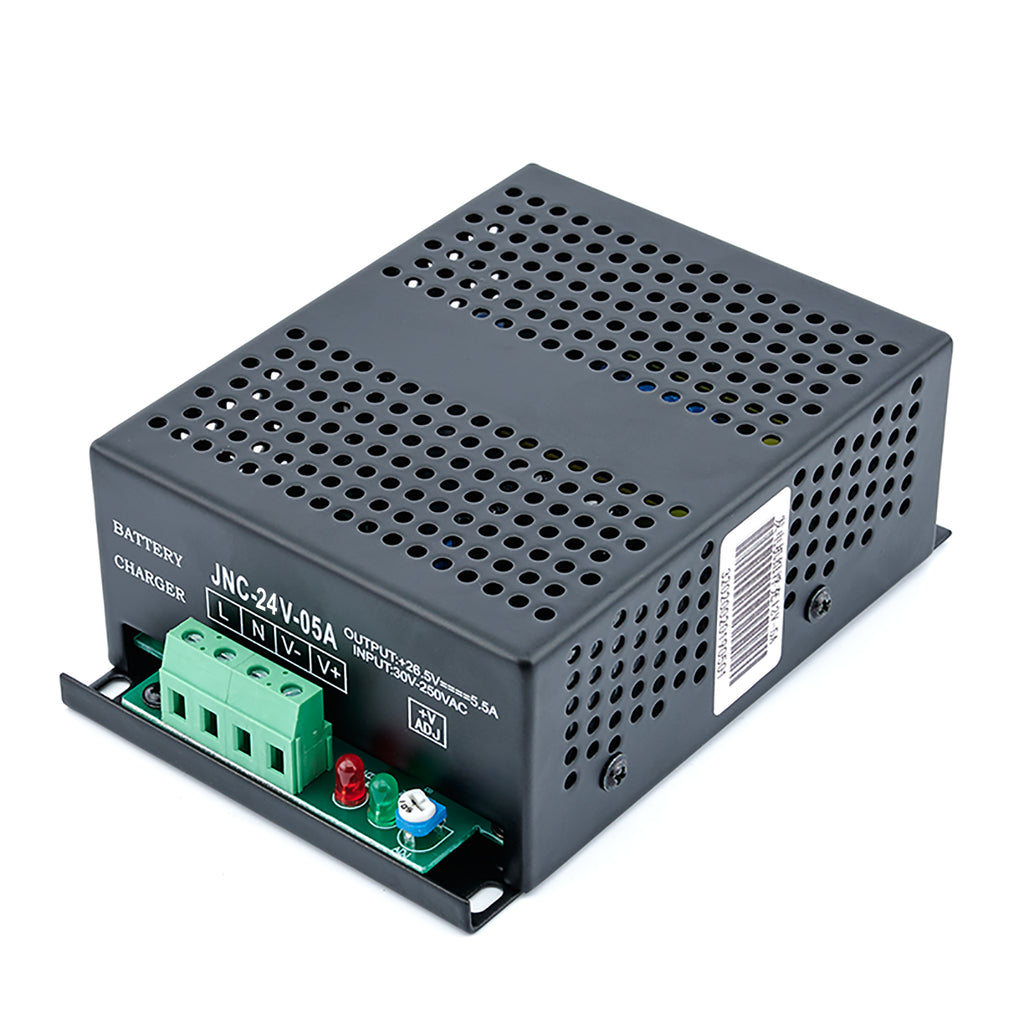

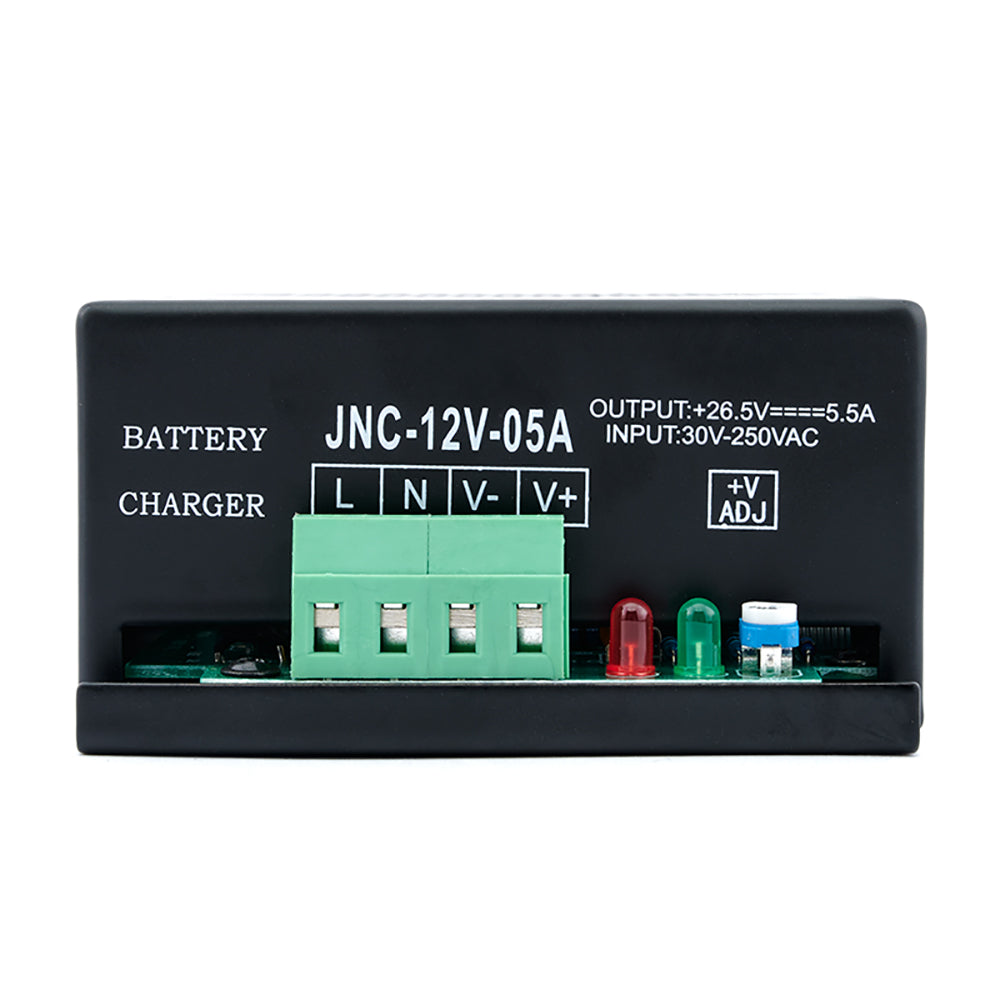

Model: JNC-5A-12V / JNC-5A-24V (Optional)
Battery Voltage: 12V / 24V (Optional)
Max. Charge Current: 5A
Charge Voltage Range: 13V~14.5V (12V battery); 26V~29V (24V battery)
Charge Current Range: 3A~7A
AC Voltage: 95VAC~280VAC
AC Frequency: 50Hz/60Hz
Power Consumption: 120W
No-load Power Consumption: less than 3W
Efficiency: more than 80% (12V battery); more than 85% (24V battery)
Working Temperature: -40℃~+60℃
Storage Temperature: -40℃~+85℃
Package Size: Approx. 143*92*52mm / 5.63*3.62*2.05in
Package Weight: Approx. 650g / 22.93oz
Packing List:
1 * Charger Module
