Note: when goods arrived by express, like DHL, FEDEX, UPS, TNT, etc, there might be some import tax from customs, the customers have to pay, and we are not responsible for it in your country.

  Kind Note:

  for the motor, it is 12V, anyhow, it holds transformer inside, change 220V or 110V into 12V for motor, that's to say, it works with 220V or 110V.When you order, it's advised you to leave a message on voultage needed, 110V or 220V. thanks

  When need user manual, welcome to ask us to send. it can be done anytime!

  What's included in package:

  Basic kitincludes: 2 dual arms swing gate opener+  2 transmitters

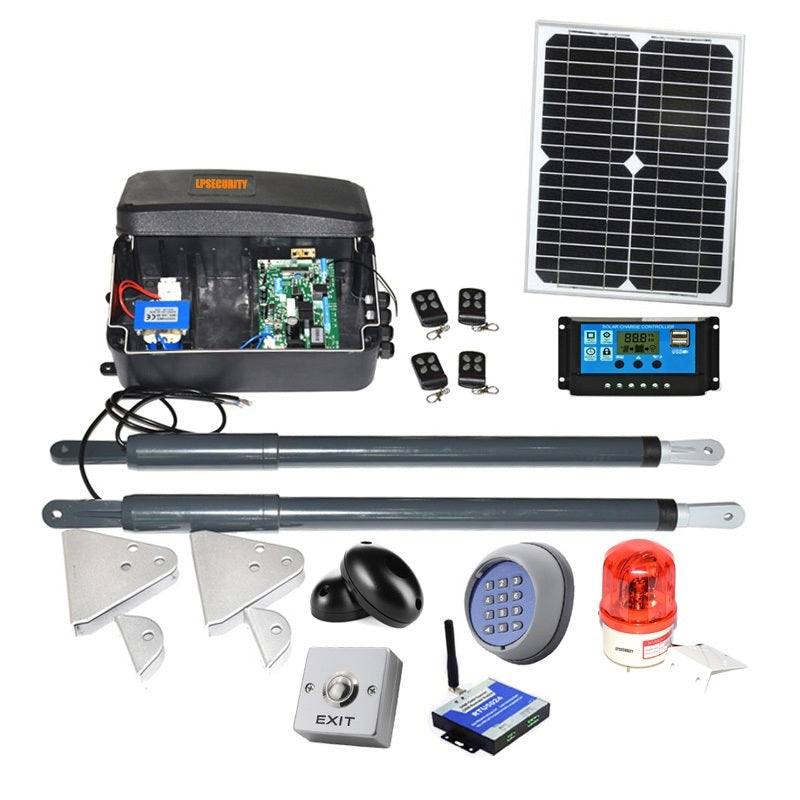

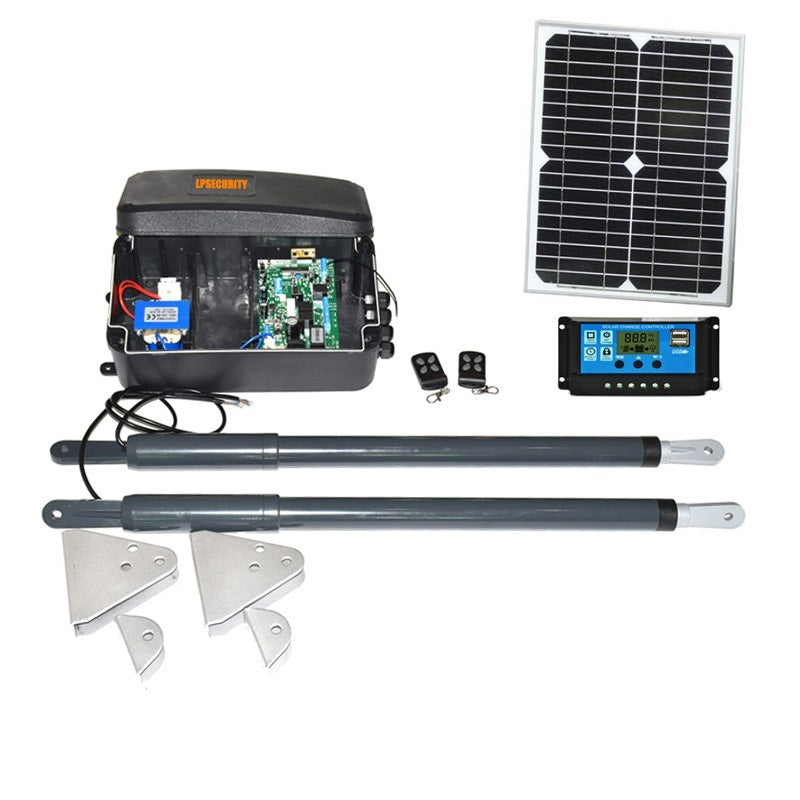

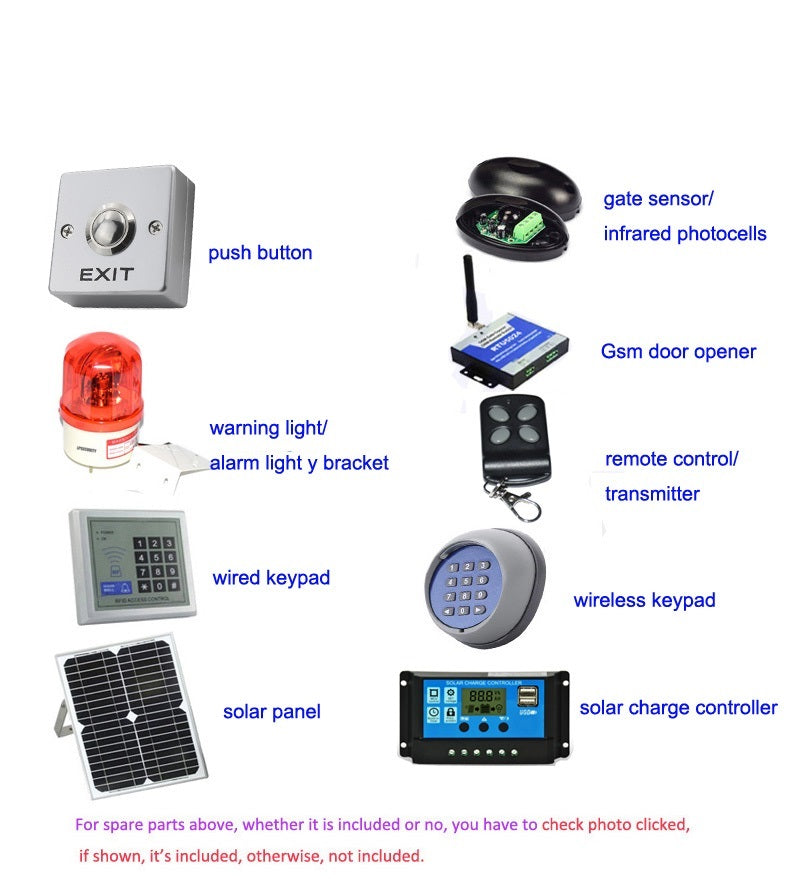

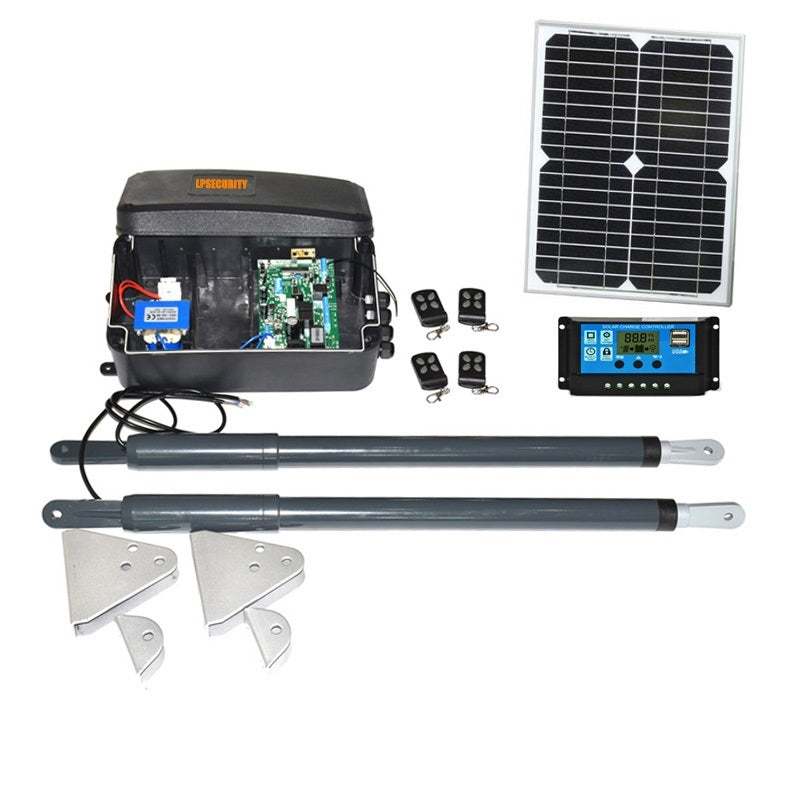

  Set9 includes: 2 dual arms swing gate opener +solar panel+solar controller + 4 transmitters+infrared sensor+alarm light+push button+wireless keypad+ 2G gsm door opener

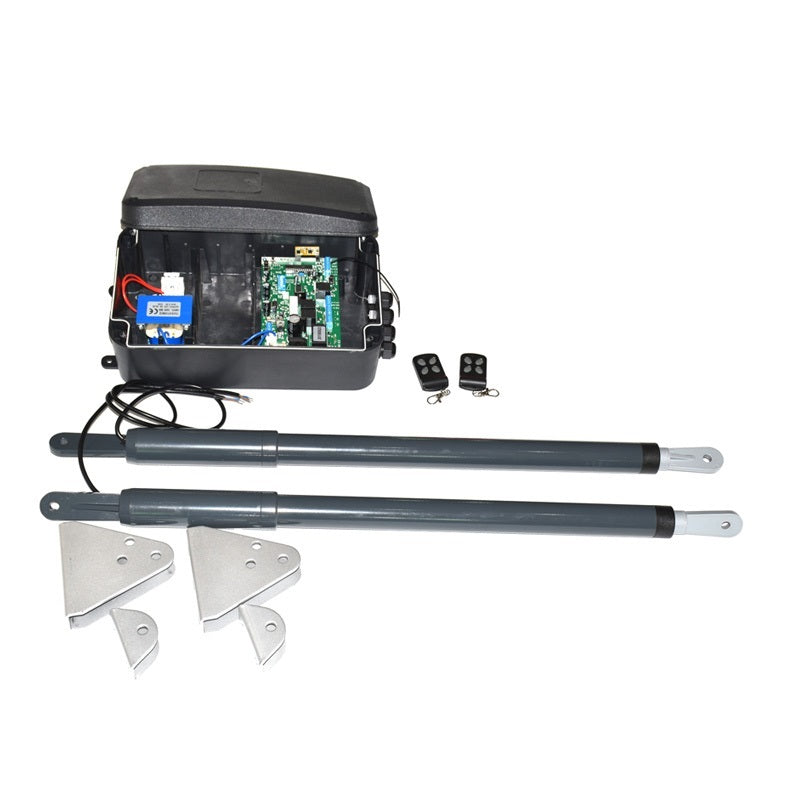

  What's included basically for a swing gate opener with dual arms as following:

  2 x 12 VDC electric telescopic actuators equipped with a worm drive system, with mounting brackets

  1 electronic control box with simple programming of the opening and closing cycle

  Mounting and fastening brackets

  2 x 4-button 433.92 MHz remote control units

  Feature 1 (Why choose us?)

  - Compatible with all types of gate (PVC, Aluminium, Openwork wood or steel)

  - Max. dimensions and weight of the gate: 3m/200kg per panel

  - Inwards opening, maximum angle: 120°

  - Outward opening optional (mounting kit available)

  - Safety: stop on encountering obstacle + reversal of direction

  - Manually override the motors in the event of a power cut

  - Automatic (after time delay) or semi-automatic gate closing

  - Side gate mode (suitable for a single-panel gate)

  Advantage

  - French electronic design

  - 100m open range for remote control units

  - Automatic stop on encountering an obstacle and reversal of direction to clear it.

  - Auto diagnostic

  - Remote control copy function

  - Compatible with all types of audio/ video intercom

  - Pedestrian access: opens one panel only

  - Passive security = protection against attempted break-ins

  - This motorised gate is compatible with the solar power kit ref. 104373 (optional, not included in this kit). This solar power kit allows you to operate your drive using solar energy without having to use a mains connection.

  Solar panel and Solar controller datas

  Control panel connection

  Note: for the control panel in hand on the above, there is a little differencefrom the original from the buttom board, there is a port to connect to battery only, but not solar panel. anyhow, when received, what customer can do,

  Control panelof swing gate opener---------connecting to --------battery-------connecting to--------solar charge controller---------connecting to -------solar panel.

  and this is what customers usually do, when no solar panel port, it won't affect solar powered usage, don't worry.

   Note:for oversea shipping concern, batteries might be taken off, but when goods arrived, customers can buy it from the local according to the following information: 12V 23A
