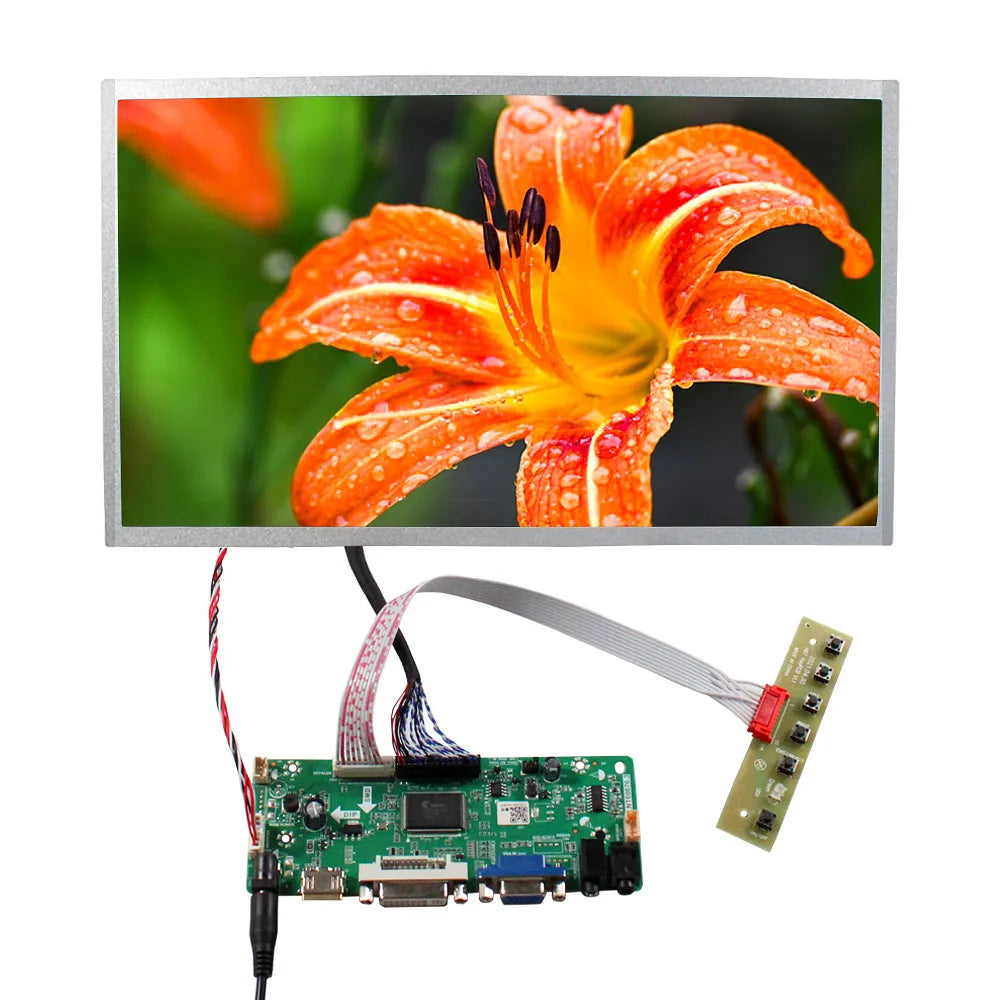

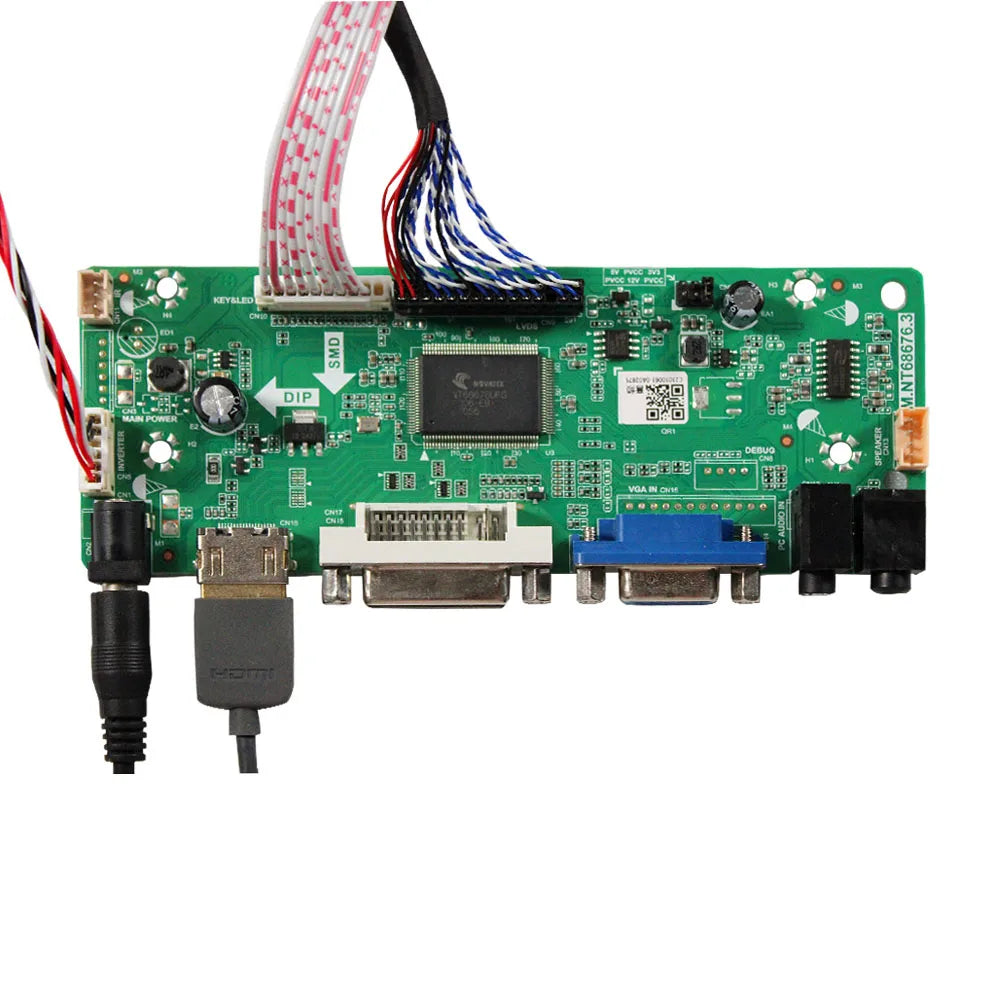

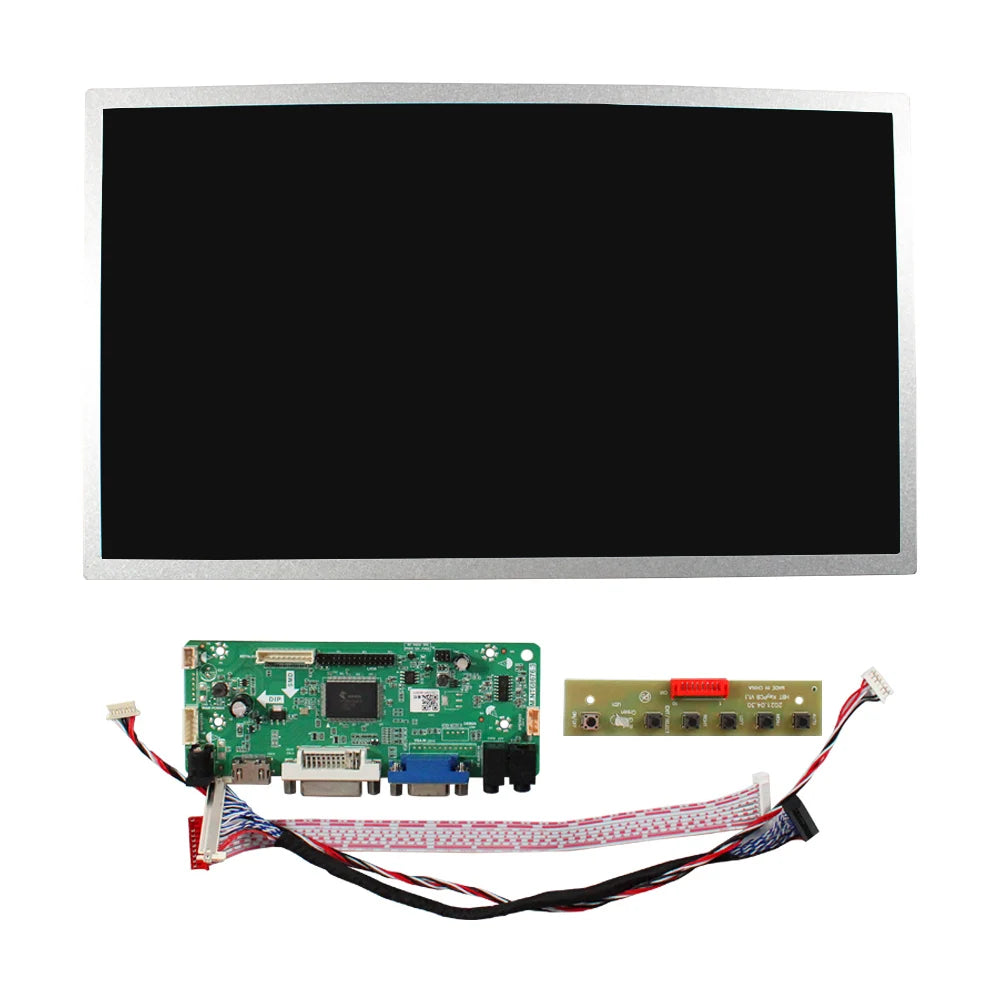

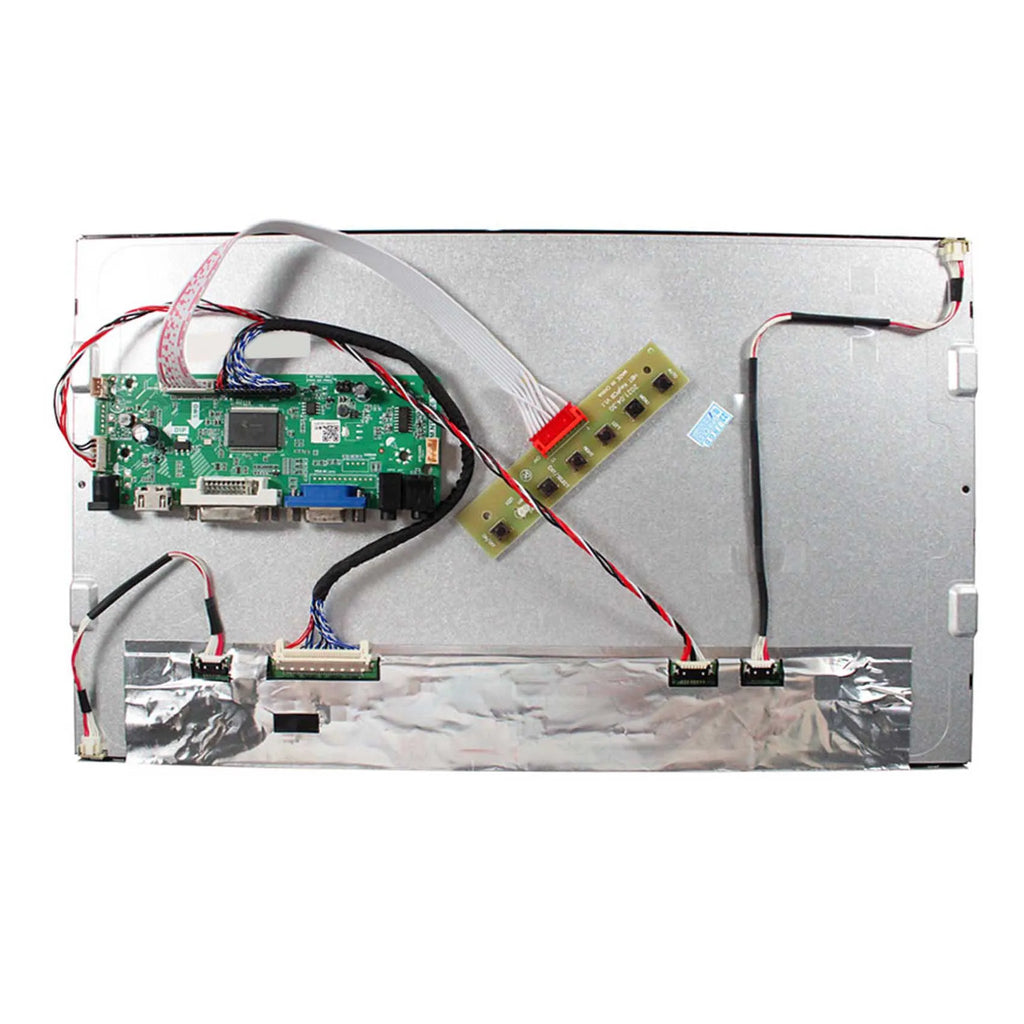

LCD Controller Board:
H-D DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: H-D DVI VGA
Audio Input: H-D
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
15.6"M156GWFA R0 1920X1080 LCD Screen:
Display Mode IPS, Normally Black, Transmissive
Resolution 1920(RGB)×1080, FHD, 100PPI
Outline Size 363.8(W)×215.9(H) ×17.35(D) mm
Display Area 344.16(W)×193.59(H) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) ,30 pins Connector
Input Voltage 5V (Typ.)
