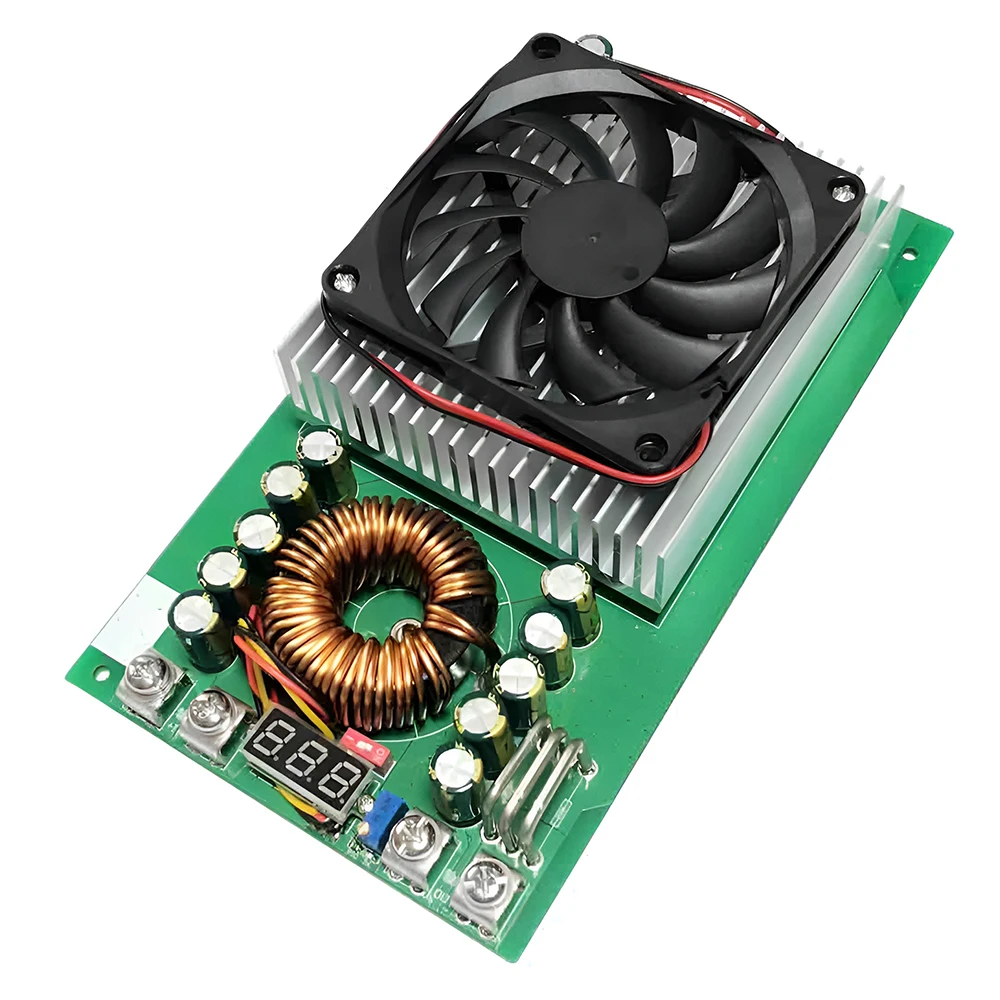

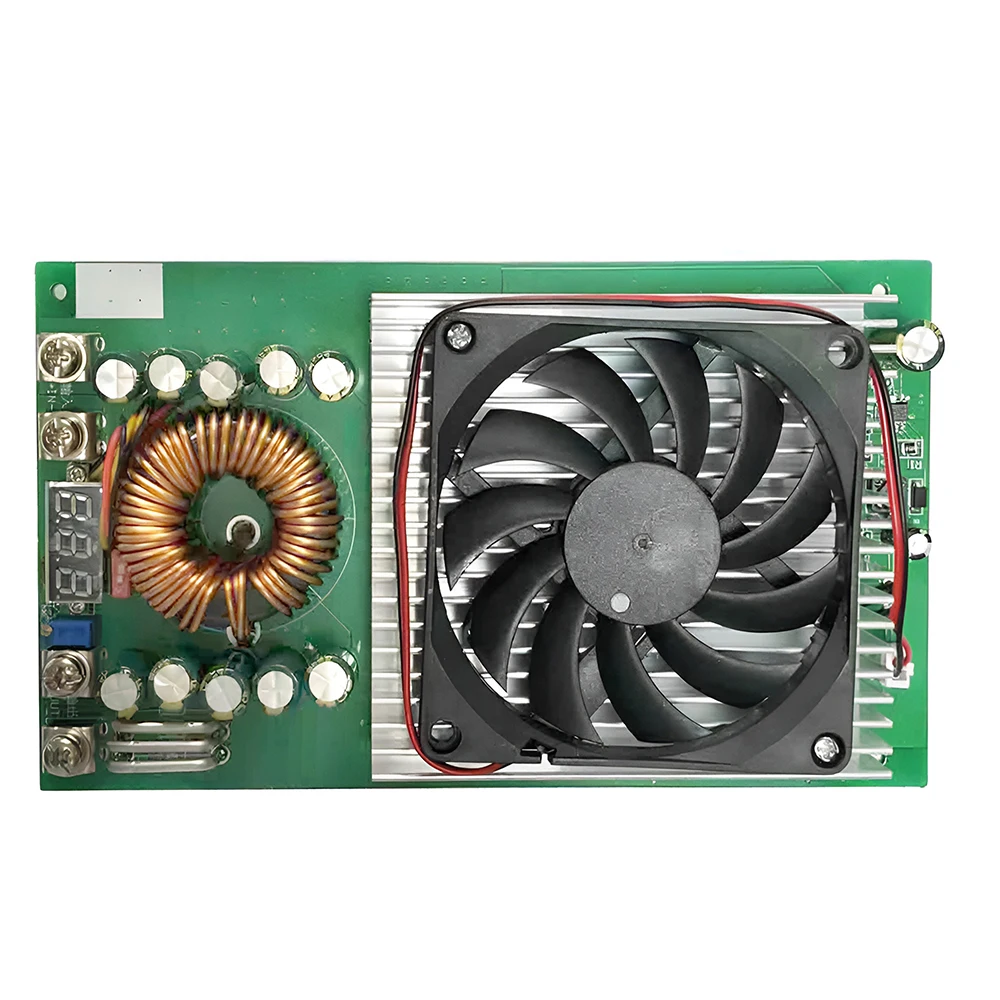

1500W 50A DC-DC Adjustable Step Down Buck Converter Power Supply 25-90V to 12V 48V 60V High Power Voltage Regulator Inverter
Features:
1. Add digital display function, more convenient to
2. High quality material, input power up to 1500W.use.
3. Simple operation, connected to the wire can be used.
4. High performance, suitable for applications where the output voltage is less than the input voltage.

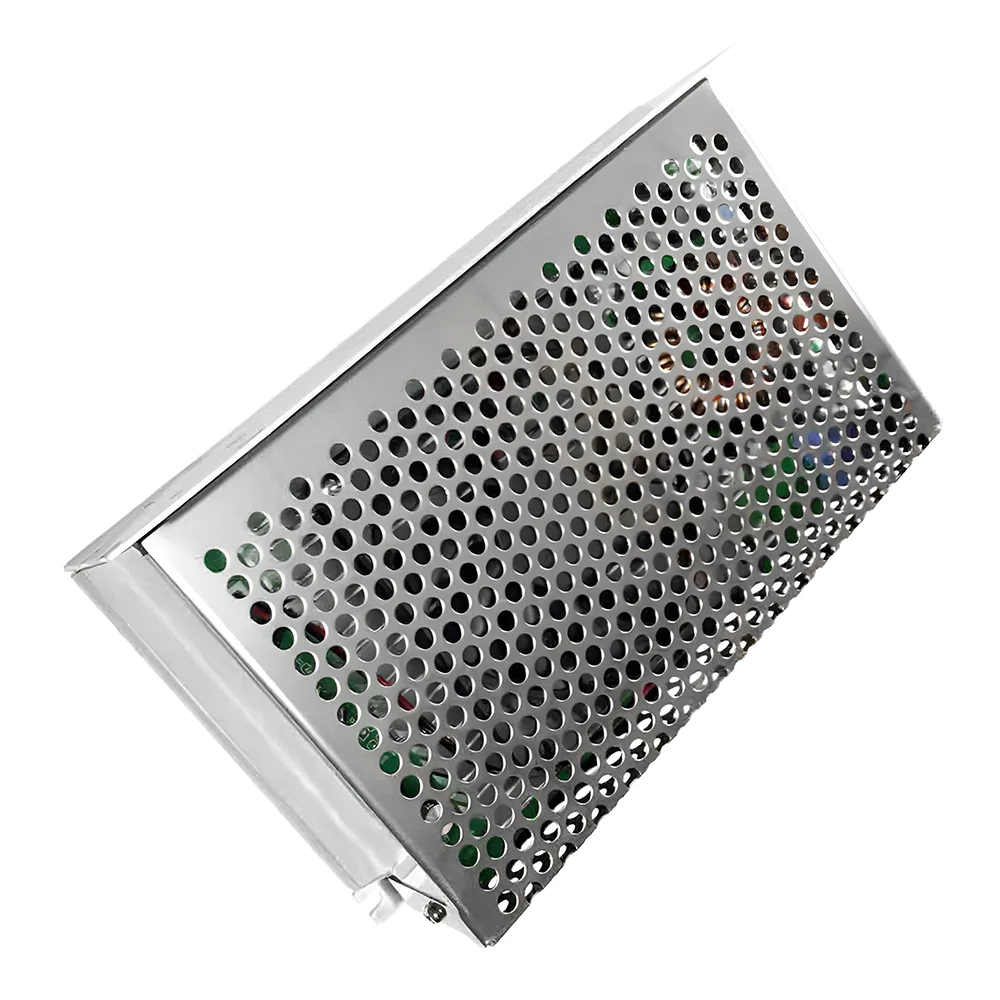

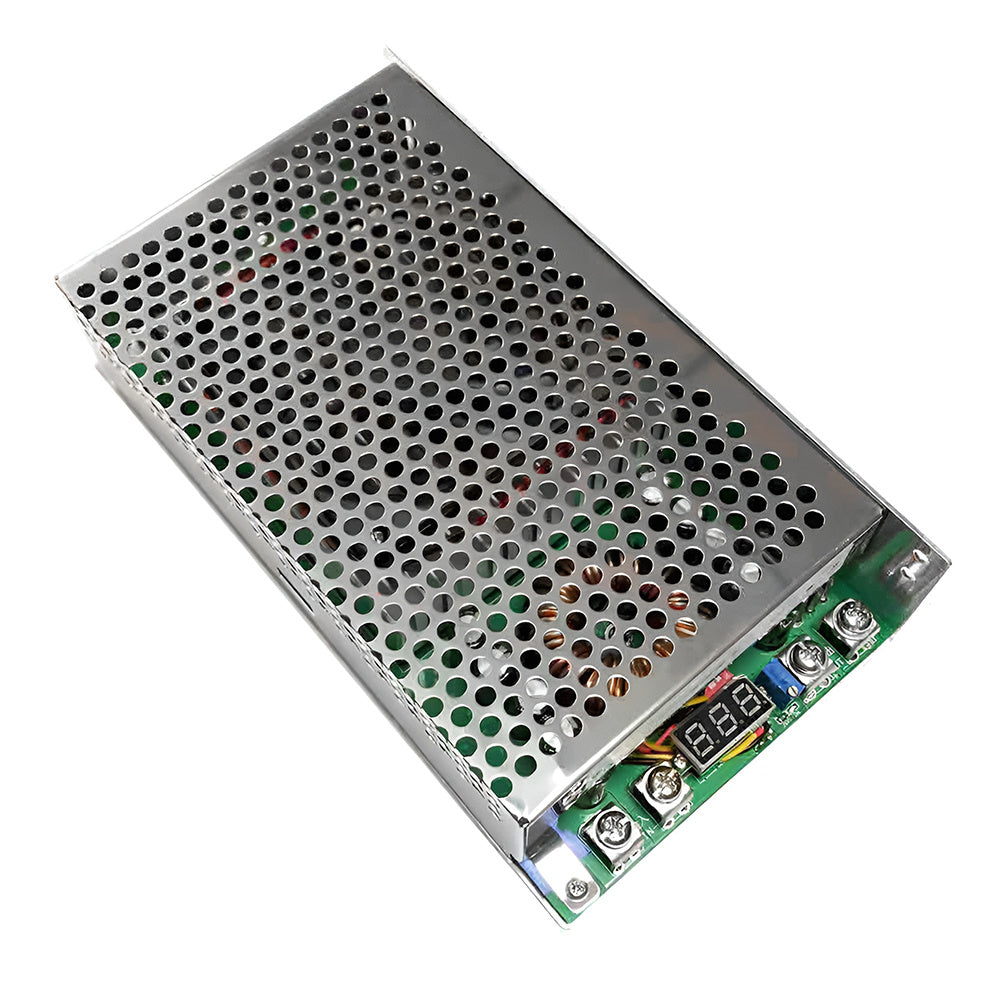

5. With shell, with voltage display, with temperature control fan, more convenient use, long service life.
Specifications:
Type: Non-isolated adjustable buck regulator module
Input voltage: DC25-90V
Output voltage: DC2.5-60V (suitable for applications where the output voltage is less than the input voltage, can not be boosted)
Minimum voltage difference: 5V, the minimum voltage difference increases when the input voltage is higher
Output current: 50A Max
Output power: 1500W Max
Digital display: 3 bits
Digital display color: red
Fan temperature control: Starting at about 50℃

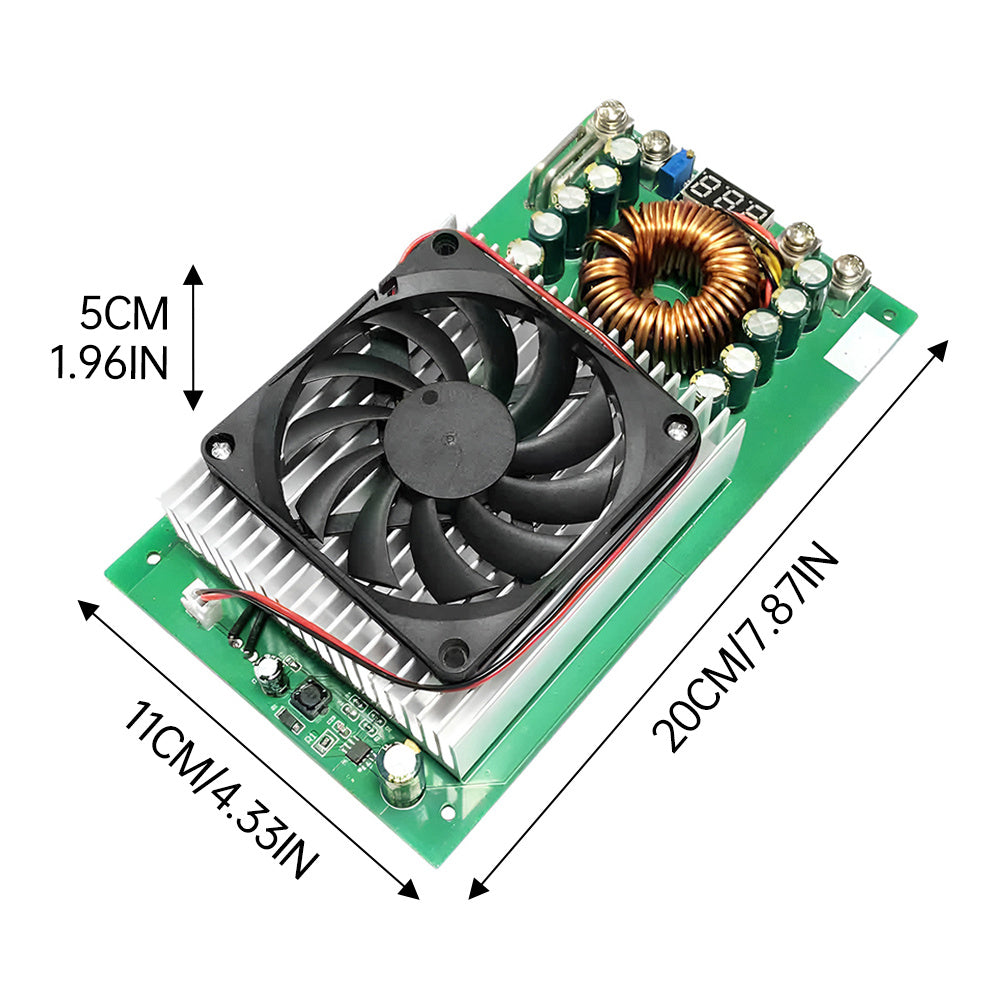

Shell size :200*110*50mm
Instructions for use:

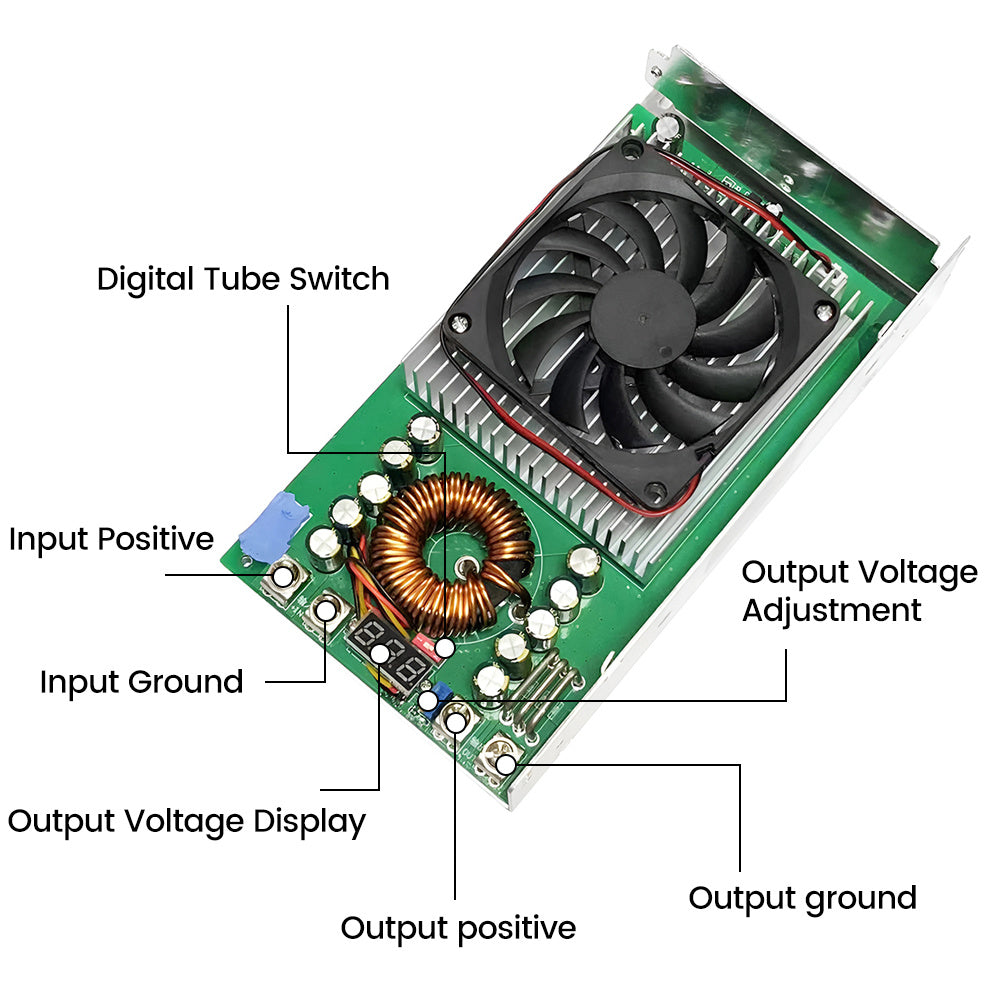

The module does not come with current limiting reverse charging, if you need to add the reverse charging diode, the module input and output have no reverse protection function, please confirm the positive and negative before wiring power!
Tip:
1. Module is an accessory, not a finished product, use please need to have a certain professional knowledge, so as to avoid unnecessary losses.
2. Properly match the thick wire and tighten the connector when using high current.
Shipping list:
1X module
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
