Product parameters

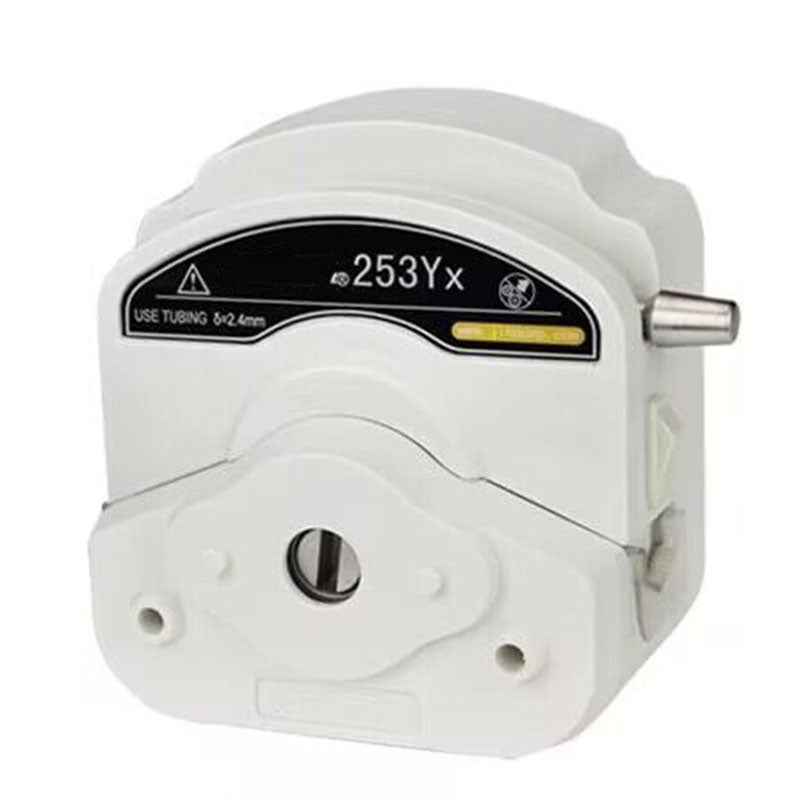

Product model: 153Yx/253Yx series pump heads
Speed range: 0.1~600rpm
The standard configuration of the number of rollers: 3 wheels
Working environment temperature: 0~60°C, relative humidity < 85%RH
Pump head quality: 0.5KG
Outlet pressure: s0.17MPa
Motor torque static: torque 100N.cm (s 100rpm) / static torque 1400N.cm (s600rpm)|
main material
Shell: ''PESU polyethersulfone (white) Roller: 304 stainless steel

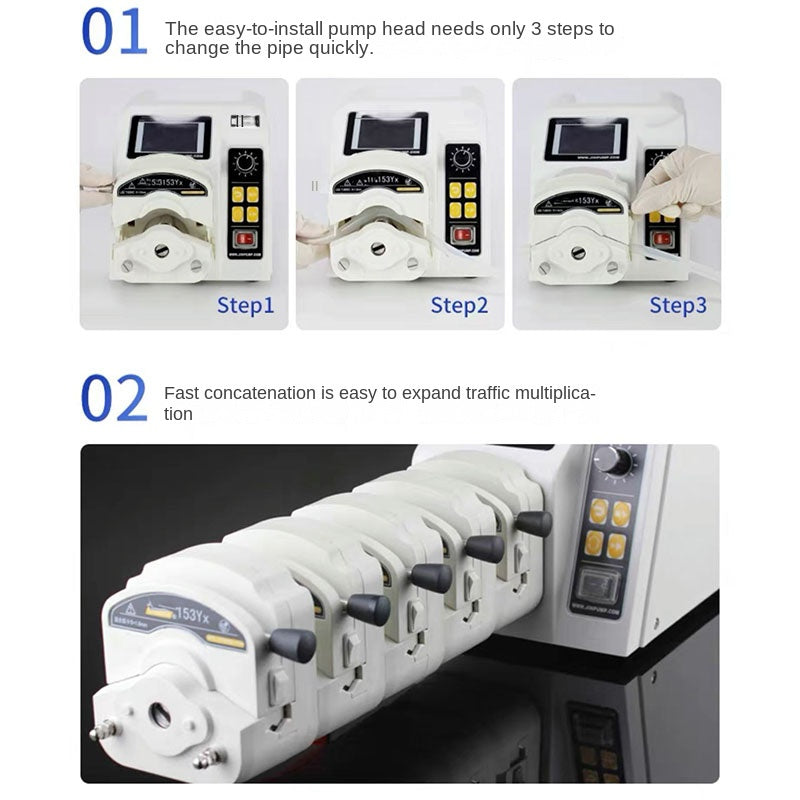

Others: Multiple pump heads can be connected in series
Reference flow for a single pump head
Product model 153Yx pump head
Motor speed 600rpm
Hose model 14# flow rate 145ml/min
Hose model 16# flow rate 515ml/min
Hose model 25# flow rate 1080ml/min
Hose model 17# flow rate 1770ml/min
Hose model 18# flow rate 2135ml/min
Product model 253Yx pump head
Motor speed 600rpm
Hose model 15# flow rate 1085ml/min
Hose model 24# flow rate 1695ml/min
Hose model 35# flow rate 2640ml/min
Hose model 36# flow rate 3365ml/min
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
