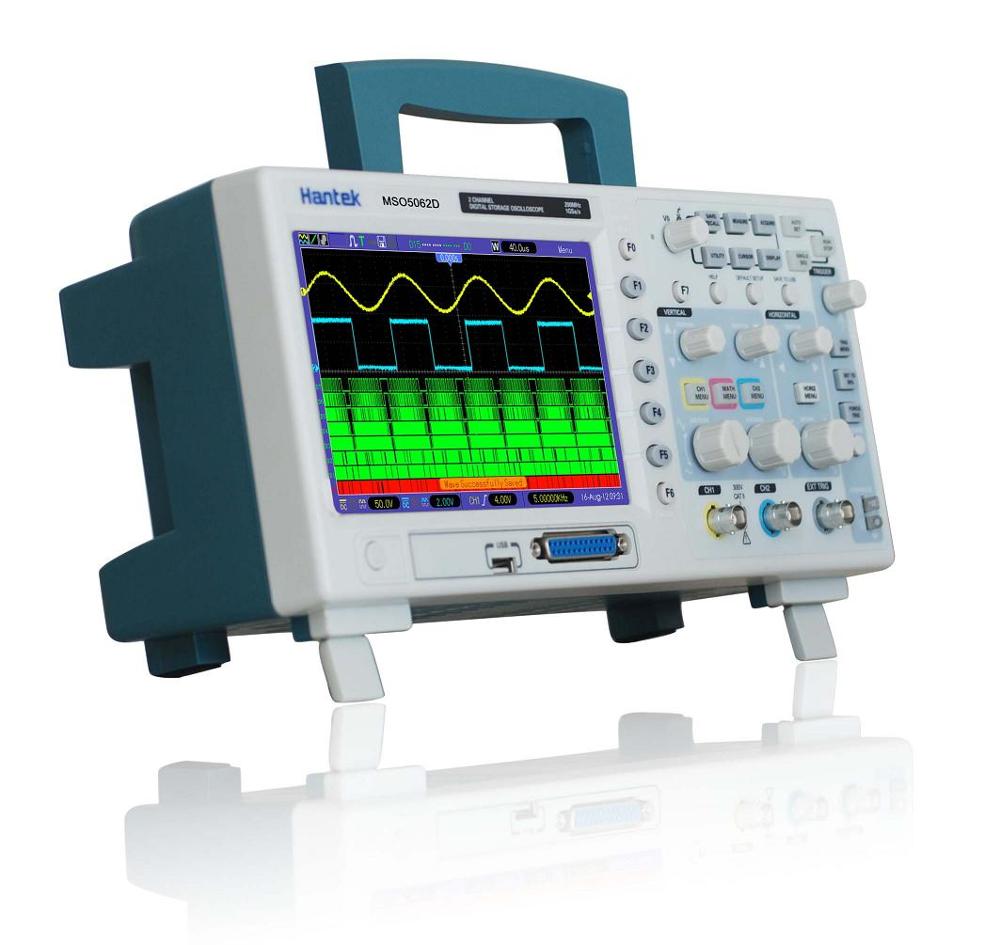

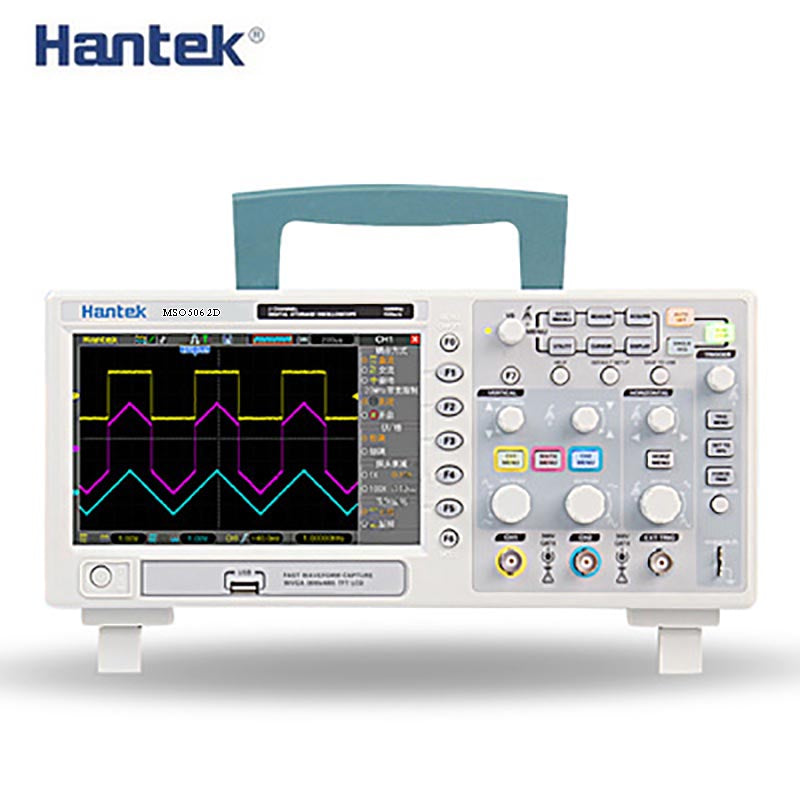

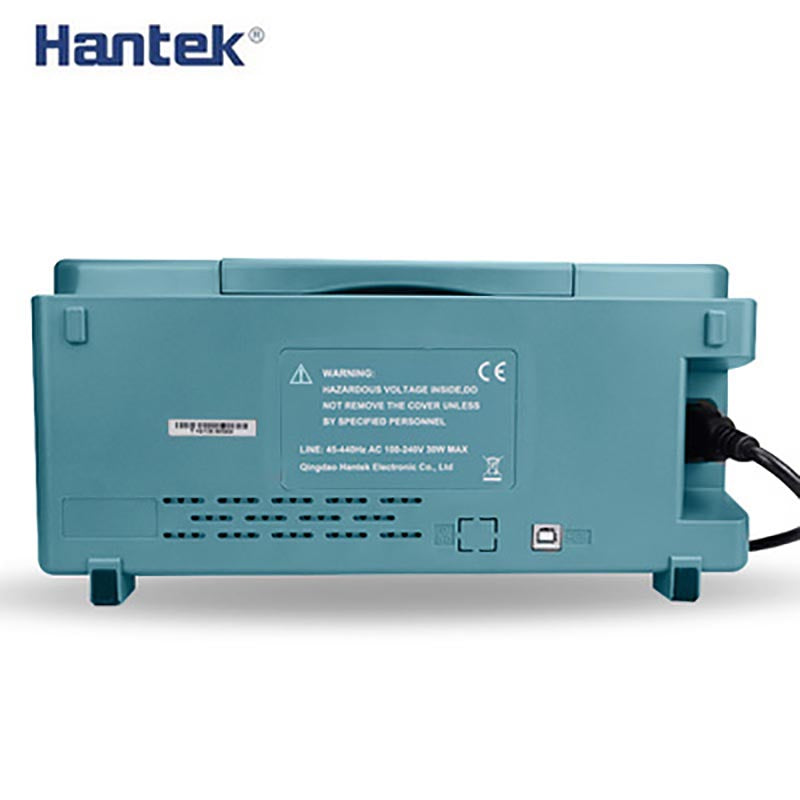

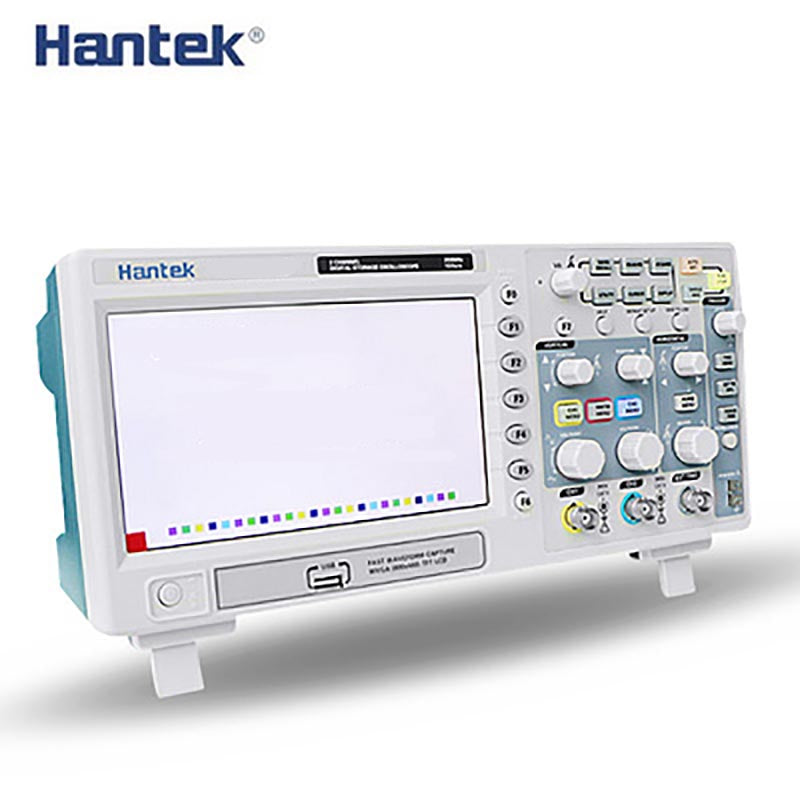

16 Logical Channels+)+2 Analog Channels + External Trigger Channel Hantek 60MHz

MSO5062D Mixed Signal Digital Oscilloscope

Specifications:

      Model

   MSO5202D

   MSO5102D

   MSO5062D

       Acquisition

       Sample Rate

   Real-Time Sample: 1GS/s

       Acquisition Modes

       Normal

   Normal data only

       Peak Detect

   High-frequency and randon glith capture

       Average

   Waveform Average, selectable 4,8,16,32,64,128

       Inputs

       Inputs Coupling

   AC, DC, GND

       Inputs Impendance

   1MΩ±2% ‖20pF±3pF

       Probe Attenuation

   1X, 10X

       Supported Probe Attenuation Factor

   1X, 10X, 100X, 1000X

       Maximum Input Voltage

   CAT I and CAT II: 300VRMS (10×), Installation Category;

CAT III: 150VRMS (1×);

Installation Category II: derate at 20dB/decade above 100kHz to 13V peak AC at 3MHz* and above. For non-sinusoidal waveforms, peak value must be less than 450V. Excursion above 300V should be of less than 100ms duration. RMS signal level including all DC components removed through AC coupling must be limited to 300V. If these values are exceeded, damage to the oscilloscope may occur.

       Horizontal

       Sample Rate Range

   500MS/s--1GS/s

       Waveform Interpolation

   (sin x)/x

       Record Length

   1M

       SEC/DIV Range

   2ns/div to 40s/div,

   8ns/div to 40s/div

       Sample Rate and

Delay Time Accuracy

   ±50ppm（at over any ≥1ms time interval)

       Position Range

   2ns/div to 8ns/div;

(-8div x s/div) to 20ms;

   20ns/div to 80us/div; (-8div x s/div) to 40ms;

200us/div to 40s/div; (-8div x s/div) to 400s;

       Delta Time Measurement Accuracy

(Full Bandwidth)

   Single-shot, Normal mode:± (1 sample interval +100ppm × reading + 0.6ns);

>16 averages:± (1 sample interval + 100ppm × reading + 0.4ns);

Sample interval = s/div ÷ 200

       Vertical System

       Vertical Resolution

   8-bit resolution, all channel sampled simultaneously

       Position Range

   2mV/div to 10V/div

       Bandwidth

   200MHz

   100MHz

   60MHz

       Rise Time at BNC( typical)

   1.8ns

   3.5ns

   5.8ns

       Offset Range

   2mV/div to 20mV/div, ±400mV

50mV/div to 200mV/div, ±2V

500mV/div to 2V/div, ±40V

         5V/div to 10V/div, ±50V

       Math

   +, -, *, /, FFT

       FFT

   Windows: Hanning、Flatop、Rectamgular、Bartlett、Blackman; 1024 sample point

       Bandwidth Limit

   20MHz

       Low Frequency Response (-3db)

   ≤10Hz at BNC

       DC Gain Accuracy

   ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div;

±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div

       DC Measurement Accuracy,

Average Acquisition Mode

   When vertical displacement is zero, and N ≥16:± (3% × reading + 0.1div + 1mV) only 10mV/div or greater is selected;

When vertical displacement is not zero, and N≥16: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2div]; Add 2mV for settings from 2mV/div to 200mV/div; add 50mV for settings from 200mV/div to 10V/div

       Volts Measurement Repeatability,

Average Acquisition Mode

   Delta volts between any two averages of ≥16 waveforms acquired under same setup and ambient conditions

       Trigger System

       Trigger Types

   Edge, Video, Pulse, Slope, Over time, Alternative

       Trigger Source

   CH1, CH2, EXT, EXT/5, AC Line

       Trigger Modes

   Auto, Normal, Single

       Coupling Type

   DC, AC, Noise Reject, HF Reject, LF Reject

       Trigger Sensitivity

(Edge Trigger Type)

   DC(CH1,CH2):

1div from DC to 10MHz;1.5div from 10MHz to 100MHz; 2div from 100MHz to Full;

DC(EXT): 200mV from DC to 100MHz; 350mV from 100MHz to 200MHz;

DC(EXT/5): 1V from DC to 100MHz;1.75V from 100MHz to 200MHz;

AC: Attenuates signals below 10Hz

HF Reject: Attenuates signals above 80KHz;

LF Reject: Same as the DC-coupled limits for frequencies above 150KHz; attenuates signals below 150KHz

       Trigger Level Range

   CH1/CH2: ±8 divisions from center of screen;

EXT: ±1.2V;

EXT/5:±6V

       Trigger Level Accuracy( typical)Accuracy is for signals having rise and fall times ≥20ns

   CH1/CH2: 0.2div × volts/div within ±4 divisions from center of screen;

EXT: ± (6% of setting + 40mV);

EXT/5: ± (6% of setting + 200mV);

       Set Level to 50%(typical)

   Operates with input signals ≥50Hz

       Video Trigger

       Video Trigger Type

   CH1, CH2: Peak-to-peak amplitude of 2 divisions;

EXT: 400mV;

EXT/5: 2V

       Signal Formats and Field Rates, Video Trigger Type

   Supports NTSC, PAL and SECAM broadcast systems for any field or any line

       Holdoff Range

   100ns ~ 10s

       Pulse Width Trigger

       Pulse Width Trigger Mode

   Trigger when (< , >, = , or ≠); Positive pulse or Negative pulse

       Pulse Width Trigger Point

   Equal: The oscilloscope triggers when the trailing edge of the pulse crosses the trigger level.

Not Equal: If the pulse is narrower than the specified width, the trigger point is the trailing edge. Otherwise, the oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width.

Less than: The trigger point is the trailing edge.

Greater than (also called overtime trigger): The oscilloscope triggers when a pulse continues longer than the time specified as the Pulse Width

       Pulse Width Range

   20ns ~ 10s

       Slope Trigger

       Slope Trigger Mode

   Trigger when (< , > , = , or ≠ ); Positive slope or Negative slope

       Slope Trigger Point

   Equal: The oscilloscope triggers when the waveform slope is equal to the set slope.

Not Equal: The oscilloscope triggers when the waveform slope is not equal to the set slope.

Less than: The oscilloscope triggers when the waveform slope is less than the set slope.

Greater than: The oscilloscope triggers when the waveform slope is greater than the set slope.

       Time Range

   20ns ~ 10s

       Overtime Trigger

       Over Time Mode

   Rising edge or Falling edge

       Time Range

   20ns ~ 10s

       Alternative Trigger

       Trigger on CH1

   Internal Trigger: Edge, Pulse Width, Video, Slope

       Trigger on CH2

   Internal Trigger: Edge, Pulse Width, Video, Slope

       Trigger Frequency Counter

       Readout Resolution

   6 digits

       Accuracy (typical)

   ±30ppm (including all frequency reference errors and ±1 count errors)

       Frequency Range

   AC coupled, from 4Hz minimum to rated bandwidth

       Signal Source

   Pulse Width or Edge Trigger modes: all available trigger sources

The Frequency Counter measures trigger source at all times, including when the oscilloscope acquisition pauses due to changes in the run status, or acquisition of a single shot event has completed.

Pulse Width Trigger mode: The oscilloscope counts pulses of significant magnitude inside the 1s measurement window that qualify as triggerable events, such as narrow pulses in a PWM pulse train if set to < mode and the width is set to a relatively small time.

Edge Trigger mode: The oscilloscope counts all edges of sufficient magnitude and correct polarity.

Video Trigger mode: The Frequency Counter does not work.

       Measurement

       Cursor Measurement

   Voltage difference between cursors: △V

Time difference between cursors: △T

Reciprocal of △T in Hertz (1/ΔT)

       Auto Measuerment

   Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF

       Logic Analyzer Specifications

       Channels

   16 Channels

       Max. Input Impendence

   200K(C=10p)

       Input Voltage Range

   -60V~60V

       Logic Threshold Range

   -8V~8V

       Max. Sample Rate

   500MHz

        Compatible Input

   TTL, CMOS, ECL

       Sample Depth

   512K

       Trigger

       Edge Trigger

   D0-D15 select slope (rising or falling edge)

       Pulse Width

   D0-D15 select pulse polarity (positive or negative pulse), trigger when (=, ≠, >, <), trigger pulse width

       Code-type

   D0-D15 select code-type (H, L, X)

       Duration

   D0-D15 select persist time and trigger when (data terminate, data start, and data delay)

       Queue

   D0-D15 select specific data index (0-3) and code-type (H, L, X)

       Repeat

   D0-D15 select code-type (H, L, X) and repeat times

       General Features

       Display

       Display Type

   7 inch 64K color TFT (diagonal liquid crystal)

       Display Resolution

   800 horizontal by 480 vertical pixels

       Display Contrast

   Adjustable (16 gears) with the progress bar

       Probe Compensator Output

       Output Voltage( typical)

   About 5Vpp into ≥1MΩ load

       Frequency(typical)

   1kHz

       Power Supply

       Supply Voltage

   100-120VACRMS(±10%), 45Hz to 440Hz, CATⅡ

120-240VACRMS(±10%), 45Hz to 66Hz, CATⅡ

       Power Consumption

   <30W

       Fuse

   2A, T rating, 250V

       Environmental

       Temperature

   Operating: 32℉ to 122℉ (0℃ to 50℃);

Nonoperating: -40℉ to 159.8℉ (-40℃ to +71℃)

       Cooling Method

   Convection

       Humidity

   +104℉ or below (+40℃ or below): ≤90% relative humidity;

106℉ to 122℉ (+41℃ to 50℃): ≤60% relative humidity

       Altitude

   Operating: Below 3,000m (10,000 feet);

Nonoperaring: Below 15,000m(50,000 feet)

       Size & Weight

       Size

   385mm x 200mm x 245mm

       Weight

   2.08KG(without Packing）
