Name : 16A GSM power socket

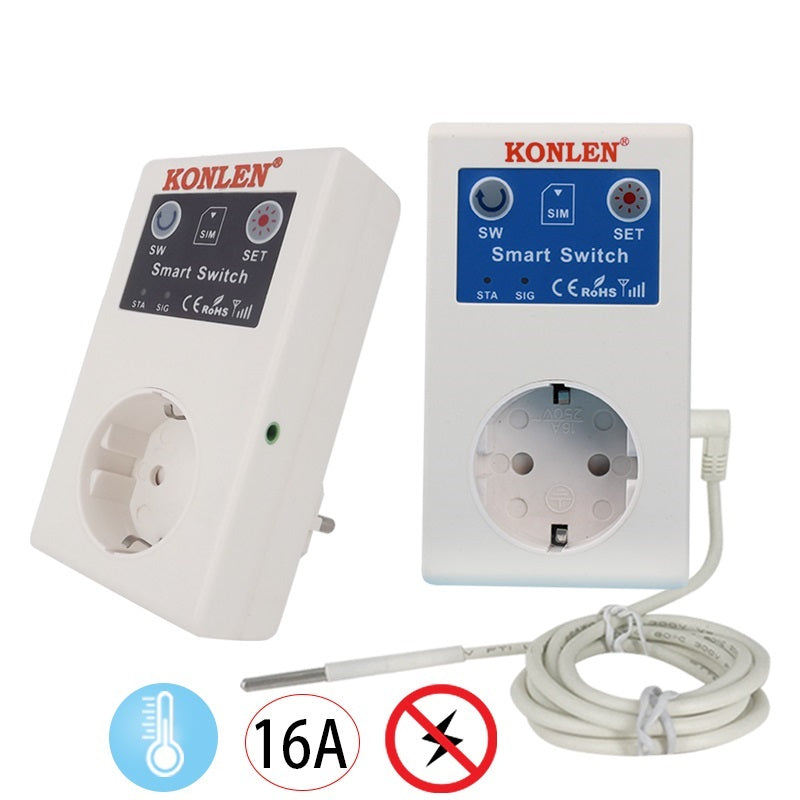

   There are 4 options :

  1. Type A Socket

  2. Type A Socket + Temperature Sensor

  3. Type B Socket

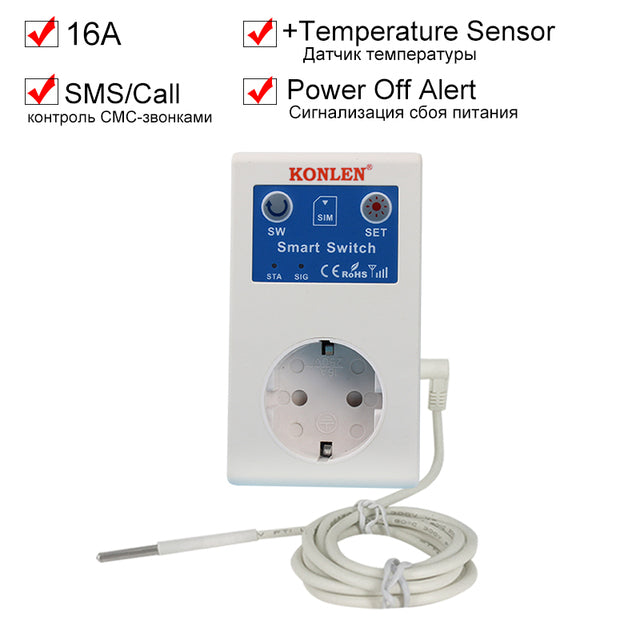

  4. Type B Socket + Temperature Sensor

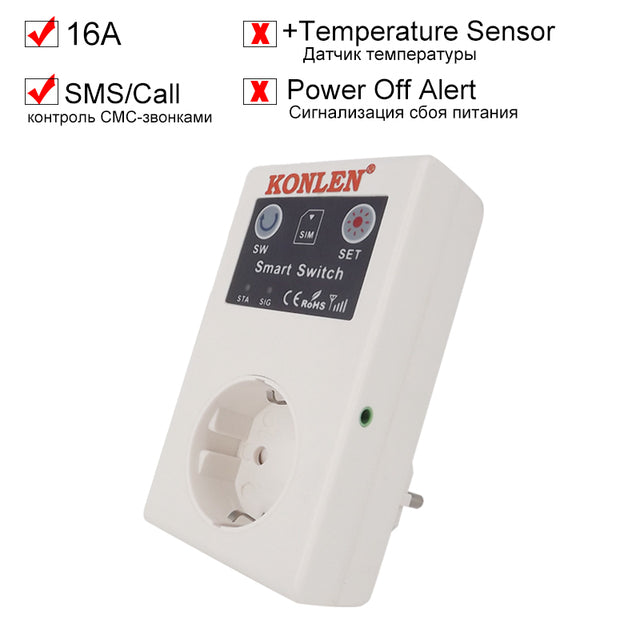

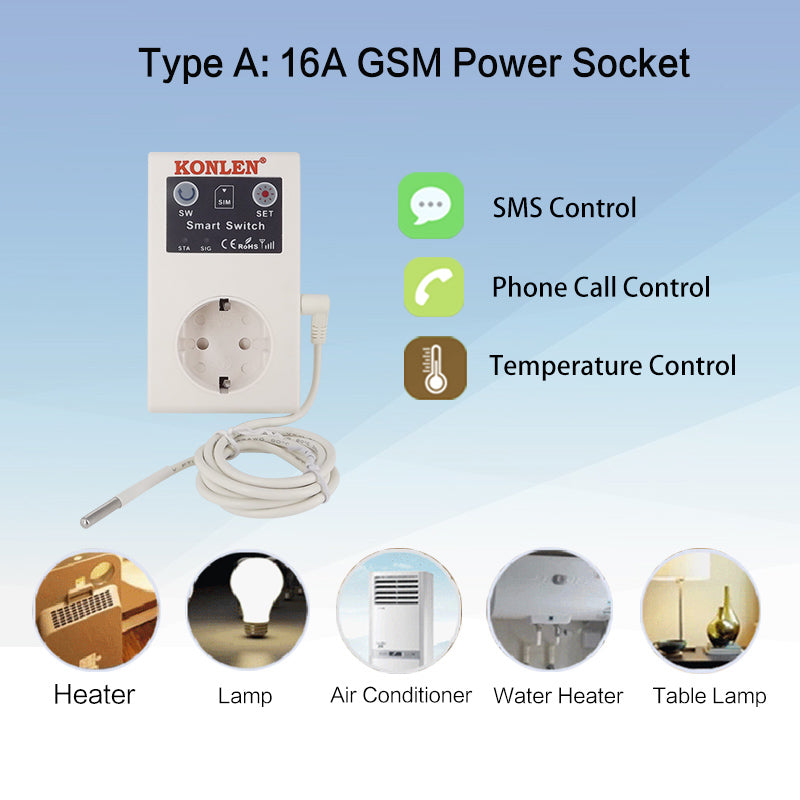

   Type A: No power off Alarm, other functions are same.

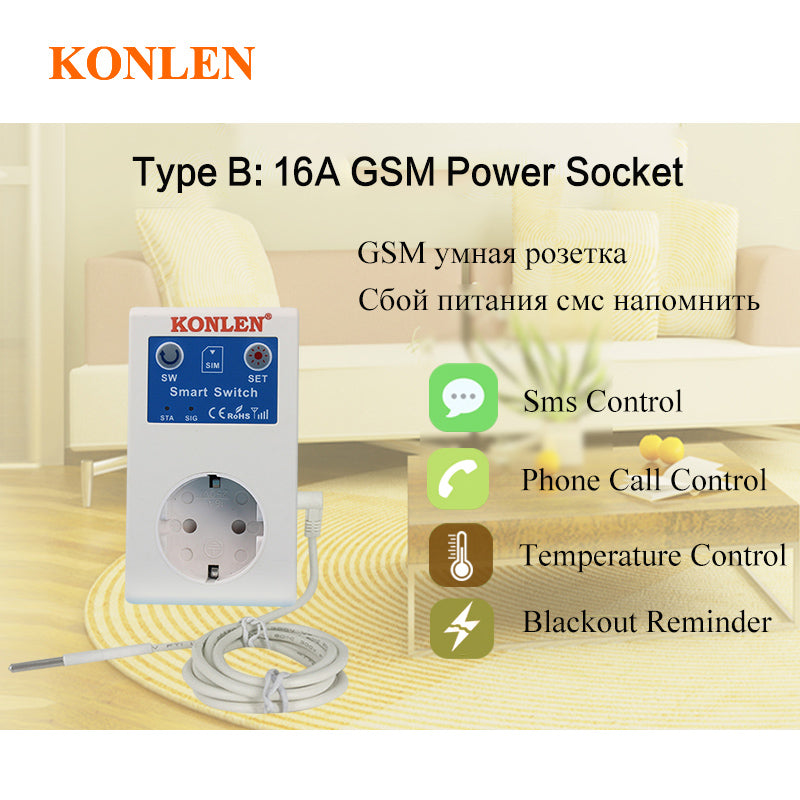

  Type B: With Power Off Alarm, other functions are same.

  Features:

  1) 16A Max, Support High-power Household Electric Appliances

  2) SMS/APP/Free Call Control Relay On or Off  via 2G GSM Network

  3) SMS/APP/Free Call Control Electric Door Gate from on to off (0.5 to 9 seconds), then back to on, or off to on (0.5 to 9 seconds), then back to off  via T and XL Command.

  4) Timed control other electric devices from on to off (001 to 240 minutes), then back to on or off to on (from 001 to 240minutes), then back to off via SMS L Comand40

  5) Temperature sensor linkage control socket relay on or off

  5) Temperature sensor linkage control socket relay on or off (Temperature sensor is optional.)

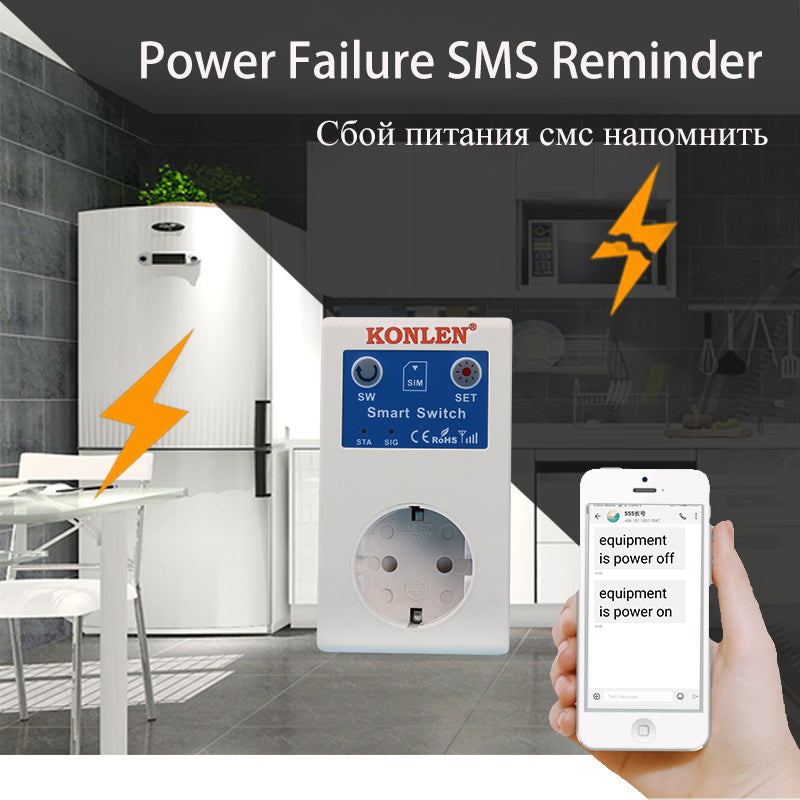

  6) Power outage and power recovery SMS notification: Will send SMS alert to user phone when power fails or recovers. (Only type B with the function, type A doesn't support)

        Control GSM Power socket remotely by SMS/Free Call/Mobile App via GSM Network.

         GSM frequency: GSM850/900/1800/1900mhz quad band.

      16A Max, Support to control High-power Household Electric Appliances (light, air-conditioner, warmer, heater, TV, Stereos etc), and automatic door gate openers, AC Motor, Remote Base Station, PBX Switchboard, Water Pump, Server etc.

  SMS/Free call/App/Temperature sensor 4 ways control socket relay on or off via on/off command

  Short Inching (from 0 to 9 seconds): Control Door Gate Opener via T Command

  T Command:SMS Text: SN + 4 digits of password(0000) +T + inching time (0 to 9)

  0    means 0.5 second, 1-9 means 1 to 9seconds

  For example: a. Send SMS:  SN0000T0

  on-----off 0.5 seconds-----on;

  off-----on 0.5 seconds------off

  If the original STATE LED on, it will be off for 0.5 seconds after command, then back to be on automatically.

  If the original STATE LED off, it will be on for 0.5 seconds, then back to be off automatically

  b. Send SMS: SN0000T3 (on-----off 3 seconds-----on; off-----on 3 seconds------off)

           User can also activate phone call inching relay via XL command ( SN + 4 digits of password(0000) + XT + one digit of time (0 to 9seconds, 0 stand for 0.5seconds). After activate it, users can control eletric door/gate/garage by a free call anywhere anytime

  Long-time Inching switch: Timing control from 001 to 240 Minutes via L Commands

  L Command:SMS Text: SN + 4 digits of password(0000) + L + 3 digits of time (from 001 to 240 minutes)

  For example. a. Send SMS:  SN0000L060

  on-----off 60 minutes-----on;

  off-----on 60 minutes-----off

  If the original STATE LED on, it will be off for 60 minutes after the command, then back to be on automatically.

  If the original STATE LED off, it will be on for 60 minutes after the command, then back to be off automatically.

  b.    Send SMS: SN0000L030 (on-----off 30 minutes-----on;  off-----on 30 minutes-----off)

  With the function, users can timed-control pond aerator, water pump, routers, server, rice cooker and other electrical equipments by a SMS

  You can set the Temperature control according to your requires ,eg. : In wine cellar ,you can set the temperature control commands :  rise the temperature when the temperature is lower than 10 degree centigrade , reduce the temperature when the temperature is more than 25 degree centigrade .

  Inquiry temperature and adjust to Temperature Intelligently . ( Temperature control Range : -40 to +110 Centi Degree )

  Other features:1. With password protection

  2. Can set 5 groups of control master numbers

  3. SMS control(ON command, Off Command, T Command)

  1)ON Command: turn the relay state to ON

  SMS Text: SN+Password+ON

  2)Off Command (Turn the relay state to off

  SMS Text: SN+Password+OFF

  4. Free Call to control

  User can control the GSM controller by dial the SIM card number of GSM controller. The user may hear" You can't answer the phone call, beep, beep.......tone etc", which mean changing the relay state successfully.

  If the controller connected, it will change to be disconnected state after a call.

  If the original state is off, it will change to be connected state after a call.

  5. Button Control

  The controller state will be changed when you press the SW button at side of controller.

  If the controller connected, it will change to be disconnected state.

  If the original state is off, it will change to be connected state.

  6. User can send sms to check the on/off state

  SMS text: SN+Password+CHECK

  7. With Power off memory Function

  Tips: If you want to plug in 16A equipment to the 16A GSM power socket, please make sure your wall socket and wall power cable can also load 16A, or it will cause danger. It is very important.

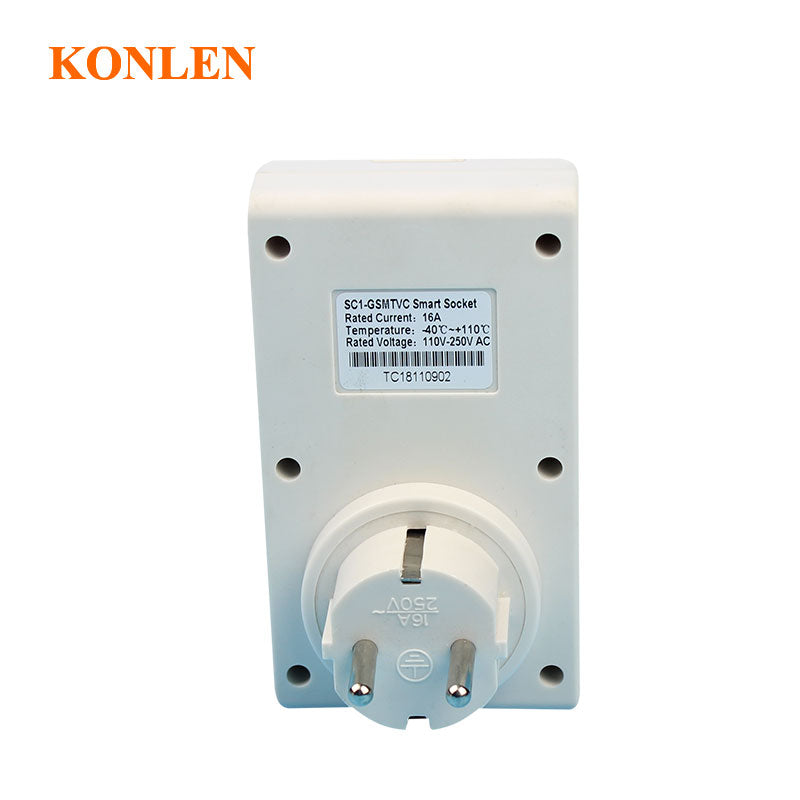

  Specification:

  Communication: Based on 2G GSM Network

  GSM Frequency: GSM850/900/1800/1900MHZ

  Rated Current: 16A Max

  Rated Power: 3000W

  Rated Voltage: 110V to 250V AC

  Dimension: 113mm x 65mm x 77mm ( 4.44 in x 2.55 in x 3.03 in)

  Working Humidity: Less than 65%

  Working Temperature: -40 to +110 Centi Degree

  Power Socket and Plug: EU German Standard
