ADOPTS WITH LITHIUM CELL MANAGEMENT OFFERS FAST AND SAFE CHARGING--Adopt intelligent lithium cell management IC for fast and safe charging

BALANCING CHARGING EXTENDS BATTERY LIFE--With balance charging to balance the characteristic of each battery in battery pack and prolong battery life

MULTI-OVER PROTECTION ENSURES SAFETY USE--Provide a variety of protection functions including overcharge, over-discharge, short circuit, and temperature protection

EQUIPPED WITH ALUMINUM FIN ENSURES QUICK HEAT DISSIPATION--Equipped with thickened aluminum fin to achieve quick heat dissipation

MANY TIMES TESTING ENSURES HIGH QUALITY--This product has gone through load and aging test for quality assurance

Charging current: 150A / 200A

Charging voltage: 29.6v

Overload protection

Overload detection voltage: 3.7v±0.05v

Overload release voltage: 3.6v±0.05v

Overload protection delay: 600us

Over discharge protection

Overload protection voltage: 2.2v±0.1v

Over discharge release voltage: 2.5v±0.1v

Over-discharge detection delay: 600us

balance

Balance detection voltage: 3.55v

Balance release voltage: 3.55v

Balance current: 35ma±5ma

Discharge protection

Instantaneous current: DC*2.5

Overcurrent detection delay: 600us

Over-discharge detection voltage: 100mv

Overcurrent protection release condition: disconnect the load

Short circuit protection

Short circuit protection condition: external load short circuit

Short circuit detection delay: 600us

Short-circuit protection release condition: disconnect the load

temperature protection

Charging temperature: -20 Celsius~55 Celsius

Discharge temperature: -20 Celsius~70 Celsius

Remove temperature control protection: within the operating temperature range

Internal resistance

Main circuit resistance: ≤10mψ

Automatic electricity consumption

Working current: ≤100ua

Sleep current (when the battery is overcharged): ≤20ua

Operating temperature

Temperature range: -20 Celsius/80 Celsius

Colour:blue

Material:abs+metal

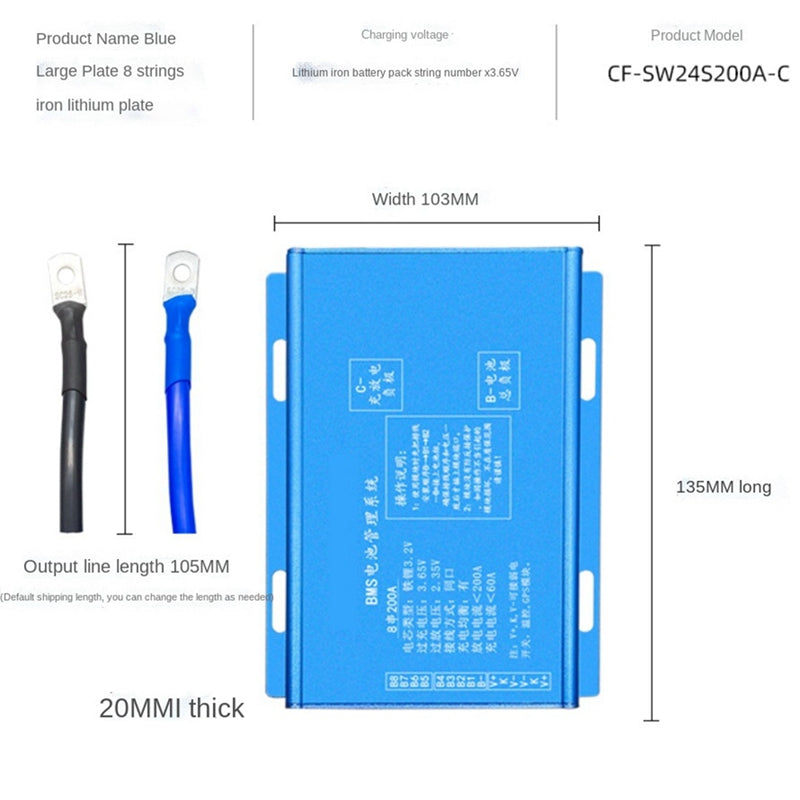

Size:135 x 105 x 20mm

Package Contents:

1 * bms ≤10mψ

Automatic electricity consumption

Working current: ≤100ua

Sleep current (when the battery is overcharged): ≤20ua

Operating temperature

Temperature range: -20 Celsius/80 Celsius

Colour:blue

Material:abs+metal

Size:135 x 105 x 20mm

Package Contents:

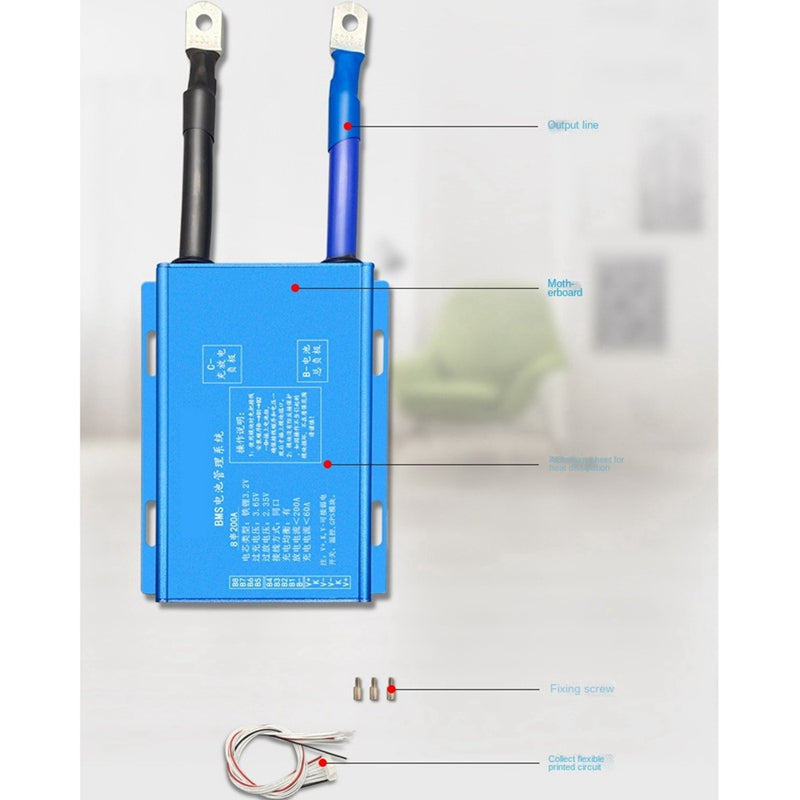

1 * bms battery charging protection board

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
