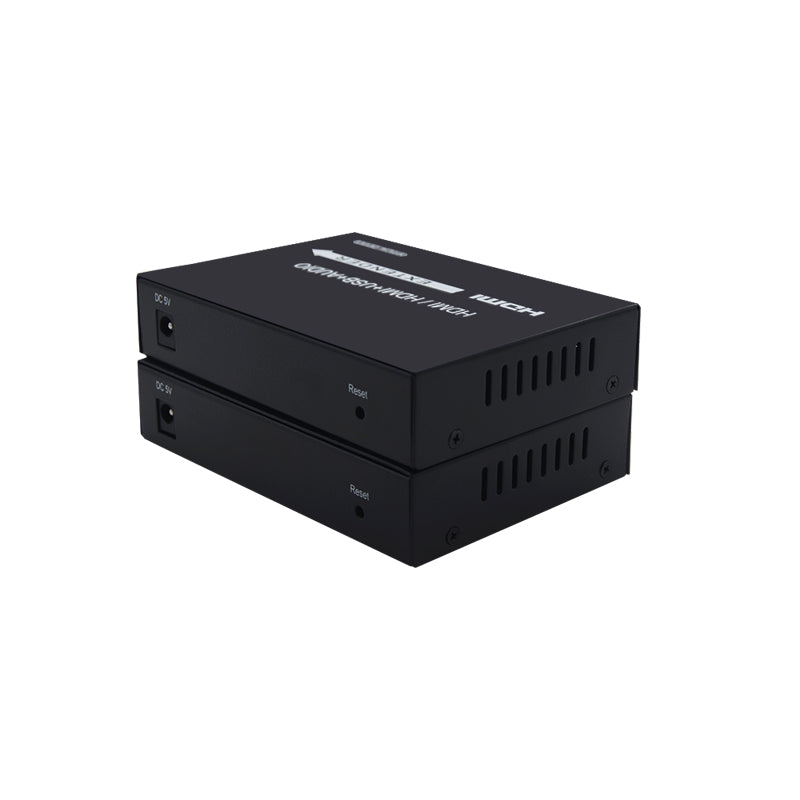

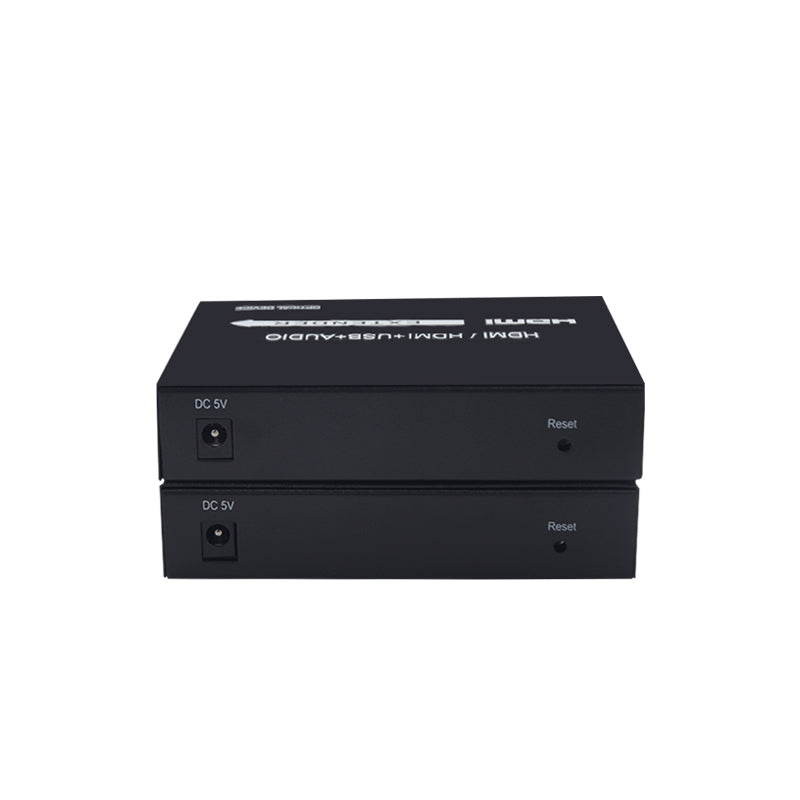

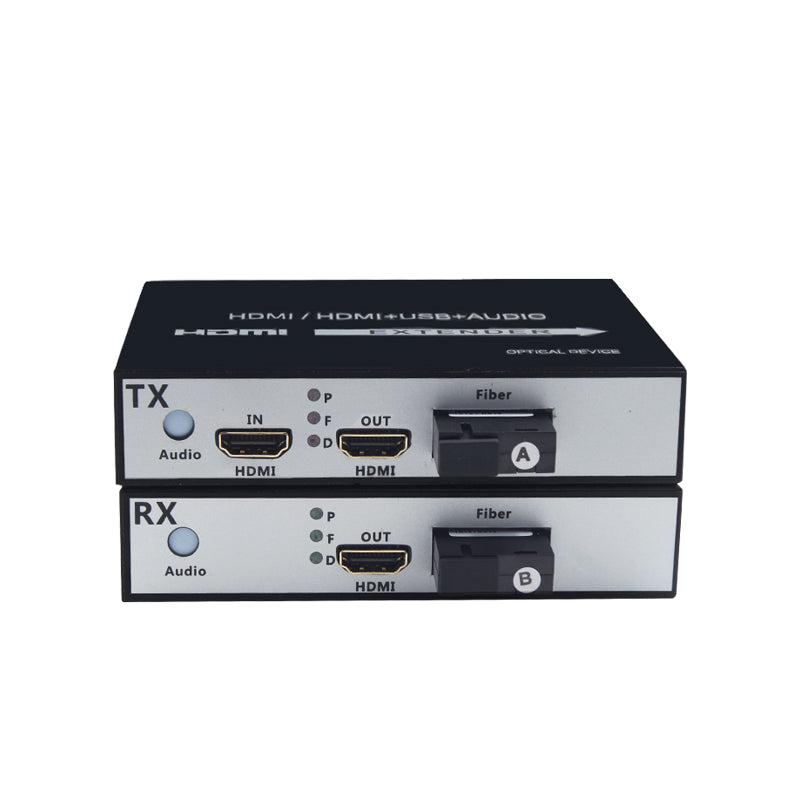

1Pair 1-channel 1 in 2 out HDMI Optical Converter 1080P HDMI Fiber Optic Video Extender HDMI Video Transceiver optical terminal
Optical
Wavelength
1310nm/1550nm
Output Power
-5 ~ -10dBm
Fiber Type and Distance
multimode (50/125um) 5Km, ( 62.5/125um) 2Km single mode (9/125um) 20Km / 40Km
Receiving Sensitivity
-18dBm
Return Loss
> 12dB
Interface
SC
Video
Number / Signal Type
1 in 2out HDMI
Channel
1-channel
Input / Output Voltage
1Vp-p / 1Vp-p
Bandwidth(-3 dB)
300MHz
Color Depth
10 Bit
Resolution
at 50/60Hz , 1920x1080 (HDMI)
640 x 480 (VGA), 800 X 600 (SVA), 1024 X 768 (XGA)
1280 X 1024 (SXVGA), 1600 X 1200 (UXGA)
Interface
HD-15(VGA, DVI optional)
Electrical. Environmental. Mechanical
Voltage / Power Consumption
220VAC to 12VDC/1A, 5W
Operating Temperature
0°C to +50°C
Storage Temperature
-40°C to +85°C
Humidity
<95% non-condensing
Dimension
184L x 140W x 45H mm
Weight
2.0KG
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
