Specifications:
Input voltage: 3.3-12V
Driving current: 500mA

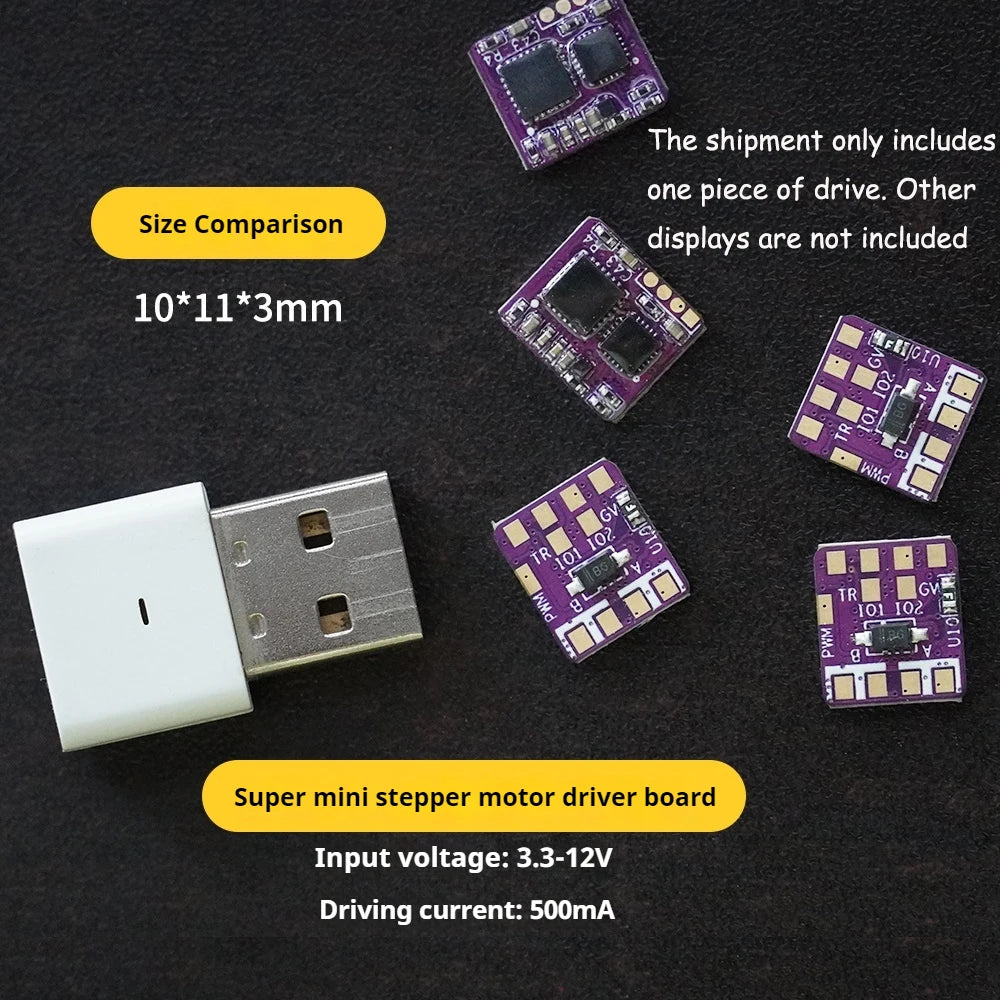

Dimensions: 10*11*3mm
Ultra-low power consumption drive, quiet and cool. It is measured that 20mA power consumption can drive a 6mm bare motor under low-voltage drive conditions
Configuration Description:

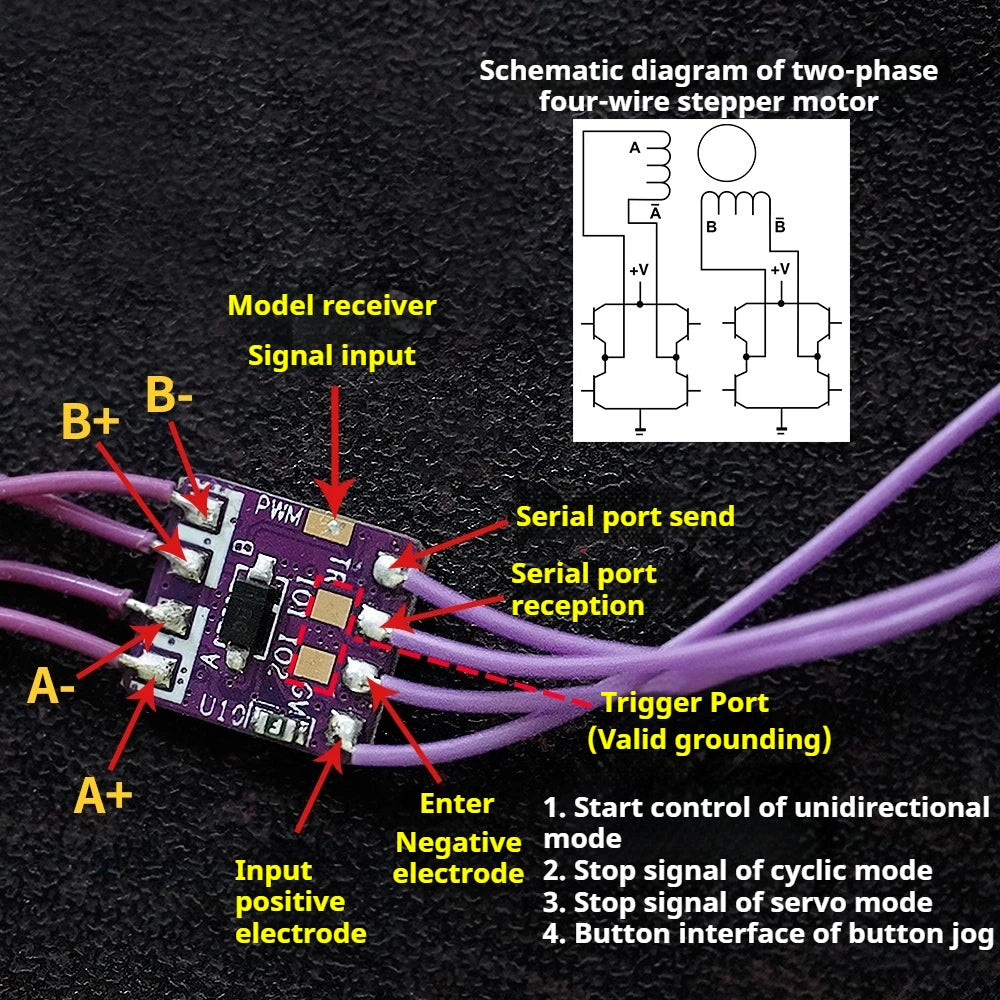

Serial port tools and pin cables are required. The serial port configuration interface has a 2.54 pitch. Please note that when configuring, use USB 5V power supply and do not use multiple power sources.
2. Use the PC-end configuration software. The software can be downloaded from the cloud disk and does not require installation. After opening it, connect it to the corresponding serial port. You can freely adjust the mode, speed, force and cycle period.

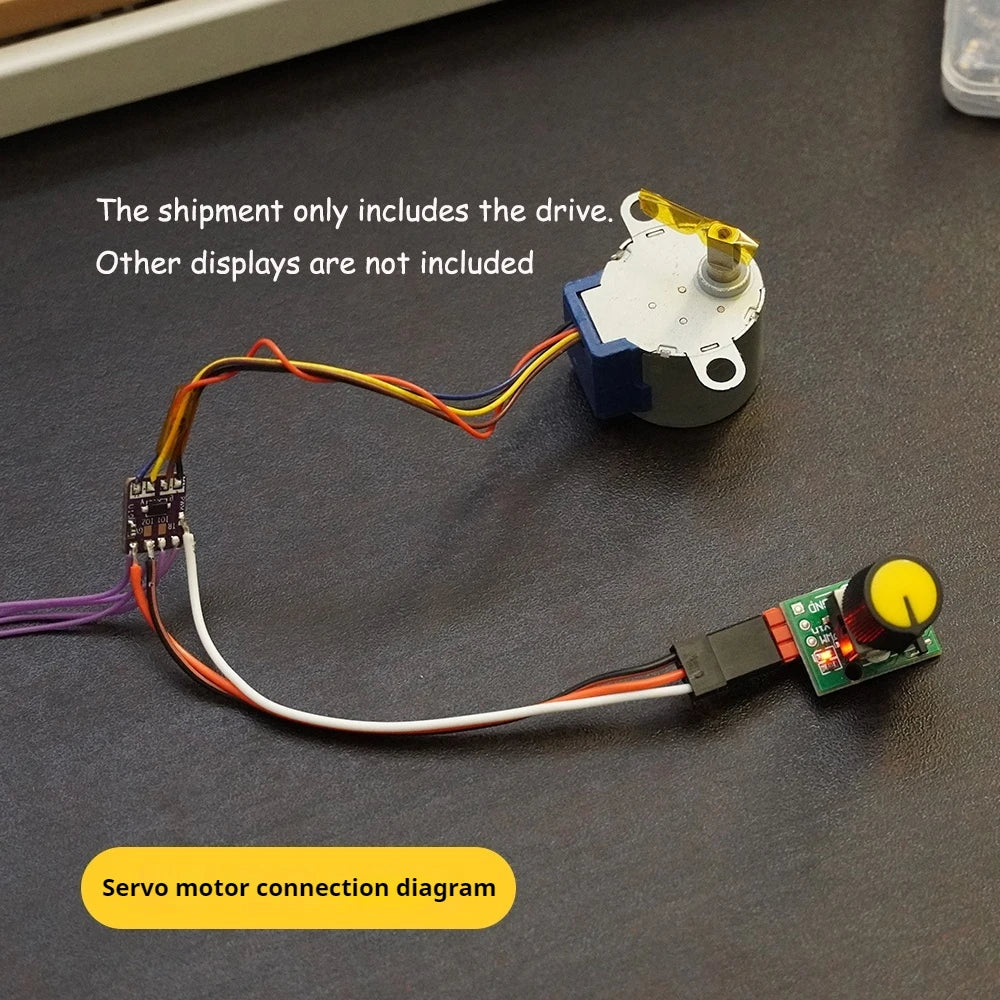

There are ten modes: cycle mode, one-way mode, servo mode, key point operation, serial port start and stop, serial port point operation, single operation, one-way throttle, and two-way throttle. Default loop mode, turns immediately upon power connection.
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 1mm-1cm differences due to manual measurement.
Package includes:

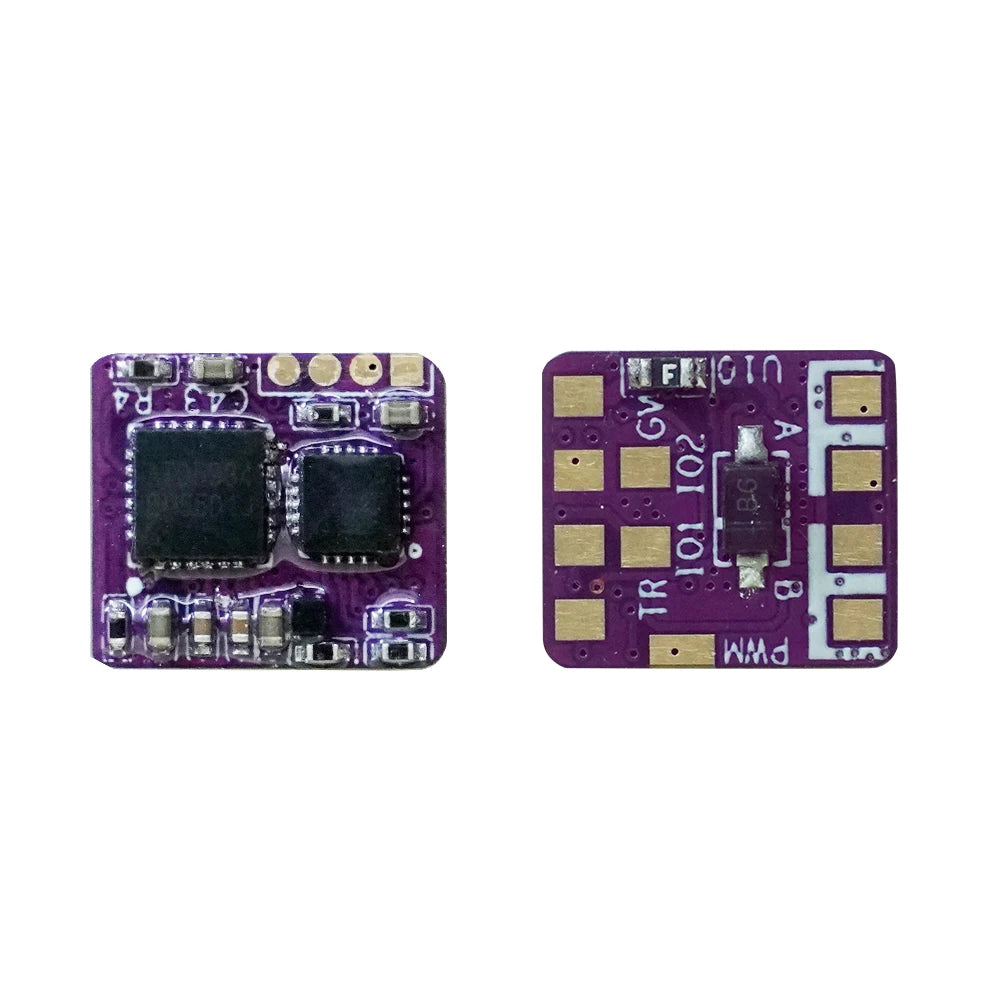

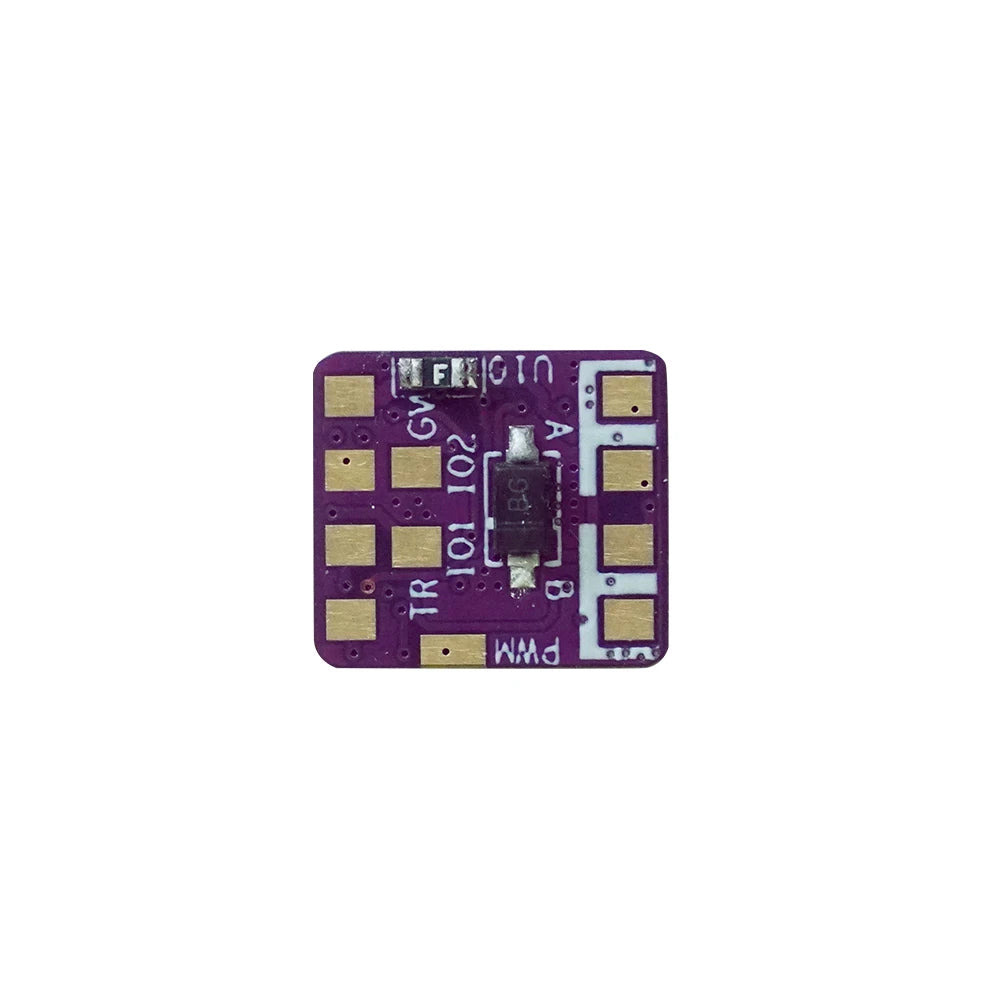

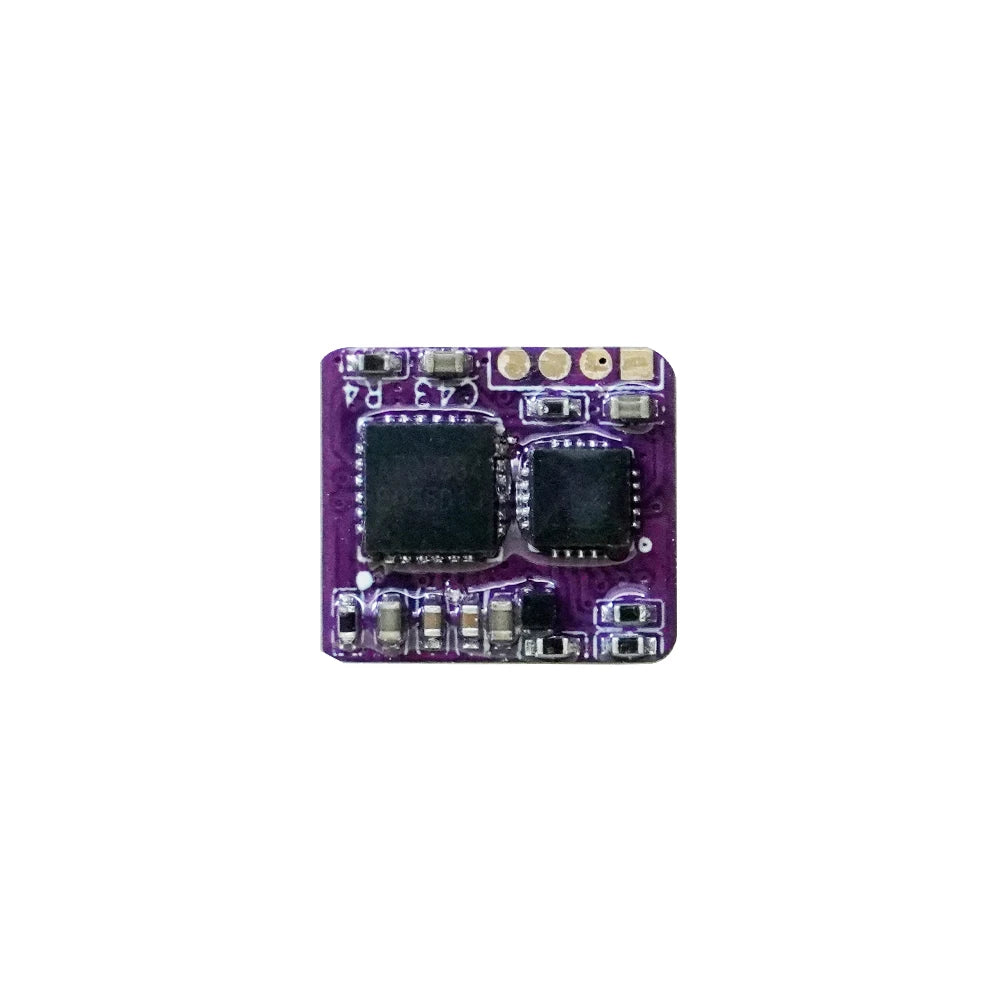

1x Motor Driver Board
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
